Product Details

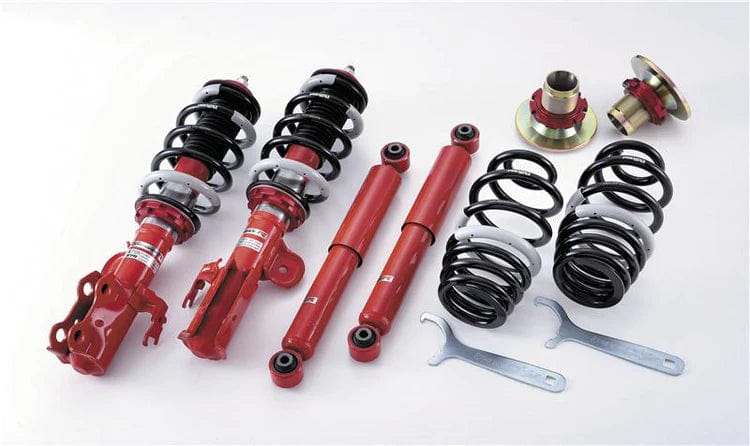

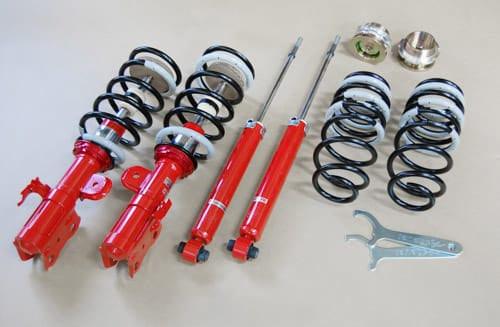

The Tanabe Sustec Pro CR Coilovers for the 2010-2015 Toyota Prius deliver a refined balance of comfort and performance with fully adjustable ride height. Featuring KYB twin-tube dampers and Tanabe's PRO210 springs made from SWI200 steel with 2100 N/m tensile strength, these Prius coilovers provide a smooth, controlled ride without sacrificing handling. Front and rear spring rates are set at 3 Kg/mm and 4 Kg/mm respectively, tuned specifically for the Toyota Prius platform.
Designed, manufactured, and tested in Japan, the Tanabe Pro CR coilovers use the same PRO210 spring technology found in JGTC GT500 class competition. Every set is engineered for direct fitment on US-spec vehicles and backed by a 1-year limited manufacturer warranty.
Features
- KYB twin-tube damper design
- PRO210 springs (SWI200 steel, 2100 N/m tensile strength)
- Fully adjustable ride height
- Durable spring seat and lock nut
- Double sheet rings for secure spring retention
- Double plated mounts for longevity
- Direct fit for US-spec vehicles
- 1-year limited manufacturer warranty
Specifications
| Part Number | TSR153 |
| Part Name | Tanabe Sustec Pro CR Coilovers |
| Vehicle | 2010-2015 Toyota Prius |
| Ride-Height Adjustable | Yes |
| Damping Type | Non-Adjustable |
| Ride Height Adjustment - Front | -3/4 to -2 in |
| Ride Height Adjustment - Rear | -1 to -2 1/2 in |
| Spring Rates - Front | 3 Kg/mm |
| Spring Rates - Rear | 4 Kg/mm |
| Top Mounts - Front | OEM |
| Top Mounts - Rear | OEM |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Divorced |
| Notes | Adjustable Rear Spring |
Vehicle Fitment
- 2010 Toyota Prius
- 2011 Toyota Prius
- 2012 Toyota Prius
- 2013 Toyota Prius
- 2014 Toyota Prius
- 2015 Toyota Prius
