Product Details

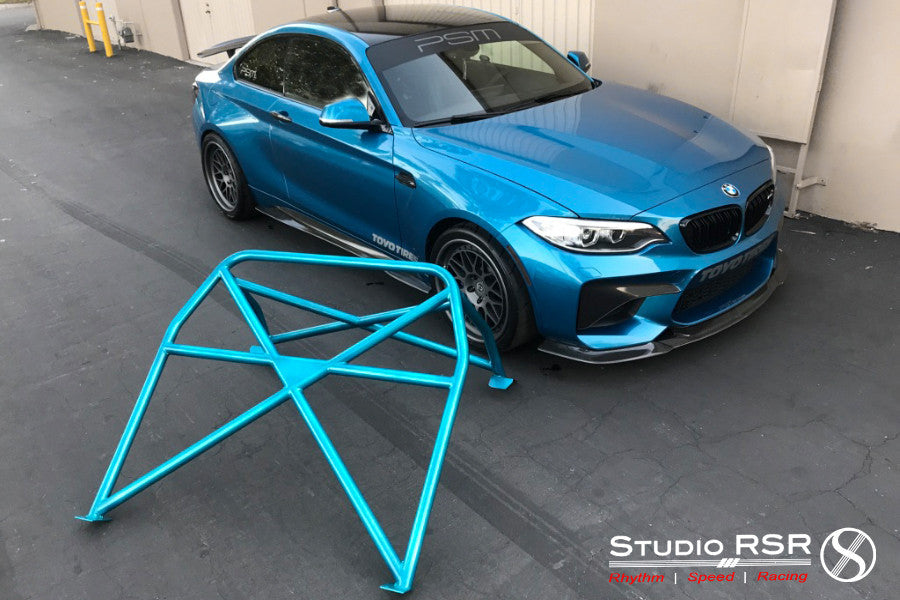

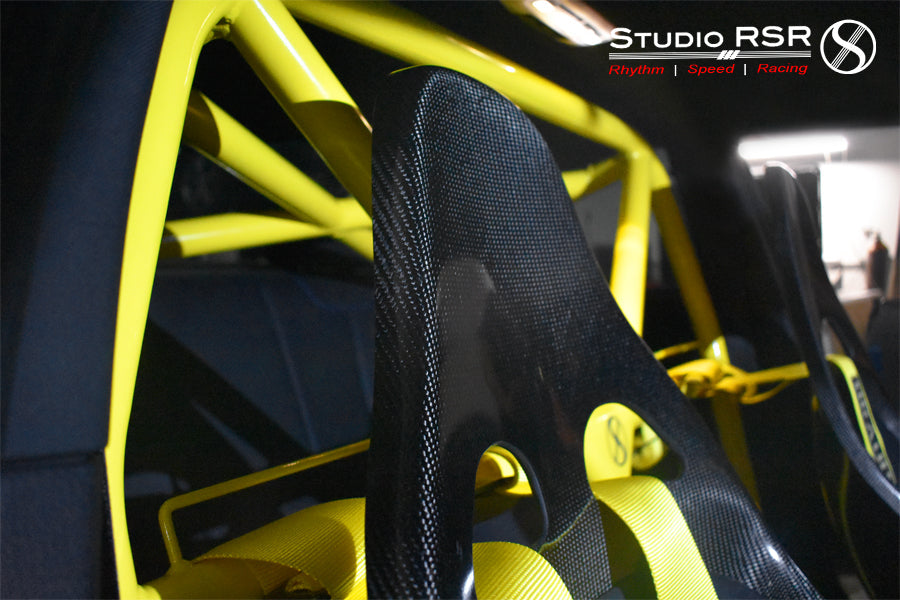

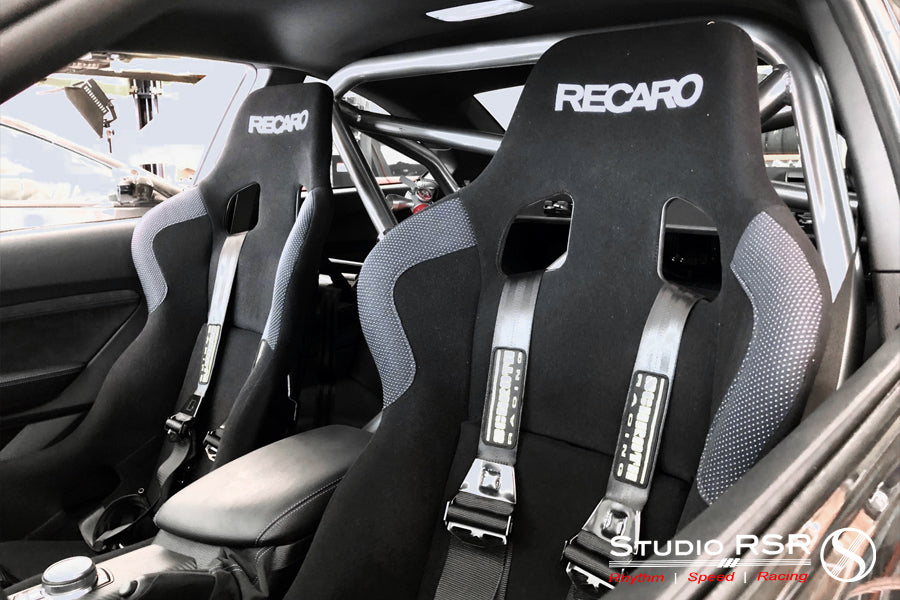

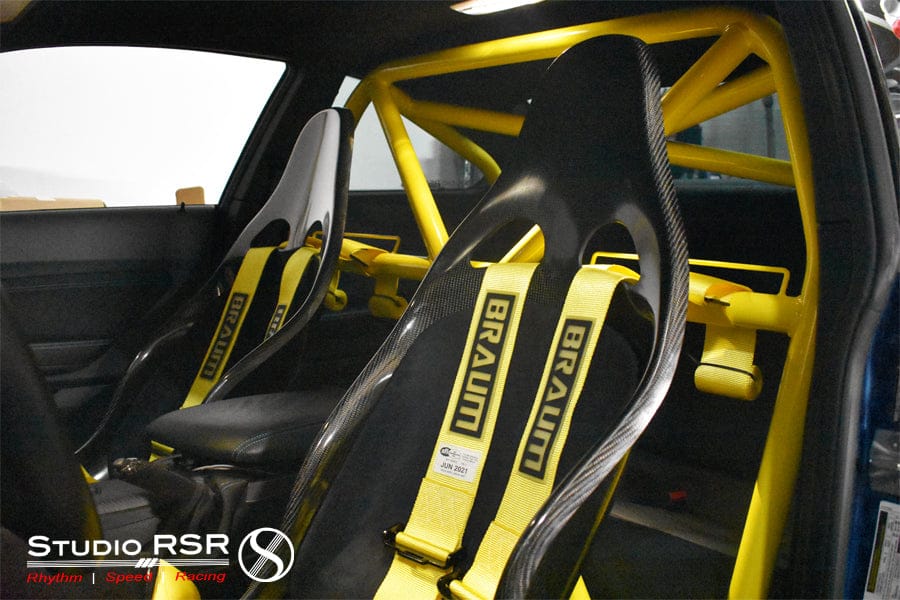

The Studio RSR bolt-in roll bar for the 2017-2021 BMW M240i stiffens your chassis where it matters most, giving you sharper, more confident handling on track and a serious step up in occupant protection for HPDE, time attack, and weekend racing. It is engineered specifically for the M240i, so it follows the lines of the interior and bolts to the car's factory mounting points for a tight, purpose-built fit.
Designed and built in-house in the USA, every M240i four-point structure uses wide-radius mandrel bends and CNC-machined interlocking clamps for a clean, race-grade look and a precise, repeatable install. Because it is rear-seat compatible, you can keep a street-friendly interior and still run the car on track. Choose DOM mild steel or lightweight 4130 chromoly, powdercoated to order.
Features

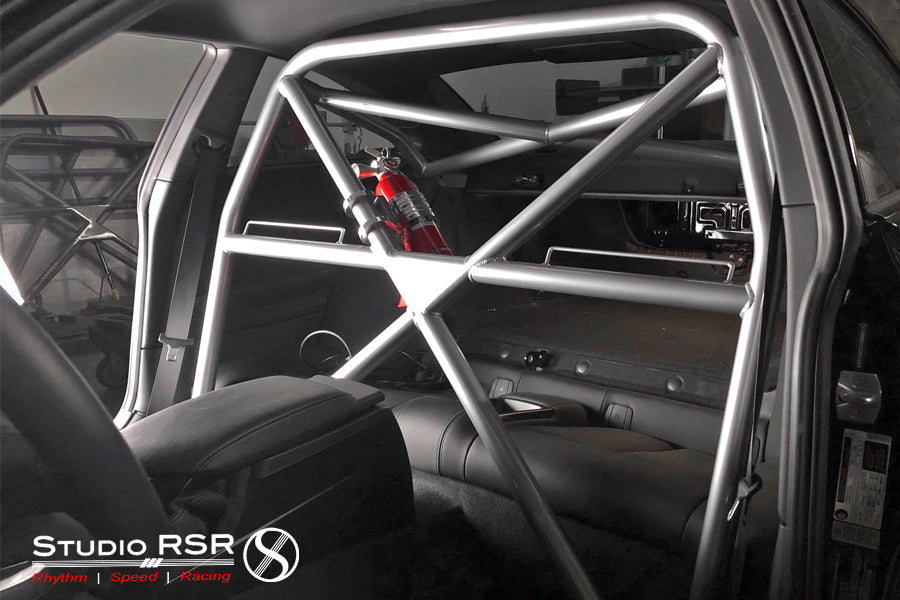

- 100% bolt-in 4-point half-cage — no welding or drilling required

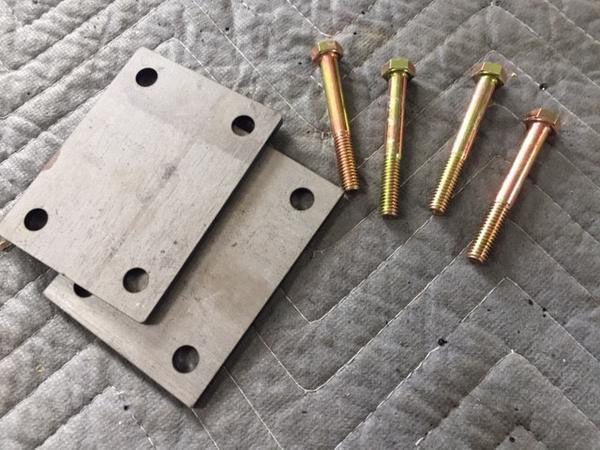

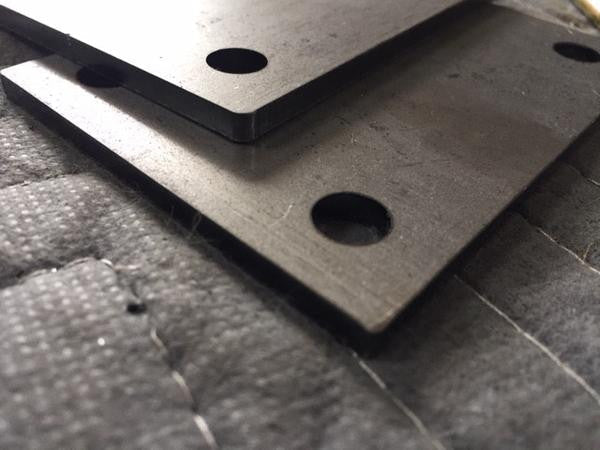

- Engineered to the car's factory mounting points with form-fitted steel brackets

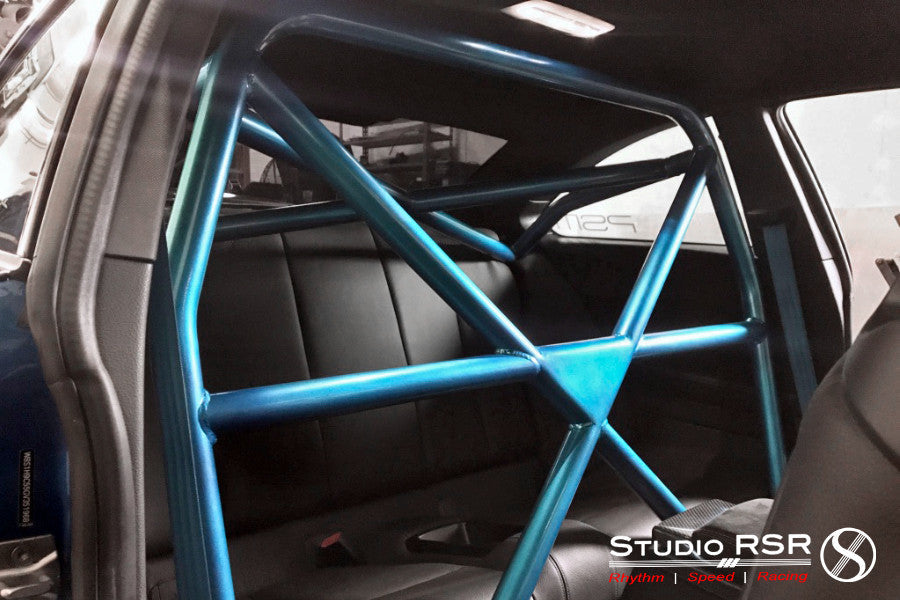

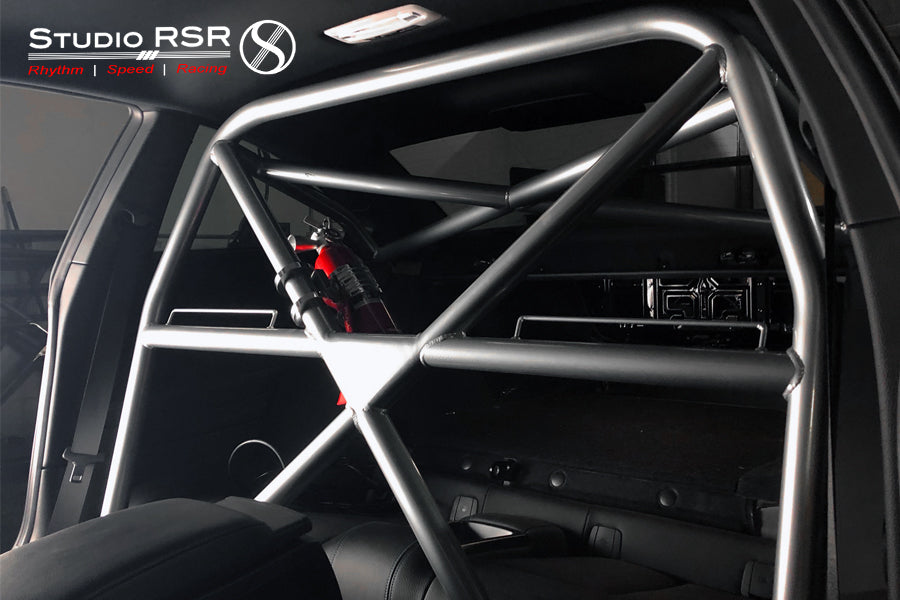

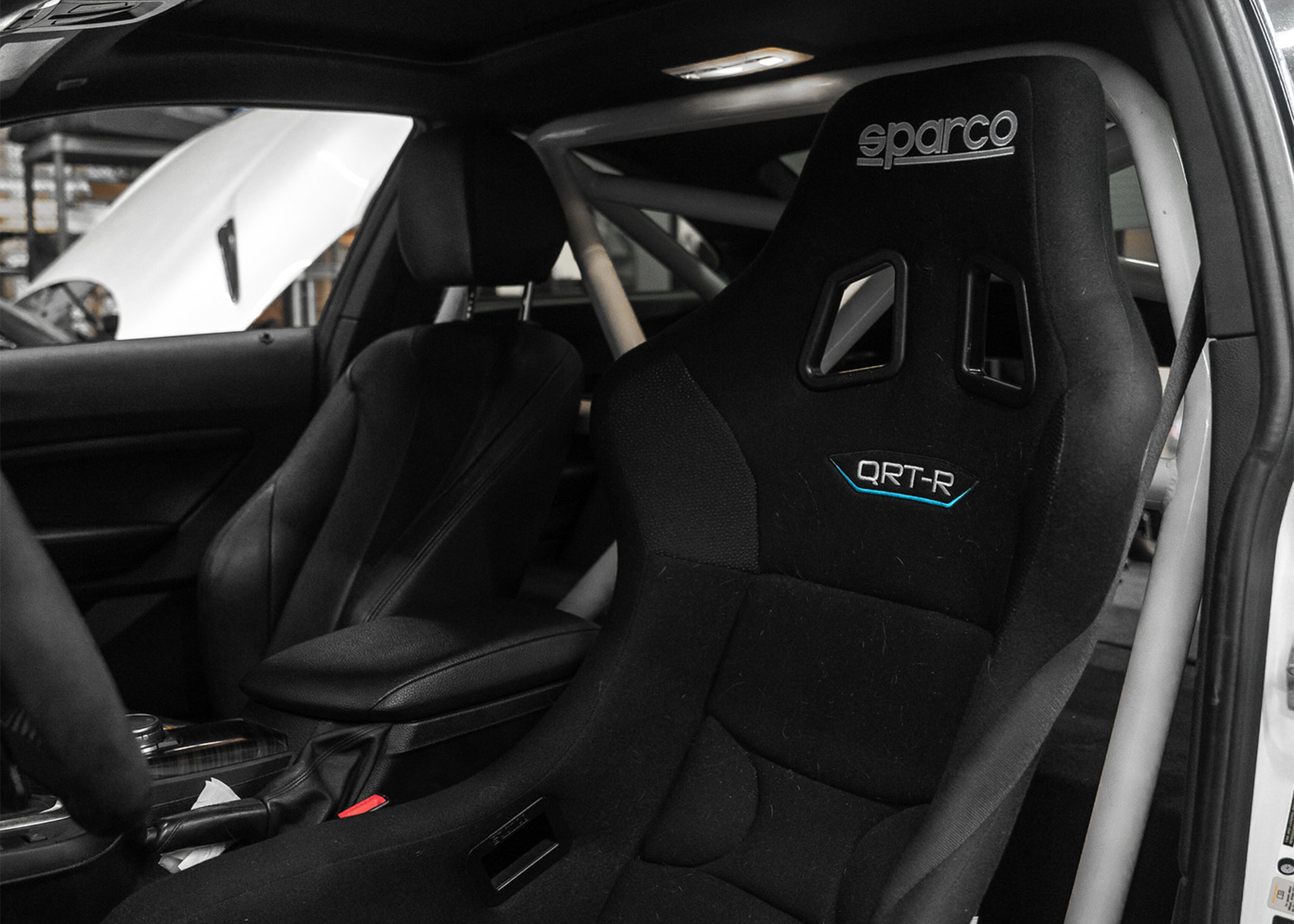

- Rear-seat compatible — keep your back seats installed
- Wide-radius mandrel bends for even stress distribution — no crimping or tube-wall failure

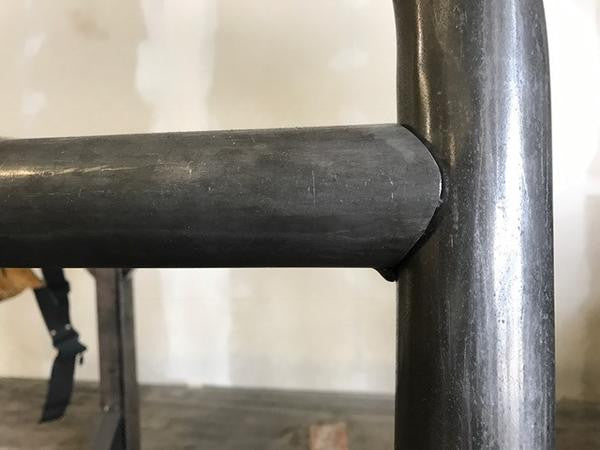

- Proprietary CNC-machined chromoly interlocking tubing clamps
- Built to NASA road-racing geometry (per 2016.5 rulebook; not NASA-sanctioned)
- Grade-8 mounting hardware and installation instructions included
- Choice of NASA straight-leg or angled-leg rear legs

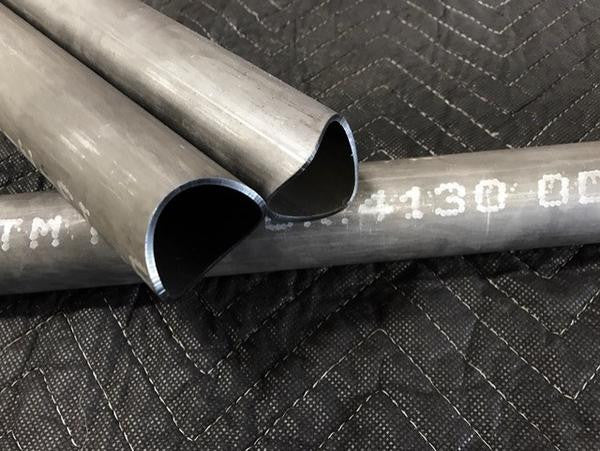

- Choice of DOM mild steel or lightweight 4130 chromoly tubing
- Standard powdercoat finish included; custom colors available on request
- Ships as 2 main pieces for easier handling and install
- Designed and manufactured 100% in the USA
Installation
This is a true bolt-in structure that mounts to the M240i's factory hard points — no welding, no drilling, and no cutting of the chassis. The interlocking tubing clamps let the bar go together inside the car and come apart again if needed, and all Grade-8 hardware plus step-by-step instructions are included. Professional installation is recommended.
Specifications
| Part Name | Studio RSR 4-Point Roll Bar |
| Vehicle | 2017-2021 BMW M240i |
| Chassis | F22 |
| Configuration | 4-Point Half-Cage (Roll Bar) |
| Mounting Points | 4 |
| Material | DOM Mild Steel or 4130 Chromoly |

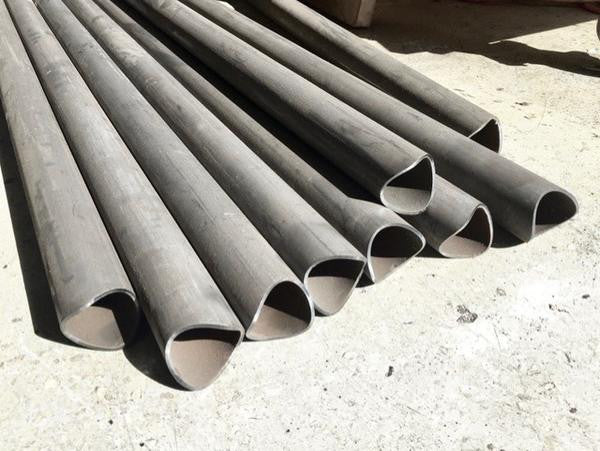

| Tubing | 1.75 in OD x 0.095 in wall |
| Tube Bends | Wide-radius mandrel-formed |
| Rear Legs | NASA straight-leg or angled-leg (selectable) |
| Finish | Powdercoat — standard colors included; custom color available |
| Mounting | Bolt-in to factory points; no welding |
| Hardware | Grade-8 mounting hardware included |
| Rear Seat Compatible | Yes |
| Ships As | 2 main pieces |
| Made In | USA |
| Notes |
|
Vehicle Fitment
- 2017 BMW M240i (F22)
- 2018 BMW M240i (F22)
- 2019 BMW M240i (F22)
- 2020 BMW M240i (F22)
- 2021 BMW M240i (F22)
Important Fitment Note
This roll bar is intended for off-road and competition use only.
