Product Details

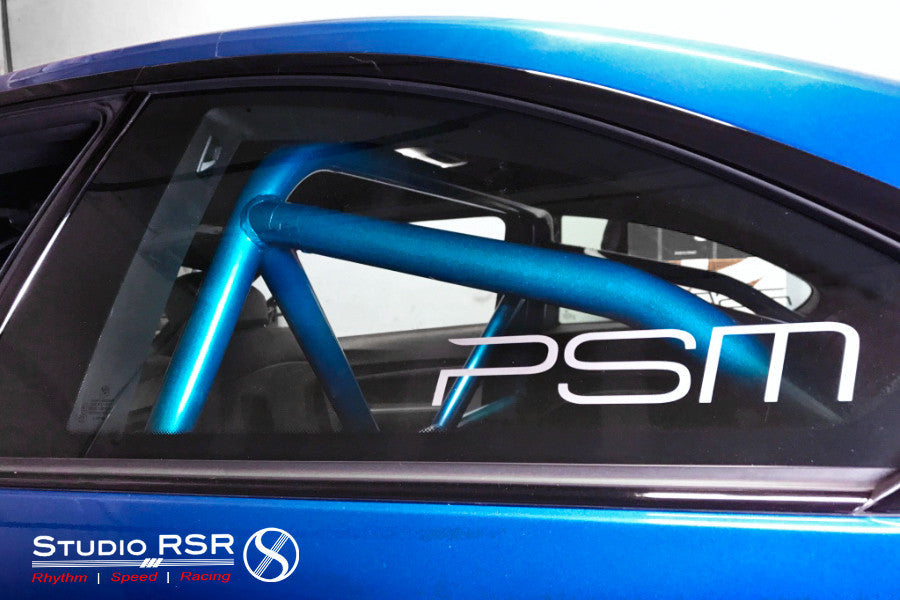

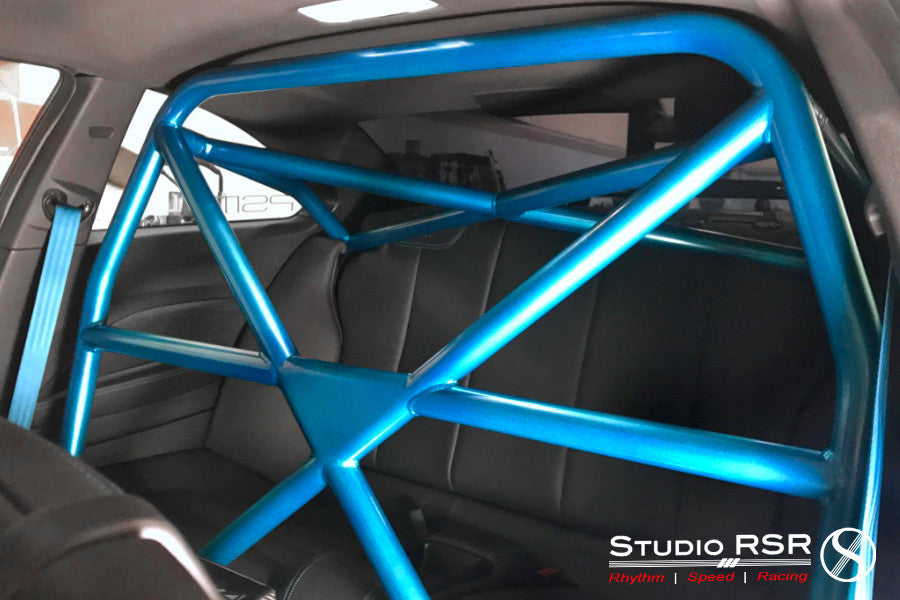

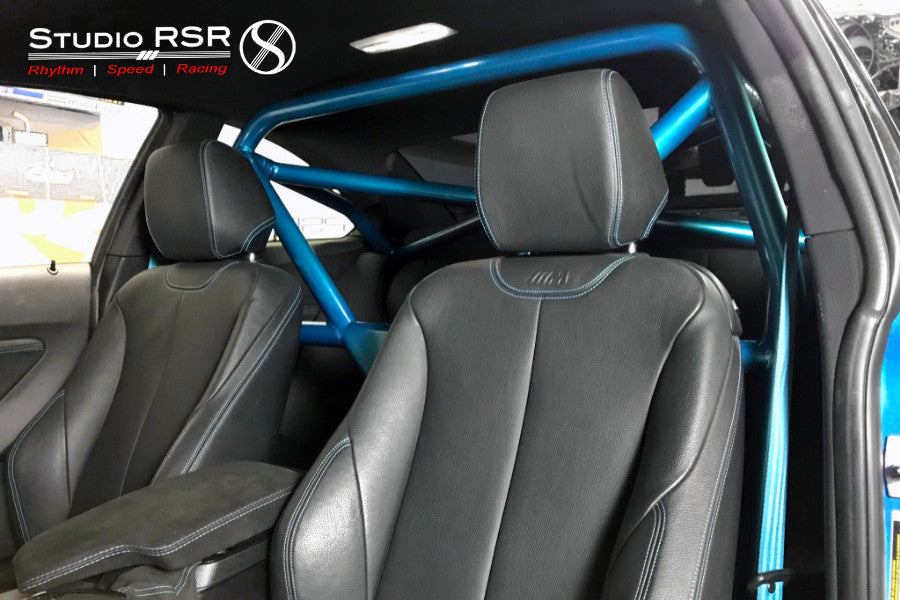

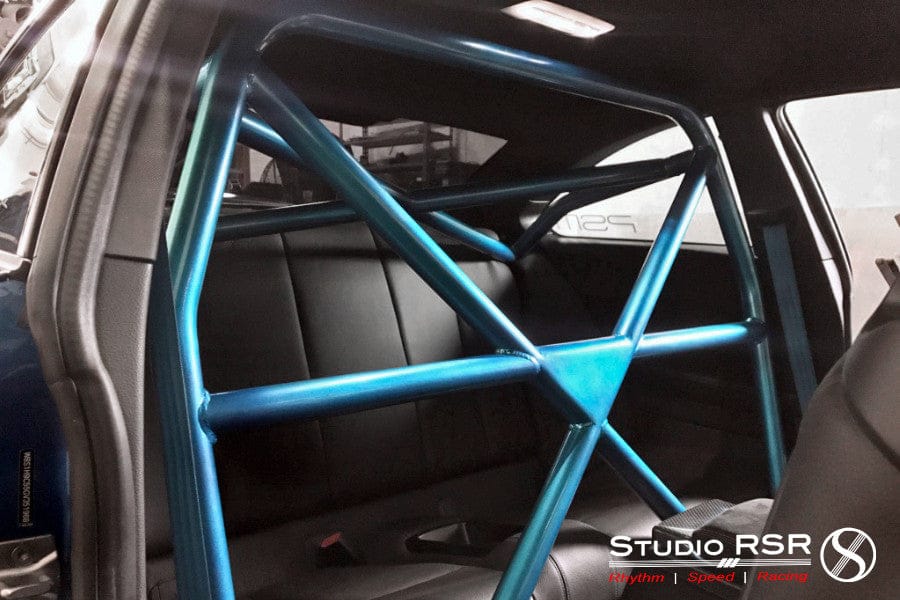

The Studio RSR bolt-in roll bar for the 2014-2021 BMW 2 Series stiffens your chassis where it matters most, giving you sharper, more confident handling on track and a serious step up in occupant protection for HPDE, time attack, and weekend racing. It is engineered specifically for the 2 Series, so it follows the lines of the interior and bolts to the car's factory mounting points for a tight, purpose-built fit.
Designed and built in-house in the USA, every 2 Series four-point structure uses wide-radius mandrel bends and CNC-machined interlocking clamps for a clean, race-grade look and a precise, repeatable install. Because it is rear-seat compatible, you can keep a street-friendly interior and still run the car on track. Choose DOM mild steel or lightweight 4130 chromoly, powdercoated to order.
Features
- 100% bolt-in 4-point half-cage — no welding or drilling required

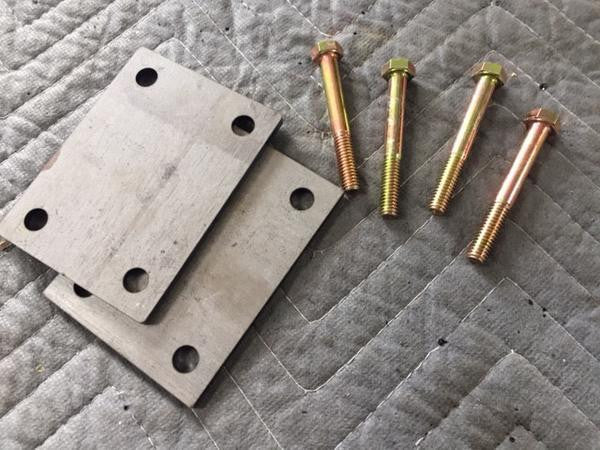

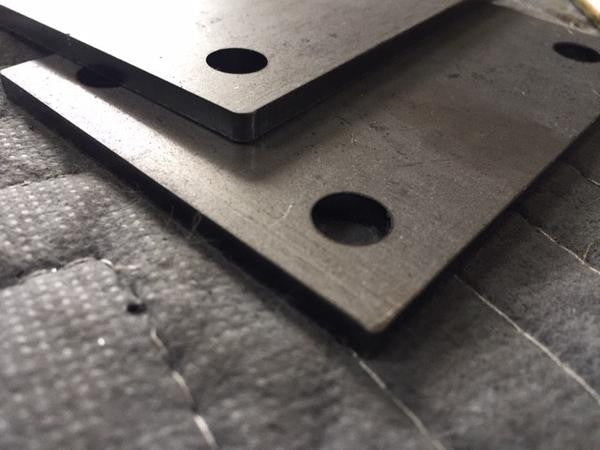

- Engineered to the car's factory mounting points with form-fitted steel brackets

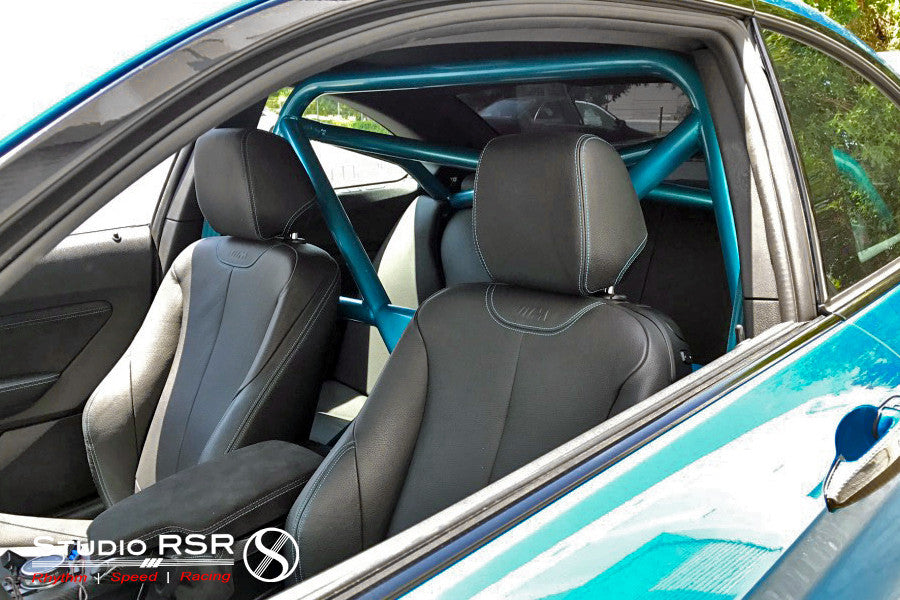

- Rear-seat compatible — keep your back seats installed

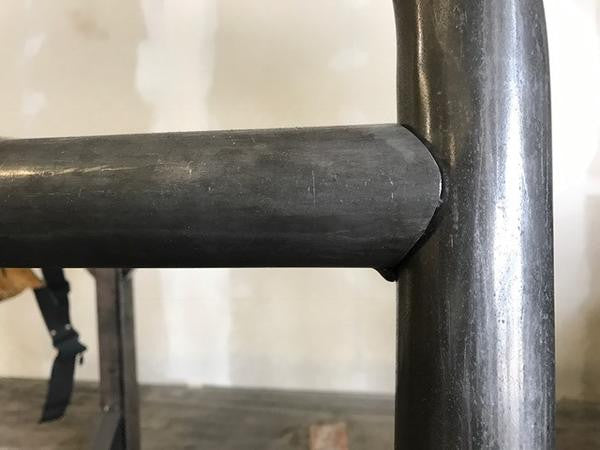

- Wide-radius mandrel bends for even stress distribution — no crimping or tube-wall failure
- Proprietary CNC-machined chromoly interlocking tubing clamps
- Built to NASA road-racing geometry (per 2016.5 rulebook; not NASA-sanctioned)
- Grade-8 mounting hardware and installation instructions included
- Choice of NASA straight-leg or angled-leg rear legs

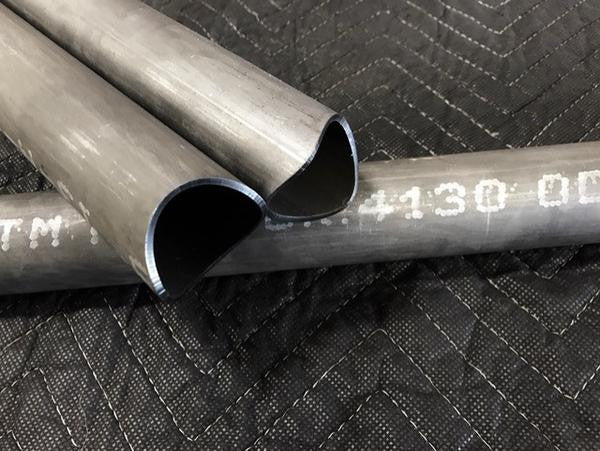

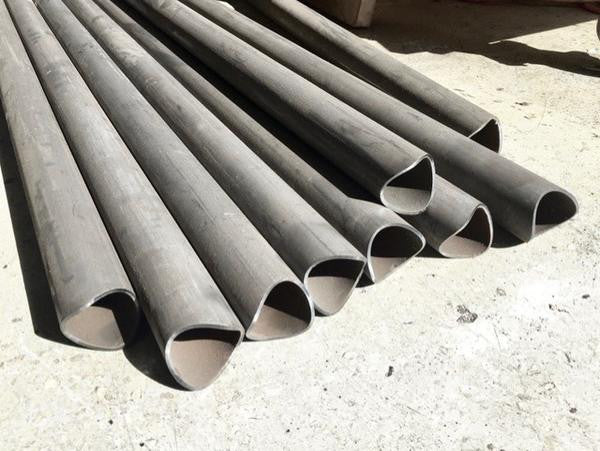

- Choice of DOM mild steel or lightweight 4130 chromoly tubing
- Standard powdercoat finish included; custom colors available on request

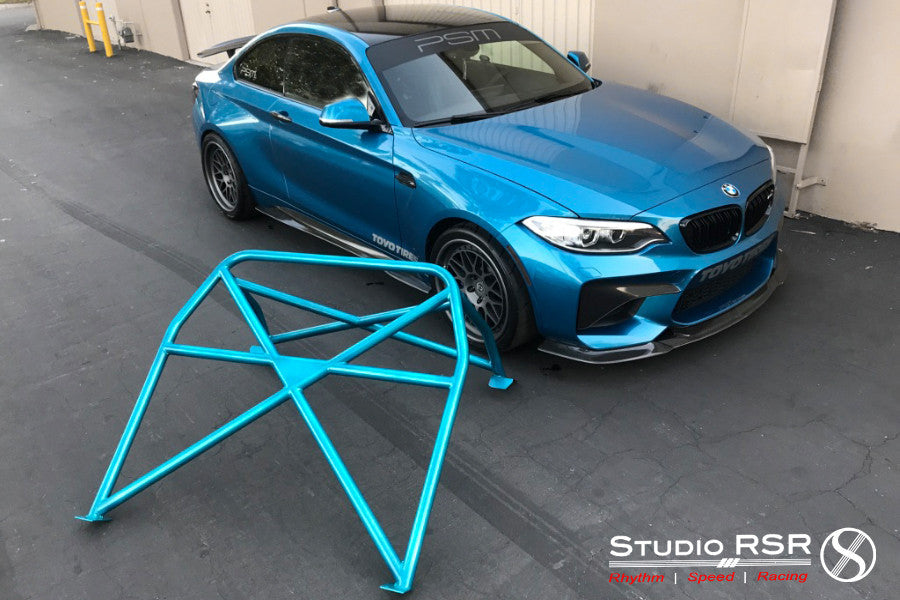

- Ships as 2 main pieces for easier handling and install
- Designed and manufactured 100% in the USA
Installation
This is a true bolt-in structure that mounts to the 2 Series's factory hard points — no welding, no drilling, and no cutting of the chassis. The interlocking tubing clamps let the bar go together inside the car and come apart again if needed, and all Grade-8 hardware plus step-by-step instructions are included. Professional installation is recommended.
Specifications
| Part Name | Studio RSR 4-Point Roll Bar |
| Vehicle | 2014-2021 BMW 2 Series |
| Chassis | F22 |
| Configuration | 4-Point Half-Cage (Roll Bar) |
| Mounting Points | 4 |
| Material | DOM Mild Steel or 4130 Chromoly |
| Tubing | 1.75 in OD x 0.095 in wall |
| Tube Bends | Wide-radius mandrel-formed |
| Rear Legs | NASA straight-leg or angled-leg (selectable) |
| Finish | Powdercoat — standard colors included; custom color available |
| Mounting | Bolt-in to factory points; no welding |
| Hardware | Grade-8 mounting hardware included |
| Rear Seat Compatible | Yes |
| Ships As | 2 main pieces |
| Made In | USA |
| Notes |
|
Vehicle Fitment
- 2014 BMW 2 Series (F22)
- 2015 BMW 2 Series (F22)
- 2016 BMW 2 Series (F22)
- 2017 BMW 2 Series (F22)
- 2018 BMW 2 Series (F22)
- 2019 BMW 2 Series (F22)
- 2020 BMW 2 Series (F22)
- 2021 BMW 2 Series (F22)
Important Fitment Note
This roll bar is intended for off-road and competition use only.
