Product Details
These ST Suspensions ST XTA Plus 3 coilovers fit the 2013-2016 Scion FR-S Coupe.
The XTA Plus 3 Coilover Kit for the Scion FR-S is ST’s 3-Way adjustable coilover. From the factory, the XTA Plus 3 Coilover Kit is equipped with KW dampers that are adjustable in high-speed and low- speed compression as well as adjustable rebound damping. It has 24 clicks each of high-speed and low-speed compression damping and 18 clicks of rebound adjustment. The damping range covers cars with a bolt-in or welded roll cage, spherical bushings or changed wheel loads. The XTA Plus 3 also includes a parts approval certificate, race springs and aluminum uniball top mounts. Easy lowering adjustment: Like all ST coilovers the ride height adjustment is made via seamless thread on the galvanized strut housing.
This even allows the ride height to be adjusted even when the kit is installed by adjusting the spring perch higher or lower! NOTE: The lowering of each vehicle differs greatly with ST XTA plus 3 coilovers due to the type of construction. KW Engineering: Exclusive for ST Suspension. The high-quality ST XTA plus 3 coilover is based on the twin-tube damping principle of low friction combined with pressure-resistant damper housings. Manufactured directly at KW, a mono block guide and seal package reduces the friction of the damper as well as protecting it against corrosion and dirt. Each galvanized strut is sealed multiple times to ensure maximum longevity in ALL weather conditions.
Standard Features

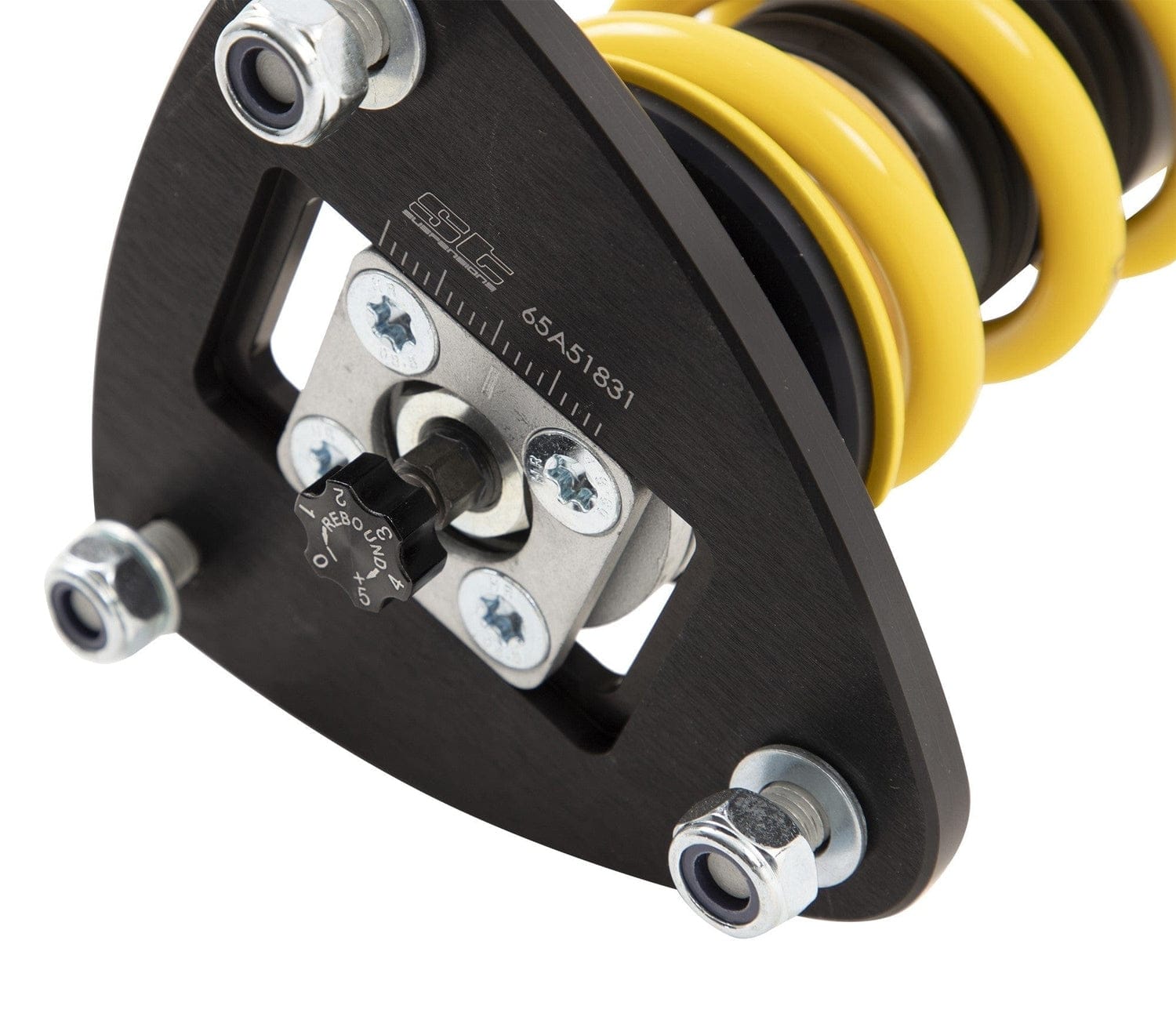

- Aluminum uniball top mounts improve steering response and feedback while allowing you to dial in your camber when applicable.
- Linear race spring system provides a consistent response while driving and makes it easy to swap rates to further personalize your setup.

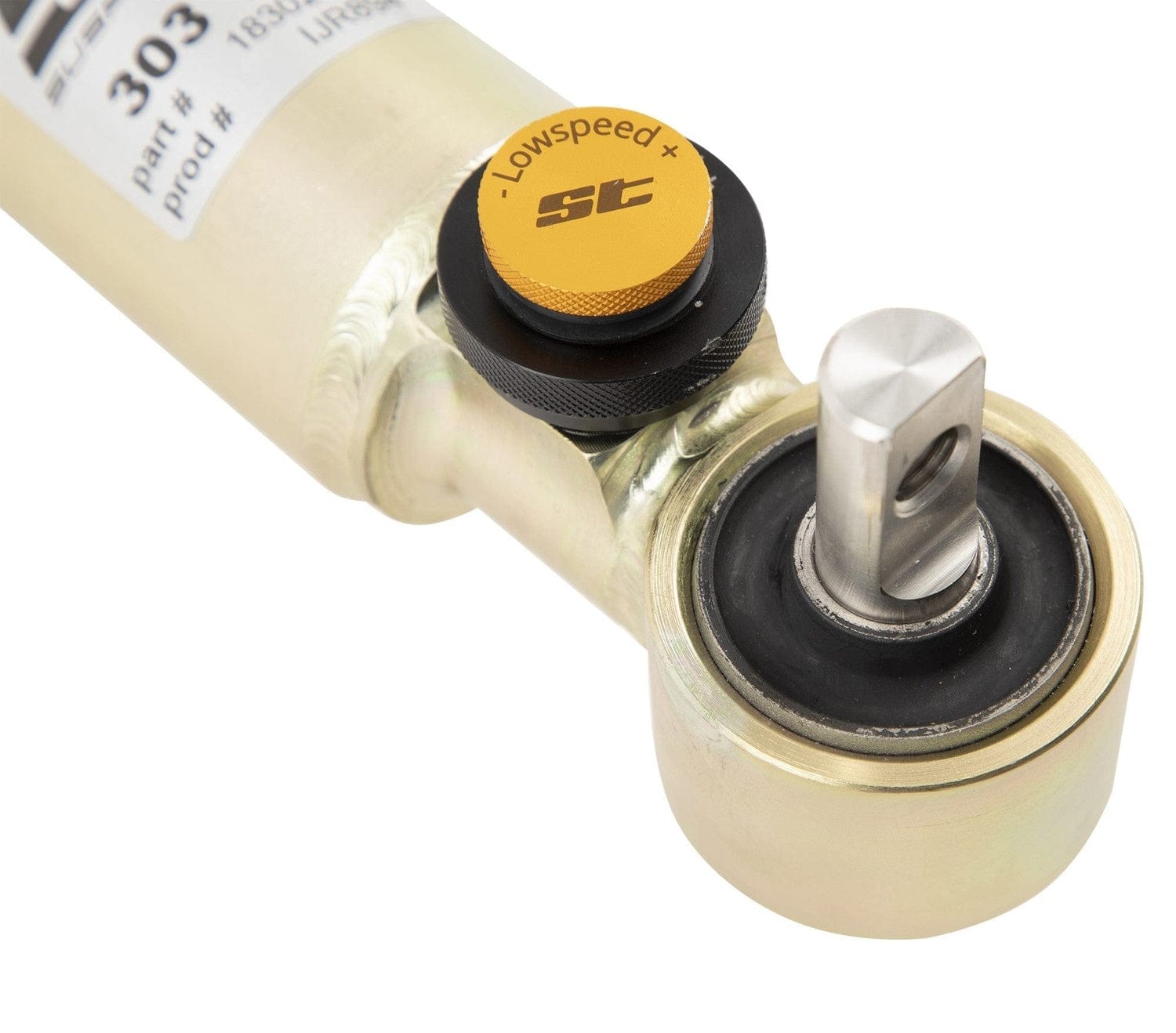

- From the factory, the XTA Plus 3 Coilover Kit is equipped with KW dampers that are adjustable in high- and low speed compression as well as adjustable rebound damping.
- ST coilovers are built by hand by the experts at KW in Fichtenberg, Germany. Each damper is tested on a shock dyno to verify it's making the proper forces before being put into the ST box.

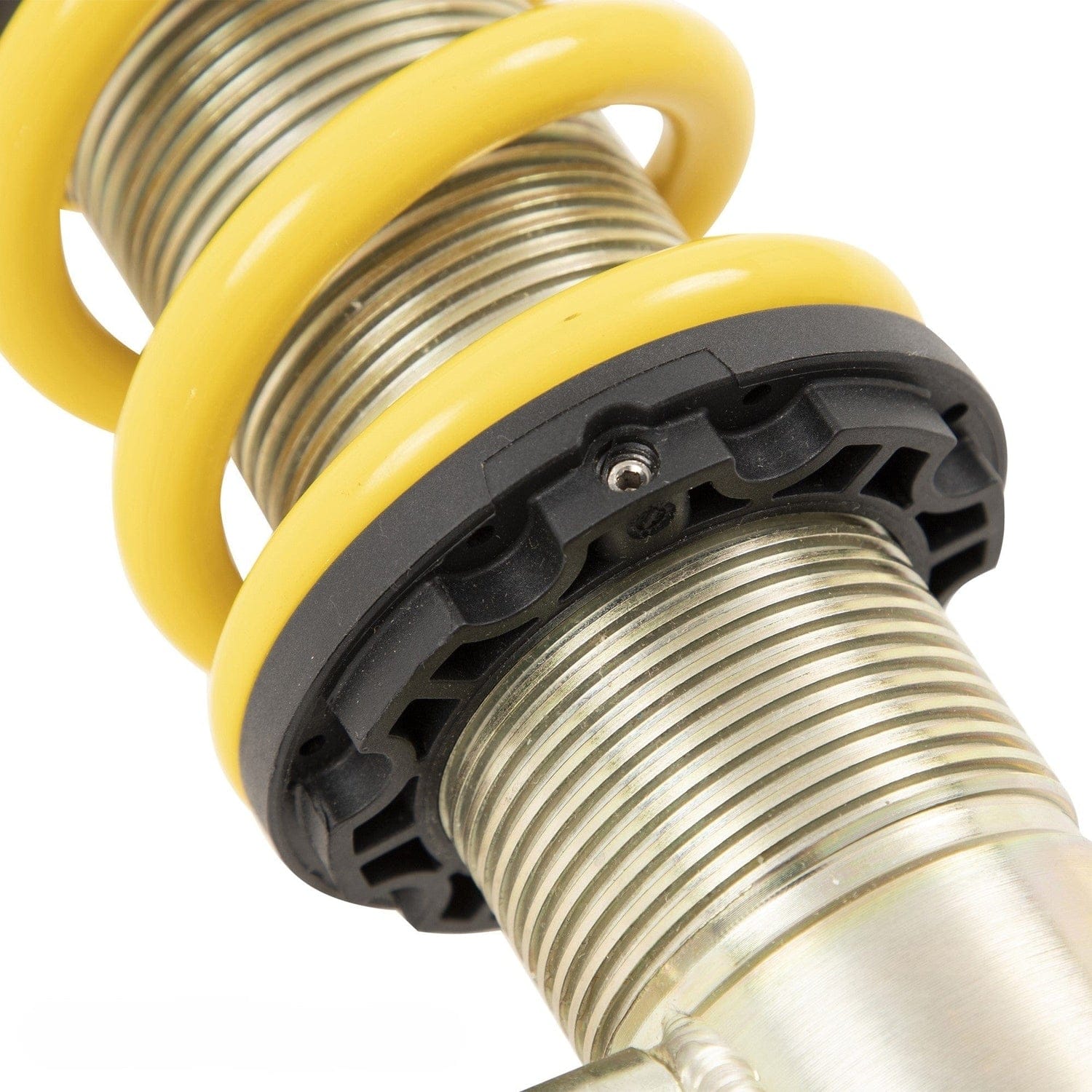

- Composite spring perch made from wear-resistant, friction-optimized polyamide composite with an embedded stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
- Seamless Ride Height Adjustment - ST's composite spring perch and unique trapezoidal thread pitch make ride height easy to adjust.
- Elastomer Bump stop with integrated dust protection system prevents water and dirt particles reaching the piston rod and seals. The highly resilient bump stops act as dynamic load limiters while maintaining ride quality and durability.
- Galvanized steel housing for improved resistance to corrosion.
- Made in Germany
- 5 Year Limited Warranty - Unlimited Mileage
Specifications
| Part Number | 1820258804 |
| Part Name | ST XTA Plus 3 Coilovers |
| UPC | 840134904863 |
| Vehicle | 2013-2016 Scion FR-S Coupe |
| Chassis Code | ZN6 |
| Drivetrain | RWD |
| Lowering Rate - Front | 0.8 - 2.0 in. |
| Lowering Rate - Rear | 0.8 - 2.0 in. |
| Ride-Height Adjustable | Yes |
| Damping Adjustment | 3-Way |
| Spring Rates - Front | 6.16 Kg/mm (345 lbs/in) |
| Spring Rates - Rear | 5.09 Kg/mm (285 lbs/in) |
| Quantity | Full Set (Front & Rear) |
| Notes | - |
