Product Details

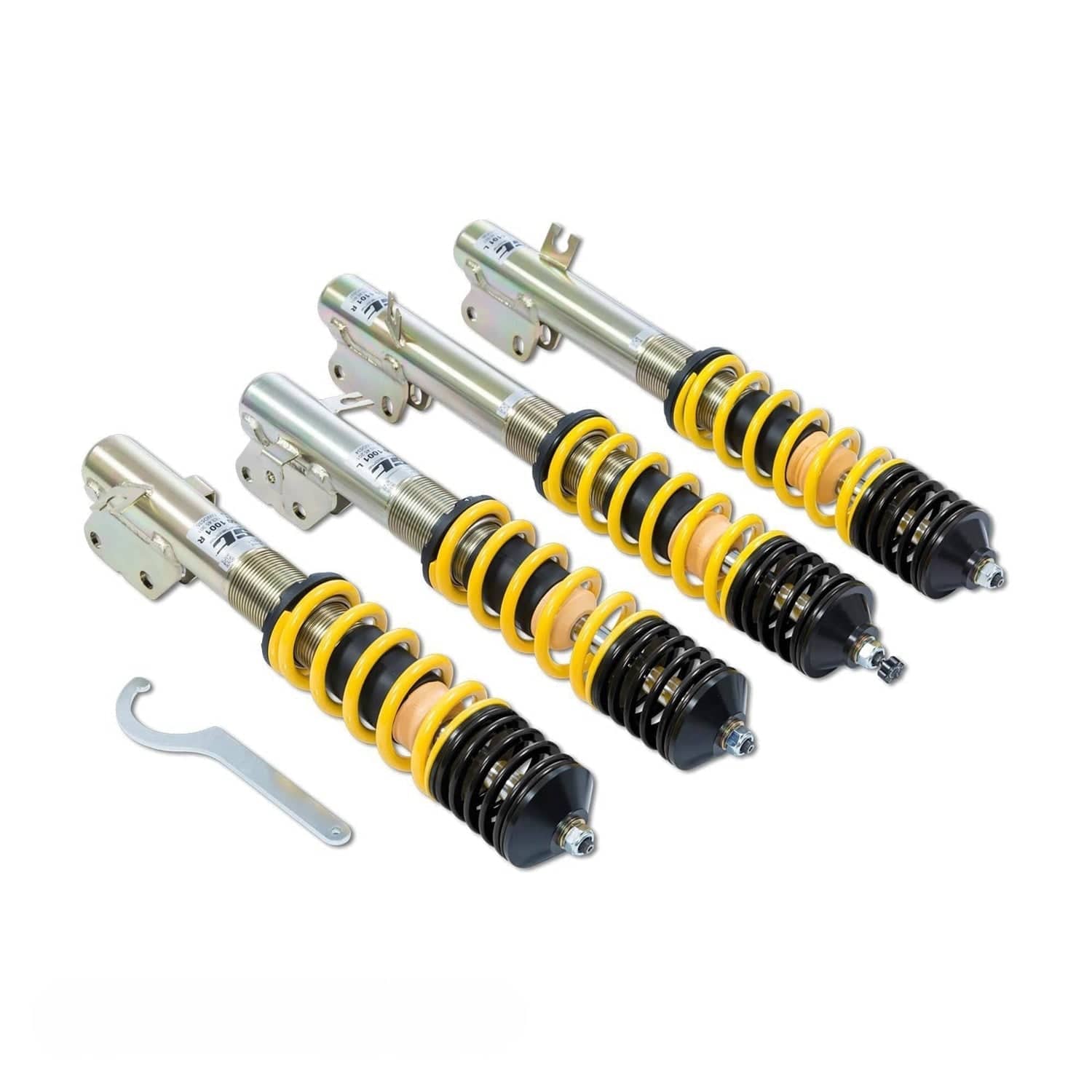

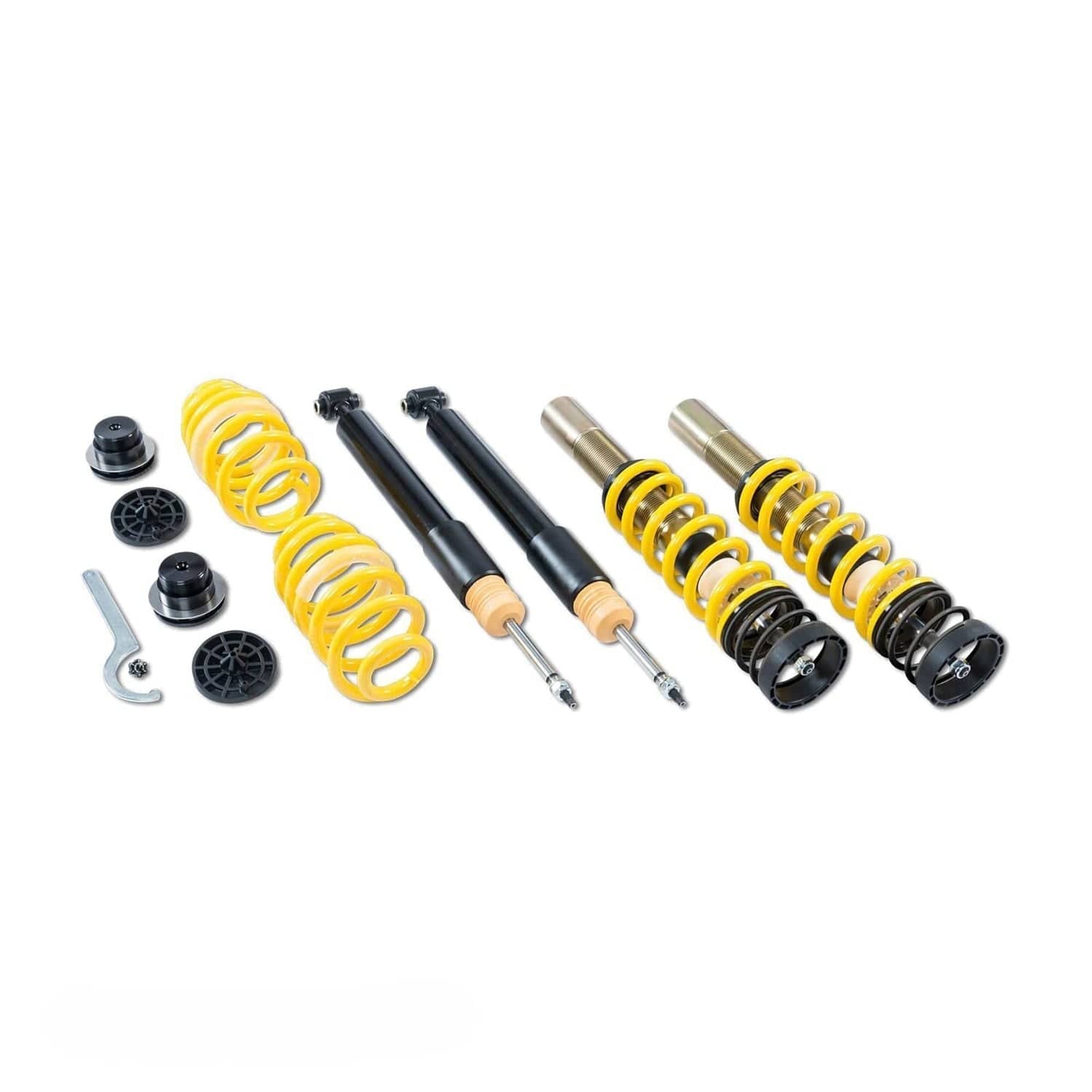

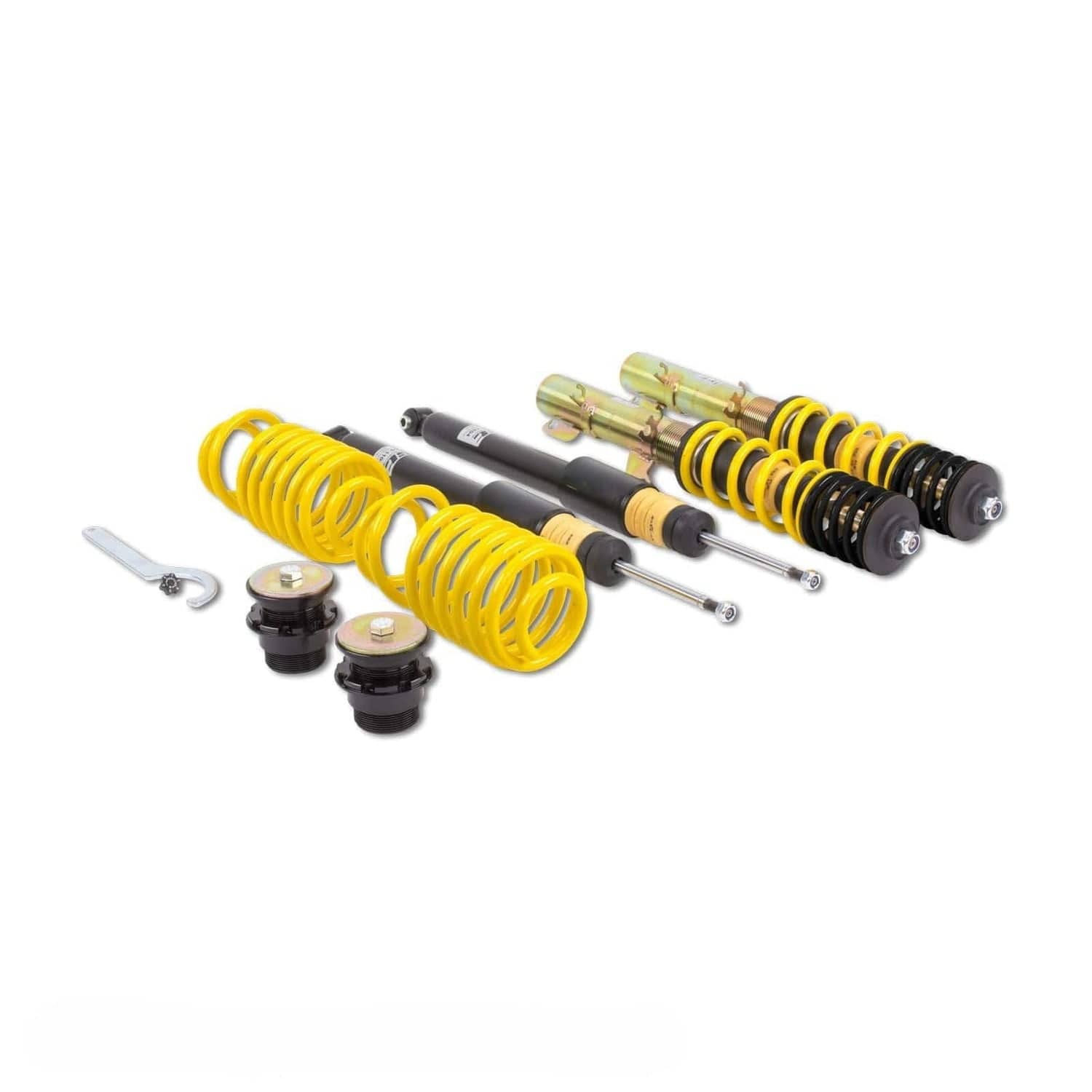

These ST Suspensions ST XA coilovers fit the 2016-2018 BMW 340i xDrive.
ST XA Coilovers give the BMW 340i a wide range of height adjustment. The damper setup is extensively adjustable for road control and comfort. We manufacture the adjustable spring perch made of durable and friction-optimized polyamide composite material with a stainless steel insert. Thanks to the composite material corrosion is prevented between the strut and perch ensuring long lasting height adjustability while the stainless steel insert provides strength. ST XA Coilovers come preset to our factory recommended damper settings, the same configuration we test them at on our KW shock dynos before they go into your box.

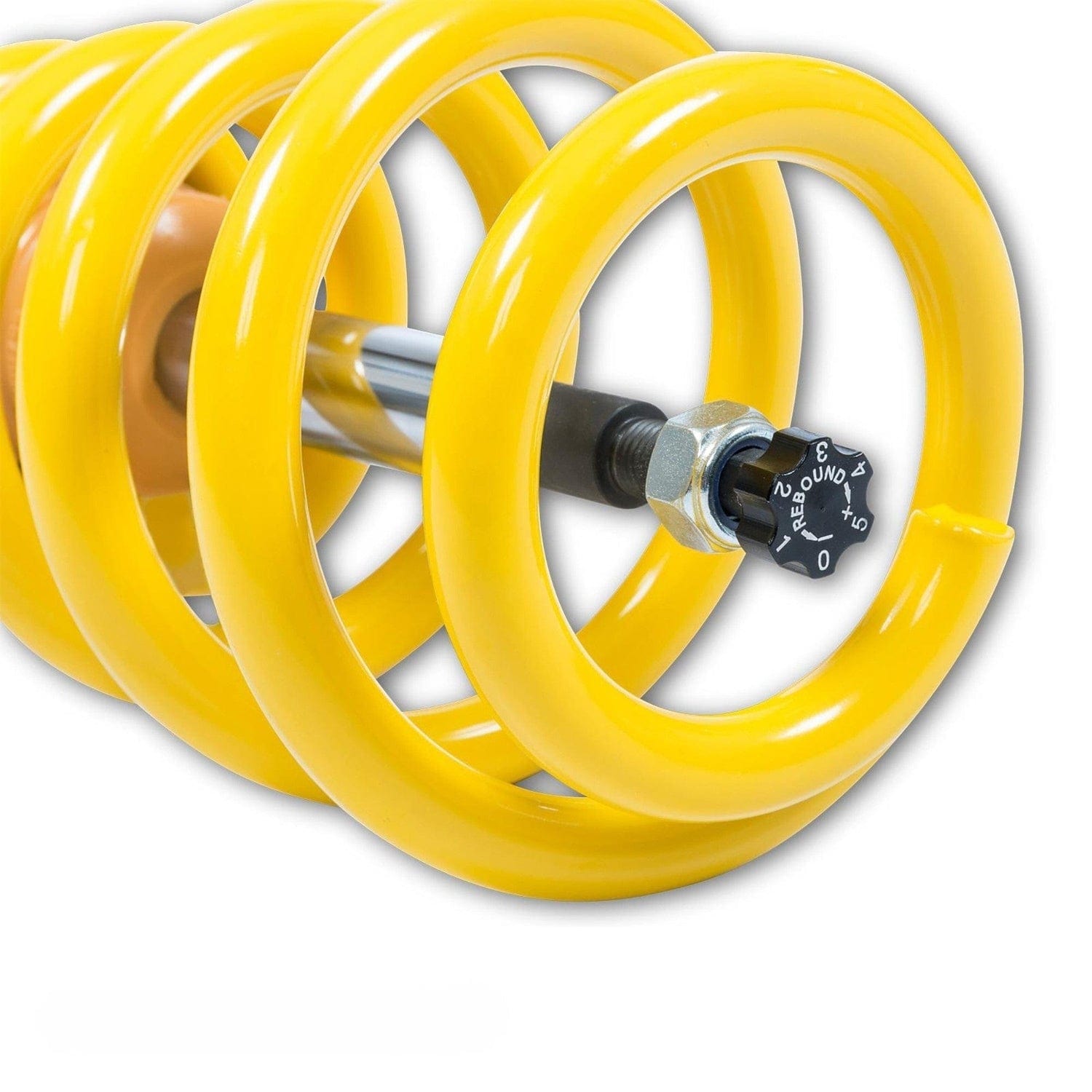

The 16 distinct clicks of adjustable rebound damping allow you to refine the driving dynamics with a simple turn of the adjustment knob. Each kit includes a detailed damper setup manual making it easy to reset to our recommended setting at any time. Galvanized zinc coated steel struts optimize corrosion protection for long lasting use. We add a dust protection system to prevent unwanted dirt and particulate from coming in contact with the hardened chrome piston rod or getting into the valve packs. We reinforce the system with a multi-layered pressure resistant sealing package, mono block guide system and a low friction piston band which works inside the pressure resistant internal damper housing.
Standard Features
- ST XA coilovers feature adjustable rebound damping which puts you in control of how comfortable or sporty your car feels.
- ST coilovers are built by hand by the experts at KW in Fichtenberg, Germany. Each damper is tested on a shock dyno to verify it's making the proper forces before being put into the ST box.

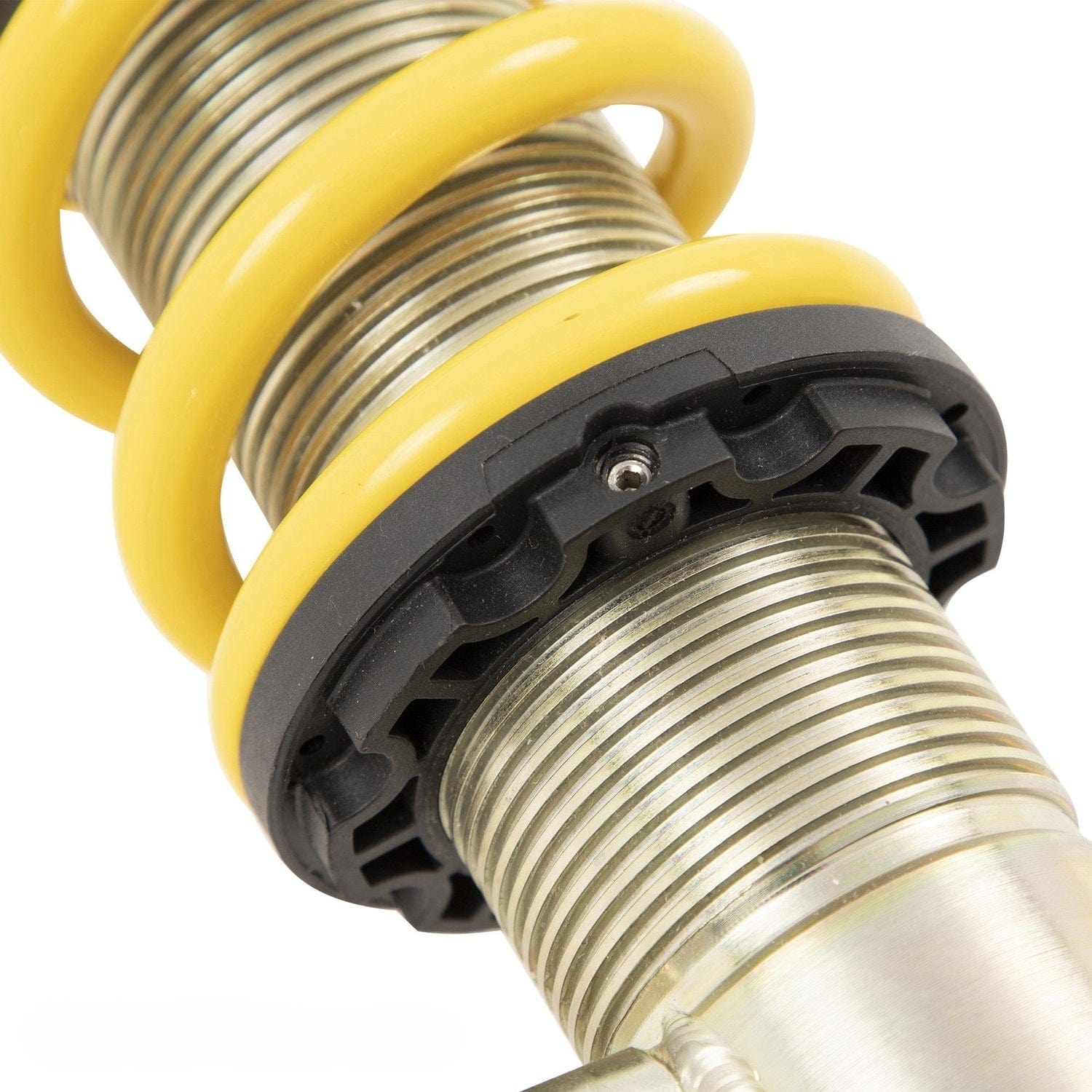

- Composite spring perch made from wear-resistant, friction-optimized polyamide composite with an embedded stainless-steel insert. The polyamide composite prevents oxidation while the stainless-steel insert maximizes strength.
- Seamless Ride Height Adjustment - ST's composite spring perch and unique trapezoidal thread pitch make ride height easy to adjust
- Elastomer Bump stop with integrated dust protection system prevents water and dirt particles reaching the piston rod and seals. The highly resilient bump stops act as dynamic load limiters while maintaining ride quality and durability.
- Zinc galvanized steel housing for improved resistance to corrosion.
- Made in Germany
- 5 Year Limited Warranty - Unlimited Mileage
Specifications
| Part Number | 1822000S |
| Part Name | ST XA Coilovers |
| UPC | 847691086636 |
| Vehicle | 2016-2018 BMW 340i xDrive |
| Chassis Code | F30/F31/F34 |
| Drivetrain | AWD |
| Lowering Rate - Front | 1.0 - 2.2 in. |
| Lowering Rate - Rear | 1.2 - 2.4 in. |
| Ride-Height Adjustable | Yes |
| Damping Adjustment | 1-Way |
| Spring Rates - Front | Progressive |
| Spring Rates - Rear | 11.25 Kg/mm (630 lbs/in) |
| Quantity | Full Set (Front & Rear) |
| Notes | At Vehicles Equipped with Electronic Damping, the Electronic Damping Control Needs to be Deactivated. Deactivation Kit KW Part-No. 68510301. |
