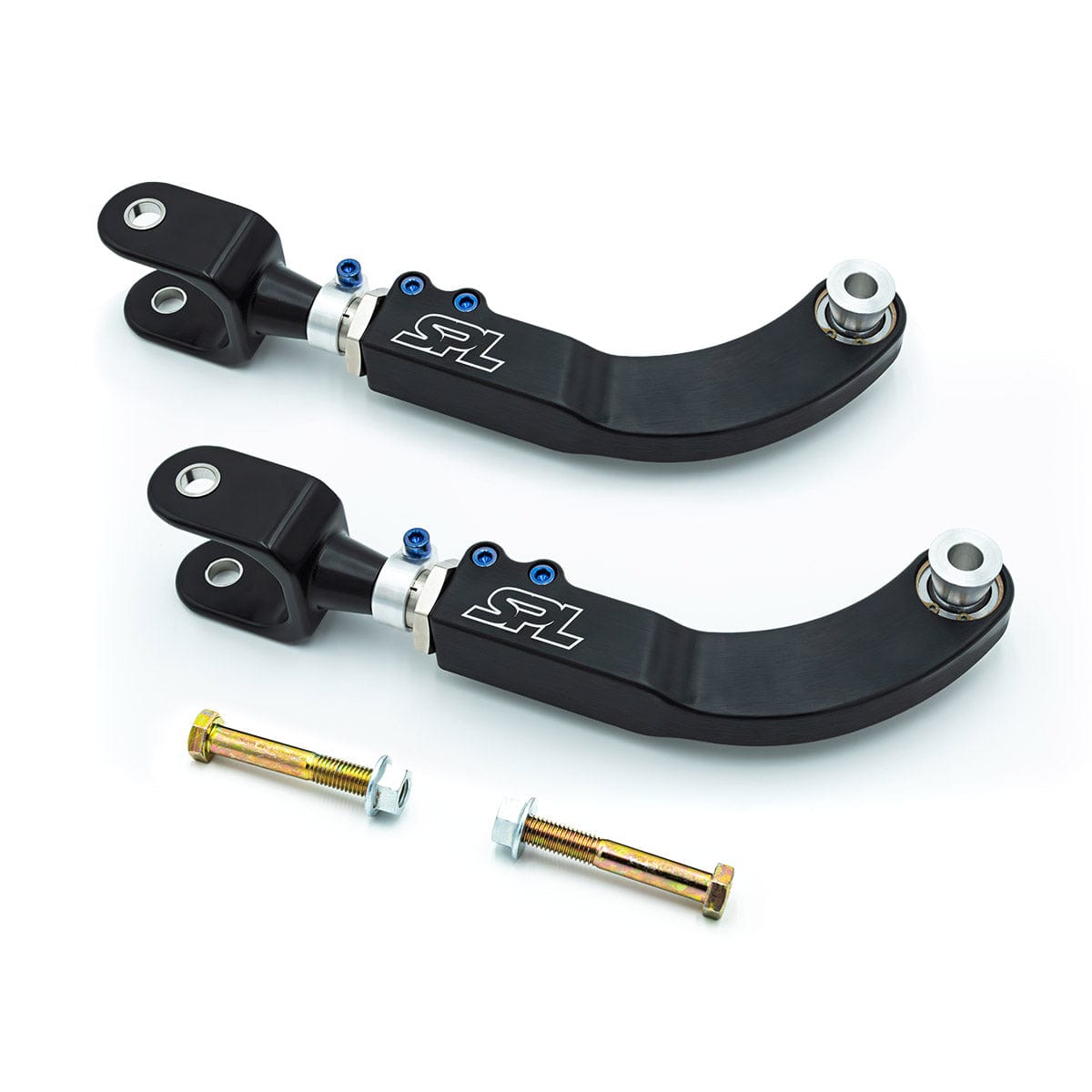

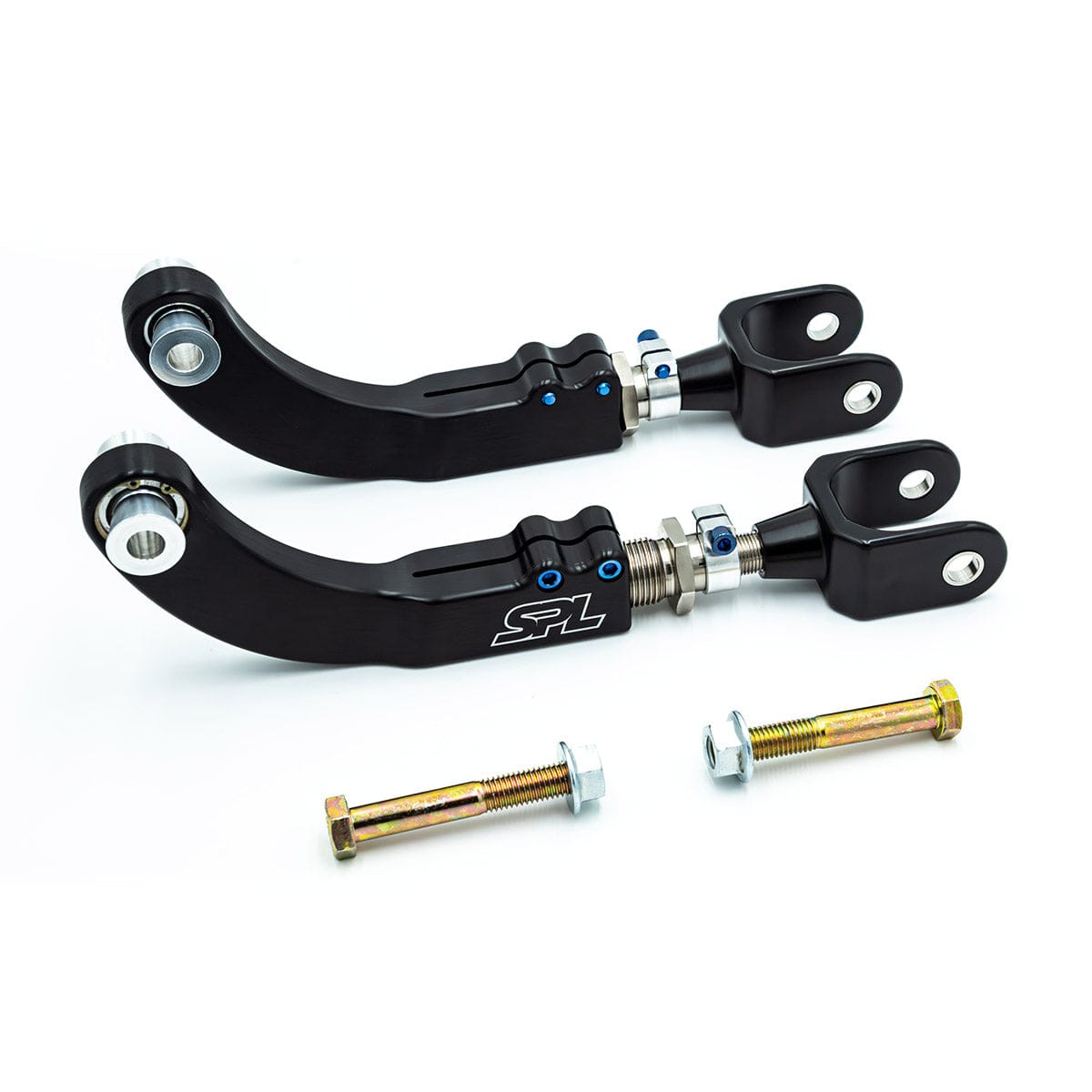

SPL Rear Upper Camber Arms - 2023+ Toyota GR Corolla

Name: SPL Rear Upper Camber Arms - 2023+ Toyota GR Corolla
Brand: SPL Parts
Price: 519.3 USD
Availability: InStock

$519.30 ~~$577.00~~ On Sale

In Stock (3 Units)

Authorized Retailer

100% Authorized Direct Retailer.

Free Shipping

Orders $250+ ship for free in the USA.

Best Price Guarantee

Lowest price on all products.

0% APR Financing

Easy payment plans with Affirm and Shop Pay.

Description
Vehicle Fitment
Warranty

Description

SPL Rear Upper Camber Arms for the 2023+ Toyota GR Corolla sharpen suspension response and provide a more predictable on-limit feel by eliminating bushing deflection. For peak handling performance, tire wear, and braking, the SPL RUAs provide a huge adjustment range to dial in the ideal amount of camber, especially for lowered cars. For advanced users with more aggressive builds, the wide adjustment range can even be used to make small kinematic changes to achieve a more desirable bump geometry when combined with adjustable lower arms, and the outboard, clamp-style double adjuster allows for quick adjustments that are easier to reach and free of jam nuts.

Benefits

Large Camber Adjustability Range
Eliminates Bushing Deflection
Improves Rear Suspension Response
Easier, On-Car Adjustment + No Jam Nuts
Self-Cleaning, US Made, PTFE-Lined FK Bearings
Made in USA

Materials

6061-T6 Aluminum Clevis and Arm (Anodized Black)
6061-T6 Aluminum Spacers and 360º Clamp
4130 Chromoly Steel Double Adjuster (Electroless Nickel Plated)
Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue)
FK PTFE-lined Spherical Bearings

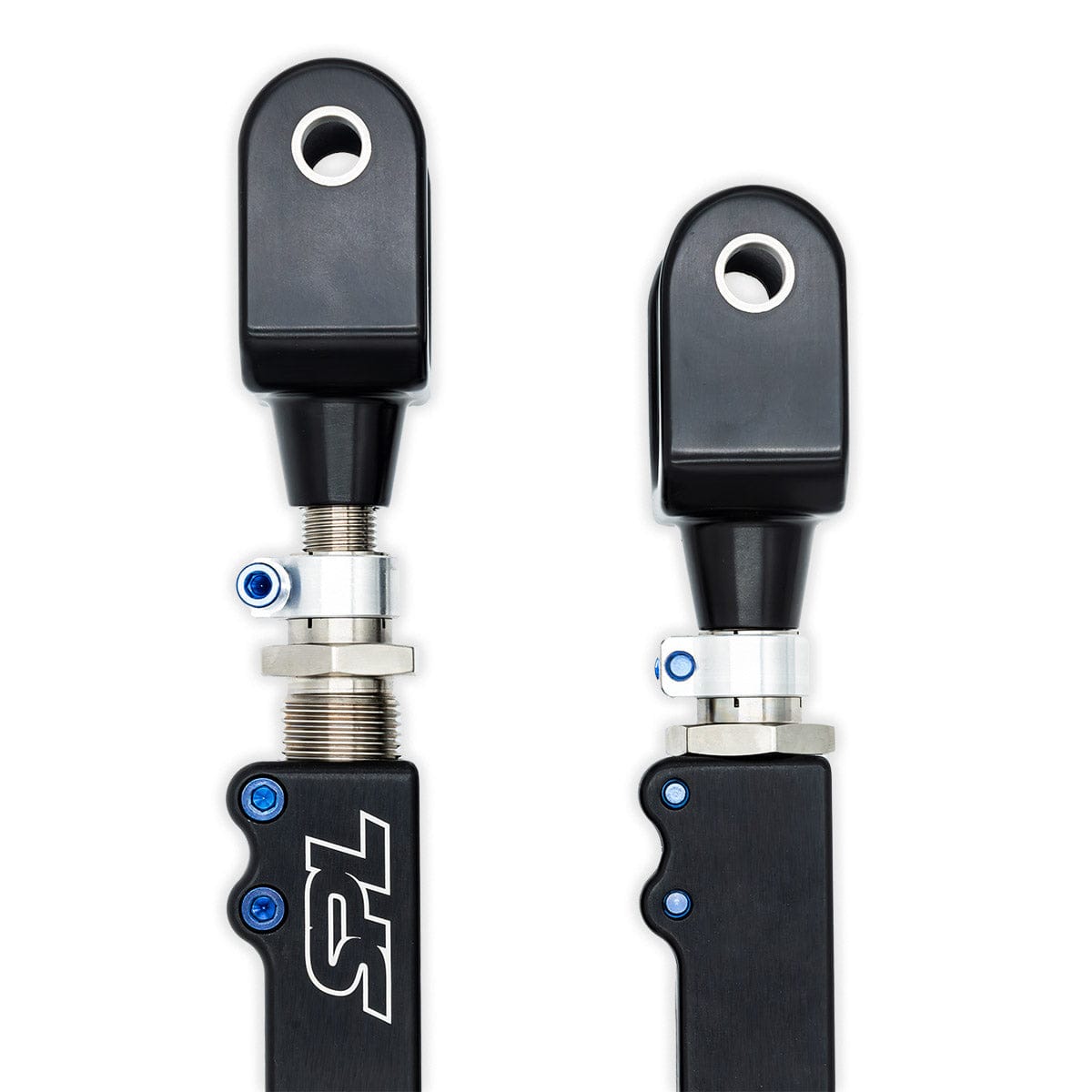

Easy, On-Car Adjustments

The double adjuster is mounted outboard, near to the knuckle, to improve accessibility. Simply loosen the 1/4-20 titanium hardware and turn the adjuster to achieve the desired amount of camber. Lastly, tighten the 1/4-20 titanium hardware to lock it in. No more wandering alignment specs as you try to hold one end and tighten the other.

Suitable for all uses, from daily driver to race car.

Replaces OEM Part Numbers

This is a list of known OEM part numbers. OEMs constantly make changes to part numbers due to part updates, suppliers, etc so this may not be a complete list.

48790-52020
48770-52010

Installation Instructions

SPL Rear Upper Arms

Vehicle Fitment

2023 Toyota GR Corolla
2024 Toyota GR Corolla

Warranty

SPL Parts Inc. suspension products are warranted to be free of defects in material and workmanship for ten (10) years or 100,000 miles from the date of purchase.

If a product fails to meet specifications, SPL PARTS INC. will, at its election, repair, replace, or make appropriate adjustment, if SPL PARTS INC. determines to its satisfaction that the product is defective in material or workmanship, i.e. contains a defect arising out of the manufacture of the product and not a defect caused by other circumstances, including, but not limited to accident, misuse, abuse, unforeseeable use, neglect, alteration, improper installation, improper adjustment, improper repair, corrosion, or failure caused by other equipment or interaction with other equipment. Using any SPL PARTS INC. arm as a tie/strap down point (ie. for a dyno session or transport) will void the warranty.

SPL PARTS INC. is not responsible for labor charges, removal charges, installation, or other incidental or consequential costs. In no event shall the liability of SPL PARTS INC. exceed the purchase price of the product.

SPL PARTS INC. makes no other warranties, either expressed or implied, including limitation warranties as to merchantability or fitness for a particular purpose. SPL PARTS INC. shall not be liable for, and buyer assumes all risk of, any advice or failure to provide advice by SPL PARTS INC. to buyer regarding the product or use and installation of product. SPL PARTS INC. shall not be liable for any special, incidental or consequential damages.

If the purchaser of the product shall fail to pay when due any portion of the purchase price, or fail to meet any terms required under contract agreed on at time of purchase, all warranties and remedies granted can be terminated.

Proof of purchase is required for all warranty claims. All warranty claims must be returned to SPL PARTS INC. for inspection, for the claim to be processed. Customers are responsible for all shipping costs.

Please contact SPL Parts by phone or email regarding any warranties.
