Product Details

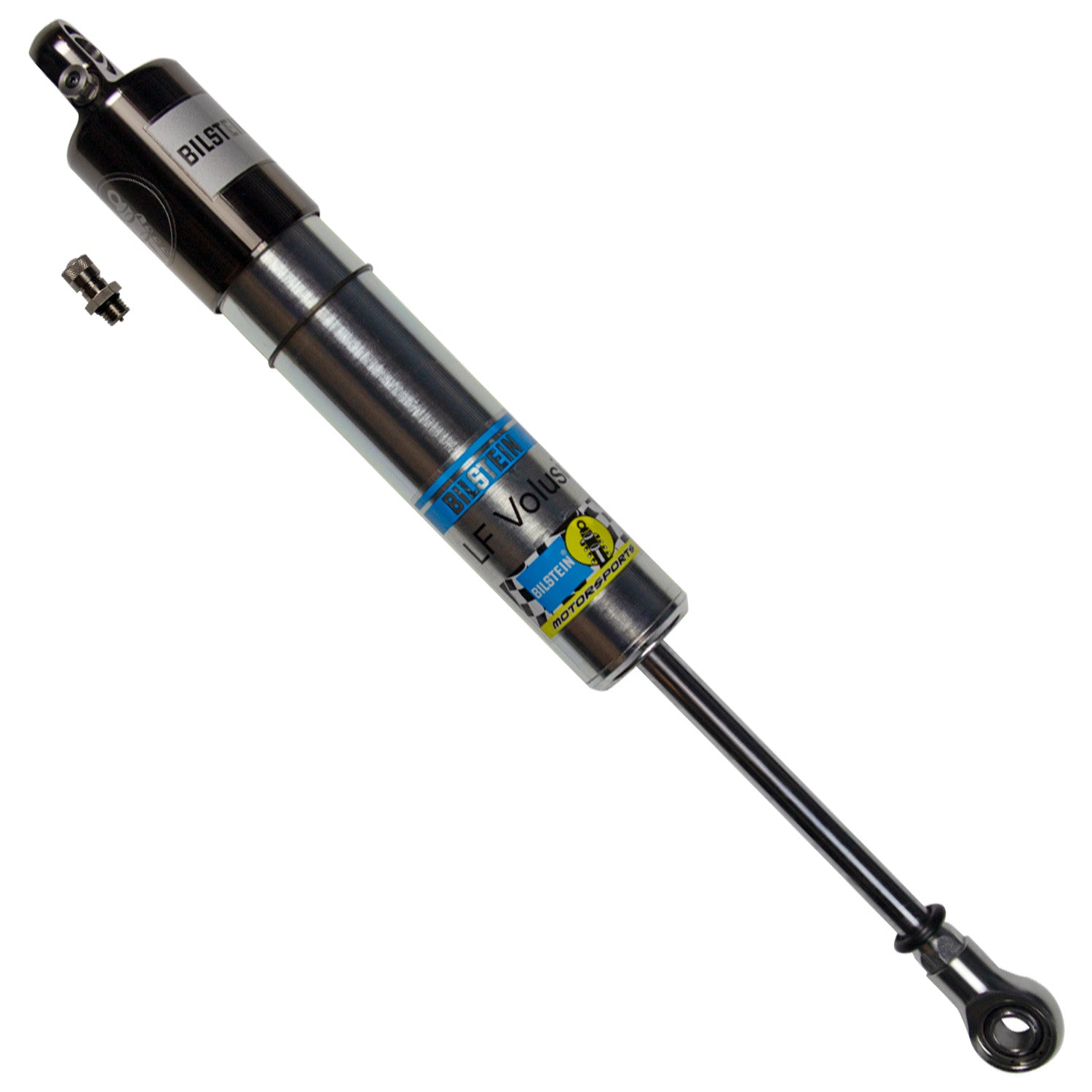

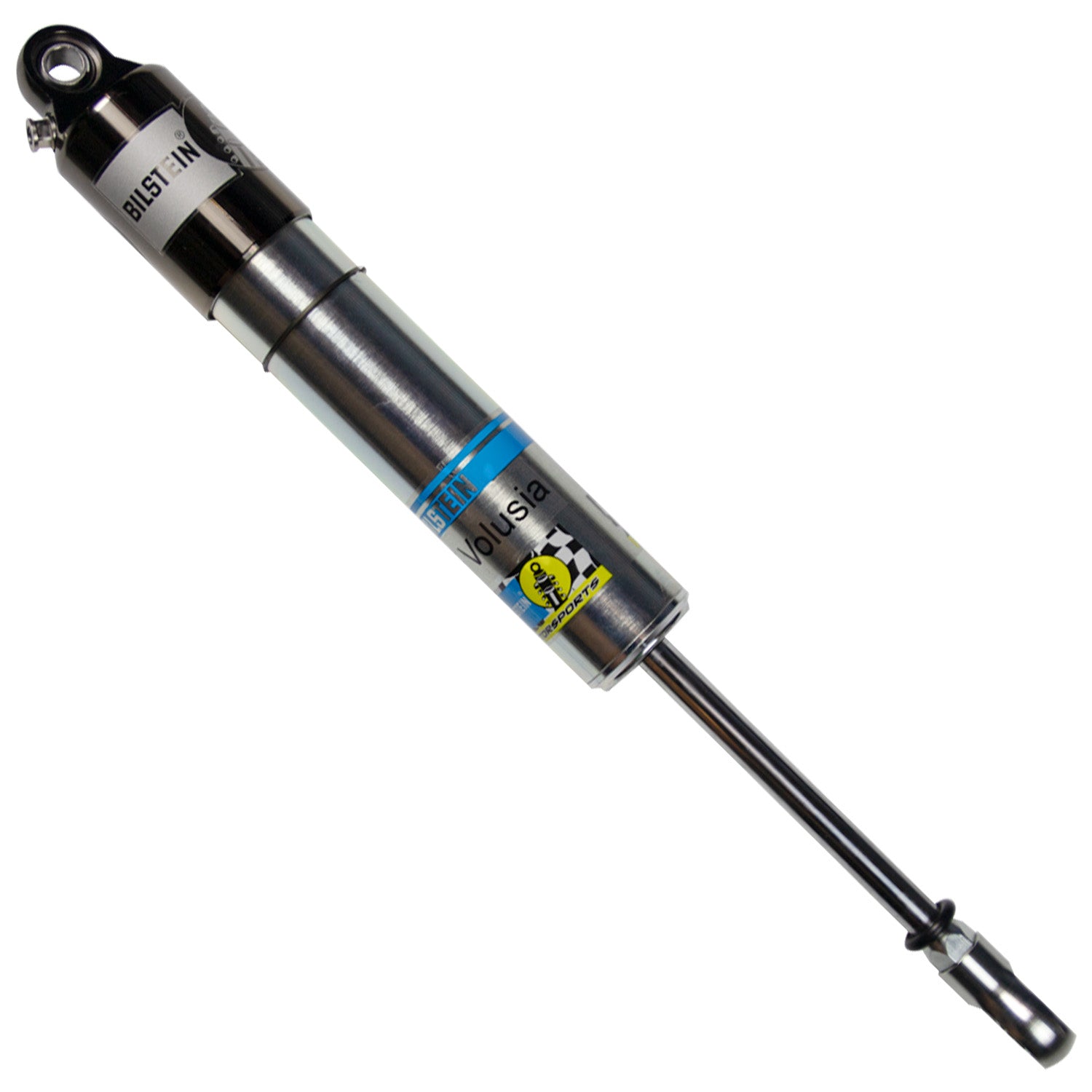

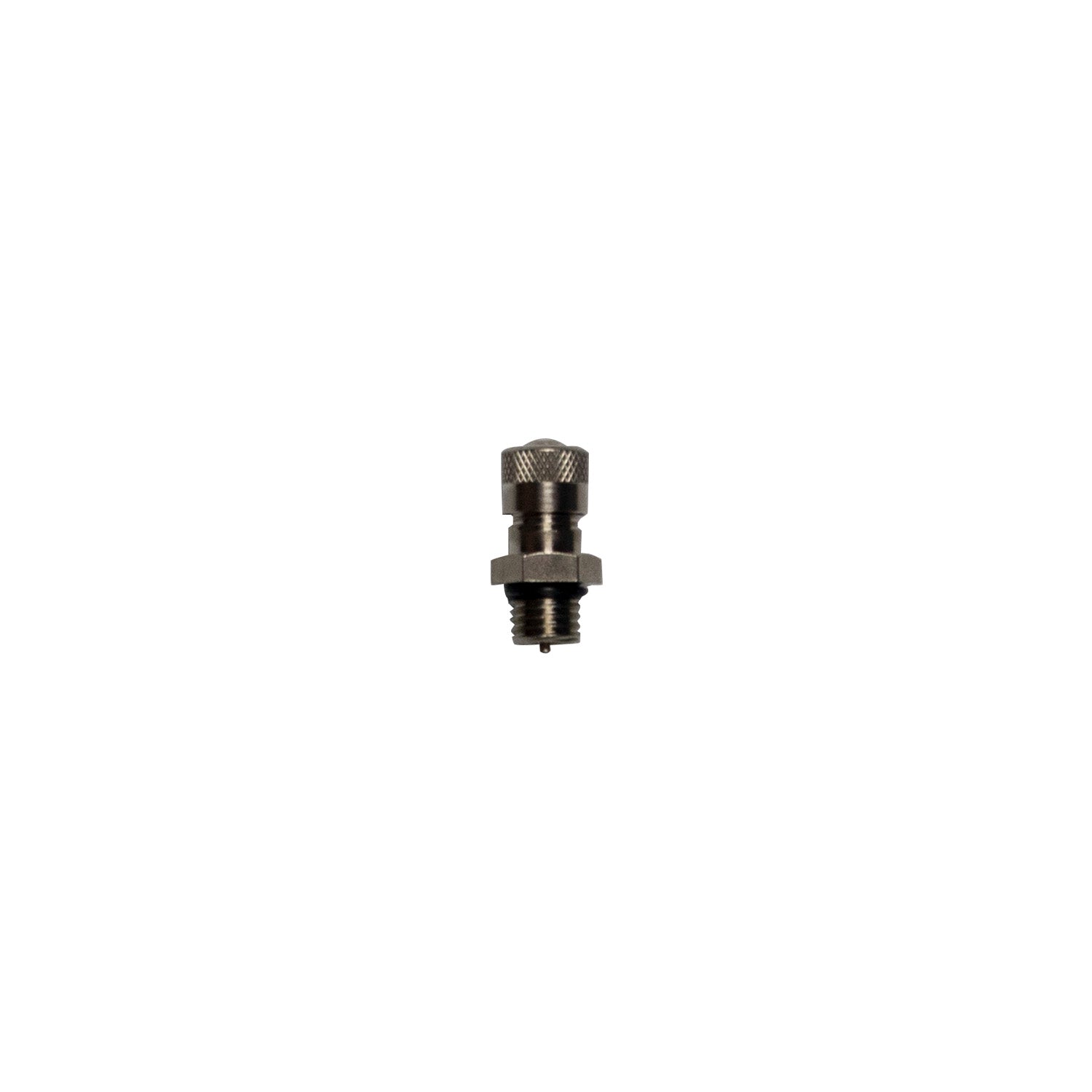

Bilstein SNS2 Series (BV) Suspension Shock Absorbers feature an all-steel smooth body construction with 46mm internal bore (piston and piston band sold separately, base valve assembly and premium Teflon Heims. These Suspension Shock Absorbers include a steel body with external nitrogen fill valve and can be converted to a coilover application (kit sold separately). SNS2 Series (BV) Suspension Shock Absorbers are ideal for racers competing within sanctioning rules require all-steel body construction who are looking for rebuildable Dampers with extra tuning options through base valve technology.
Standard Features
- Base Valve design delivers ultra low rod pressures and eliminates gas preload
- Modular steel body design allows racer rebuildability
- Comes with IMCA-legal plug assembly installed (SNS2 Series)
Specifications
| Part Number | 33-323909 |
| Part Name | Shock Absorber |
| UPC | 651860895680 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Smooth Body Screw Top (Non-Coilover) |
| Body Material | Steel |
| Boot Included | No |
| Collapsed Length | 13.35 in. |
| Collapsed Length | 339.1mm |
| Extended Length | 19.16 in. |
| Extended Length | 486.7mm |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | 1/2 in. Heim |
| Piston Diameter | 46mm |
| Piston Type | Digressive |
| Vehicle Placement | Front Left |
| Segment | Motorsports |
| Series | SNS2 Series (BV) |
| Shaft Diameter | 14mm |
| Spring Seat Included | No |
| Stroke/Travel Length | 5.81 in. |
| Stroke/Travel Length | 147.6mm |
| Upper Mount Type | 1/2 in. Heim |
