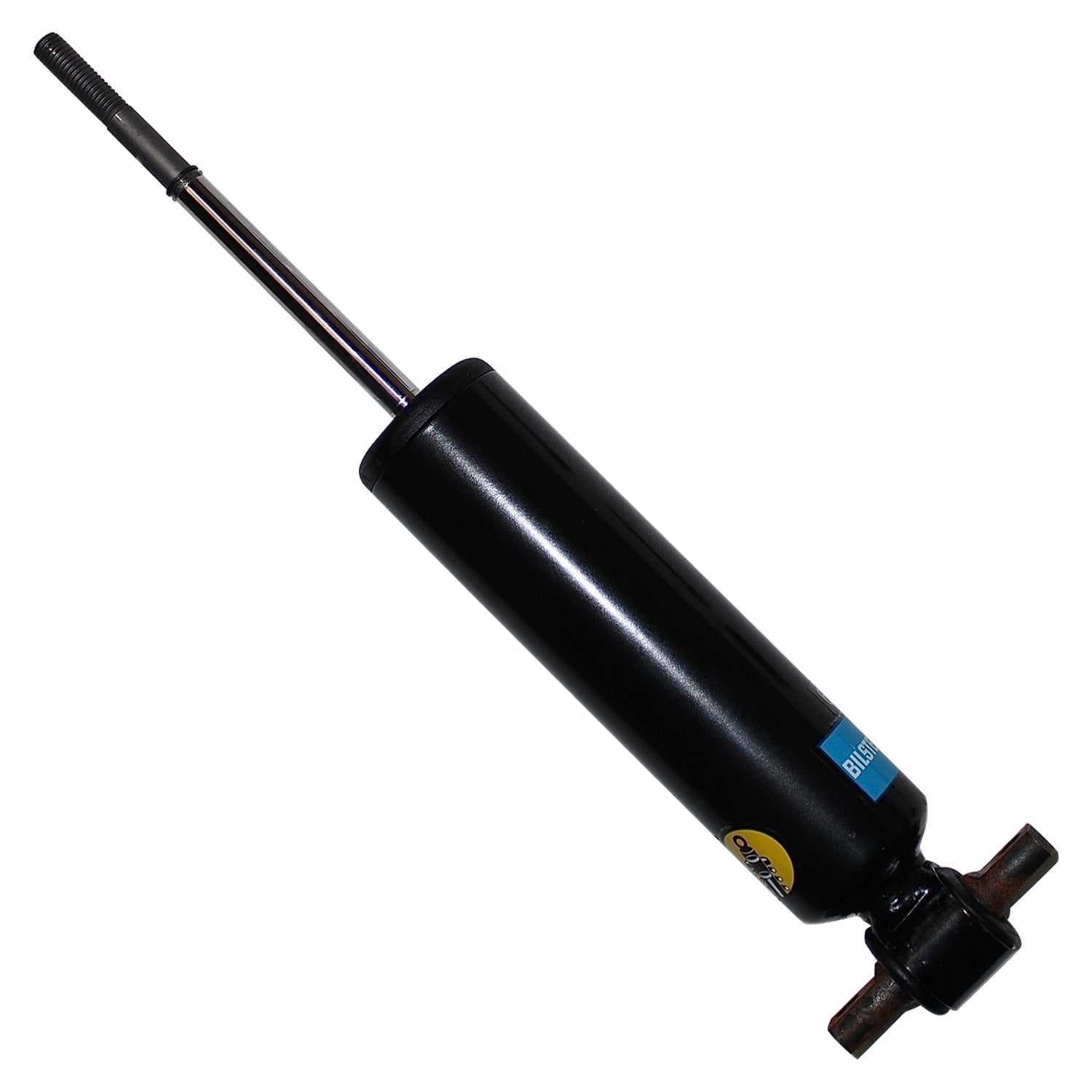

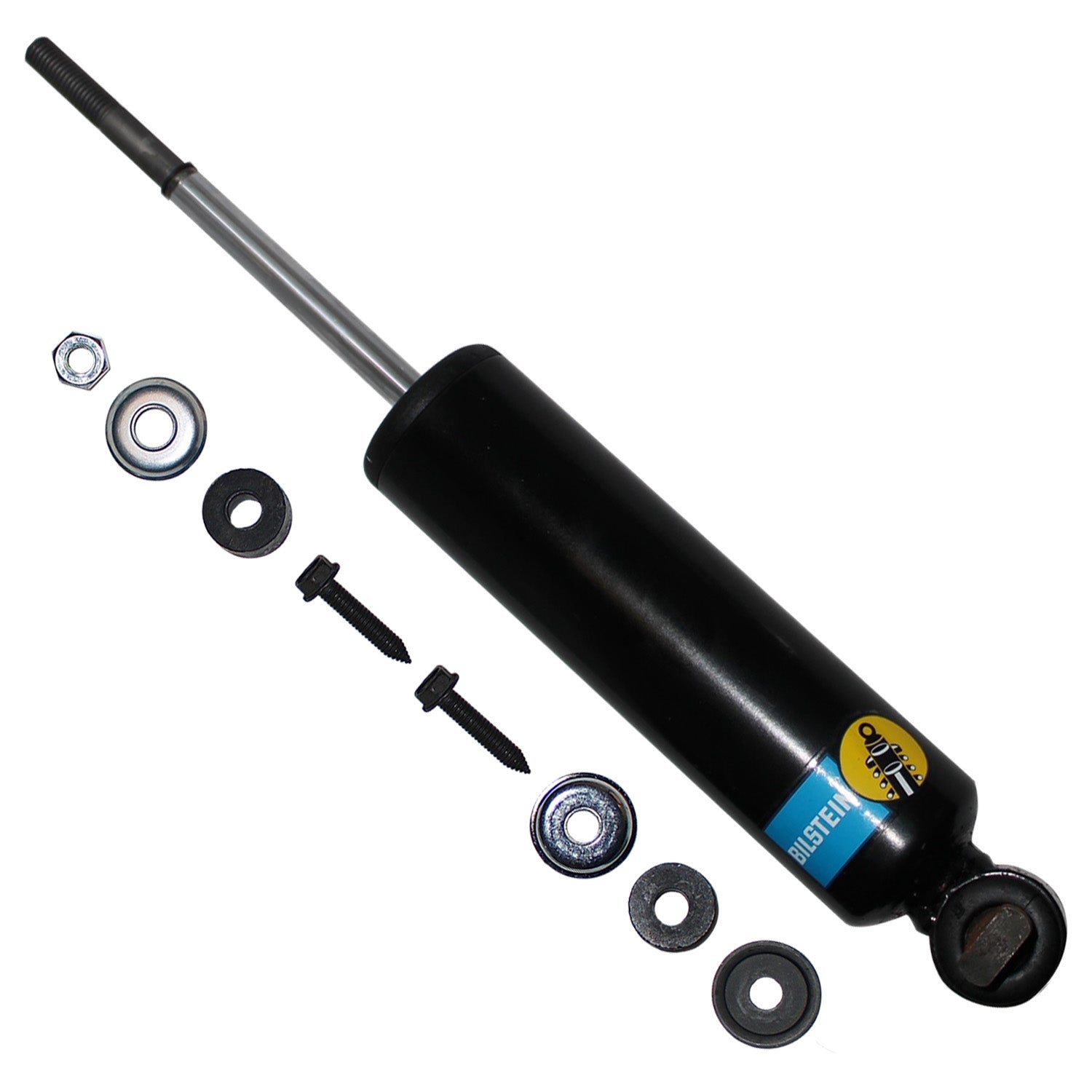

Bilstein SMX Series 46mm Monotube Suspension Front Shock Absorber - 8.27 in. Collapsed 24-296694
Bilstein SMX Series 46mm Monotube Suspension Front Shock Absorber - 8.27 in. Collapsed 24-296694
Bilstein SMX Series 46mm Monotube Suspension Front Shock Absorber - 8.27 in. Collapsed 24-296694

Bilstein

|

SKU: 24-296694

Bilstein SMX Series 46mm Monotube Suspension Front Shock Absorber - 8.27 in. Collapsed

$179.15
Ask a question
Out of stock

Authorized DealerGenuine parts & warranty
20+ Years in BusinessTrusted since 2005
Free USA ShippingOn orders $250+
Best Price GuaranteeWe’ll match or beat it
Fitment Notes

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.

*Product images may not represent the actual SKU.

Handling Time

All handling times are estimates and may change at any time.

  • In-Stock: 1 business day
  • Out of Stock: 3-4 weeks
30-Day Returns

Not quite right? No problem — we offer hassle-free 30-day returns on eligible items. A few exclusions apply.

More Information

Lifetime Manufacturer Warranty

Most of the BILSTEIN products available in the North American aftermarket are backed by our LIMITED LIFETIME WARRANTY for as long as you own your BILSTEIN products, while certain product categories are backed by industry leading warranties ranging from 90 days to two (2) years. Please consult our BILSTEIN Warranty Promise to see which warranty is applicable to your product.

More Information

Product Details

The Bilstein SMX Series shock absorber is sold for custom and motorsport builds, here at 8.27 in. collapsed. There is no vehicle lookup here: you select on dimension, mounting, and the damping you want.

Bilstein supplies suspension as original equipment to manufacturers worldwide and applies the same engineering here. Covered by a limited lifetime warranty.

Features

  • Stock mount design for GM metric chassis applications
  • 46mm piston design for maximum damping control
  • A wide range of valving choices available for endless tuning combinations
Specifications
Part Number 24-296694
Part Name Shock Absorber
UPC 651860847443
Adjustable Damping Non-Adjustable
Body Design Stock Mount Smooth Body
Body Material Steel
Boot Included No
Collapsed Length 8.27 in. (210mm)
Compression @ 10"/sec 125
Extended Length 12.01 in. (305mm)
Finish Black Paint
Internal Design Monotube
Lower Mount Type Bar Pin
Piston Diameter 46mm
Piston Type Linear
Vehicle Placement Front
Rebound @ 10"/sec 500
Segment Motorsports
Series SMX Series
Shaft Diameter 11mm
Spring Seat Included No
Stroke/Travel Length 3.74 in. (95mm)
Upper Mount Type Stem
