*Product images may be generic and do not always represent the actual SKU.


SKU: ST1029

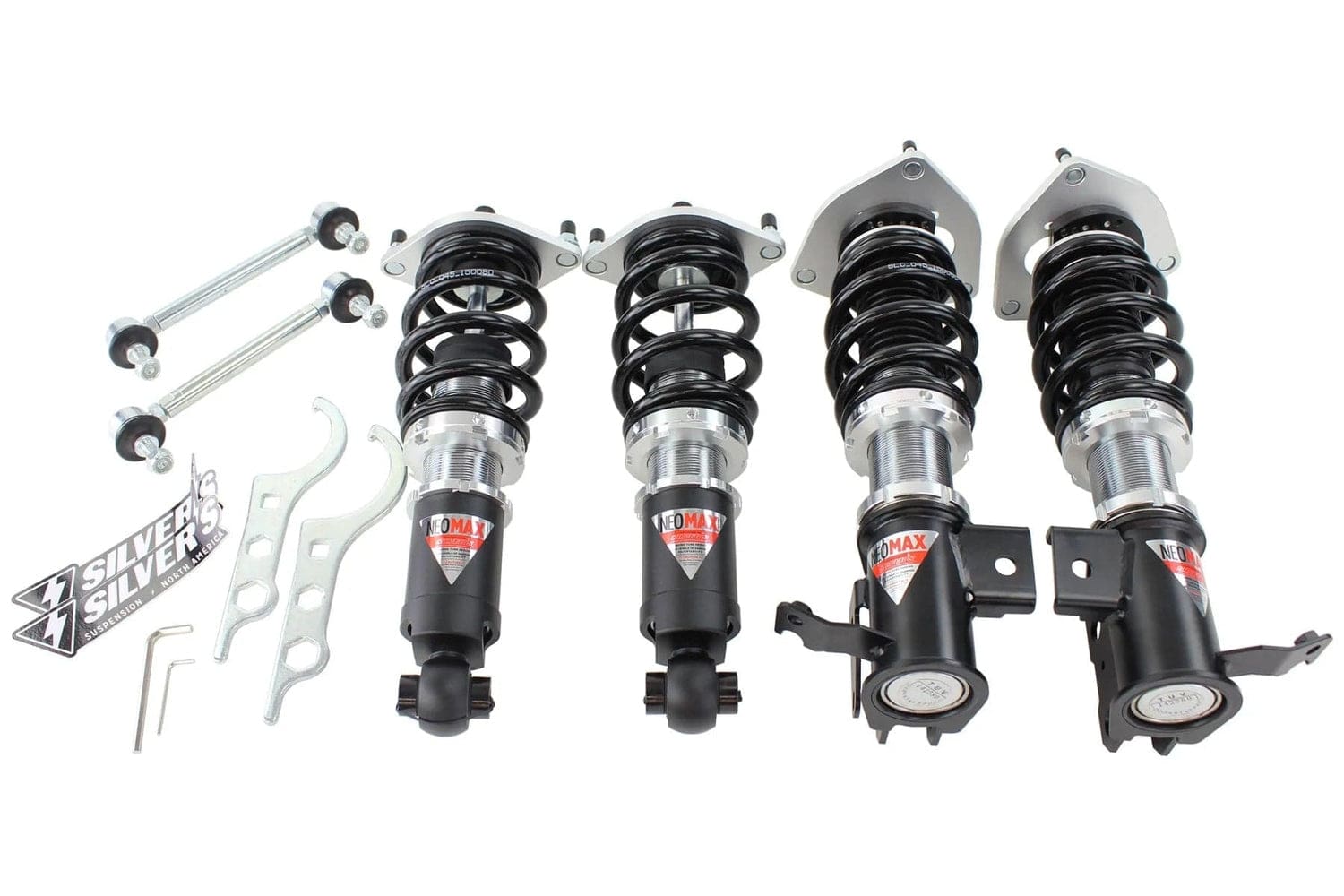

Silvers NEOMAX Coilovers for 2022+ Toyota 86 (ZN8)

$ 1,299.00
Out of Stock

Check if this fits your vehicle

Select a Vehicle

Fits Your Vehicle

Change Vehicle

Does not fit your vehicle

Change Vehicle
Free Shipping
Orders $100+ ship for free in the USA.
Authorized Retailer
100% Authorized Direct Retailer
Low-Price Guarantee
Listed at the lowest price guaranteed.
0% APR Financing
Easy payment plans with Affirm and Shop Pay.

Silvers NEOMAX coilovers for the 2022+ Toyota 86 (ZN8) are perfect for street driving, and still out perform most on the track. Silvers NEOMAX coilovers are a mono-tube shock design that are fully height adjustable, and come with an 18 month limited manufacturer's warranty.


  • Adjustable T6 6061 front camber plates standard on all applicable McPherson style applications.
  • Koyo Japan Radial Bearing upper spring perch standard on all applicable McPherson style applications. This eliminates spring bind, noise, and gives improved driver feedback.
  • 24 levels of dampening adjustment, combined with our high grade shock oil. Not only do you feel the click in your fingers, you feel every dampening adjustment in the driver's seat.
  • High strength JIS G3445-STKM13C (DIN2393-ST44-2) carbon steel 52mm diameter seamless shock tube.
  • 44mm piston with digressive style valving characteristics provides maximum low speed damping response for ultimate performance while simultaneously giving a comfortable ride.
  • Mono-tube shock design: Increases shock oil capacity as well as displacement over twin tube designs for maximum performance.
  • High viscosity IP F.A. 5W damper oil ensures the best efficiency of shock-absorption and damping control.
  • Height adjustment is provided by the lower bracket which prevents the need to adjust the spring perch or pre-load, offering the maximum possible travel regardless of height setting.

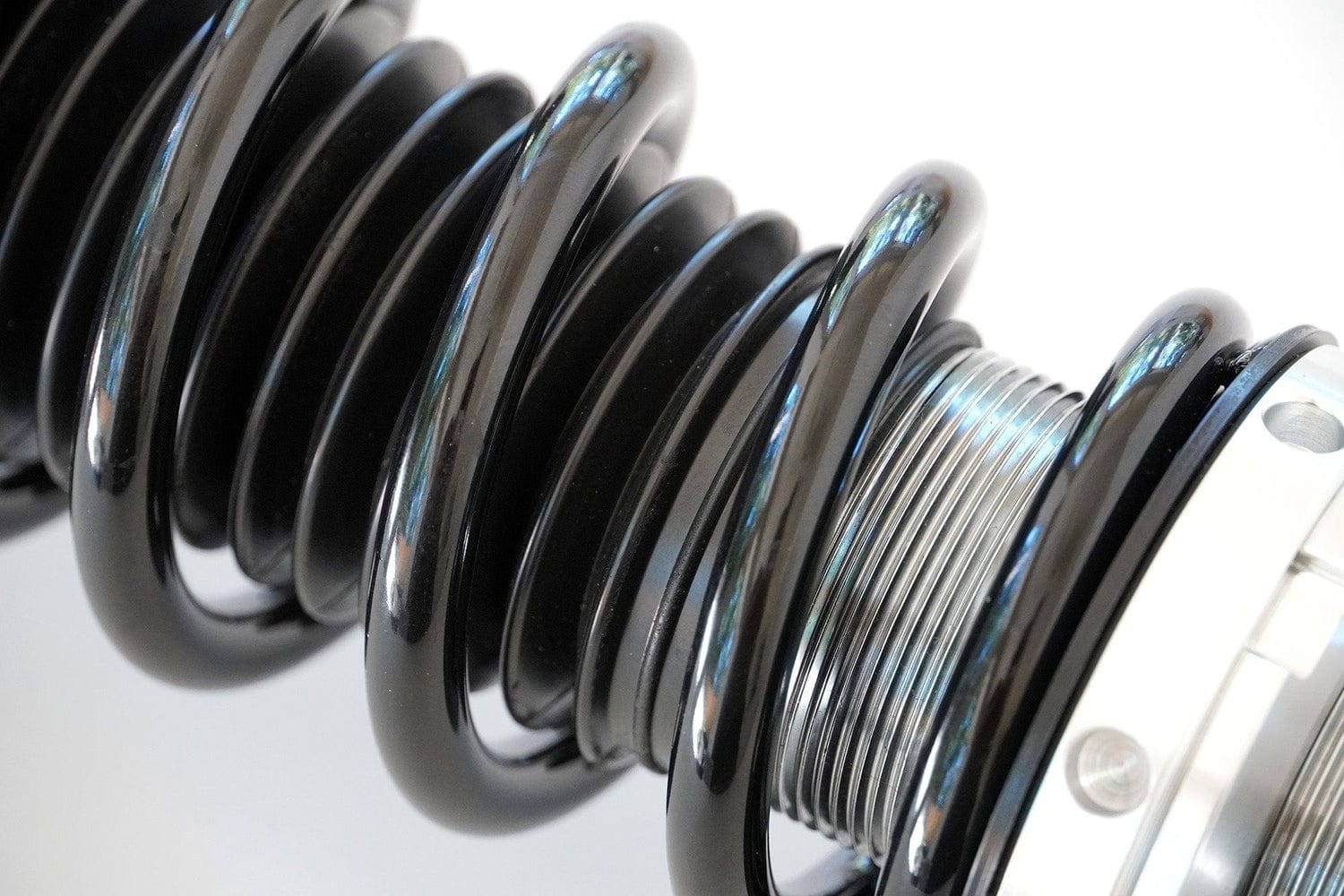

  • Cold-bent springs made from high strength SAE9254 steel which keeps stable elastic modulus.
  • Powder coated steel lower brackets matching all factory brake line and ABS wire tabs for ease of installation.
  • Anodized T6 6061 aluminum lower mounts for multi-link suspension systems to lower unsprung weight.
  • 18 month limited manufacturer's warranty.

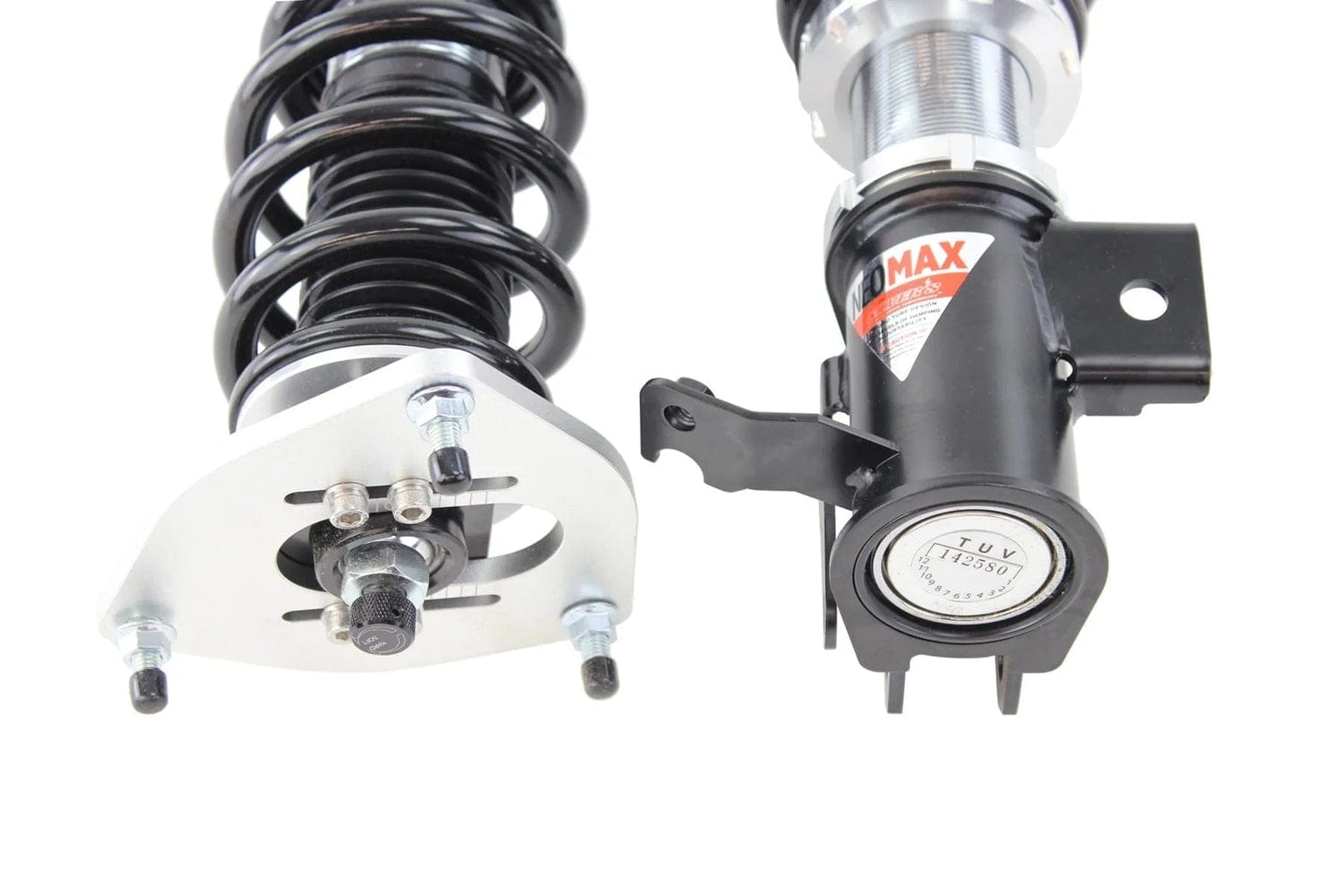

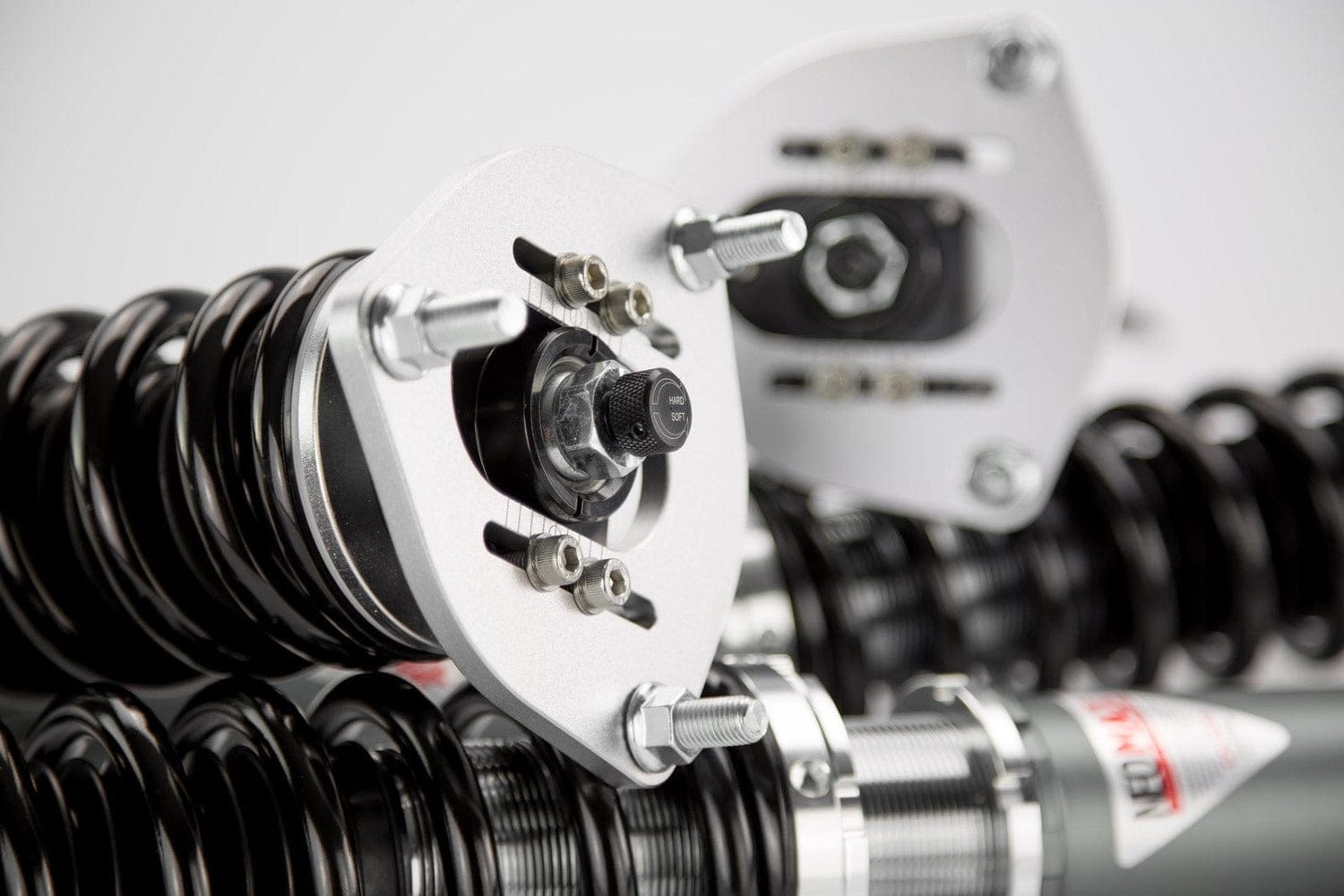

Adjustable Camber Plates

Our camber plates are made from T6 6061 Aluminum and are protected by an anodized finish. They come standard on the front of any McPherson style strut application and are designed to offer up to 3 degrees of camber adjustment at any ride height to dial in your alignment.

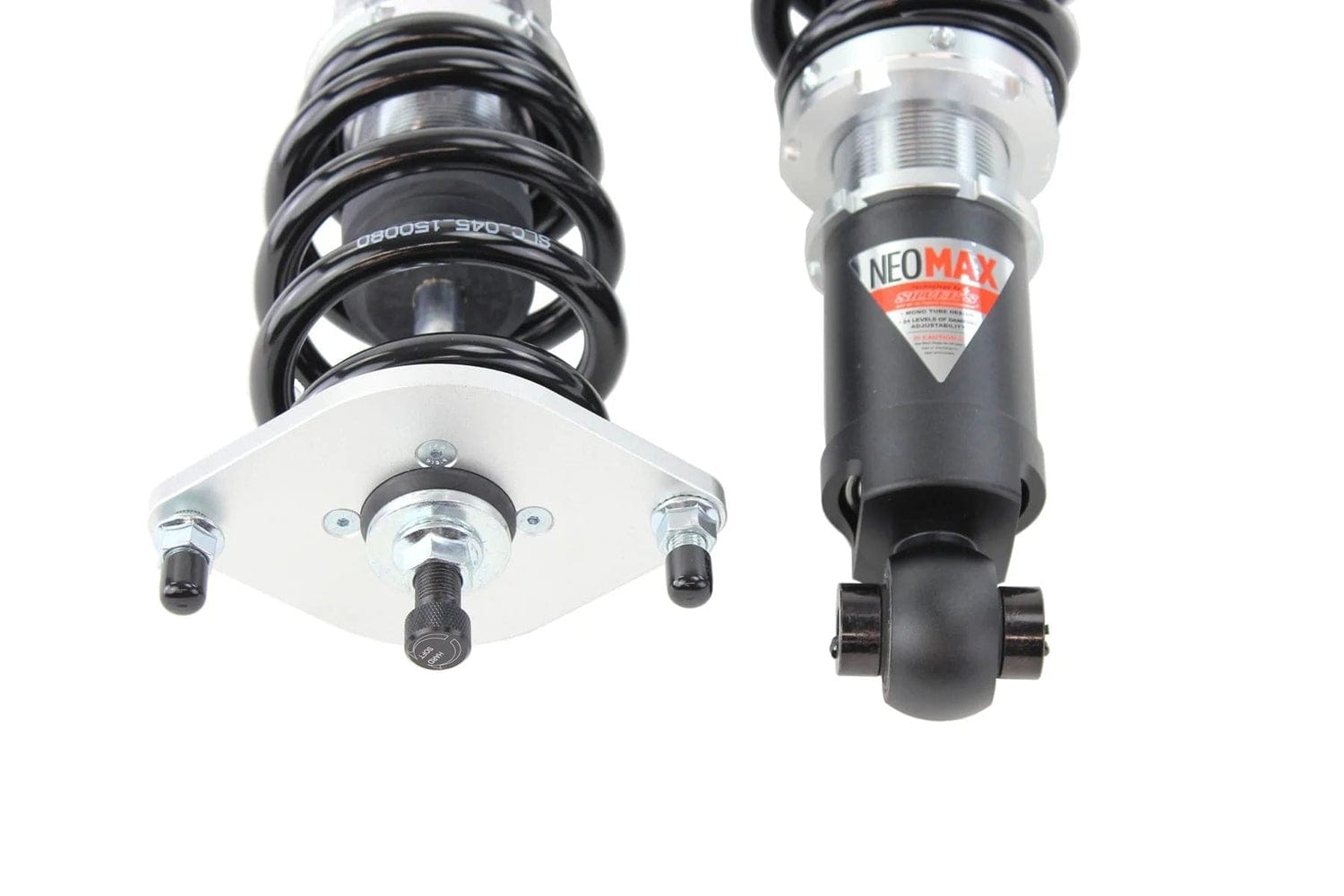

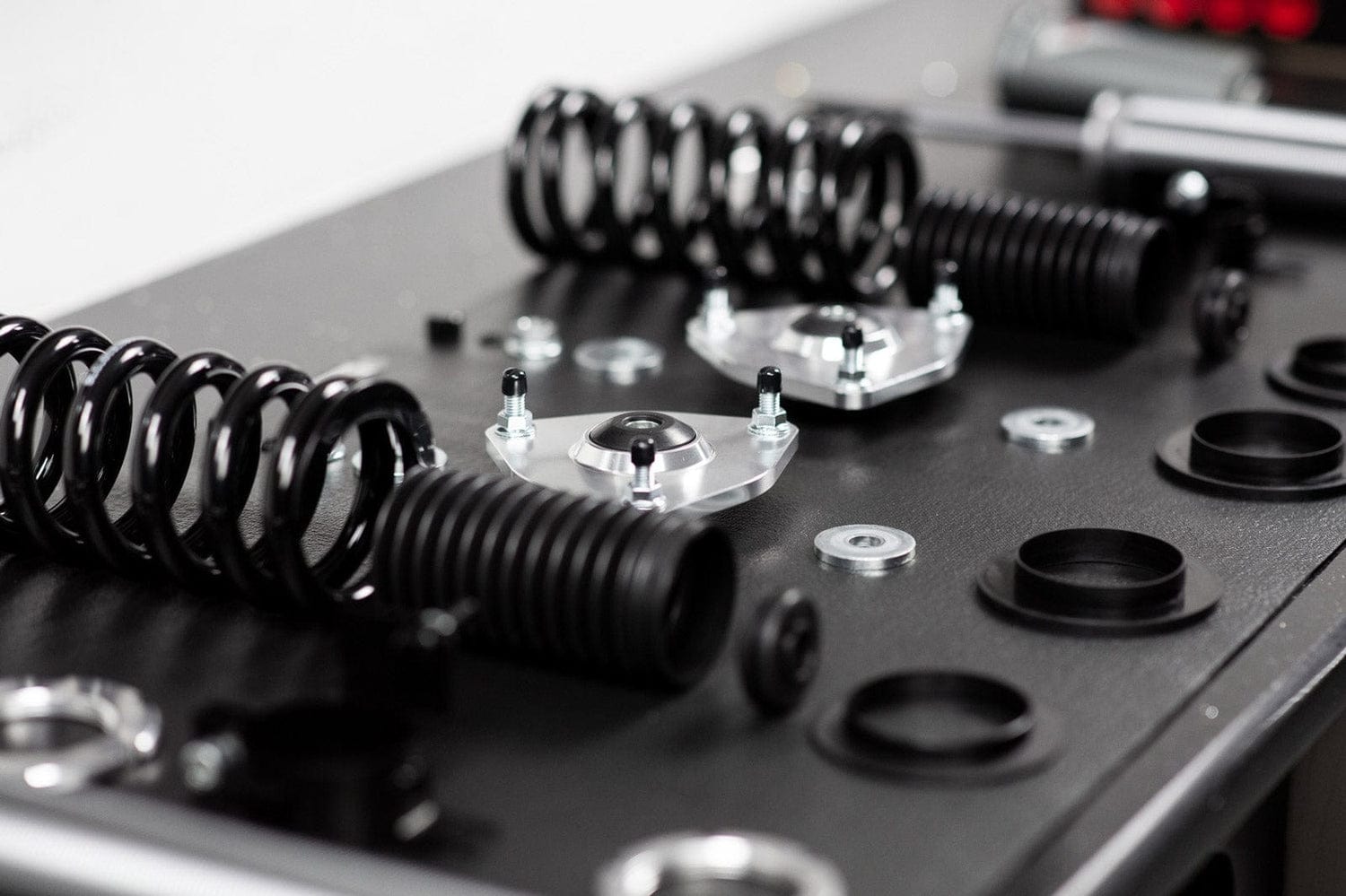

Pillowball Top Mounts

Our pillowball mounts are comprised of two main parts: A SUJ2 Steel bearing, and a Chromoly Steel 2 piece case. Pillowball mounts provide bind free operation and precise feedback to the driver.

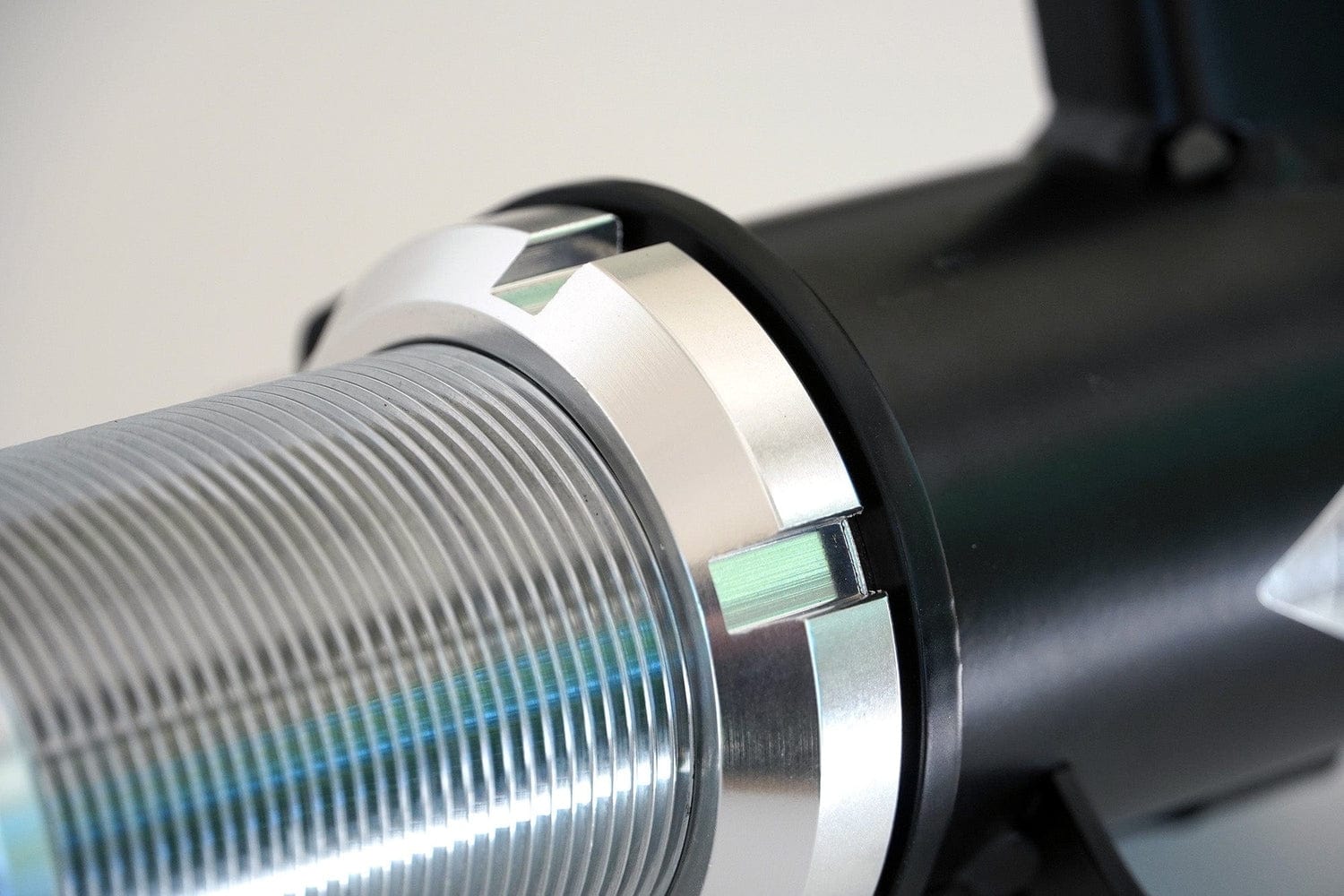

Fully Height Adjustable

Our coilovers are fully height adjustable via the lower mount with no need to change pre-load and sacrifice shock stroke. Simply loosening the lower locking ring and rotating the entire coilover, you will be able to easily fine tune your ride height or weight distribution for corner balancing on track applications.

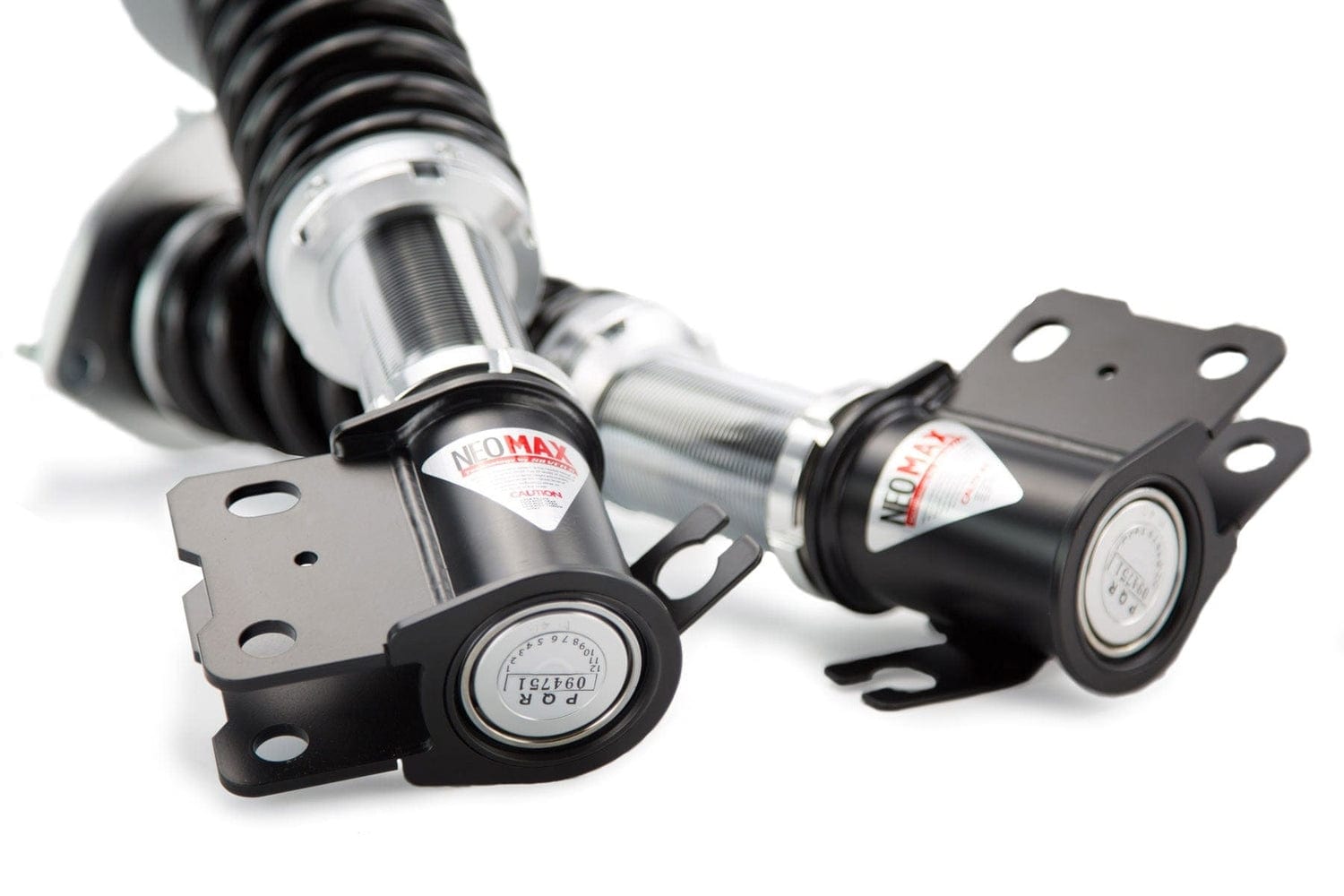

OEM Fit Steel Lower Mounts

Our steel lower mounts are engineered extensively for strength with key areas reinforced. They are designed with all of the features of the OEM system to be sure every brake line and ABS sensor harness is securely mounted. This keeps installation simple and straight forward.

Aluminum Lower Brackets

T6 6061 Aluminum lower mounts are used on multi-link suspension setups. These are CAD designed to ensure OEM fitment and are lighter than steel components which also help reduce unsprung weight.

Carbon Steel Shock Body

Our shock bodies are made from ultra high strength JIS G3445-STKM13C(DIN2393-ST44-2) carbon steel and are electroless nickel plated for resistance to corrosion and fatigue in harsh climates.

Linear Piston Design

We use a 44mm Linear type piston in our shocks. This style piston gives both excellent track benefits as well as maintains ride quality. Every single shock is hand assembled, and dyno-tested to insure dampening and compression valving is within 5% variation from side to side. There is no random inspection or tests, every single shock is dyno-tested. In the event the shock fails, the internals are discarded and it goes back to the assembly room.

Large Hardened Steel Shafts

We use the largest diameter necessary hardened steel with chrome plating for our piston shafts. With extensive research and development we have the perfect material and diameter needed to have the proper strength necessary to retain lateral rigidity and not bend or bind under heavy loads, which leads to premature wear and lowering piston travel. This provides the perfect combination of strength and weight savings.

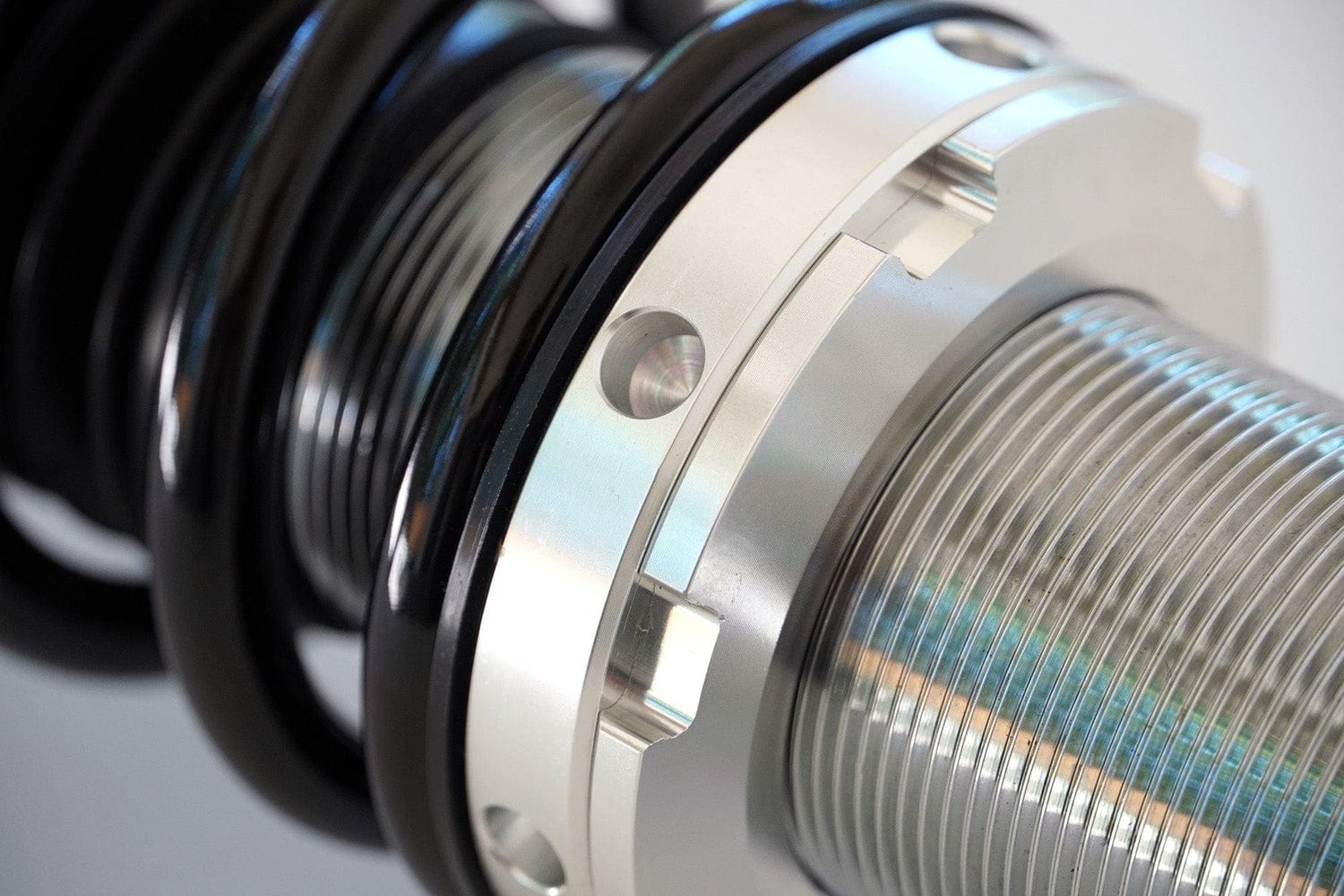

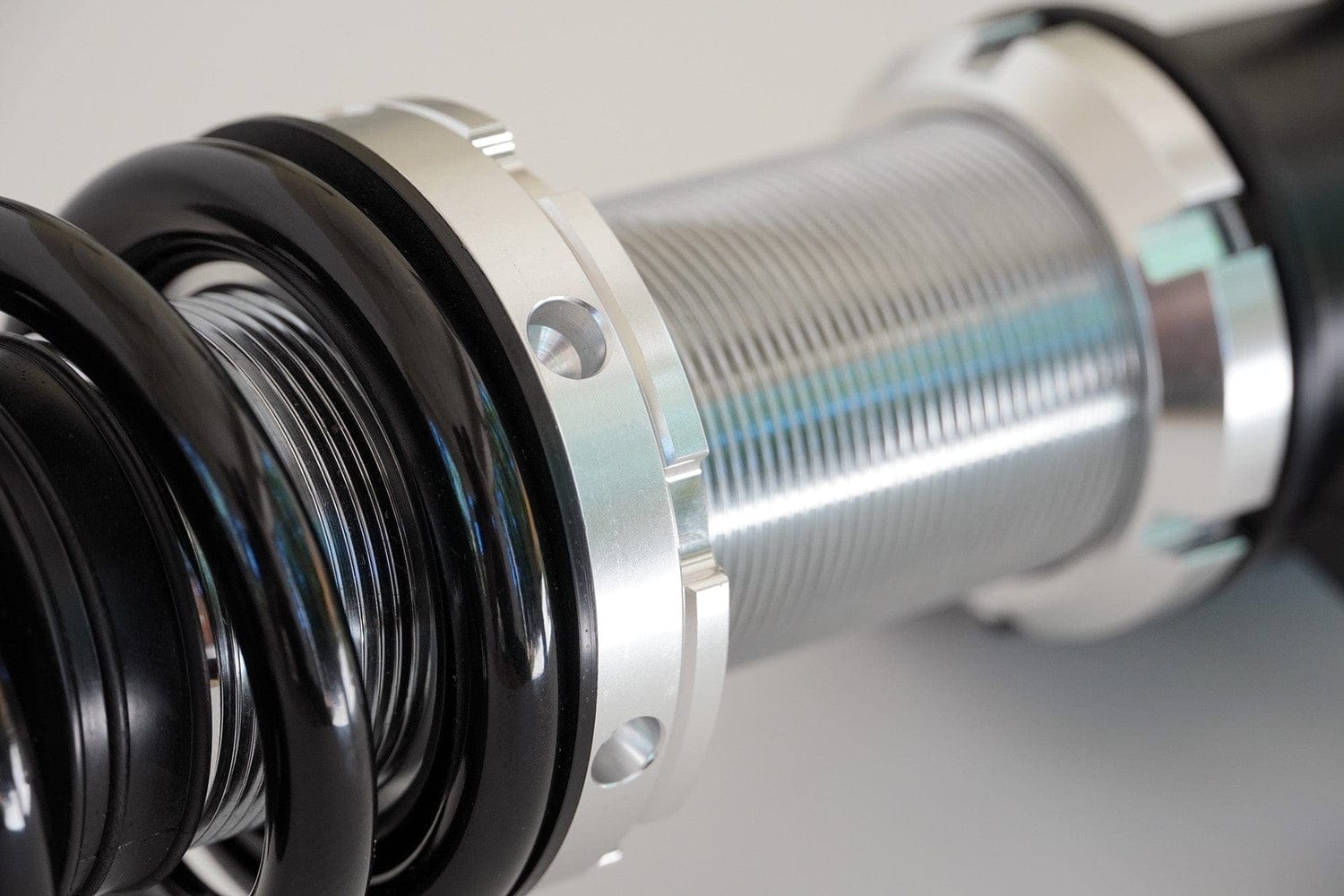

Unique Locking Collars

Our locking collars have a specific unique design compared to the other brands on the market. They perform the same as any other locking collar, though with the lower spring perch having dimples instead of slots you do not have to worry about the top spanner wrench slipping and sliding up or down the perch when making necessary adjustments. This make adjusting the pre-load much less of a balancing act, leading to quicker and easier installation.

Optional Radial Bearings

Made from T6 6061 Aluminum using the best Koyo Japan bearings, our Radial Bearing upper perch (McPherson applications only) allows the springs to twist freely as they are compressed. As a spring compresses it may twist slightly which can produce a small noise as if the springs are binding. The same noise also occurs on McPherson applications when the wheel is turned and the spring binds. Radial bearing upper perches will allow the piston shaft and tophat to rotate separately from the spring and shock body allowing for a smoother and quieter rotation.

Rear Adjustment Extenders

Certain vehicles require some interior panels to be removed in order to reach the dampening adjusters. The dampening adjuster extensions can be used to relocate the adjustment knob to a easily reachable location for those quick on the fly adjustments.

Part Number ST1029
Old Part Number NT137
Part Name Silvers NEOMAX Coilovers
Vehicle 2022+ Toyota 86
Chassis Code ZN8
Adjustment Type 1-Way
Damping Adjustable Yes
Height Adjustable Yes
Front Spring Rates (Default) 6 kg/mm
Rear Spring Rates (Default) 6 kg/mm
Super Low Drop Optional Yes
Swift Springs Optional Yes
Custom Spring Rates Optional Yes
Front Camber Plates Included Standard
Rear Camber Plates Not Included
Front Top Mounts Camber Adjustable Top Plates
Rear Top Mounts Non Adjustable Top Plates With Pillow Ball Included
Note 1 Includes Front Endlinks
  • 2022 Toyota 86 (ZN8)
  • 2023 Toyota 86 (ZN8)
Product StatusEstimated Handling Time
In Stock1 business day
Out of Stock1 week
Custom-Builds/Special Order1-2 weeks

Silver’s North America’s products sold on or after January 1st, 2023,  are now covered by an industry leading 5 year limited* warranty.

For a period of 5 Years, Silver's will cover Hard Parts on the coilovers. Hard Parts are defined as: Upper and Lower Mounts, Top Hats, Camber Plates, Collars, Spring Seats, Spring Perches, and Hardware.

For a period of 2 Years, Silver's will cover Consumable Parts on the coilovers. Consumable Parts are defined as: Pillow Balls, Radial Bearings, Shock Absorbers, and Springs.

Warranty is only valid to original purchaser and is non-transferable. Warranty begins from the original purchase date. Must provide proof of purchase to qualify for warranty claim.

This warranty covers the physical performance of the following: Mounts, Shock Bodies, Seals, Shafts, Fluids and leaking shocks. This warranty is limited to the United States, Canada, and Mexico.

Silver’s North America only upholds warranty of its products to the original retail purchaser against defects in workmanship and material.

This warranty can be void due to ANY of the following:

  • Products were not professionally installed.
  • Products show signs of improper installation, abuse, or damage due to collision or neglect.
  • Products have been modified or altered from their original design and intention.
  • Products that show corrosion, accelerated wear, or damage due to absent or improper preventative steps.
  • Products being used for an application in which they were not designed or advertised.
  • Products were not purchased from an authorized Silver’s North America dealer.
  • Products were sold in violation of our MAP policy.

If a product has been found (at Silver’s North America’s discretion) to have failed, the sole item or items will be replaced at no charge (subject to shipping charges) to the customer under warranty.

If Silver’s North America can determine the failure without reasonable doubt, through detailed communication with the original purchaser via email, phone call, video recording, audio recording, or photo then no product will need to be returned.

If Silver’s North America deems the product be sent in for inspection to properly determine failure, the customer must do so to fulfill the warranty claim. Shipping will at that time be covered by Silver’s North America via a return label. Upon conclusion of inspection by Silver’s North America, if the part or parts are found to have failed or show fatigue not pertaining to the above mentioned bullet points, failed parts will be replaced and shipping will be covered under warranty. If no failure is found, or failure is caused by the above mentioned bullet points, the customer will be responsible for shipping charges to, and from Silver’s North America as well as replacement part costs.

Silvers Warranty Links

  • All products are for off road use unless specified otherwise by the manufacturer.
  • All coilovers are for vehicles with 2WD unless specified AWD.
  • Notes regarding electronic damping (EDC, DDS, etc.) pertain to vehicle fitment. Aftermarket coilovers DO NOT interface w/ OEM electronic damping control systems unless specified.
  • All fitment data on our website is provided by the manufacturer. It is the customer's responsibility to verify fitment prior to ordering and installation. Springrates it not responsible for fitment issues.
  • All prices and product data are subject to change without notice
