Product Details

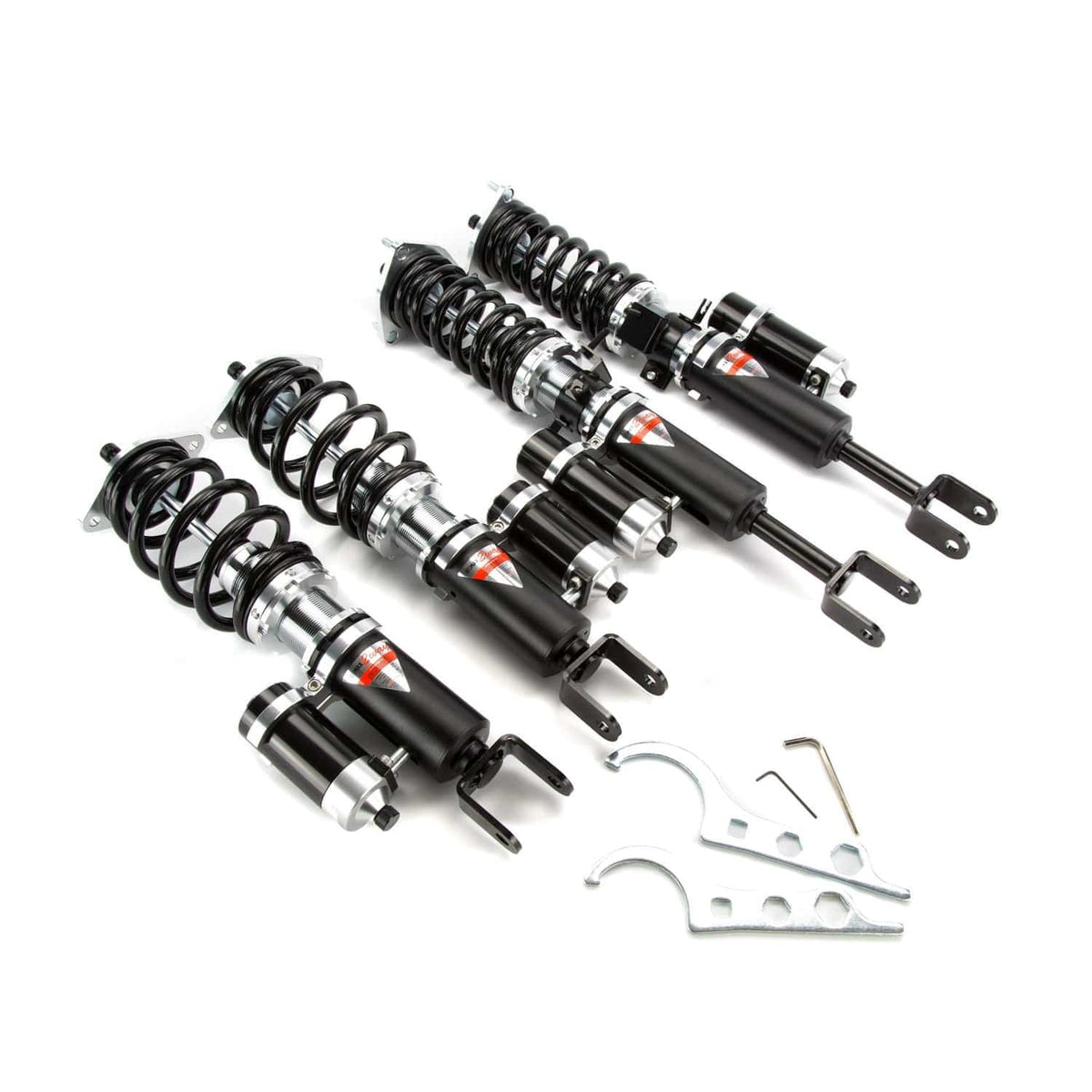

The Silvers NEOMAX 2-Way Coilovers for the 1995-2000 Mitsubishi Lancer Evolution 4/5/6 (CP9A/CN9A) add independent rebound and compression adjustment, so the car can be tuned for the street, for track days, or for both. Ride height is set at the lower mount, which keeps full shock travel at any height.

The 2-Way is built on a mono-tube damper with large external reservoirs, which add oil capacity and help keep damping consistent under hard use. It uses digressive valving and cold-bent springs, is fully rebuildable, and is backed by a 5-year limited warranty on hard parts and 2 years on consumable parts.

Features

  • 40 clicks of rebound and 24 clicks of compression adjustment, set independently
  • Large external reservoirs add oil capacity and help cooling
  • Mono-tube shock design with twin piston design and high viscosity IP F.A. 20W damper oil
  • 44mm piston with digressive valving for comfort and control

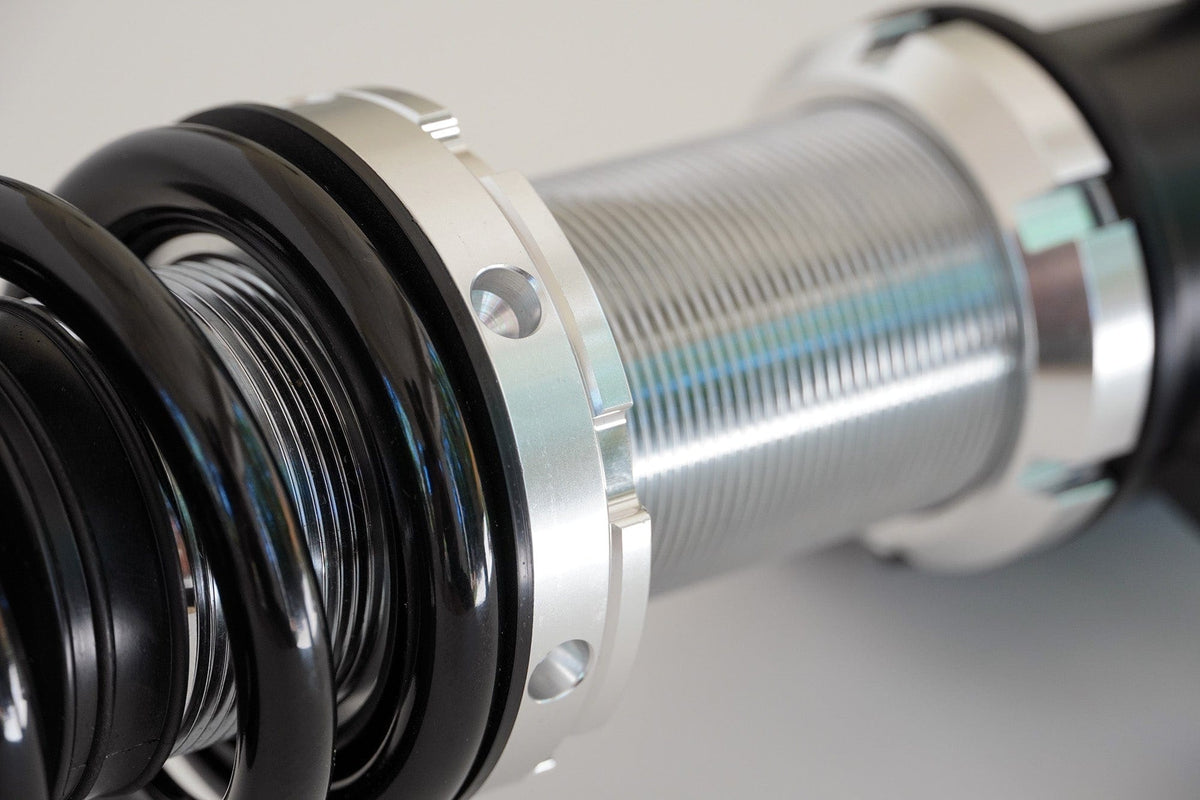

  • Fully ride height adjustable through the lower mount (no preload change required)
  • Adjustable T6 6061 front camber plates on most MacPherson applications
  • Koyo Japan radial bearing upper spring perch eliminates spring bind and noise
  • Cold-bent SAE9254 steel springs with stable elasticity
  • Powder-coated steel lower brackets with factory brake/ABS line tabs
  • Anodized T6 6061 aluminum lower mounts to reduce unsprung weight
  • Industry-leading warranty: 5 years on Hard Parts, 2 years on Consumable Parts
Specifications
Part Number SM1005-2W
Part Name Silvers NEOMAX 2-Way Coilovers
Vehicle 1995-2000 Mitsubishi Lancer Evolution 4/5/6
Drivetrain AWD
Quantity 4 Coilovers
Placement Front & Rear
Chassis Code CP9A/CN9A
Damping Adjustment 2-Way (40 levels rebound, 24 levels compression)
Ride-Height Adjustable Yes
Spring Rate - Front 10 kg/mm
Spring Rate - Rear 6 kg/mm
Top Mounts - Front Camber Adjustable Top Plates
Top Mounts - Rear Pillowball Non-Adjustable Top Mounts
Suspension Design - Front True Coilover
Suspension Design - Rear True Coilover
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1995MitsubishiLancer EvolutionAWD
1996MitsubishiLancer EvolutionAWD
1997MitsubishiLancer EvolutionAWD
1998MitsubishiLancer EvolutionAWD
1999MitsubishiLancer EvolutionAWD
2000MitsubishiLancer EvolutionAWD
