Product Details
SF Racing Sport Coilovers for the 2018-2024 Audi RS 5 AWD (B9/F5) are built for street-driven cars, with a wide range of ride height adjustment that does not cut into spring travel and rubber top mounts that keep the noise down.
SF Racing parts are made from high-quality components sourced from around the world while keeping the price very affordable. An anodized finish protects against rust and corrosion, which makes Sport Coilovers a solid setup for your daily driver.
Features
- Monotube Damper Design: Improves heat dissipation and reduces oil leakage.
- 32-Level Adjustable Damping: Fine-tune rebound and compression for ideal ride quality.
- Adjustable Ride Height: Lowers 1-2.5 inches below factory height without sacrificing suspension travel.
- Independent Lower Mount Adjustment: Maintains shock and spring integrity while adjusting height.
- T6-6061 Aluminum Construction: Lightweight, corrosion-resistant anodized top mounts, perches, and collars.
- Electroplated Shock Body: Zinc-coated for rust protection.
- Low-Friction, Pressure-Resistant Housing: Ensures smooth damping and longevity.
- Pillowball or Reinforced Rubber Top Mounts: Reduces noise while improving handling.
- SAE9254 Japanese Cold-Wound Springs: Durable and consistent performance.
- Japanese NOK Seals & Italian IP Damping Oil: Prevents leaks and ensures high-performance damping.
- Integrated Dust Boots & Bump Stops: Protects components from debris and wear.
- 100% Bolt-On Replacement: No modifications required (unless otherwise stated in the Specifications section).
Specifications
| Part Number | SF-AU04-09-SP |
| Part Name | SF Racing Sport Coilovers |
| Vehicle | 2018-2024 Audi RS 5 |
| Placement | Front & Rear |
| Chassis Code | B9/F5 |
| Drivetrain | AWD |
| Damping Adjustment | 1-Way (32 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 12 kg/mm |
| Spring Rate - Rear | 8 or 12 kg/mm |

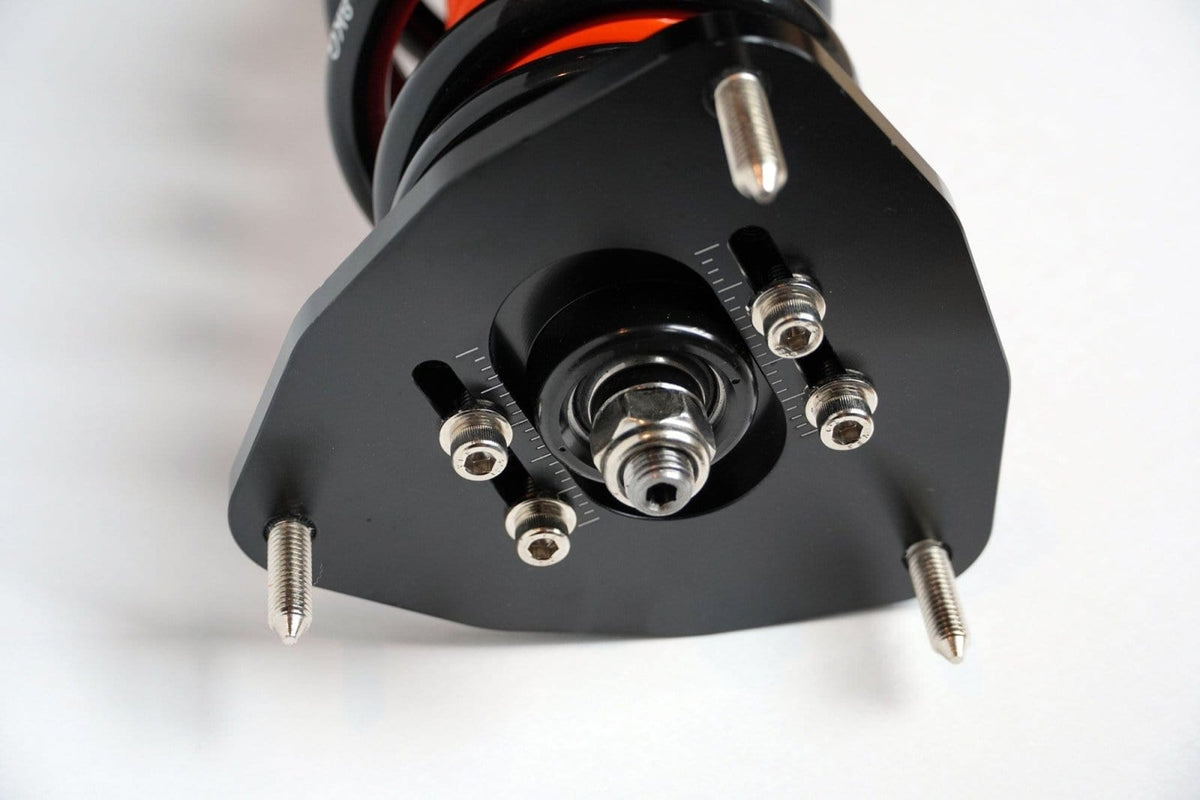

| Top Mounts - Front | Standard: Aluminum with Rubber Bushings. Optional: Aluminum Camber Plates with Pillowball Bushings |
| Top Mounts - Rear | Not Applicable |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Divorced (Separate shock and spring) |
| Damper Size - Front | 52mm diameter |
| Damper Size - Rear | 46mm diameter |
| Notes | - |
