Product Details

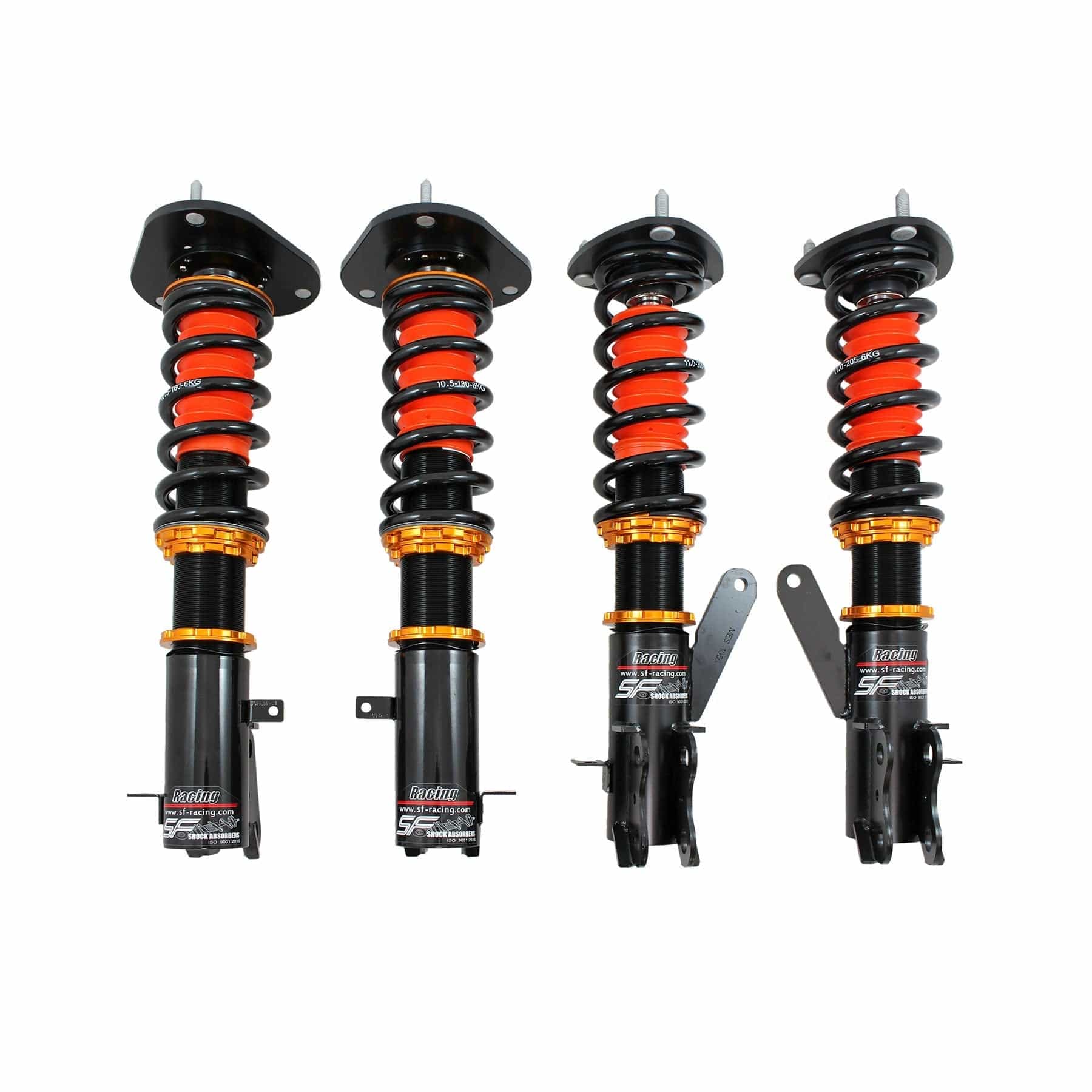

These SF Racing Sport coilovers fit the 1990-1998 Mazda Miata MX-5 (NA). They are the best coilovers available for street-driven cars. SF Sport Coilovers were designed to give a wide range of ride height adjustability without reducing the spring travel. Each corner of the car has 32 levels (or clicks) of damping adjustability. This combines both the rebound and compression into one adjustment knob. The coilovers also use rubber top mounts to help reduce the noise that typically comes with high performance aftermarket coilovers. SF Coilovers come standard with an anodized coating to protect against rust and corrosion caused by extreme use and harsh external elements.

SF Racing parts are manufactured from high quality products sourced from around the world while still maintaining a very affordable price. These SF Racing NA Miata MX-5 coilovers are the perfect setup for your daily driver.

Features

  • Monotube Damper Design: Improves heat dissipation and reduces oil leakage.
  • 32-Level Adjustable Damping: Fine-tune rebound and compression for ideal ride quality.
  • Adjustable Ride Height: Lowers 1-2.5 inches below factory height without sacrificing suspension travel.
  • Independent Lower Mount Adjustment: Maintains shock and spring integrity while adjusting height.

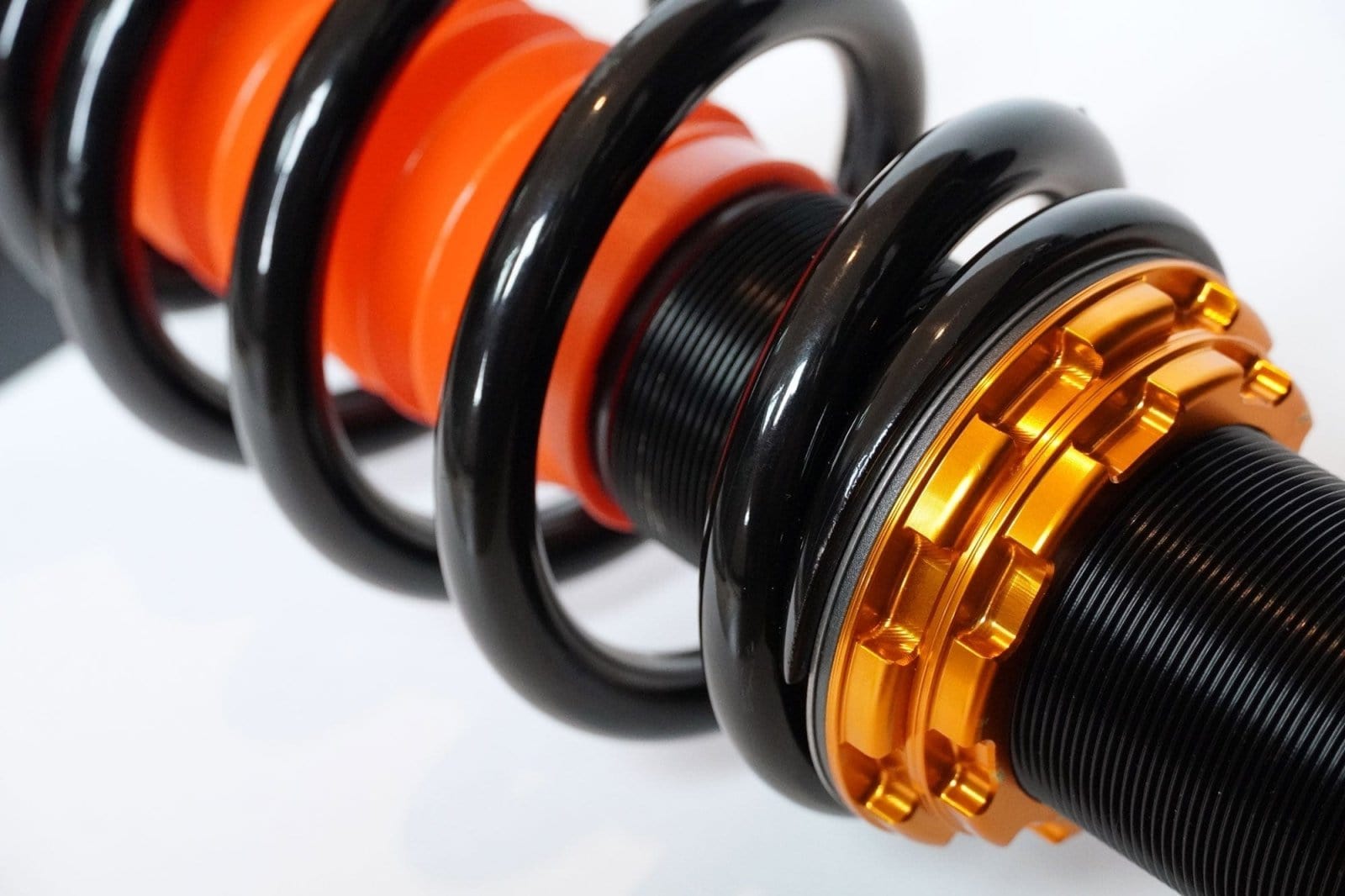

  • T6-6061 Aluminum Construction: Lightweight, corrosion-resistant anodized top mounts, perches, and collars.

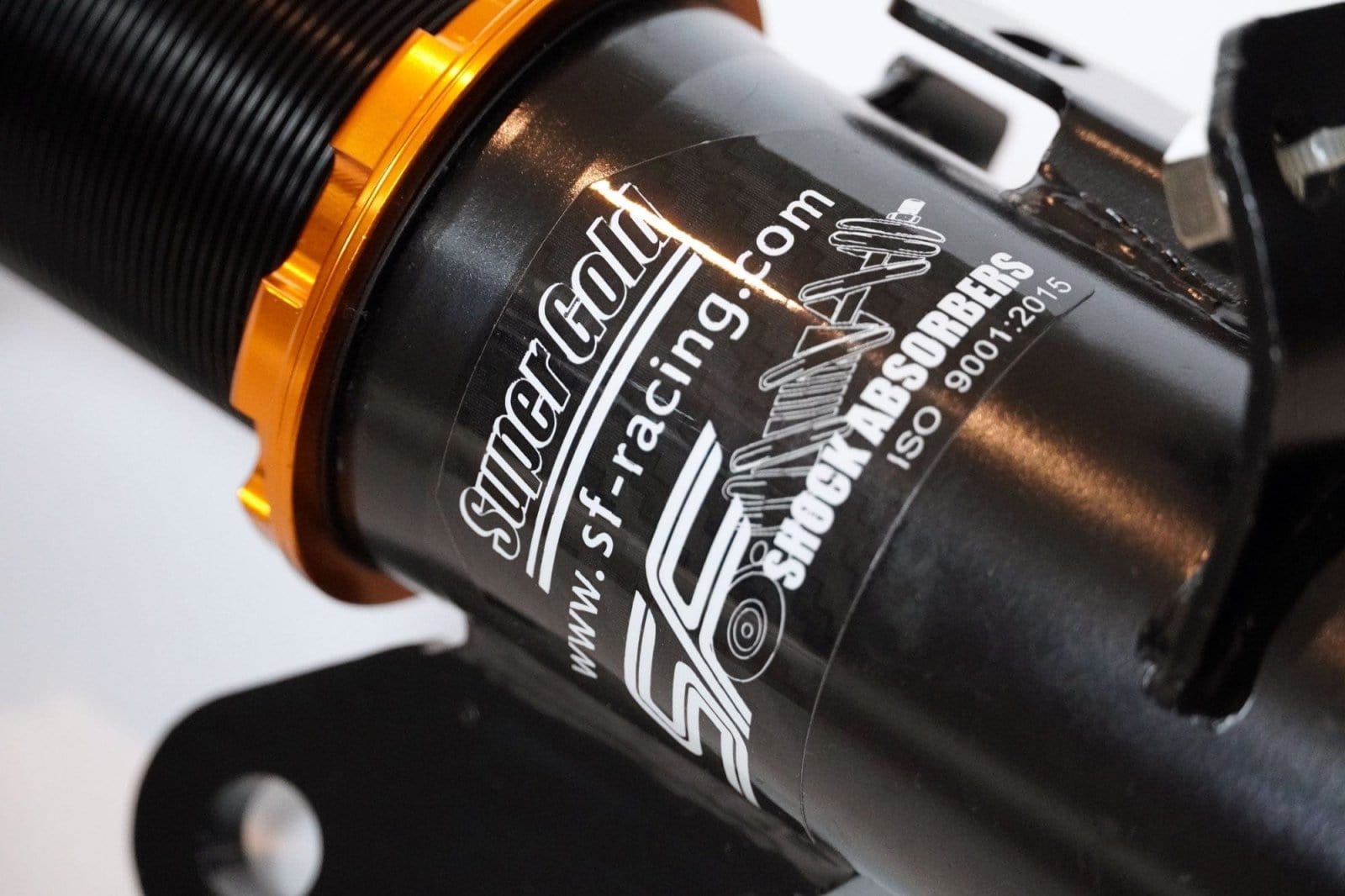

  • Electroplated Shock Body: Zinc-coated for rust protection.
  • Low-Friction, Pressure-Resistant Housing: Ensures smooth damping and longevity.

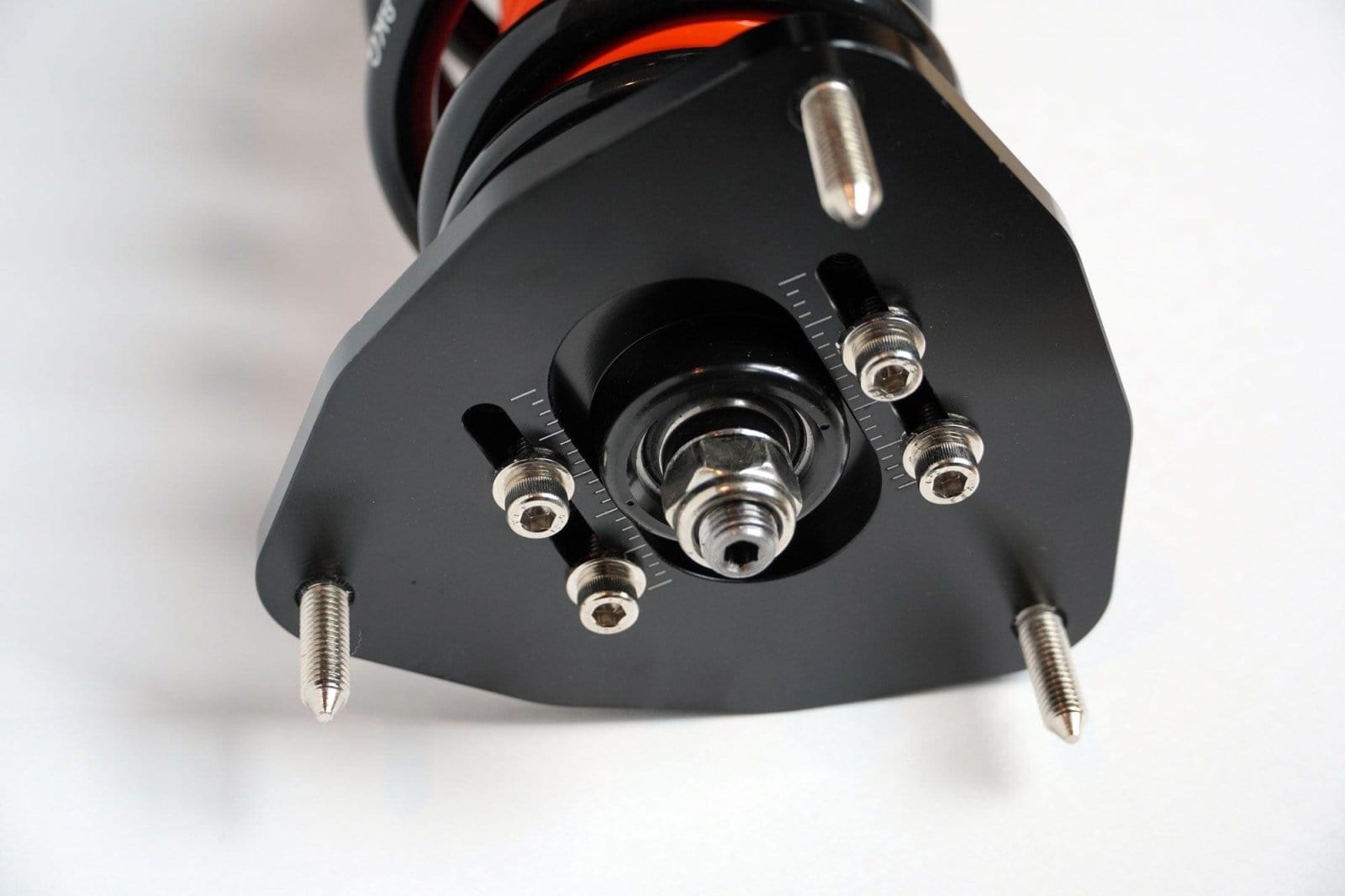

  • Pillowball or Reinforced Rubber Top Mounts: Reduces noise while improving handling.
  • SAE9254 Japanese Cold-Wound Springs: Durable and consistent performance.
  • Japanese NOK Seals & Italian IP Damping Oil: Prevents leaks and ensures high-performance damping.
  • Integrated Dust Boots & Bump Stops: Protects components from debris and wear.
  • 100% Bolt-On Replacement: No modifications required (unless otherwise stated in the Specifications section).

Specifications

Part Number SF-MA07-02-SP
Vehicle 1990-1998 Mazda Miata MX-5
Drivetrain
Chassis NA
Damper Model Sport Series
Damping Adjustability 1-Way: Rebound and Compression
Damper Size - Front 50mm diameter
Damper Size - Rear 50mm diameter
Spring Rates - Front 8.3 kg/mm
Spring Rates - Rear 6 kg/mm
Top Mounts - Front Aluminum with Rubber Bushings
Top Mounts - Rear Aluminum with Rubber Bushings
Suspension Design - Front True Coilover
Suspension Design - Rear True Coilover
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1990MazdaMX-5 MiataRWD
1991MazdaMX-5 MiataRWD
1992MazdaMX-5 MiataRWD
1993MazdaMX-5 MiataRWD
1994MazdaMX-5 MiataRWD
1995MazdaMX-5 MiataRWD
1996MazdaMX-5 MiataRWD
1997MazdaMX-5 MiataRWD
1998MazdaMX-5 MiataRWD
