Product Details
RS-R Sports-i coilovers for the 2023+ Toyota Prius AWD (MXWH65) balance daily-driver comfort with serious track capability on the same set of dampers. The 36-level single-knob adjustment, vehicle-specific spring rates, and full ride-height range let you dial the Prius in for the commute on Monday and for a canyon run or track day on Saturday without touching a tool beyond the damper click wheel.
The Sports-i is RS-R’s foundation street-and-canyon coilover — a 36-level single-knob monotube damper built in-house in Osaka, Japan, with full ride-height adjustment and vehicle-specific spring rates. It is engineered to be driven daily yet firm enough for spirited weekend use. Backed by RS-R’s 1-year / 12,000-mile warranty and available as a rebuildable, serviceable unit.
Features

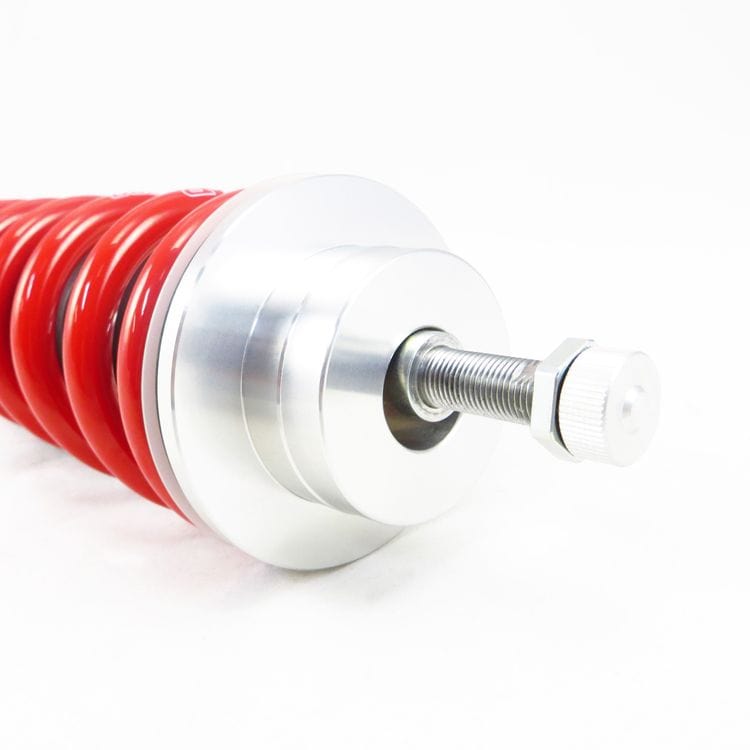

- 36-level single-knob damping adjustment

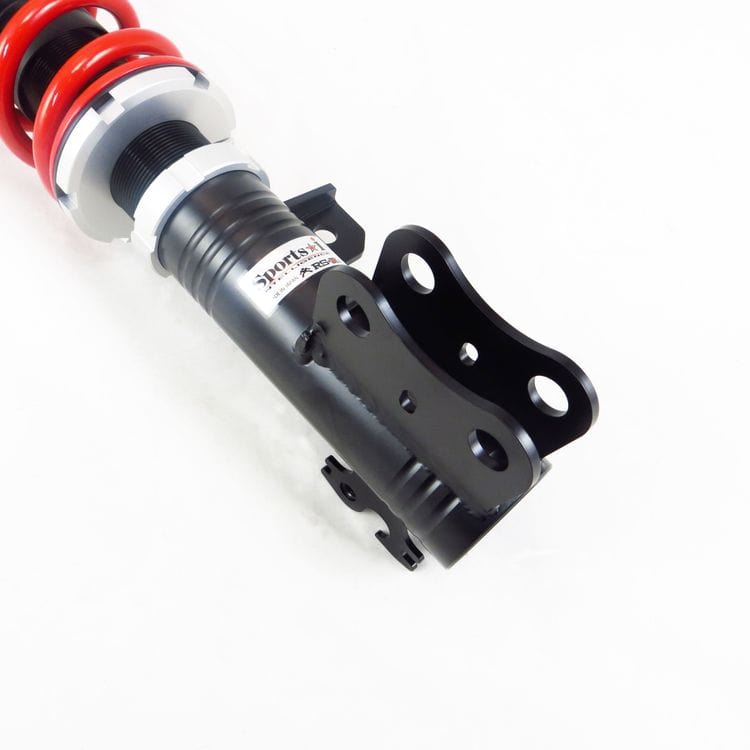

- Full ride-height adjustment via lower-mount perch
- Vehicle-specific spring rates matched to chassis
- Monotube internal piston, hand-assembled in Japan
- Rebuildable — damper cartridges can be overhauled
- 1-Year / 12,000-mile RS-R warranty
What’s Included

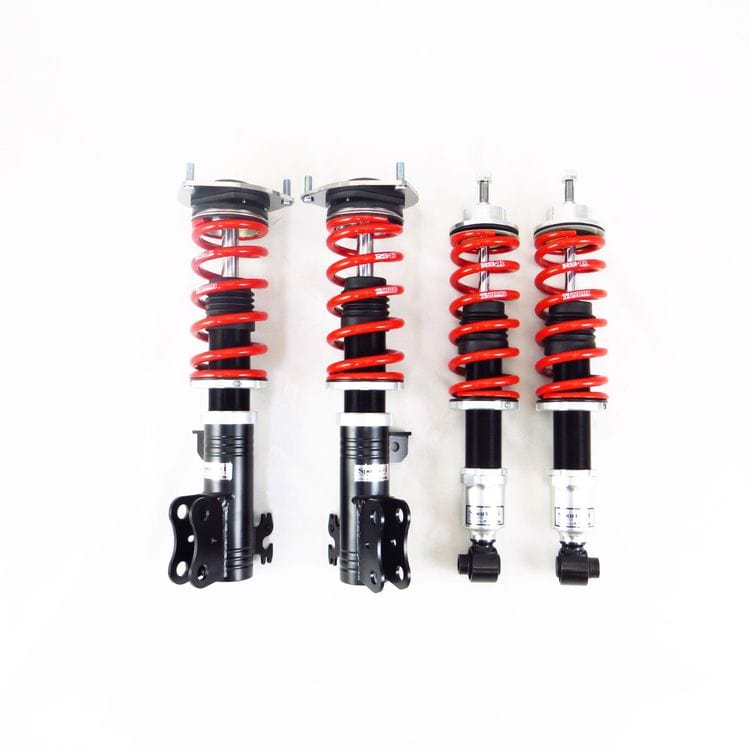

- Full coilover set (front and rear)
- Hex and allen wrenches
- Upper rubber seat for rear
- Hex nut, bolt and washer for rear shock
- Waterproof rubber damper cover
- Spring tubes for front and rear
Specifications
| Part Number | XBIT587M |
| Part Name | RS-R Sports-i Coilovers |
| Vehicle | 2023+ Toyota Prius |
| Chassis Code | MXWH65 |
| Drivetrain | AWD |
| Damping Adjustment | 36-Level Single-Knob |
| Ride-Height Adjustable | Yes |
| Damper Construction | Monotube |
| Preset Approximate Height - Front | -25mm to -30mm (-1.0inch to -1.2inch) |
| Preset Approximate Height - Rear | -25mm to -30mm (-1.0inch to -1.2inch) |
| Maximum Adjustment Range - Front | +15mm to -50mm (+0.6inch to -2.0inch) |
| Maximum Adjustment Range - Rear | +25mm to -65mm (+1.0inch to -2.6inch) |
| Recommended Adjustment Range - Front | +5mm to -45mm (+0.2inch to -1.8inch) |
| Recommended Adjustment Range - Rear | +5mm to -45mm (+0.2inch to -1.8inch) |
| Spring Rate - Front | 6.00 Kg/mm |
| Spring Rate - Rear | 6.00 Kg/mm |

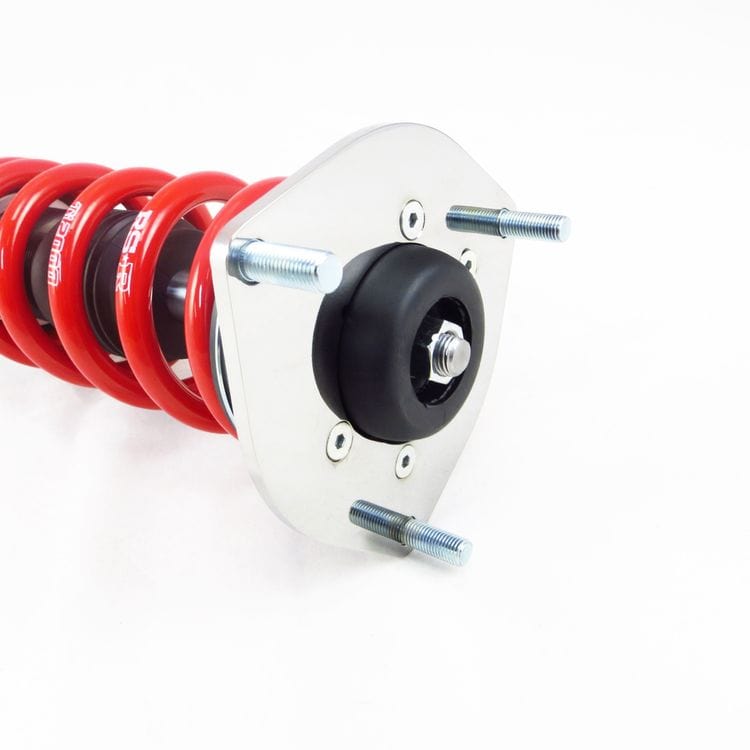

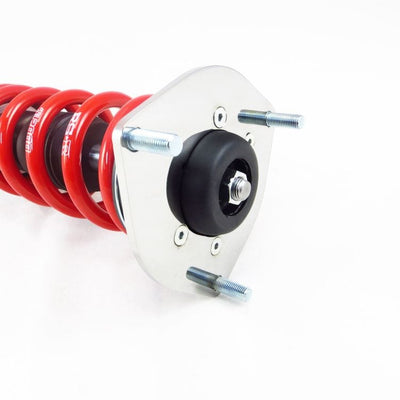

| Upper Mount - Front | Rubber Bushings (OEM-style) |
| Upper Mount - Rear | Rubber Bushings (OEM-style) |

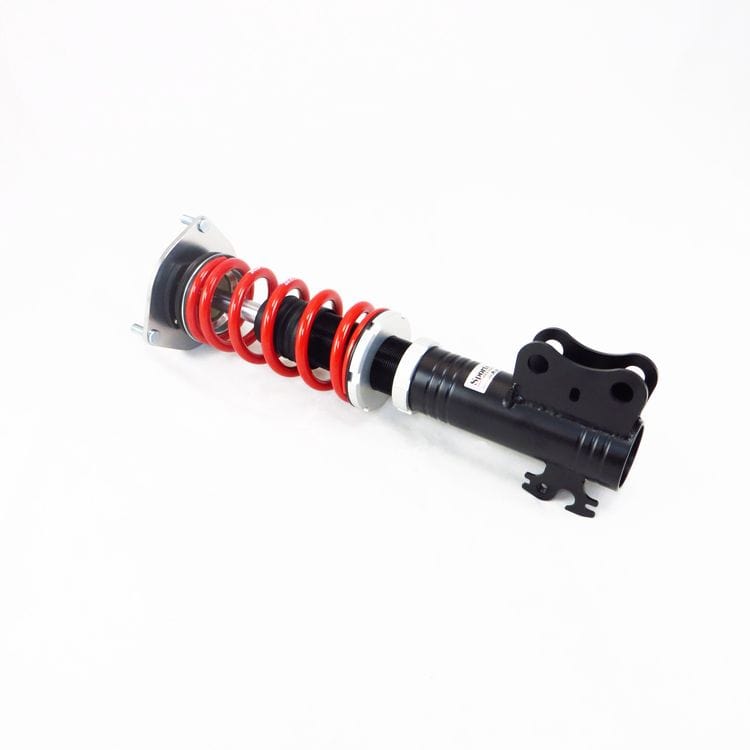

| Suspension Design - Front | True Coilover |

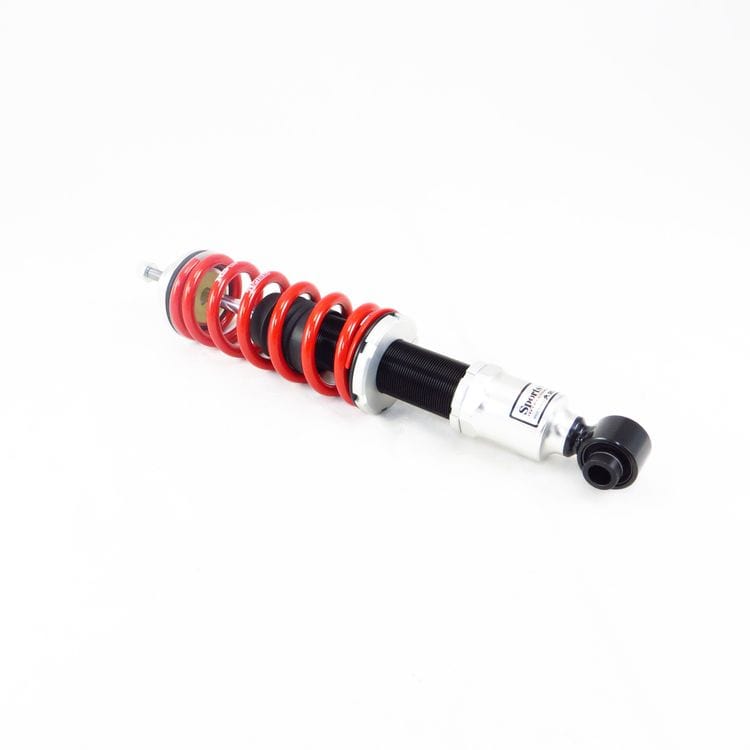

| Suspension Design - Rear | Divorced |
| Rebuildable | Yes |
| Warranty | 1 Year / 12,000 Miles |
Vehicle Fitment
- 2023 Toyota Prius AWD (MXWH65)
- 2024 Toyota Prius AWD (MXWH65)
- 2025 Toyota Prius AWD (MXWH65)
- 2026 Toyota Prius AWD (MXWH65)
