Product Details

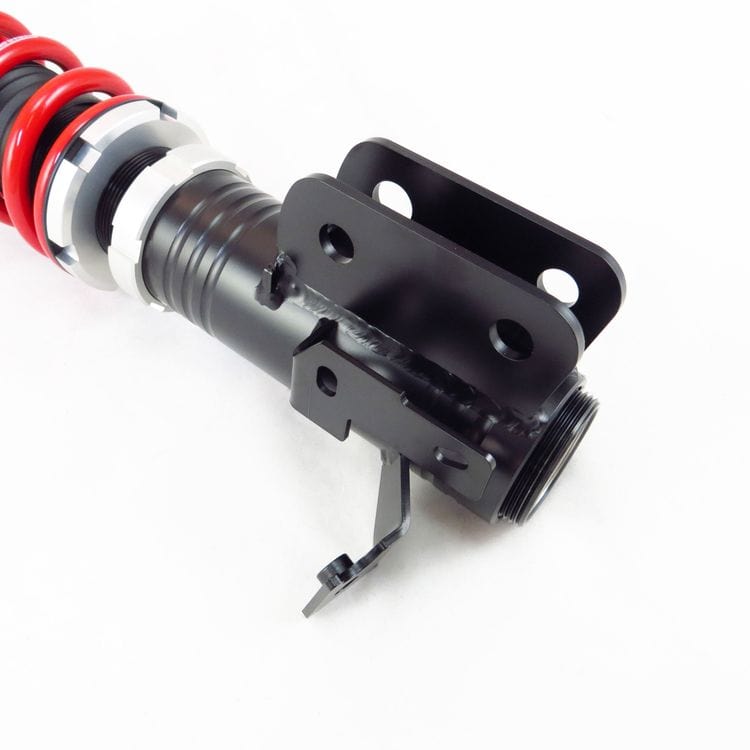

RS-R Sports-i coilovers for the 2022+ Toyota GR86 (ZN8) balance daily-driver comfort with serious track capability on the same set of dampers. The 36-level single-knob adjustment, vehicle-specific spring rates, and full ride-height range let you dial the GR86 in for the commute on Monday and for a canyon run or track day on Saturday without touching a tool beyond the damper click wheel.
The Sports-i is RS-R’s foundation street-and-canyon coilover — a 36-level single-knob monotube damper built in-house in Osaka, Japan, with full ride-height adjustment and vehicle-specific spring rates. It is engineered to be driven daily yet firm enough for spirited weekend use. Backed by RS-R’s 1-year / 12,000-mile warranty and available as a rebuildable, serviceable unit.
Features
- 36-level single-knob damping adjustment

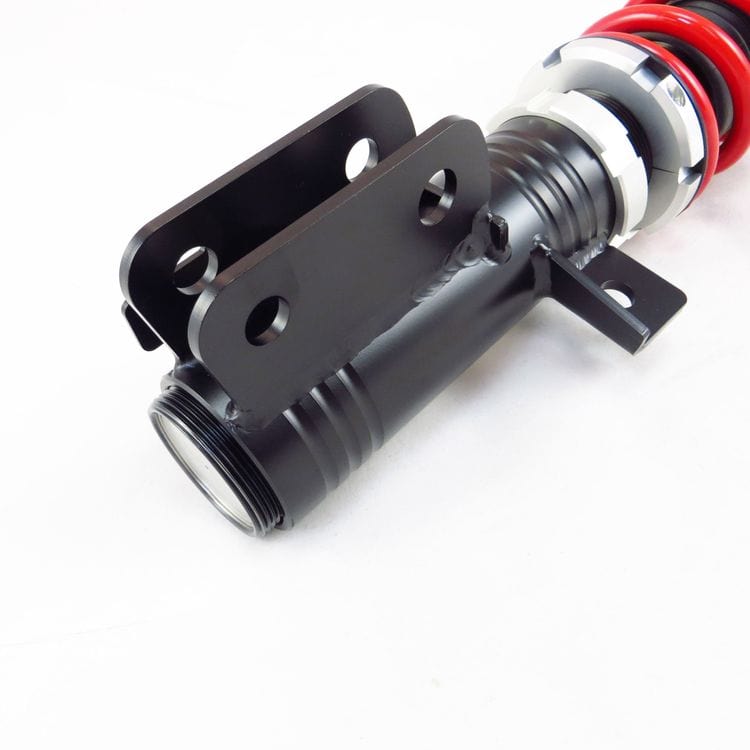

- Full ride-height adjustment via lower-mount perch
- Vehicle-specific spring rates matched to chassis
- Monotube internal piston, hand-assembled in Japan
- Rebuildable — damper cartridges can be overhauled
- 1-Year / 12,000-mile RS-R warranty
What’s Included

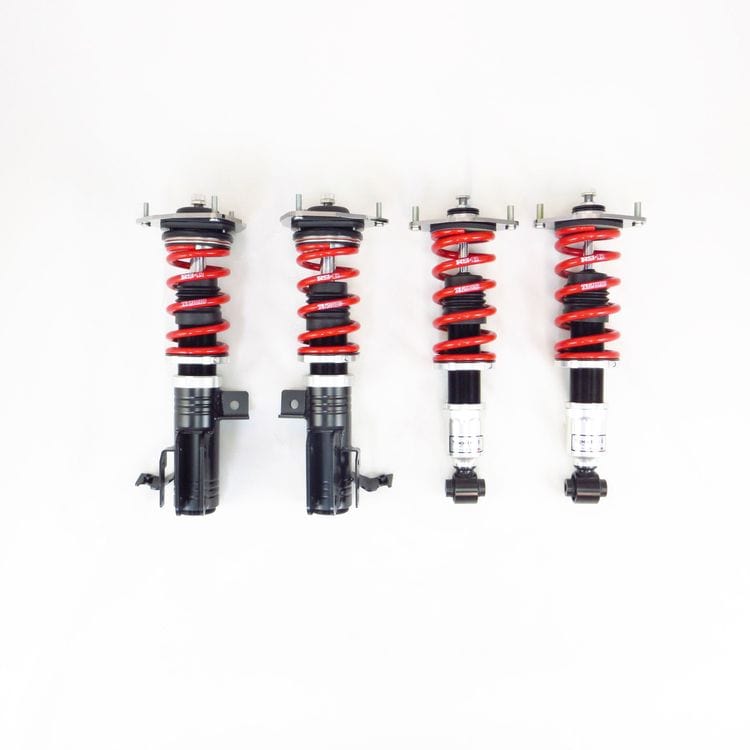

- Full coilover set (front and rear)

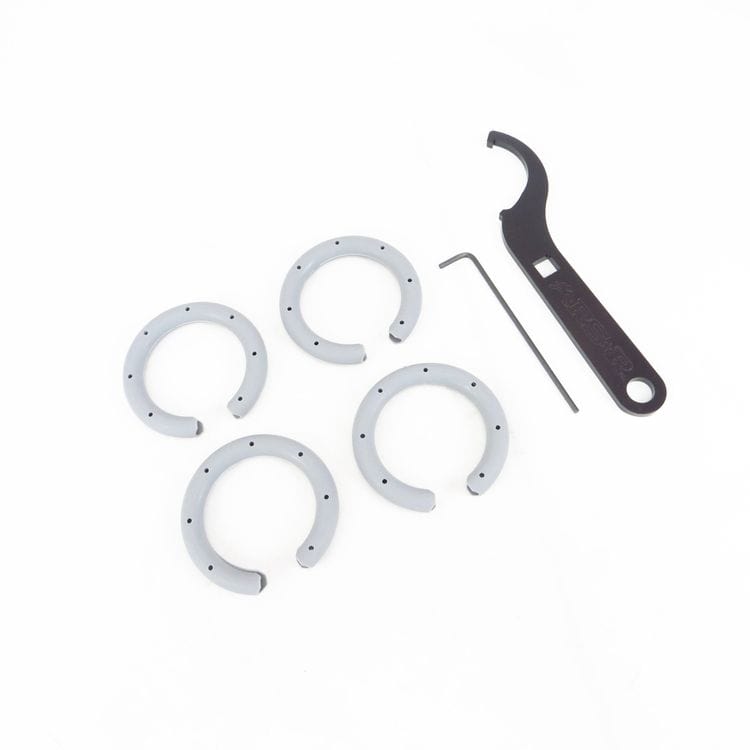

- Hex and allen wrenches
- Upper rubber seat for rear
- Hex nut, bolt and washer for rear shock
- Waterproof rubber damper cover
- Spring tubes for front and rear
Specifications
| Part Number | XBIT067M |
| Part Name | RS-R Sports-i Coilovers |
| Vehicle | 2022+ Toyota GR86 |
| Chassis Code | ZN8 |
| Damping Adjustment | 36-Level Single-Knob |
| Ride-Height Adjustable | Yes |

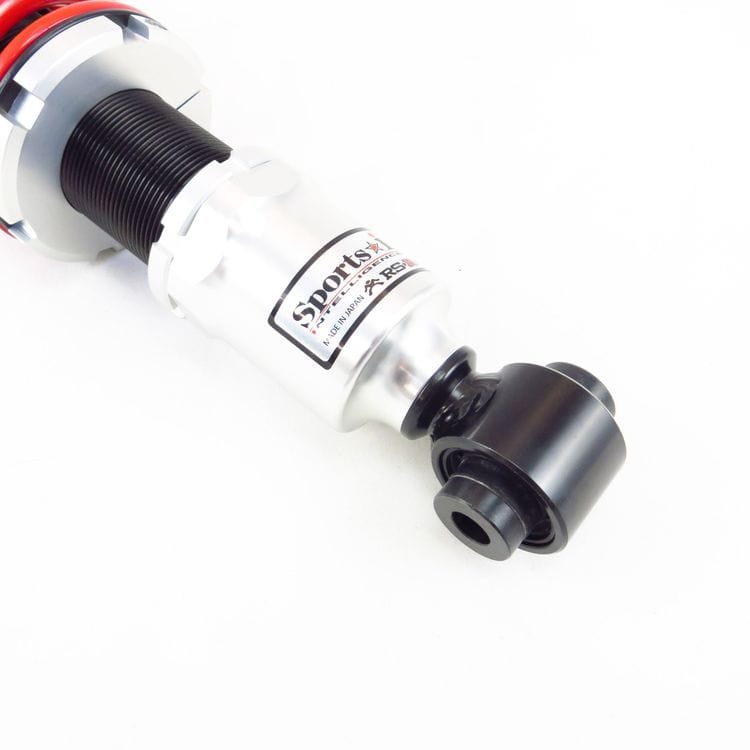

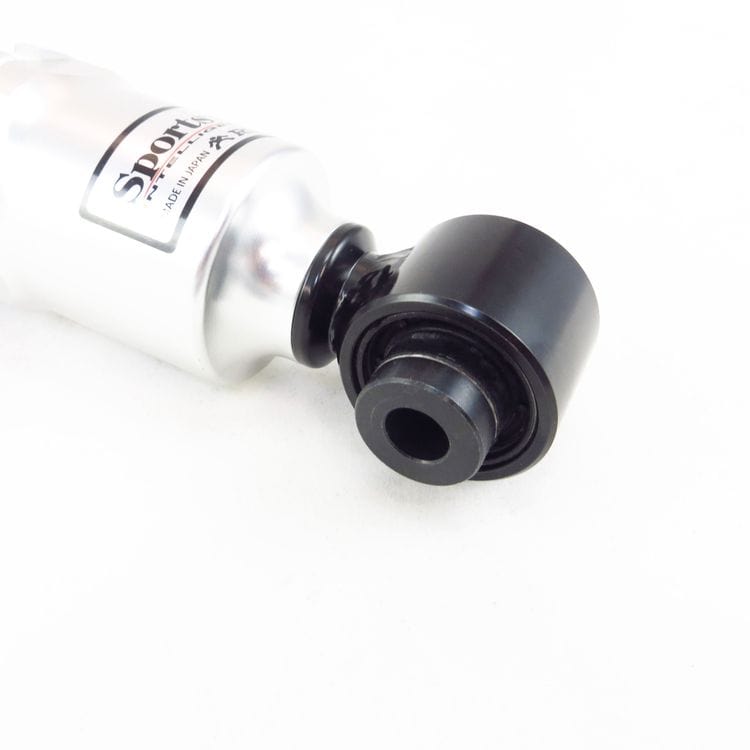

| Damper Construction | Monotube |
| Preset Approximate Height - Front | -15mm to -20mm (-0.6in to -0.8in) |
| Preset Approximate Height - Rear | -25mm to -30mm (-1.0in to -1.2in) |
| Maximum Adjustment Range - Front | +20mm to -30mm (+0.8in to -1.2in) |
| Maximum Adjustment Range - Rear | +30mm to -80mm (+1.2in to -3.2in) |
| Recommended Adjustment Range - Front | +10mm to -30mm (+0.4in to -1.2in) |
| Recommended Adjustment Range - Rear | 0mm to -45mm (0in to -1.8in) |

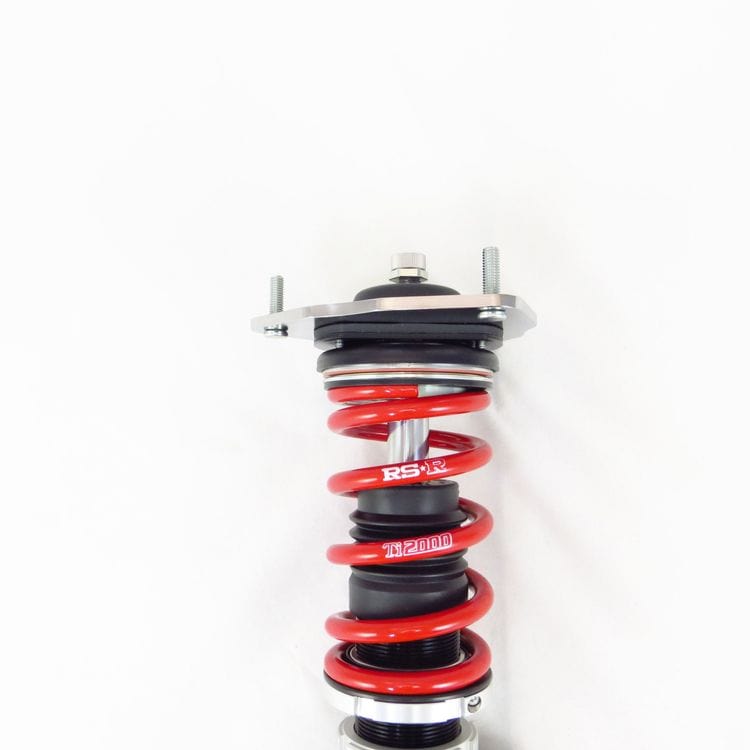

| Spring Rate - Front | 6.00 Kg/mm |
| Spring Rate - Rear | 7.00 Kg/mm |

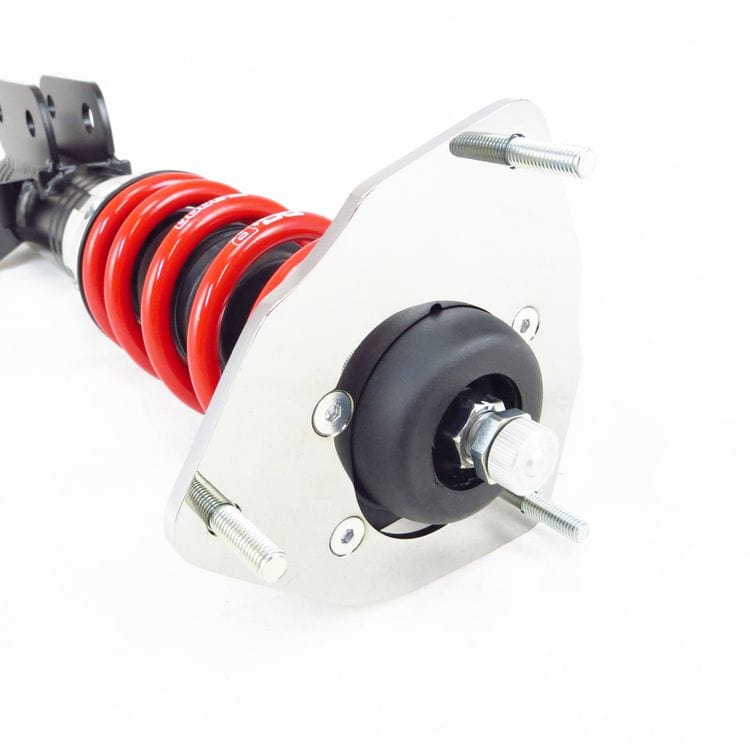

| Upper Mount - Front | Rubber Bushings (OEM-style) |
| Upper Mount - Rear | Rubber Bushings (OEM-style) |

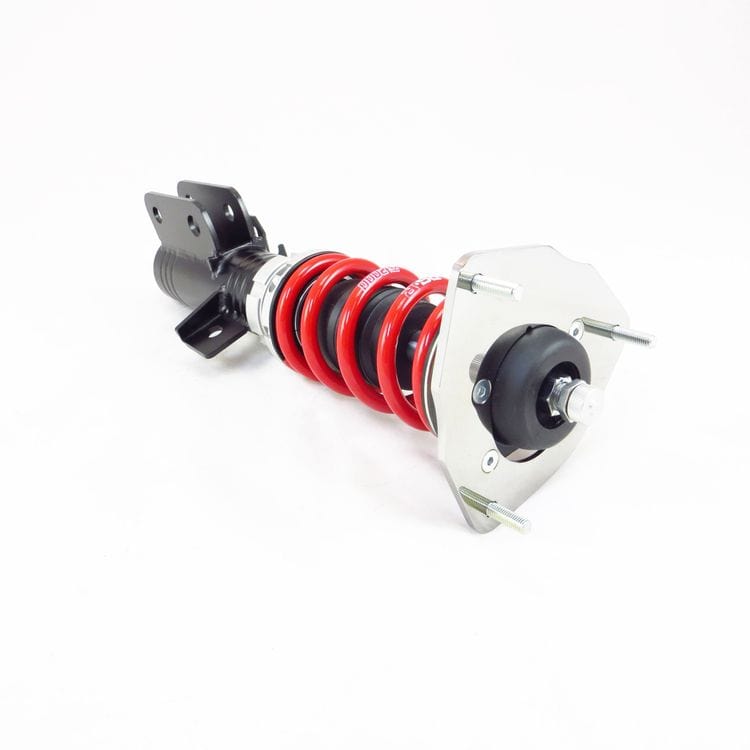

| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | True Coilover |
| Rebuildable | Yes |
| Warranty | 1 Year / 12,000 Miles |
Vehicle Fitment
- 2022 Toyota GR86 (ZN8)
- 2023 Toyota GR86 (ZN8)
- 2024 Toyota GR86 (ZN8)
- 2025 Toyota GR86 (ZN8)
- 2026 Toyota GR86 (ZN8)
