Product Details

RS-R Sports-i coilovers for the 2017+ Tesla Model 3 RWD balance daily-driver comfort with serious track capability on the same set of dampers. The 36-level single-knob adjustment, vehicle-specific spring rates, and full ride-height range let you dial the Model in for the commute on Monday and for a canyon run or track day on Saturday without touching a tool beyond the damper click wheel.

The Sports-i is RS-R’s foundation street-and-canyon coilover — a 36-level single-knob monotube damper built in-house in Osaka, Japan, with full ride-height adjustment and vehicle-specific spring rates. It is engineered to be driven daily yet firm enough for spirited weekend use. Backed by RS-R’s 1-year / 12,000-mile warranty and available as a rebuildable, serviceable unit.

Features

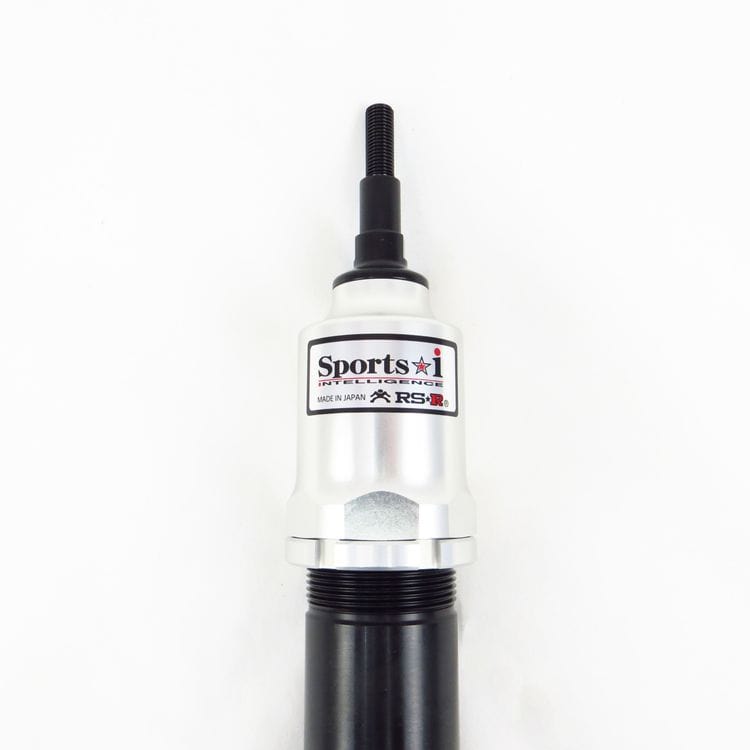

  • 36-level single-knob damping adjustment

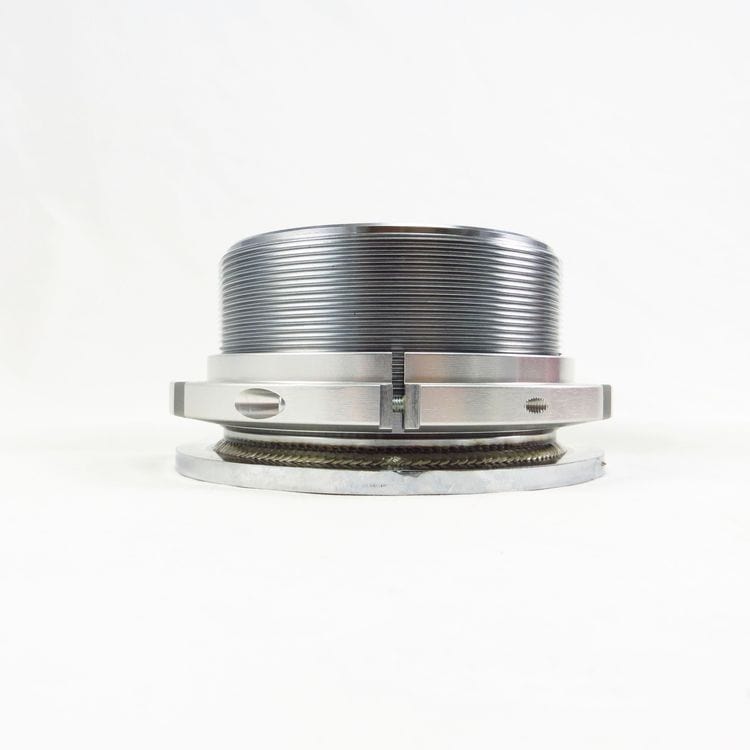

  • Full ride-height adjustment via lower-mount perch
  • Vehicle-specific spring rates matched to chassis
  • Monotube internal piston, hand-assembled in Japan
  • Rebuildable — damper cartridges can be overhauled
  • 1-Year / 12,000-mile RS-R warranty
What’s Included

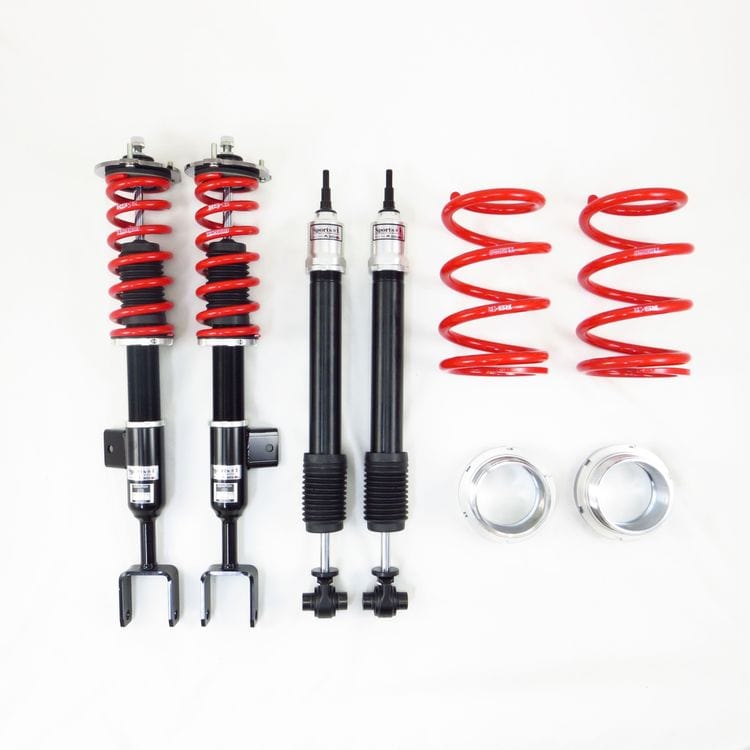

  • Full coilover set (front and rear)
  • Hex and allen wrenches
  • Upper rubber seat for rear
  • Hex nut, bolt and washer for rear shock
  • Waterproof rubber damper cover
  • Spring tubes for front and rear
Specifications
Part Number XBITL001M

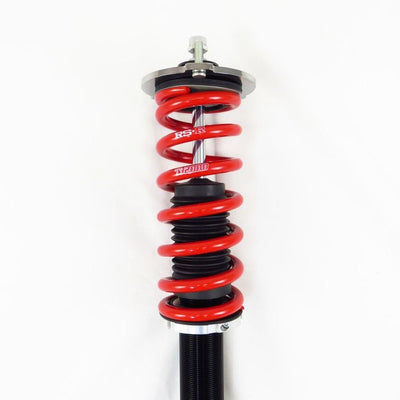

Part Name RS-R Sports-i Coilovers
Vehicle 2017+ Tesla Model 3
Drivetrain RWD
Damping Adjustment 36-Level Single-Knob
Ride-Height Adjustable Yes
Damper Construction Monotube
Maximum Adjustment Range - Front +20mm to -90mm (+.78in to -3.54in)
Maximum Adjustment Range - Rear -10mm to -55mm (-0.39in to -2.16in)
Recommended Adjustment Range - Front -30mm to -40mm (-1.18in to -1.57in)
Recommended Adjustment Range - Rear -30mm to -35mm (-1.18in to -1.37in)

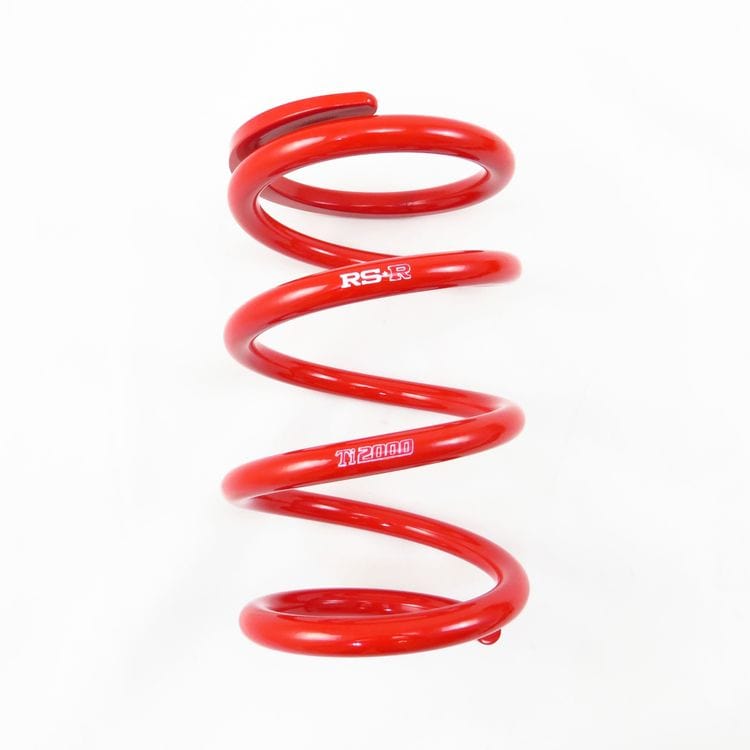

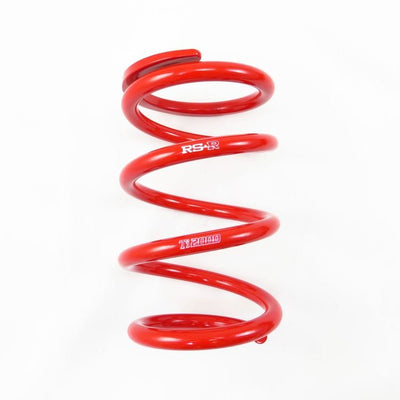

Spring Rate - Front 8.00 Kg/mm
Spring Rate - Rear 8.50 Kg/mm

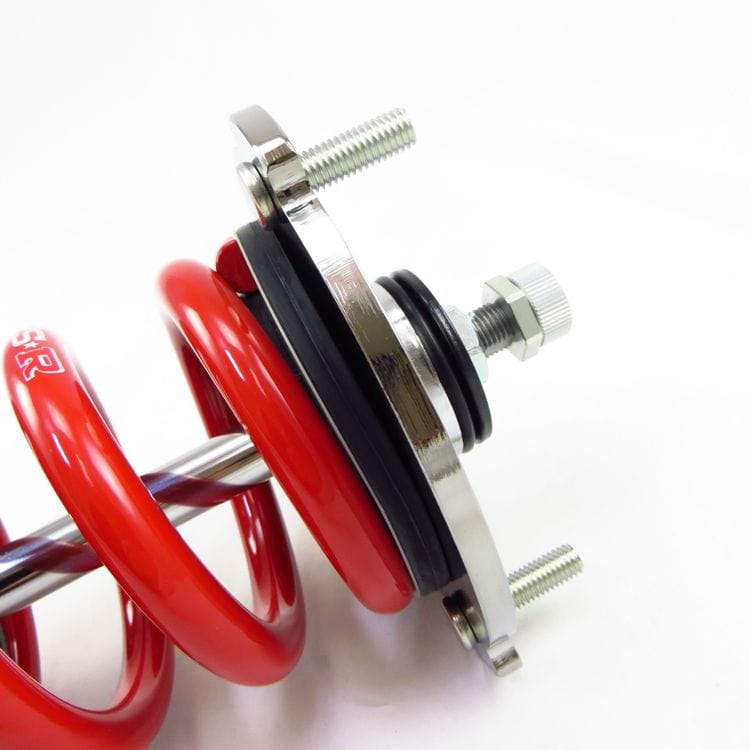

Upper Mount - Front Rubber Bushings (OEM-style)
Upper Mount - Rear Rubber Bushings (OEM-style)

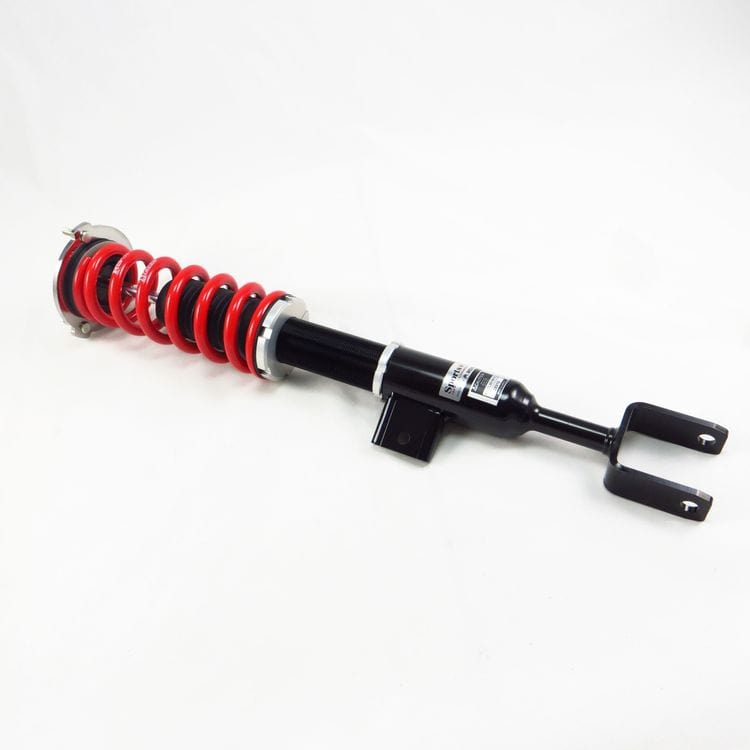

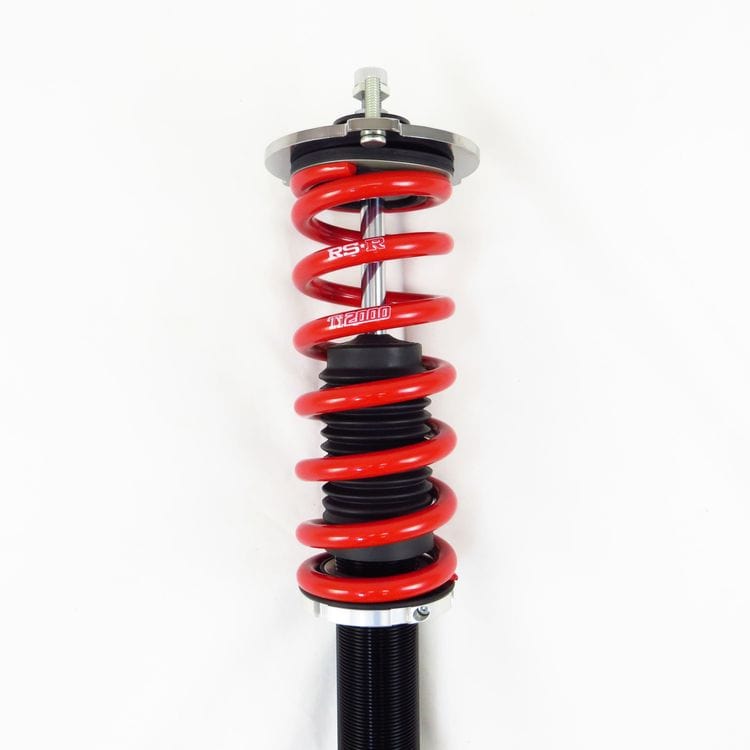

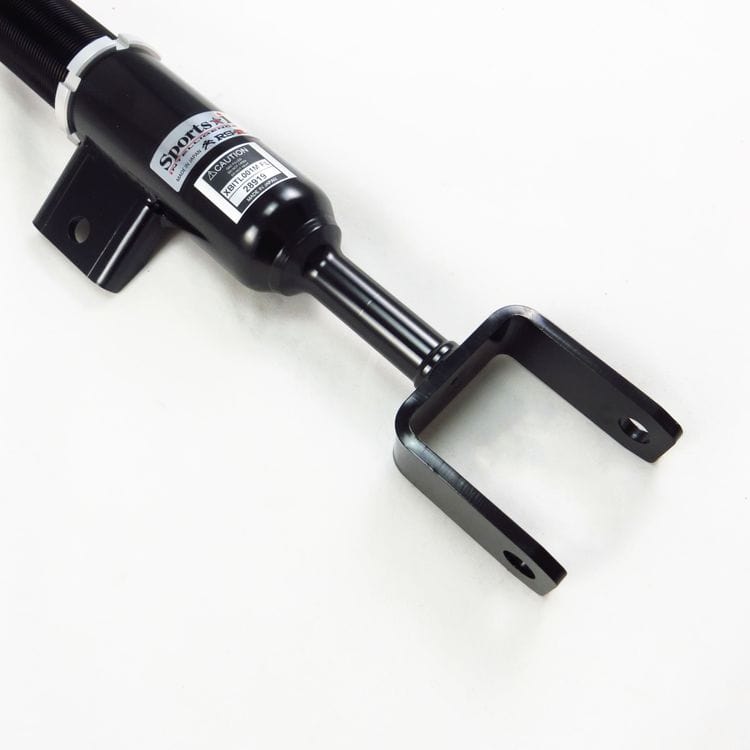

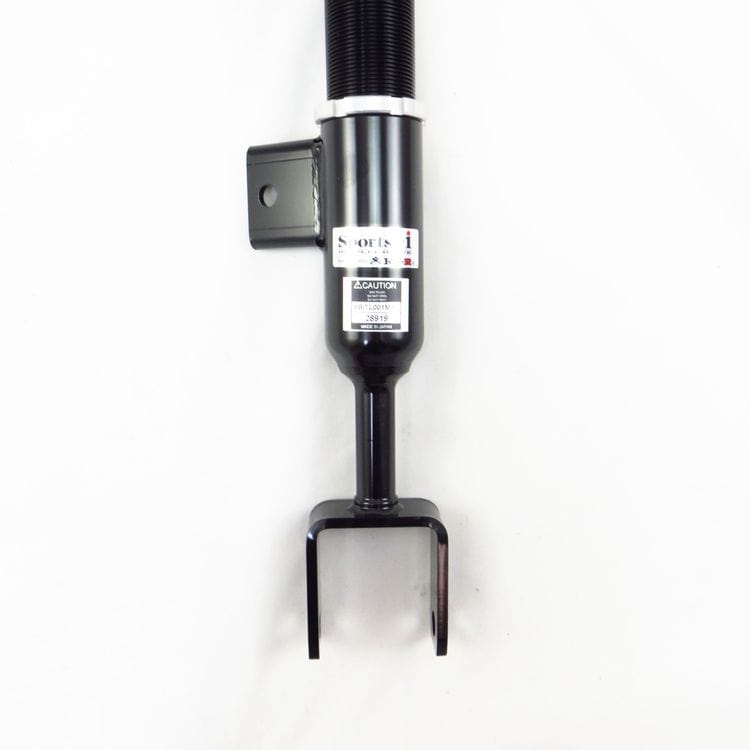

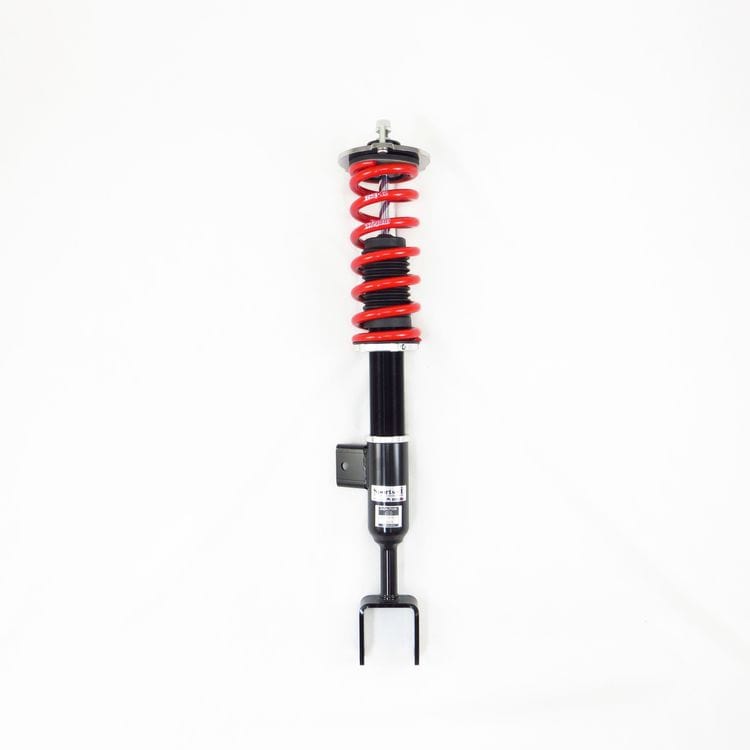

Suspension Design - Front True Coilover

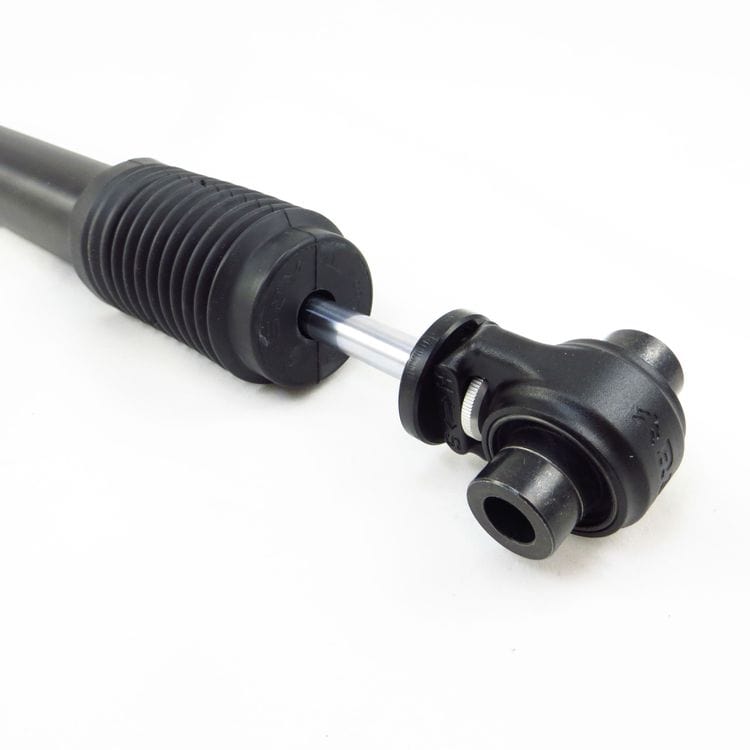

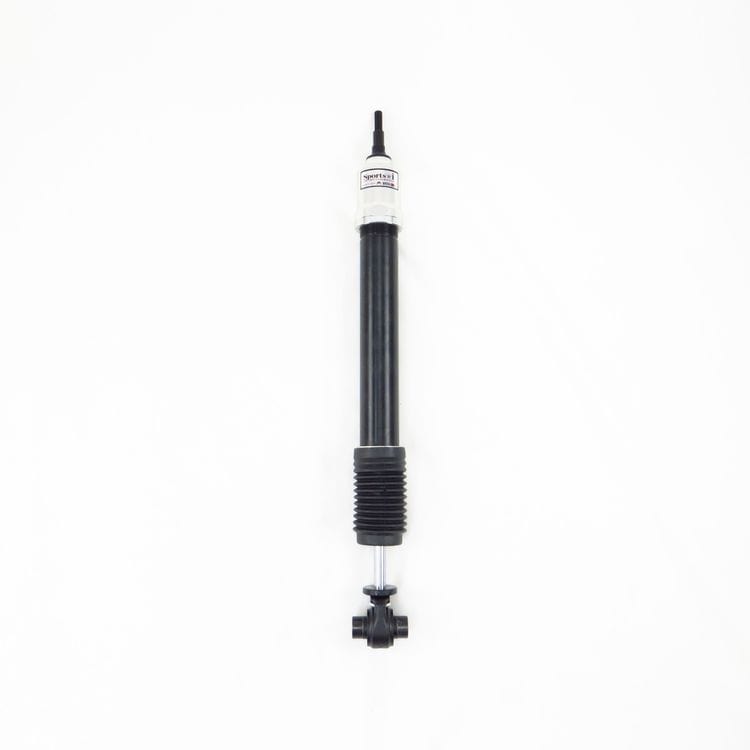

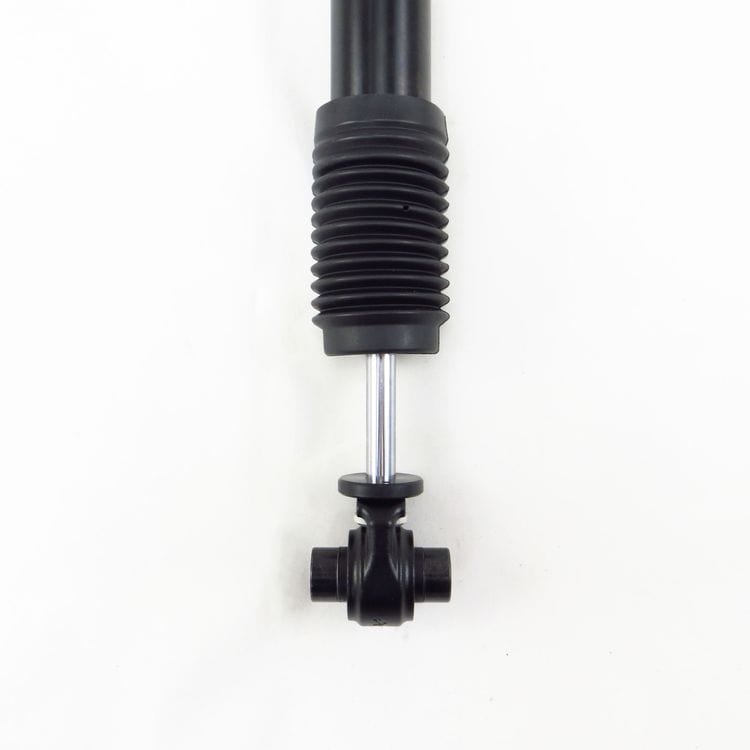

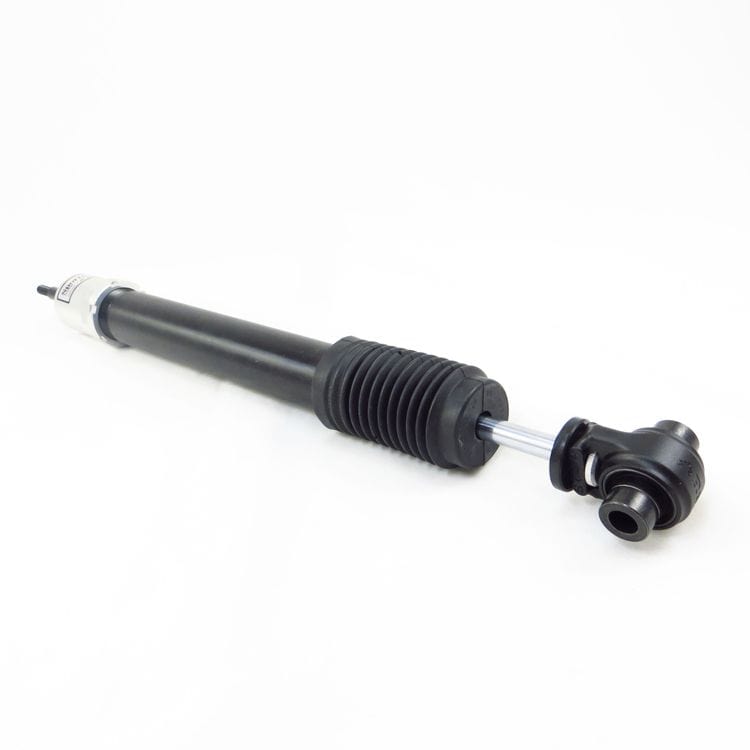

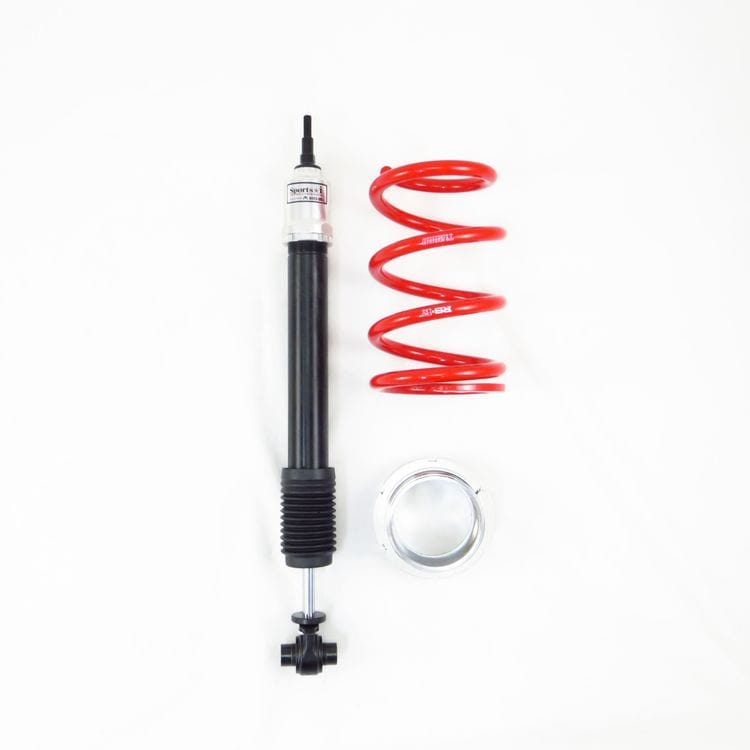

Suspension Design - Rear Divorced
Rebuildable Yes
Warranty 1 Year / 12,000 Miles
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2017TeslaModel 3RWD
2018TeslaModel 3RWD
2019TeslaModel 3RWD
2020TeslaModel 3RWD
2021TeslaModel 3RWD
2022TeslaModel 3RWD
2023TeslaModel 3RWD
2024TeslaModel 3RWD
2025TeslaModel 3RWD
2026TeslaModel 3RWD
