Product Details
RS-R Sports-i Club Racer coilovers for the 2023+ Toyota GR Corolla take the proven Sports-i platform and step it up with pillowball-bushing upper mounts, adjustable camber plates, and track-tuned spring rates. The pillowball bushings sharpen turn-in and eliminate rubber deflection; the camber plates let you dial in negative camber for corner loading; the higher spring rates keep the GR flat through sustained corners. Still 36-level damper adjustable, still rebuildable, still street-legal — just dialed harder for drivers who spend real seat time at HPDE and time-attack events.
The Sports-i Club Racer takes the Sports-i platform and adds pillowball-bushing upper mounts with adjustable camber plates, plus track-tuned spring rates for drivers who spend serious time at time-attack days and HPDE events. The pillowball bushings sharpen steering response and eliminate rubber deflection under load, the camber plates let you dial in negative camber for sustained cornering, and the higher spring rates keep the chassis flat under load. Still rebuildable and still street-legal, just dialed harder.
Features
- Pillowball-bushing upper mounts — zero rubber deflection

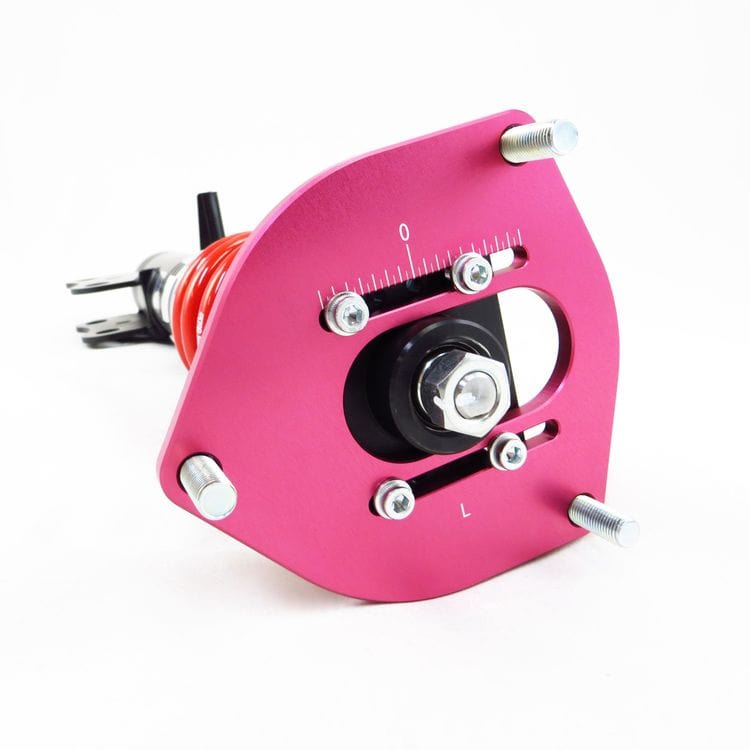

- Adjustable camber plates (front) — dial in negative camber for track use

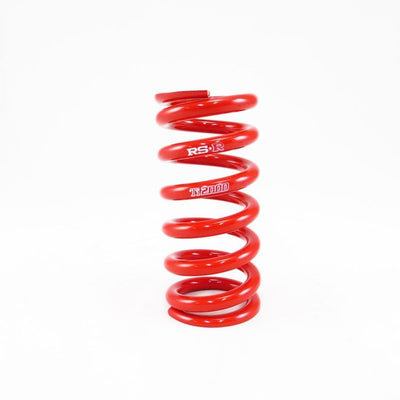

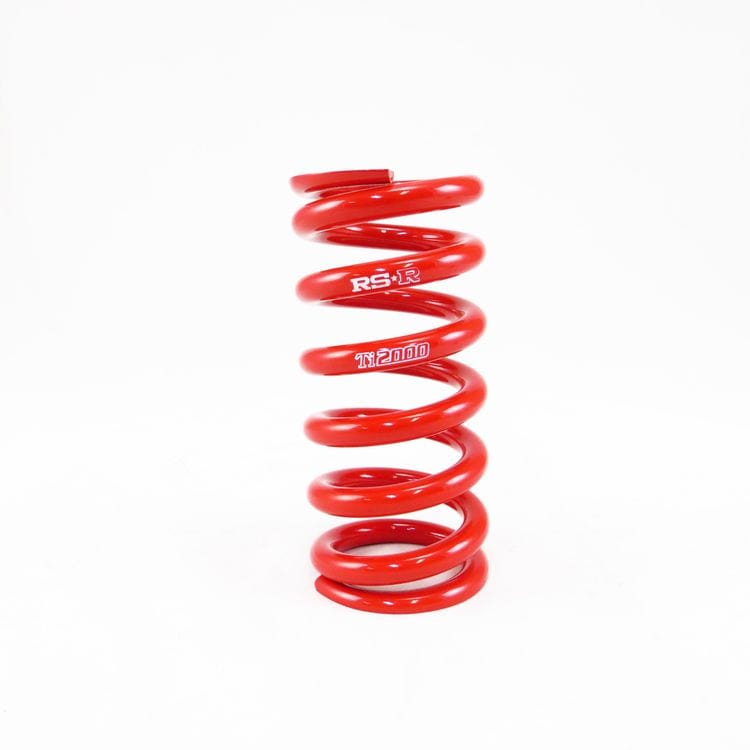

- Higher spring rates tuned for sustained cornering
- 36-level single-knob damping adjustment
- Full ride-height adjustment
- Monotube, hand-assembled in Japan
- Rebuildable / serviceable dampers
- 1-Year / 12,000-mile RS-R warranty
What’s Included

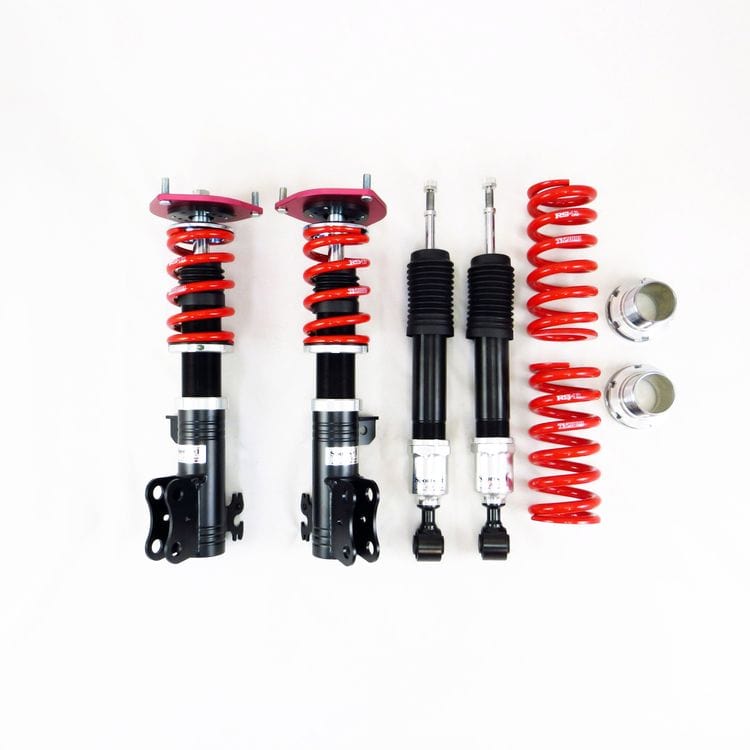

- Full coilover set (front and rear)
- Hex and allen wrenches
- Upper rubber seat for rear
- Hex nut, bolt and washer for rear shock
- Waterproof rubber damper cover
- Spring tubes for front and rear
Specifications
| Part Number | XNSPT558MP |
| Part Name | RS-R Sports-i Club Racer Coilovers |
| Vehicle | 2023+ Toyota GR Corolla |
| Damping Adjustment | 36-Level Single-Knob |
| Ride-Height Adjustable | Yes |

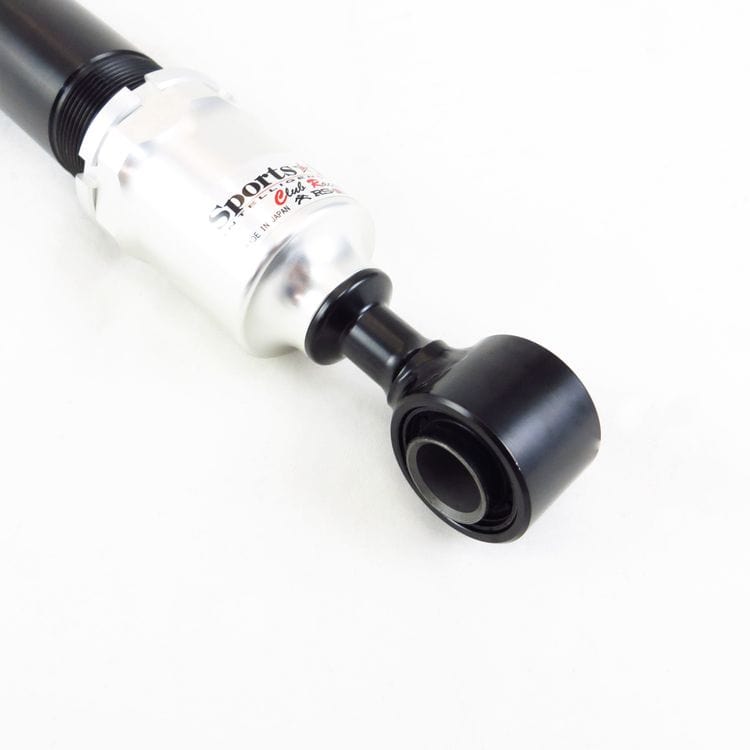

| Damper Construction | Monotube |
| Preset Approximate Height - Front | -30mm to -35mm (-1.2in to -1.4in) |
| Preset Approximate Height - Rear | -35mm to -40mm (-1.4in to -1.6in) |
| Maximum Adjustment Range - Front | 0mm to -90mm (0in to -3.6in) |
| Maximum Adjustment Range - Rear | -15mm to -65mm (-0.6in to -2.6in) |
| Recommended Adjustment Range - Front | -10mm to -55mm (-0.4in to -2.2in) |
| Recommended Adjustment Range - Rear | -15mm to -65mm (-0.6in to -2.6in) |
| Spring Rate - Front | 10.0 Kg/mm |
| Spring Rate - Rear | 13.0 Kg/mm |

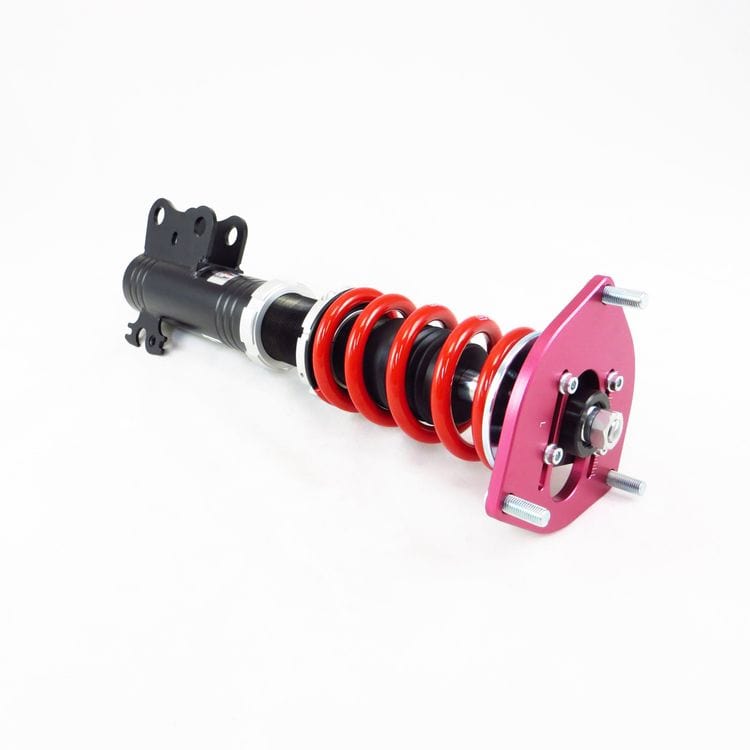

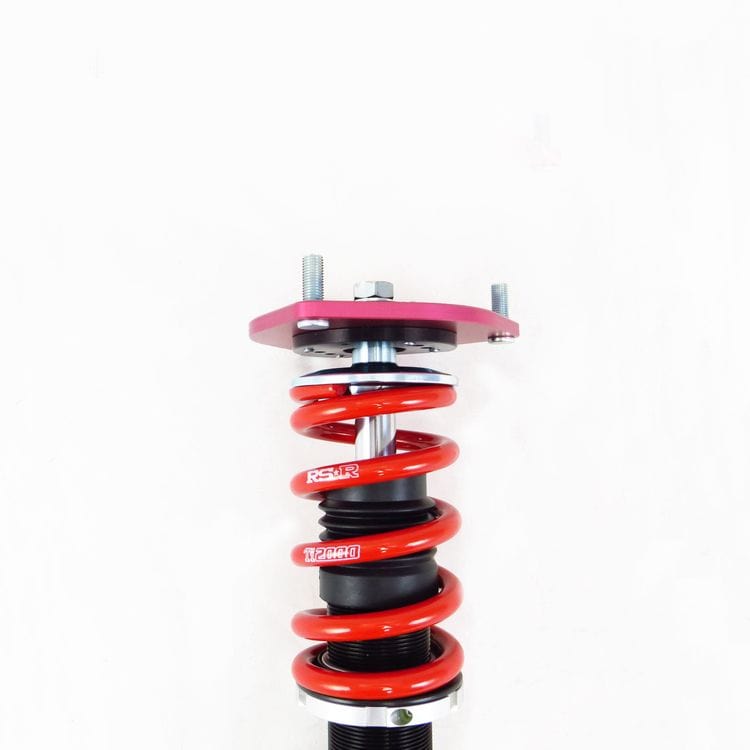

| Upper Mount - Front | Pillowball Bushings + Camber Plates (Adjustable Camber) |
| Upper Mount - Rear | Pillowball Bushings |

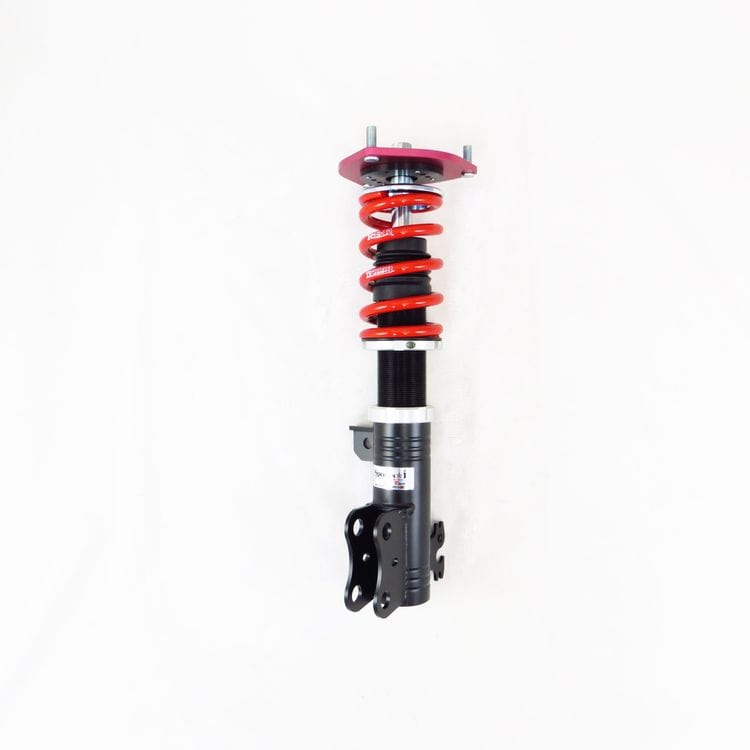

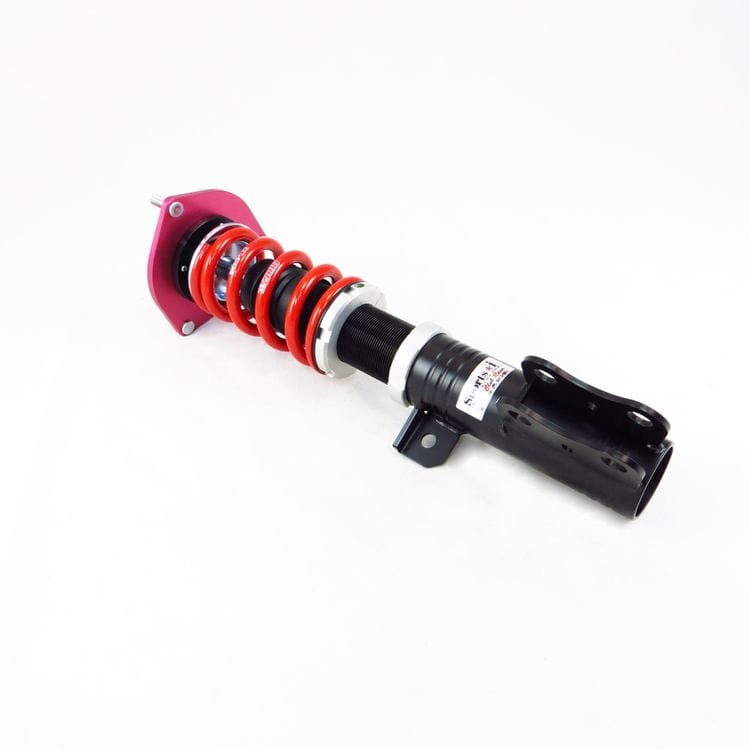

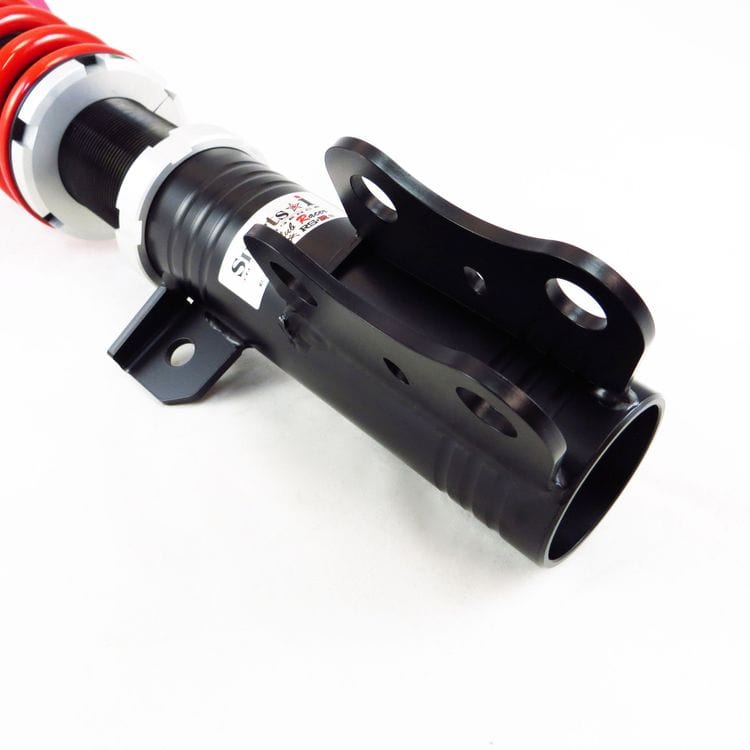

| Suspension Design - Front | True Coilover |

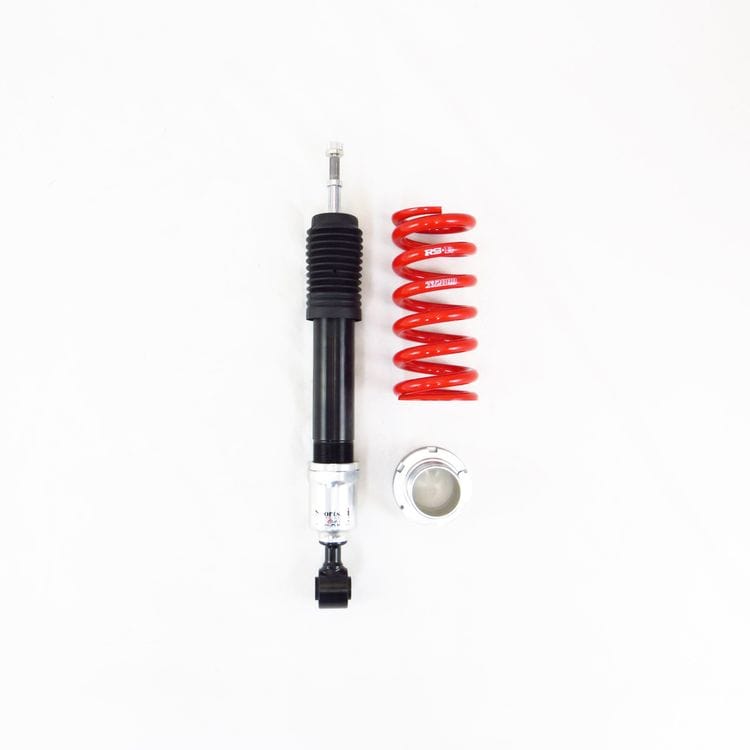

| Suspension Design - Rear | Divorced |
| Rebuildable | Yes |
| Warranty | 1 Year / 12,000 Miles |
Vehicle Fitment
- 2023 Toyota GR Corolla
- 2024 Toyota GR Corolla
- 2025 Toyota GR Corolla
- 2026 Toyota GR Corolla
