Product Details

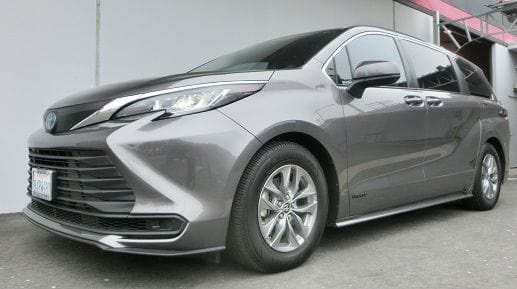

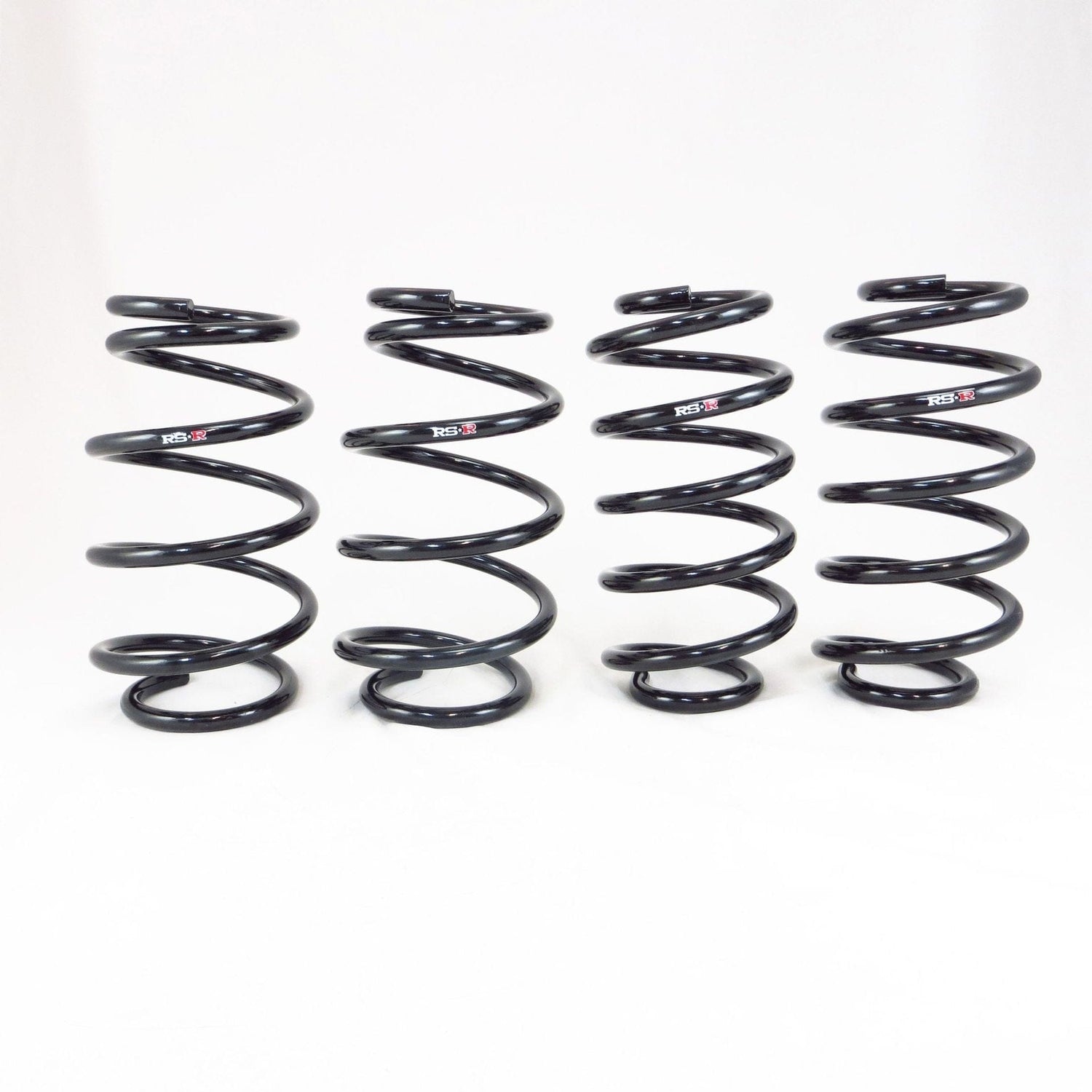

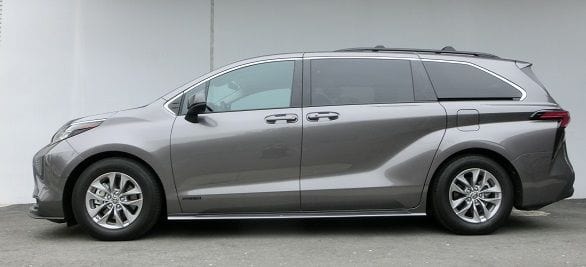

RS-R Down Sus lowering springs for the 2021+ Toyota Sienna / drop the car into a cleaner, more purposeful stance while tightening body roll and sharpening turn-in on everyday roads. Each set is engineered specifically for this Sienna chassis, so drop, spring rate and factory damper tune stay in balance — the car sits where you want it and still drives like a daily.

Racing Studio-R built its first suspension in Osaka in 1972 and has been refining the Down Sus spring for more than fifty years. Each set is progressive-rate, cold-wound and heat-treated in-house in Japan, then matched to the factory shock valving and ride-height target of the specific chassis it bolts onto. Backed by RS-R’s 3-year / 50,000 km fatigue warranty.

Features

  • Progressive-rate coil tuned to the factory damper
  • Vehicle-specific drop and rate — no universal cuts
  • Cold-wound from high-grade SAE alloy steel
  • Powder-coated for long-term corrosion resistance
  • 3-year / 50,000 km RS-R spring-fatigue warranty
  • Made in Osaka, Japan
Specifications
Part Number T552W
Part Name RS-R Down Sus Lowering Springs
Vehicle 2021+ Toyota Sienna /
Drivetrain AWD
Ride-Height Adjustable No
Spring Type Progressive
Approximate Drop - Front AWD: -30mm to -35mm (-1.2in to -1.4in)FWD: -30mm to -35mm (-1.2in to -1.4in)
Approximate Drop - Rear AWD: -25mm to -30mm (-1.0in to -1.2in)FWD: -35mm to -40mm (-1.4in to -1.6in)
Spring Rate - Front 3.78 Kg/mm
Spring Rate - Rear 4.42 Kg/mm
Warranty 3 Years / 50,000 km
Vehicle Fitment
  • 2021 Toyota Sienna AWD/FWD
  • 2022 Toyota Sienna AWD/FWD
  • 2023 Toyota Sienna AWD/FWD
  • 2024 Toyota Sienna AWD/FWD
