Product Details

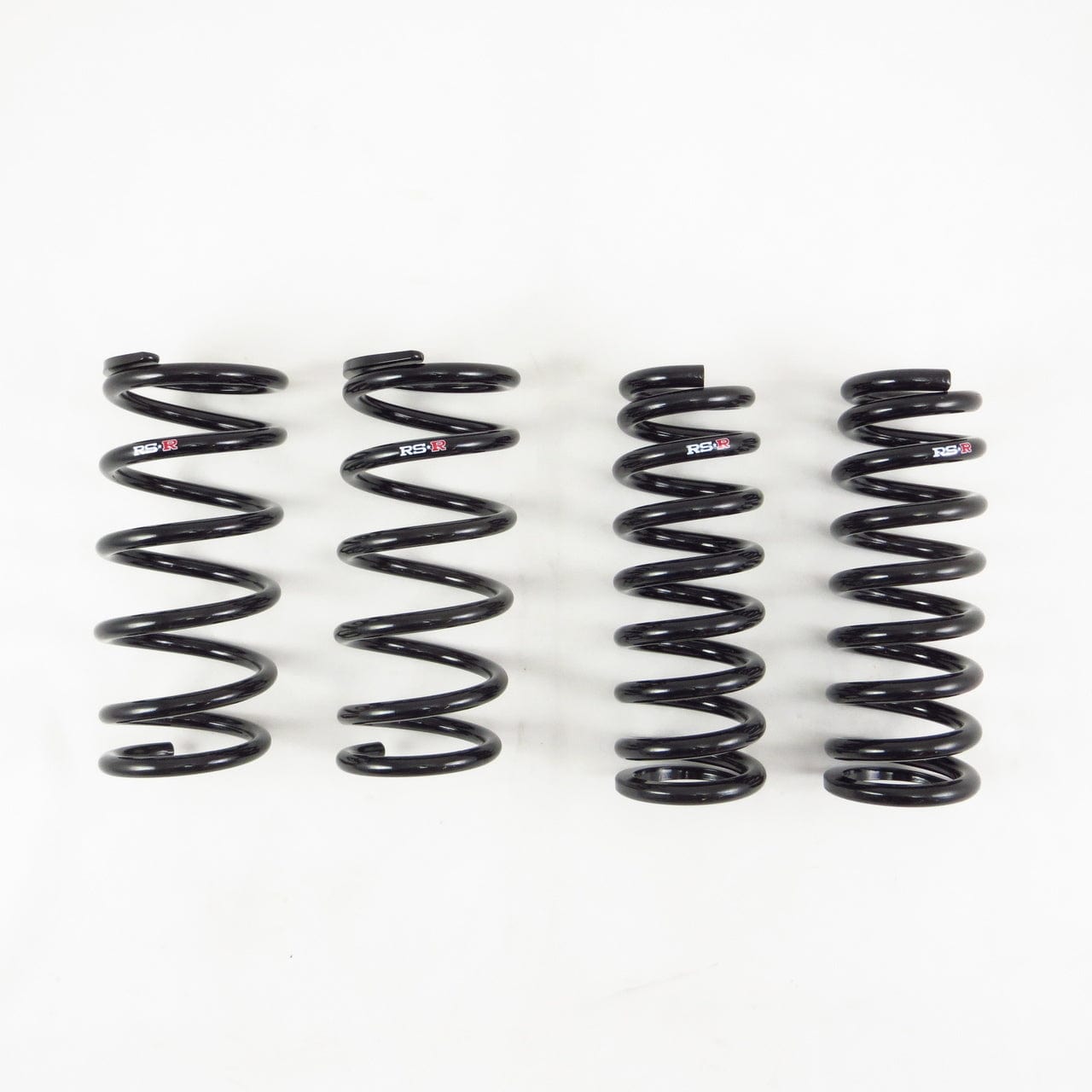

These RS-R Down Sus lowering springs fit the 2015+ Lexus RC300 AWD (GSC15L).
RS-R Down Sus lowering springs for the GSC15L RC300 lower the car, reduce body roll and sharpen turn-in. Each set is made for this car, so drop, spring rate and factory damper tune stay in balance.
Racing Studio-R built its first suspension in Osaka in 1972. Each set is progressive-rate, cold-wound and heat-treated in-house in Japan, then matched to the factory shock valving and ride-height target of the specific chassis it bolts onto. Backed by RS-R’s 3-year / 50,000 km fatigue warranty.
Features
- Progressive-rate coil tuned to the factory damper
- Vehicle-specific drop and rate: no universal cuts
- Cold-wound from high-grade SAE alloy steel
- Powder-coated for long-term corrosion resistance
- 3-year / 50,000 km RS-R spring-fatigue warranty
- Made in Osaka, Japan
Specifications
| Part Number | T996D |
| Part Name | RS-R Down Sus Lowering Springs |
| Vehicle | 2015+ Lexus RC300 |
| Chassis Code | GSC15L |
| Drivetrain | AWD |
| Ride-Height Adjustable | No |
| Spring Type | Progressive |
| Approximate Drop - Front | -20mm to -25mm (-0.8inch to -1.0inch) |
| Approximate Drop - Rear | -5mm to -10mm (-0.2inch to -0.4inch) |
| Spring Rate - Front | 5.15 Kg/mm |
| Spring Rate - Rear | 9.18 Kg/mm |
| Warranty | 3 Years / 50,000 km |
| Notes | - |
