Product Details

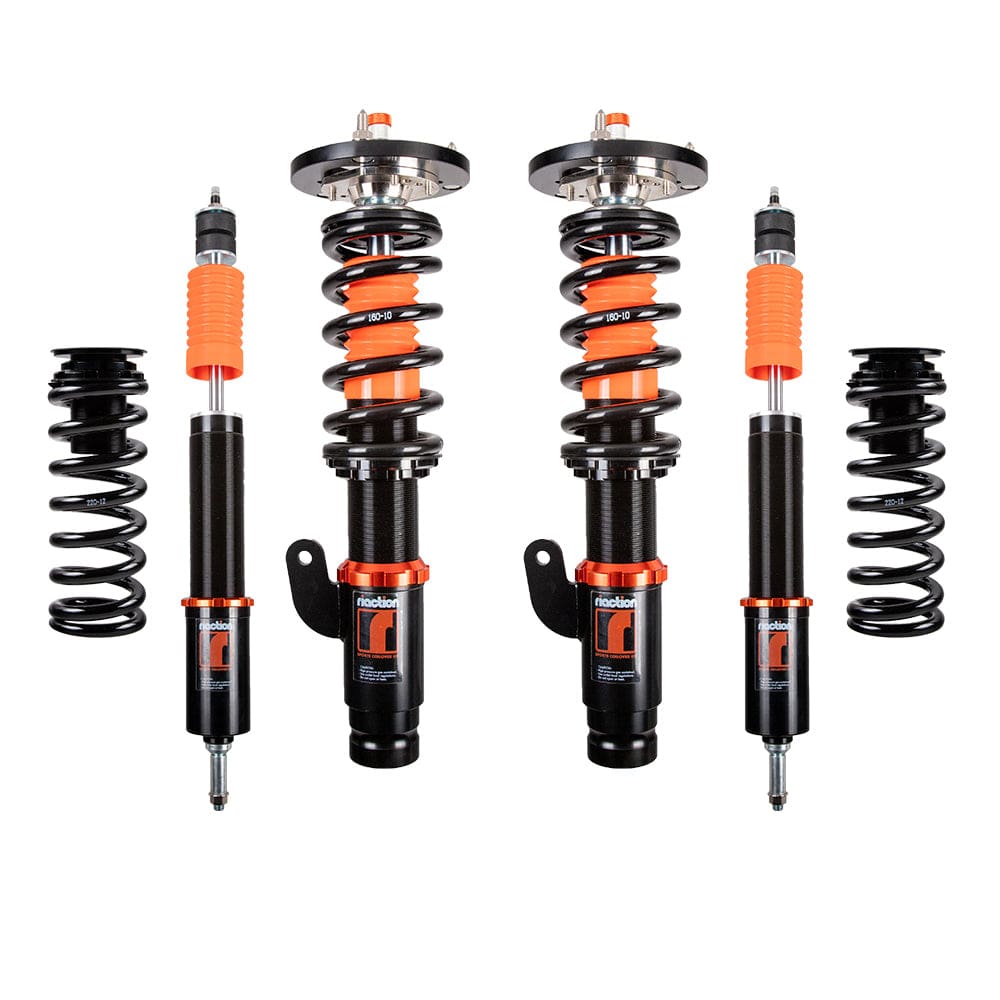

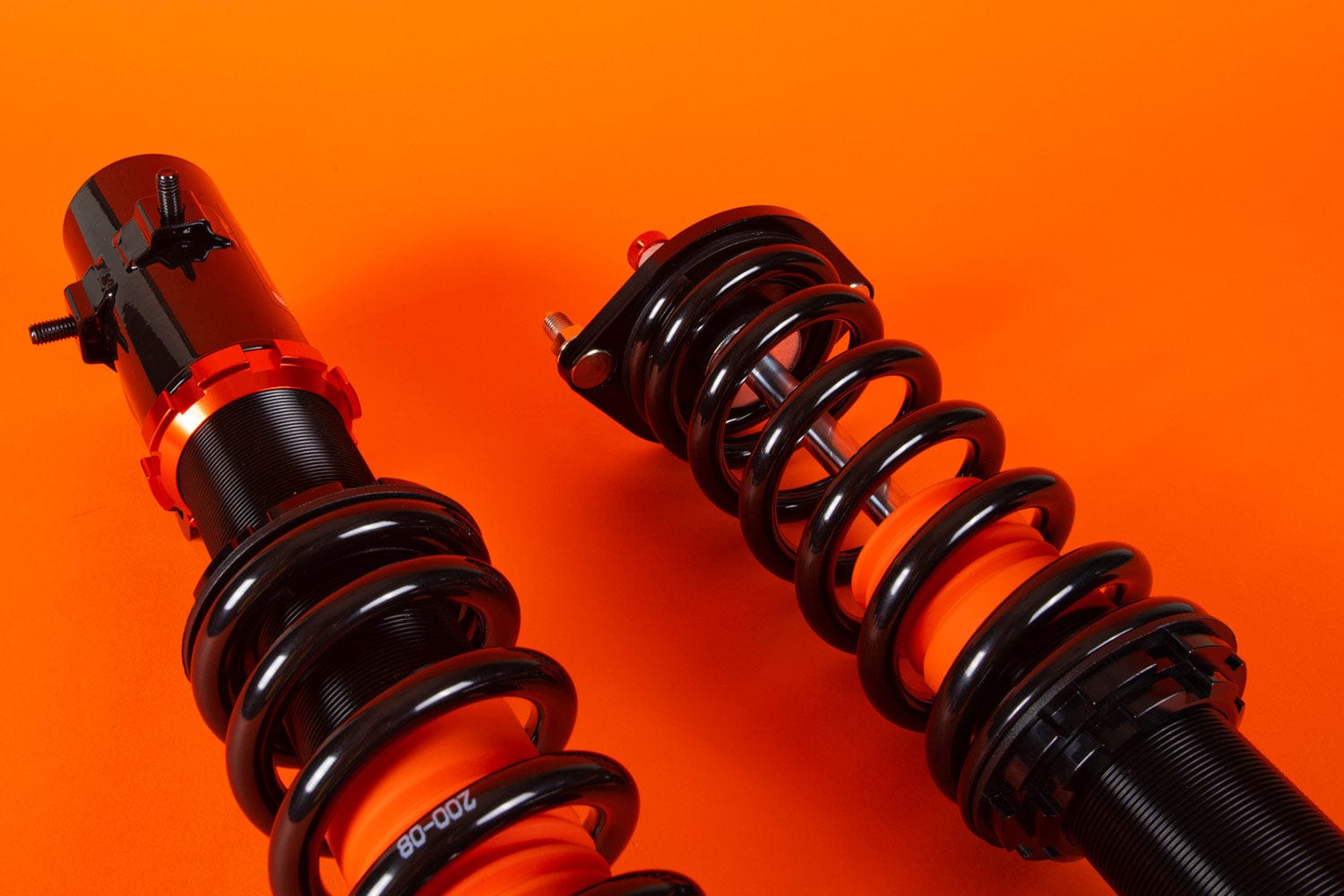

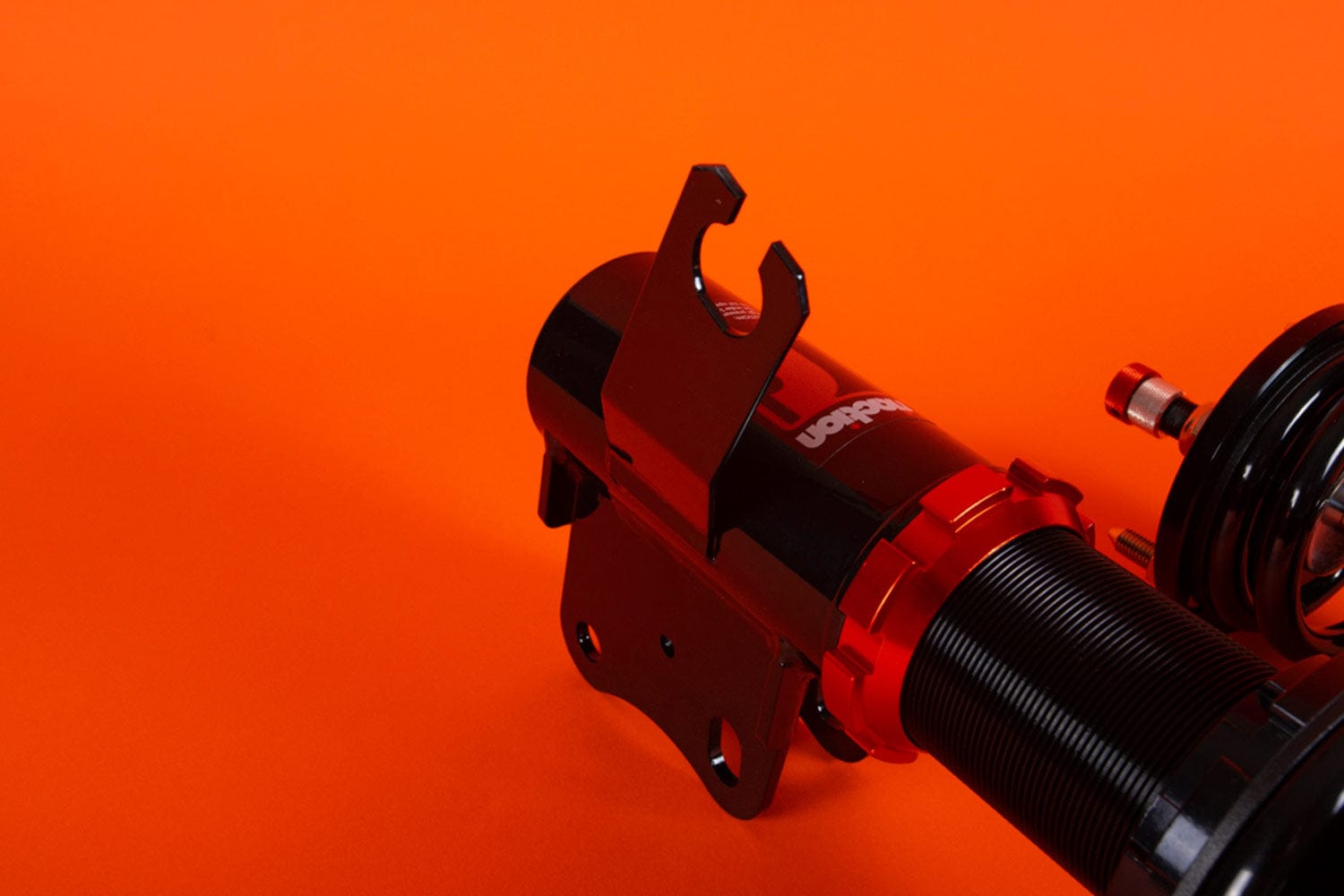

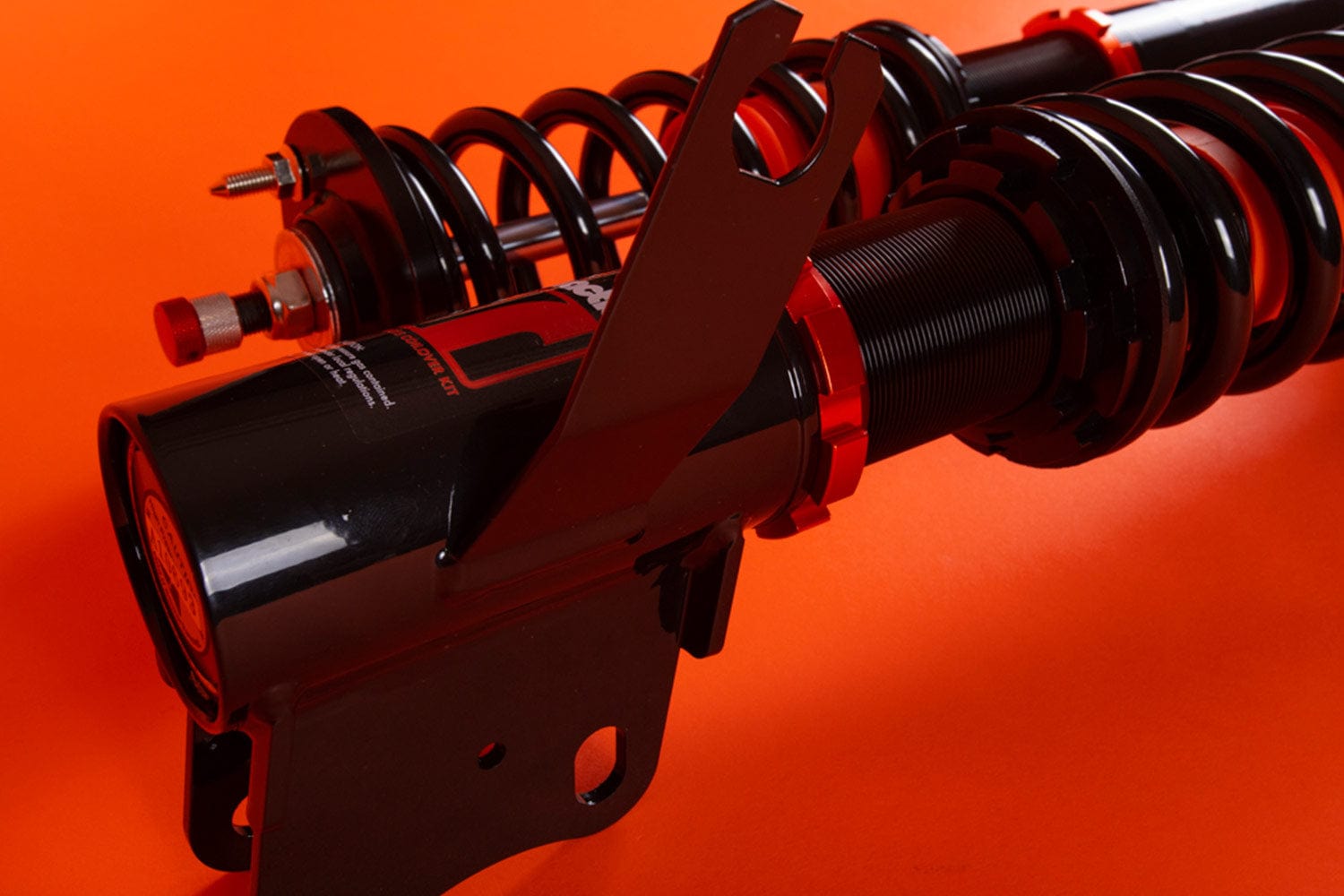

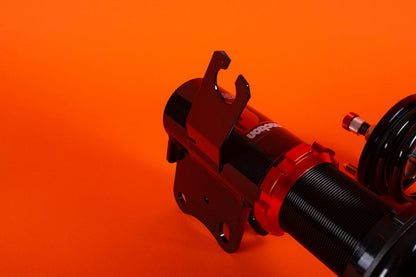

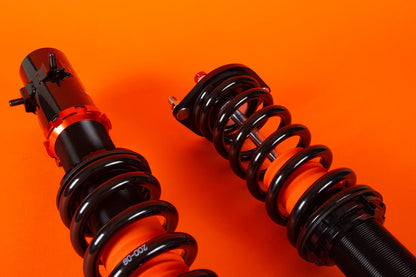

The Riaction GT1 Coilovers for the 2006-2011 BMW 3 Series AWD E90 deliver a premium, adjustable suspension upgrade built for drivers who want more from their 3 Series AWD E90 than the factory setup can offer. These BMW 3 Series AWD coilovers are engineered to pair street comfort with canyon and track capability, giving you the stance, handling, and adjustability you've been chasing without compromising daily driveability. Whether you track your E90 3 Series AWD on weekends or log daily miles, this E90 coilover kit dials in ride height and damping to match how you actually use the car.
Every GT1 set features a monotube damper with 32 levels of damping adjustment, so you can tune ride quality to match the road, the weather, or your driving mood. Full-length ride-height adjustment separates preload from ride height — meaning you can drop the 3 Series AWD E90 to the height you want while preserving spring travel and shock stroke. Riaction coilovers for the 2006-2011 BMW 3 Series AWD are fully rebuildable and backed by a 2-year warranty, making the GT1 a long-term suspension investment rather than a disposable upgrade.
GT1 Series Technology

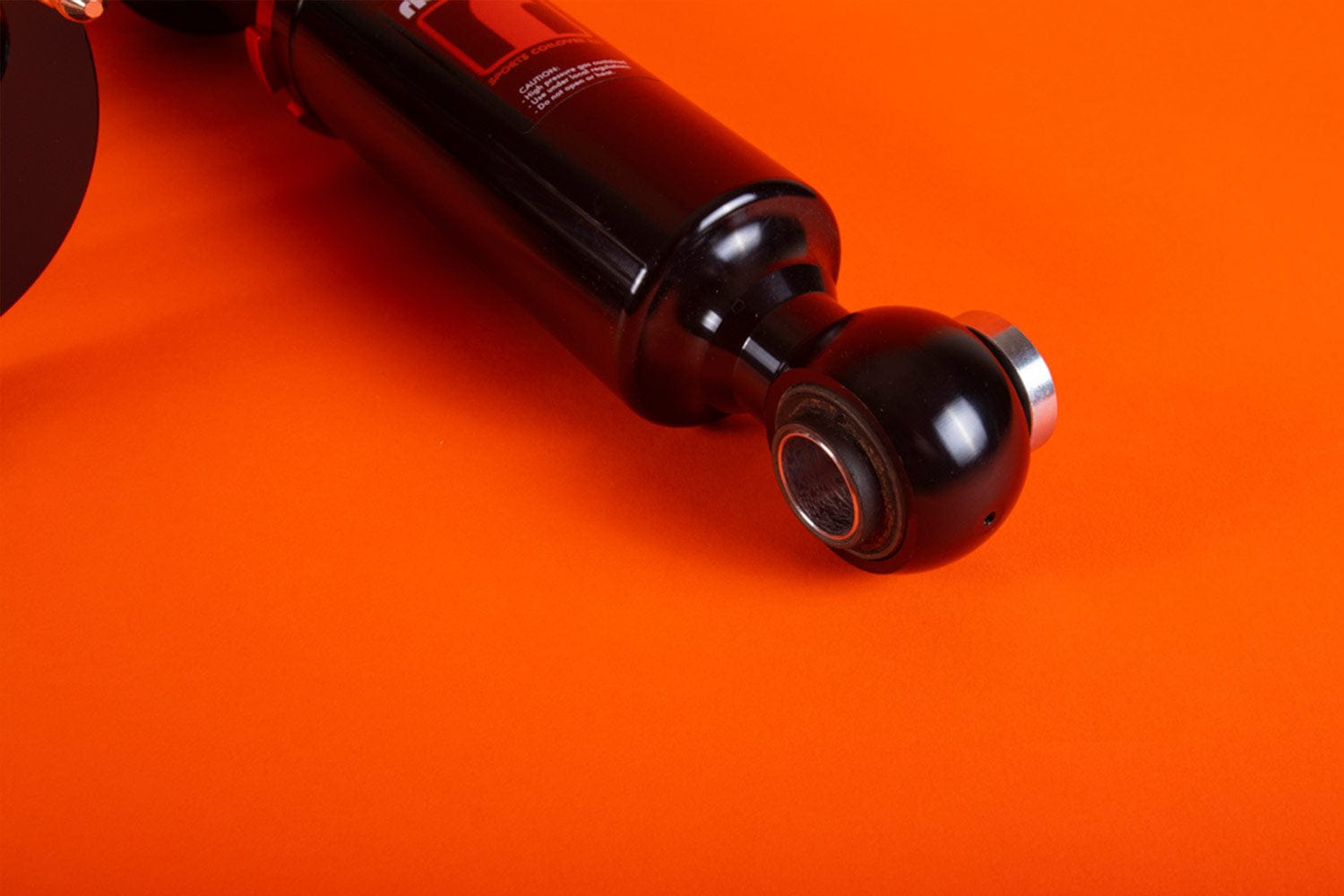

- Monotube linear damper with seamless 52mm electroplated carbon steel body
- 32-level damping adjustment (1-Way)
- 44mm CNC-machined 6061 aluminum high-flow piston
- 20mm piston rod for MacPherson applications / 14mm for non-MacPherson
- SAE9254 cold-wound linear main springs
- Multi-thickness valving shims for consistent damping
- Polyurethane oil seals and 7.5W suspension fluid
- Low-gas-pressure design for improved compliance
- Fully rebuildable — built to be serviced, not replaced
Features
- Full-length ride-height adjustment (preload-independent)
- 32 levels of damping adjustment

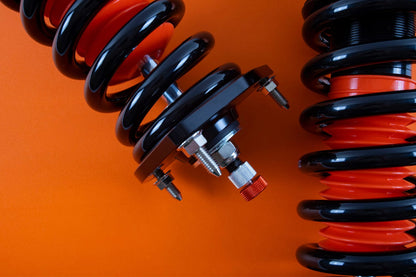

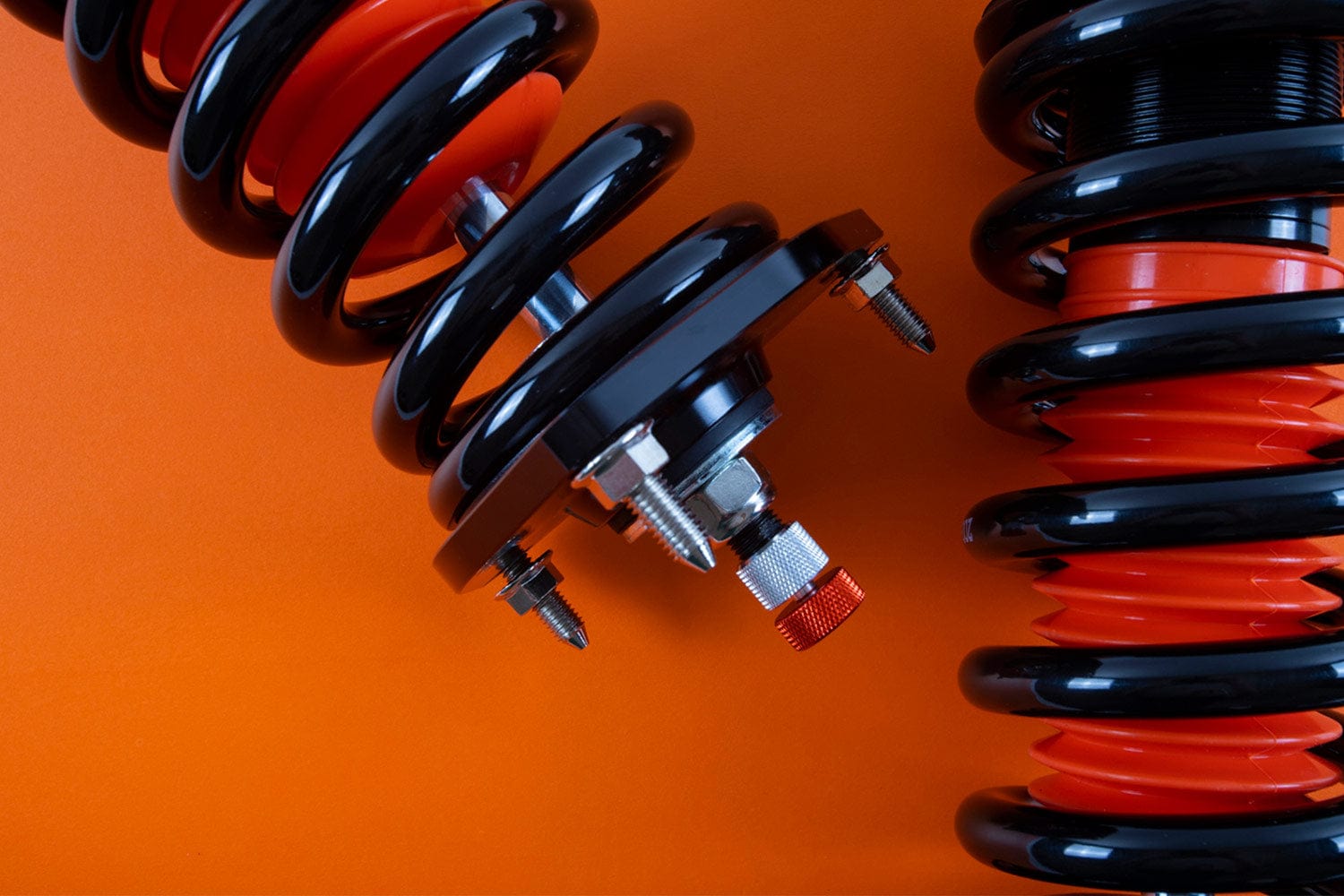

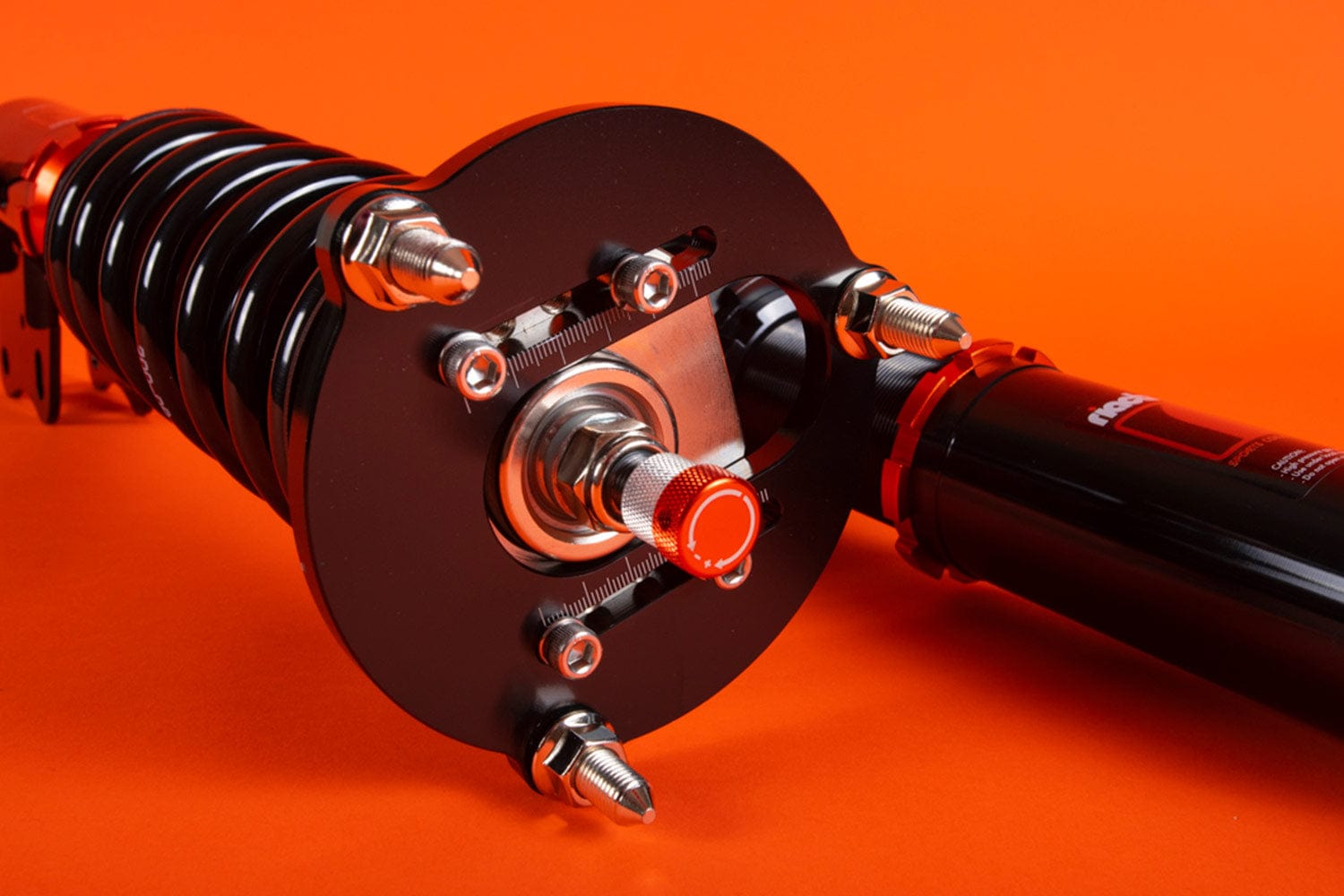

- Front camber adjustment via pillowball top mounts
- Optional Swift Springs upgrade (sold separately)
- 2-year limited warranty
Specifications
| Part Number | BM-019-LT |
| Part Name | Riaction GT1 Coilovers |
| Vehicle | 2006-2011 BMW 3 Series AWD |
| Chassis Code | E90 |
| Drivetrain | AWD |
| Adjustment Type | 1-Way |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 10 Kg/mm |
| Spring Rate - Rear | 12 Kg/mm |
| Top Mounts - Front | Pillowball with camber plate |
| Top Mounts - Rear | OEM |
| Camber Plates - Front | Yes |
| Camber Plates - Rear | No |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Divorced |
| Notes | XDrive Only |
Vehicle Fitment
- 2006 BMW 3 Series AWD (E90)
- 2007 BMW 3 Series AWD (E90)
- 2008 BMW 3 Series AWD (E90)
- 2009 BMW 3 Series AWD (E90)
- 2010 BMW 3 Series AWD (E90)
- 2011 BMW 3 Series AWD (E90)
