Product Details

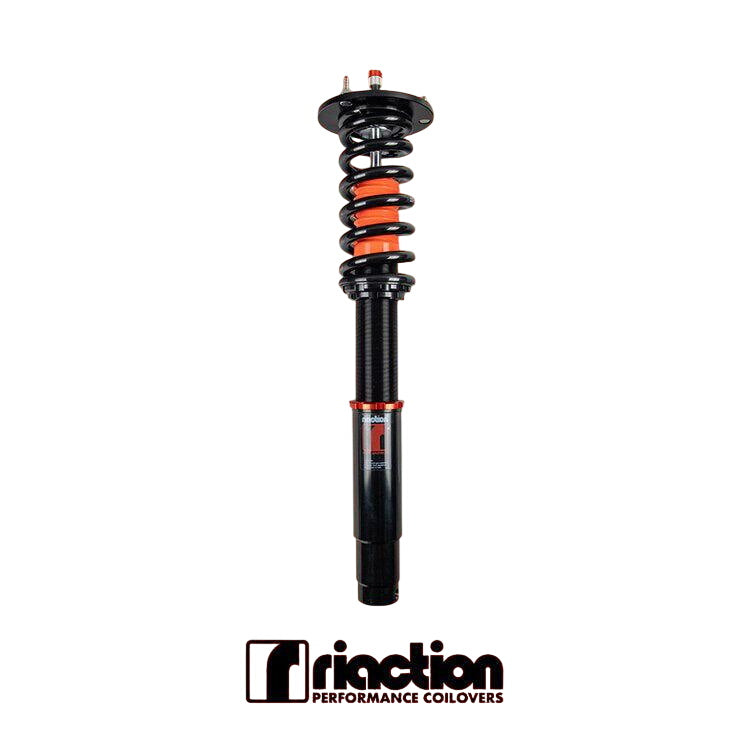

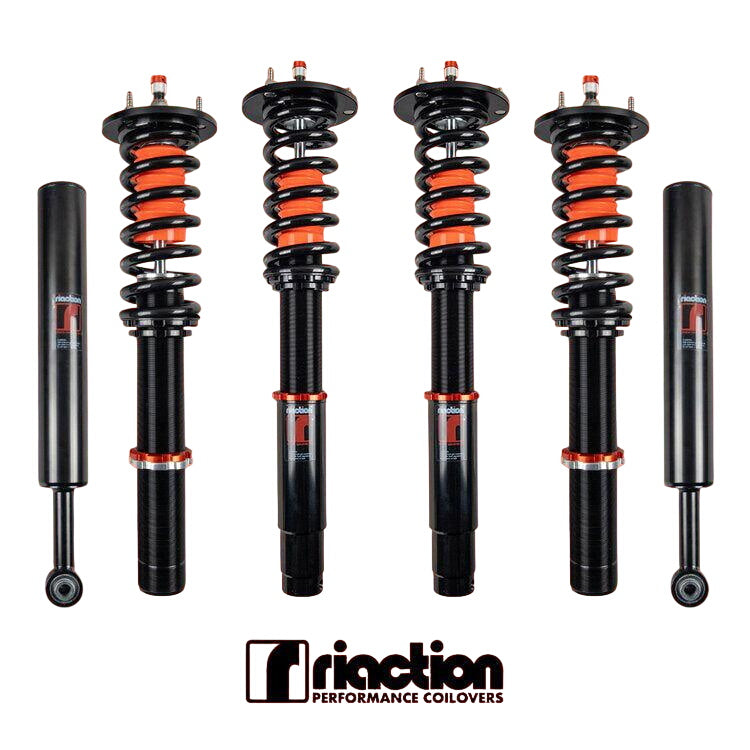

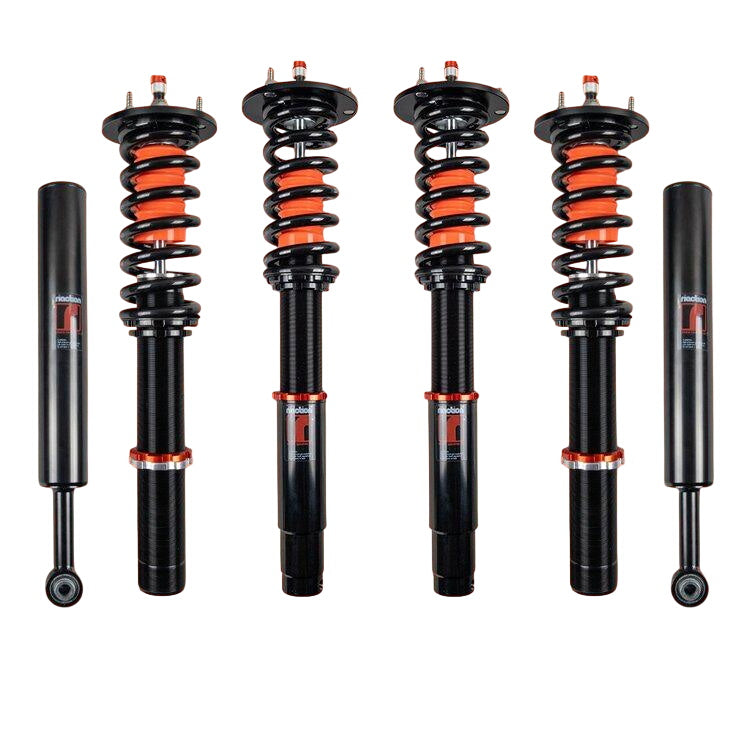

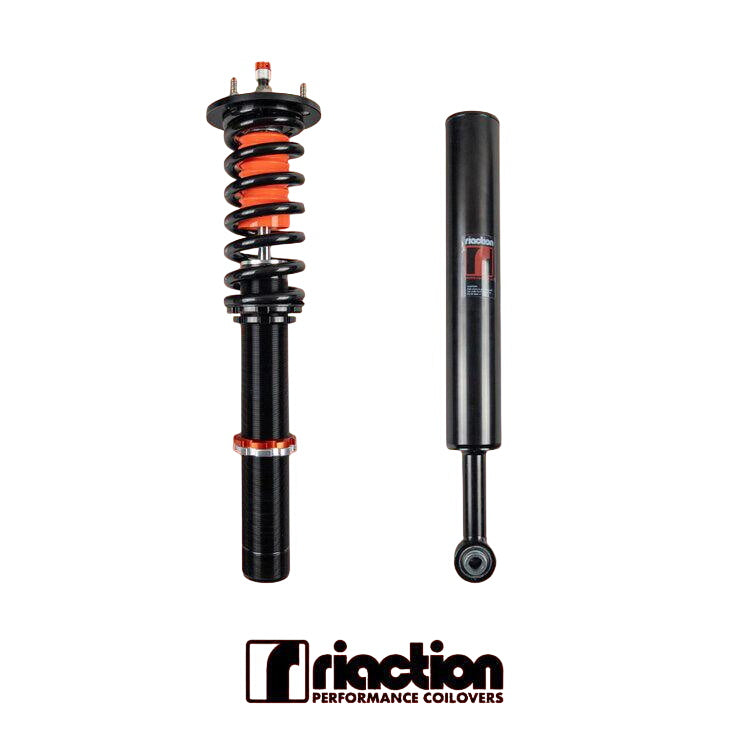

Riaction GT1 coilovers for the 2003-2011 Mercedes-Benz SL-Class (R230) are made for street cars that want a lower ride height, better handling, and greater comfort.
Each GT1 kit uses a monotube damper with a seamless electroplated carbon steel body, a CNC-machined aluminum piston, and cold-wound linear springs. The dampers are fully rebuildable, and every set is backed by Riaction's 2-year factory warranty.
GT1 Series Technology
- Monotube linear damper with seamless 52mm electroplated carbon steel body
- 32-level damping adjustment (1-Way)
- 44mm CNC-machined 6061 aluminum high-flow piston
- 20mm piston rod for MacPherson applications / 14mm for non-MacPherson
- SAE9254 cold-wound linear main springs
- Multi-thickness valving shims for consistent damping
- Polyurethane oil seals and 7.5W suspension fluid
- Low-gas-pressure design for improved compliance
- Fully rebuildable — built to be serviced, not replaced
Features
- Full-length ride-height adjustment
- 32 levels of damping adjustment
- Monotube damper design with a seamless electroplated carbon steel body
- Fully rebuildable
- 2-year factory warranty
Specifications
| Part Number | MZ-024-SS |
| Part Name | Riaction GT1 Coilovers |
| Vehicle | 2003-2011 Mercedes-Benz SL-Class |
| Placement | Front & Rear |
| Chassis Code | R230 |
| Drivetrain | RWD |
| Damping Adjustment | 1-Way (32 levels) |
| Ride-Height Adjustable | Yes |
| Spring Rate - Front | 12 Kg/mm |
| Spring Rate - Rear | 8 Kg/mm |
| Top Mounts - Front | OEM |
| Top Mounts - Rear | OEM |
| Notes | - |
