Product Details

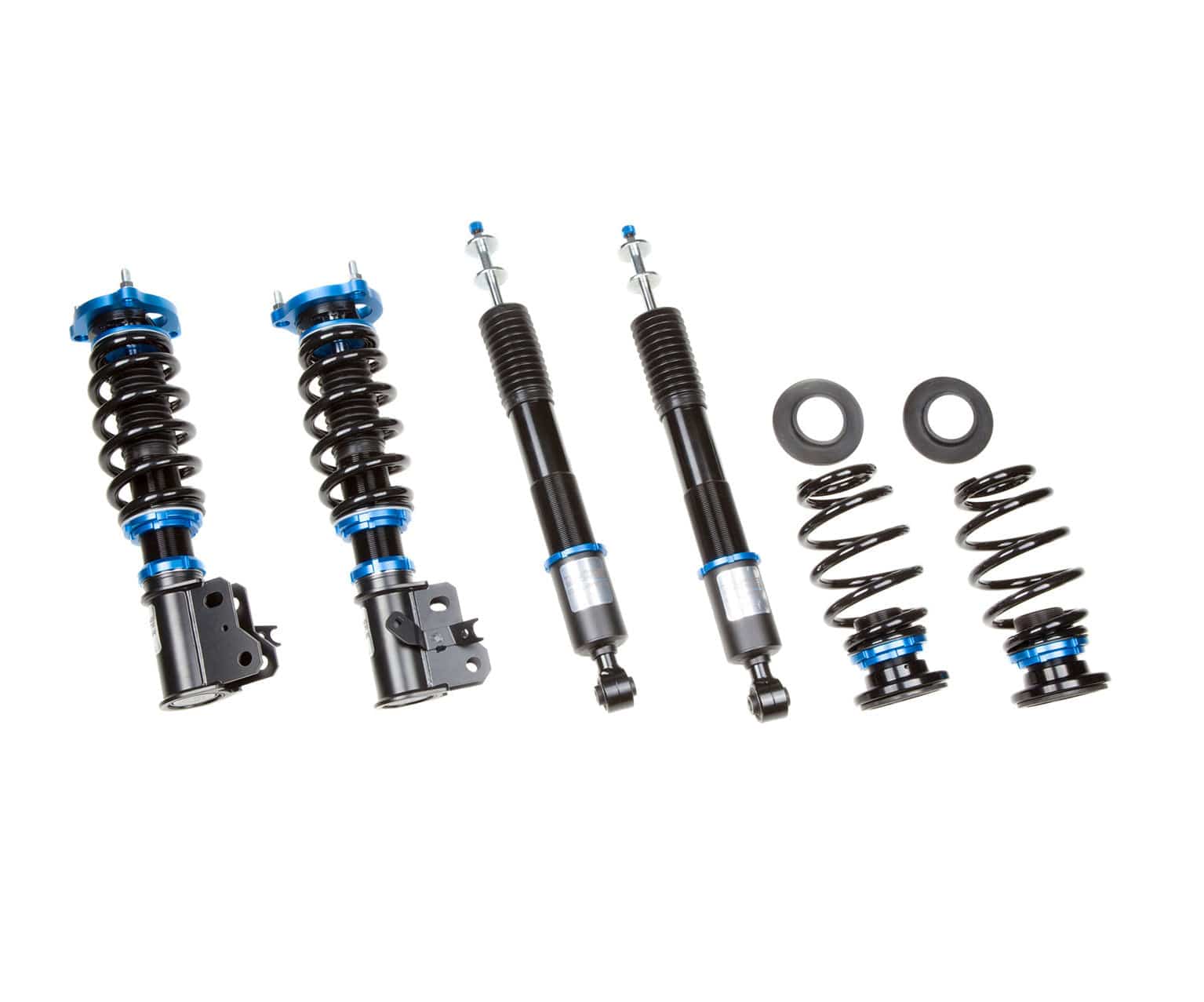

The Revel Touring Sport Coilovers, also known as the Revel TSD Coilover Kit, are made for the 2006-2011 Honda Civic (FA1/FG2) FA1/FG2). The coilovers have 32-way damping adjustment for daily driving, canyon roads or track days.

Built with a monotube damper design, the Touring Sport Coilovers ensure consistent performance and improved heat dissipation under aggressive driving conditions. Pillowball top mounts and Teflon thrust washers enhance steering feedback and reduce spring binding and noise, especially on MacPherson strut vehicles. Neoprene shock covers are included to protect the coilovers from dirt and debris.

Revel coilovers are manufactured by Tanabe, with adjustable ride height, independent preload and spring rates chosen for each car.

Key Features

  • 32-way adjustable coilovers for fine-tuned damping control
  • Monotube design with large piston valves for consistent suspension performance
  • Pillowball upper mounts for precise steering feel (where applicable)
  • Teflon thrust washers reduce spring bind and noise on MacPherson setups
  • Protective neoprene shock covers included
  • Spring rates tuned for street and spirited driving (model-specific)
  • Fully adjustable ride height and independent preload
  • Designed for performance street driving and occasional track use
  • Trusted Japanese engineering by Tanabe
Specifications
Part Number 1TR3CDHN004
Part Name Revel Touring Sport Damper Coilovers
Vehicle 2006-2011 Honda Civic
Chassis Code FA1/FG2
Ride Height Adjustable Yes
Damping Adjustable 1-Way (Rebound & Compression)
Spring Rate - Front (Kg/mm) 8K
Spring Rate - Rear (Kg/mm) 5.5K
Upper Mounts - Front Camber Plates with Pillowball Bushings
Upper Mounts - Rear Not Applicable
Suspension Design - Front True Coilover
Suspension Design - Rear True Coilover
Radial Bearings Yes
Coilover Covers Included
Country of Origin Taiwan
Note

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006HondaCivicFWD
2006HondaCivic SiFWD
2007HondaCivicFWD
2007HondaCivic SiFWD
2008HondaCivicFWD
2008HondaCivic SiFWD
2009HondaCivicFWD
2009HondaCivic SiFWD
2010HondaCivicFWD
2010HondaCivic SiFWD
2011HondaCivicFWD
2011HondaCivic SiFWD
