Product Details

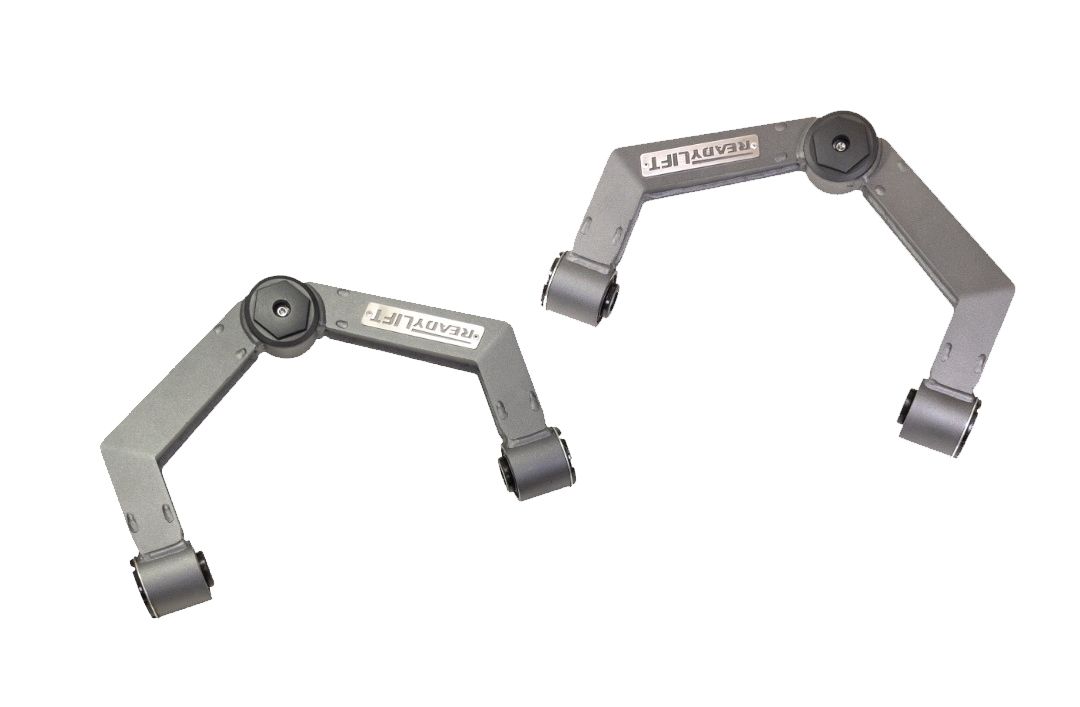

The ReadyLift Xtreme-Duty Fabricated A-Arm Kit is made for the 2011-2019 Chevrolet Silverado 3500 HD.

2011-2019 GM Silverado/Sierra 2500/3500 HD 2WD/4WD Xtreme-Duty UCAs. Our Xtreme-Duty fabricated steel control arms found in our popular 3" SST Lift Kit are also available separately if you already have a leveling or lift kit! The new UCAs are Laser cut and CNC bent .125 4130 chromoly plate steel precision construction, creating an incredibly strong package engineered to be used on new 2011-19 GM HD trucks. The critical pivot points are maintenance-free and extremely durable for long-lasting use.

Our 1-ton spring-loaded high-angle HD series ball joints maintain the factory driving experience and can take a beating from the excessive weight of heavy aftermarket wheels and tires. To protect the joint from nasty road debris such as salt and sand, our arms include CNC machined billet aluminum caps which helps extend the life of the ball joints. Frame side pivots feature our proprietary new TCT bushings which are self-lubricating and engineered to last.

Features

  • 2011-2019 GM HD Silverado/Sierra 2500/3500 HD Xtreme-Duty 4130 chromoly fabricated upper control arms with corrected pivot cups for use with leveled or lifted trucks.
  • Includes ReadyLIFT stronger, longer-lasting outer and inner TCT pivot bushings, high-angle heavy-duty ball joints, and pivots are self-lubricating with a free-float inner sleeve and side-biter washers.
  • Anthracite gray powder coat finish

Installation Instructions

ReadyLIFT installation instructions (PDF)

Specifications
Part Number 67-35160
Part Name ReadyLift Xtreme-Duty Fabricated A-Arm Kit
Vehicle 2011-2019 Chevrolet Silverado 3500 HD
Placement Rear
Install Time 4 Hours
Weight 19.50 lb
UPC 194933423675
Notes
  • ReadyLIFT application: Xtreme-Duty Fabricated A-Arm Kit, GM Silverado / Sierra 2500HD/3500HD 2011-2019.
  • Note: Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
2011ChevroletSilverado 3500 HD
2012ChevroletSilverado 3500 HD
2013ChevroletSilverado 3500 HD
2014ChevroletSilverado 3500 HD
2015ChevroletSilverado 3500 HD
2016ChevroletSilverado 3500 HD
2017ChevroletSilverado 3500 HD
2018ChevroletSilverado 3500 HD
2019ChevroletSilverado 3500 HD
