Product Details

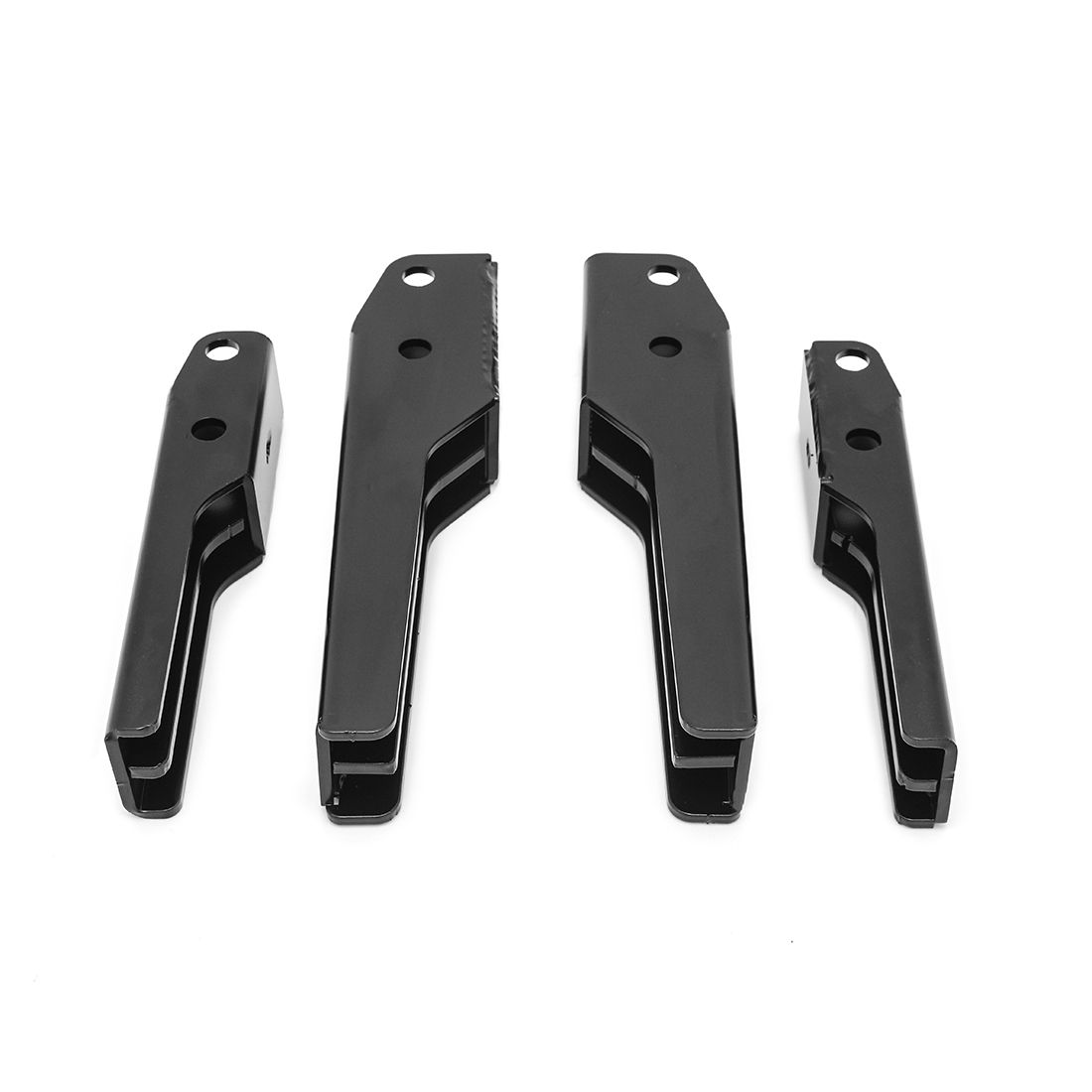

The ReadyLift High-Clearance Anti-Intrusion Beams is made for the 2019-2023 Ford Ranger RWD/4WD.

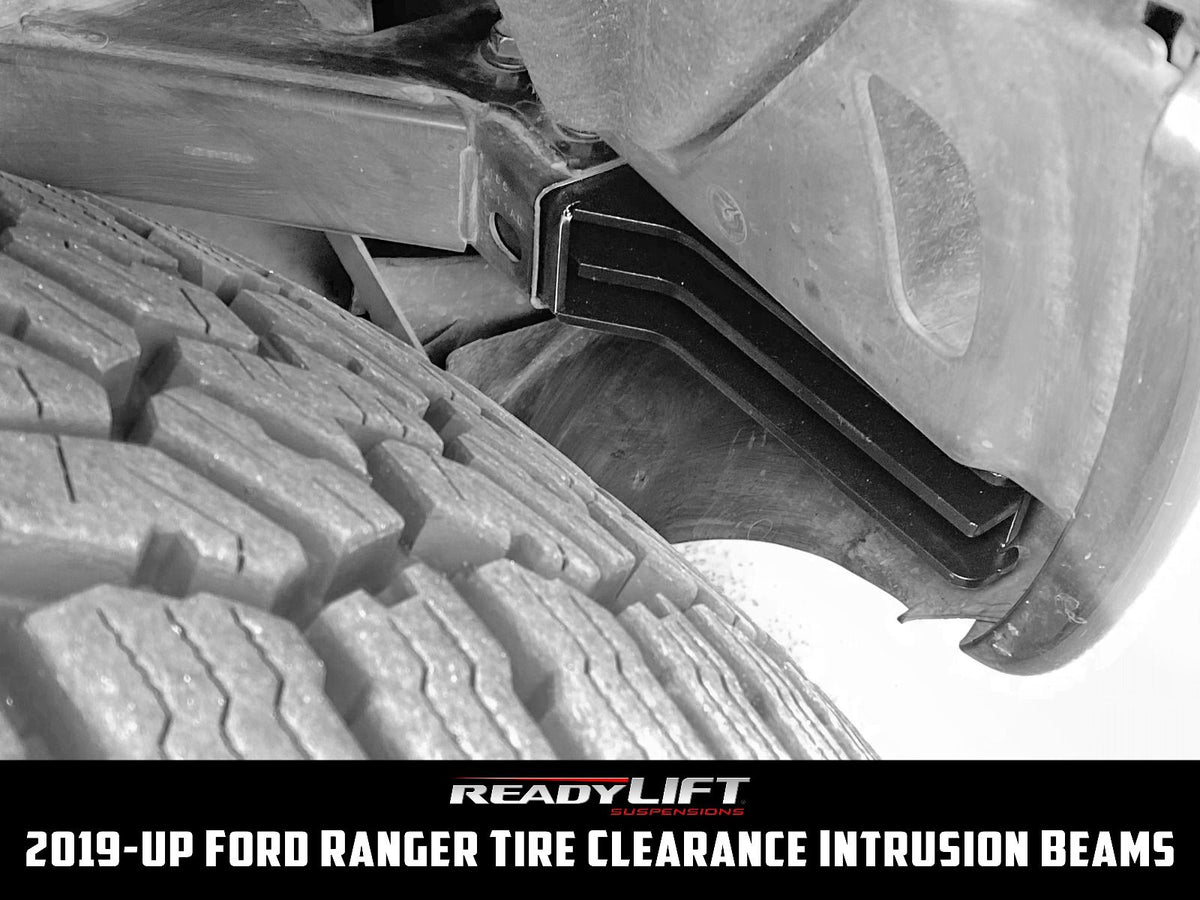

ReadyLIFT now offers a solution for Ford Ranger trucks, specifically the 2019-2023 2WD/4WD models, looking to accommodate larger wheels and tires. Our 67-2900 Ranger replacement High-Clearance Anti-Intrusion Beams are designed to address the challenge of running larger tires without interfering with the factory offset intrusion beams (commonly referred to as crash bars). These factory beams serve a vital role in collision safety, but they limit tire clearance when using ReadyLIFT Ranger leveling and lift kits.

Our high-clearance beams are engineered for precision using heavy-duty laser-cut and robot-welded steel, meeting the engineering specifications of the factory anti-intrusion beams, as confirmed by Finite Element Analysis. It includes two forward and two rearward replacement high-clearance anti-intrusion beams. Installation is a straightforward process involving minor disassembly to remove the factory beams and replace them with the ReadyLIFT high-clearance beams.

Features

  • High clearance anti-intrusion beams
  • Easy installation with minor disassembly and trimming
  • Retains safety and security benefits of occupant protection
  • Replaces factory anti-intrusion beams
  • Notched design increases tire turning clearance
  • Allows for up to 285/7017 tire (33") on ReadyLIFT 3" lift kit equipped vehicles

Installation Instructions

ReadyLIFT installation instructions (PDF)

Specifications
Part Number 67-2900
Part Name ReadyLift High-Clearance Anti-Intrusion Beams
Vehicle 2019-2023 Ford Ranger
Drivetrain RWD/4WD
Install Time 2 Hours
Weight 13.20 lb
UPC 194933068494
Notes ReadyLIFT application: High-Clearance Anti-Intrusion Beams, Ford Ranger RWD/ 4WD 2019-2023.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2019FordRangerRWD
2019FordRanger4WD
2020FordRangerRWD
2020FordRanger4WD
2021FordRangerRWD
2021FordRanger4WD
2022FordRangerRWD
2022FordRanger4WD
2023FordRangerRWD
2023FordRanger4WD
