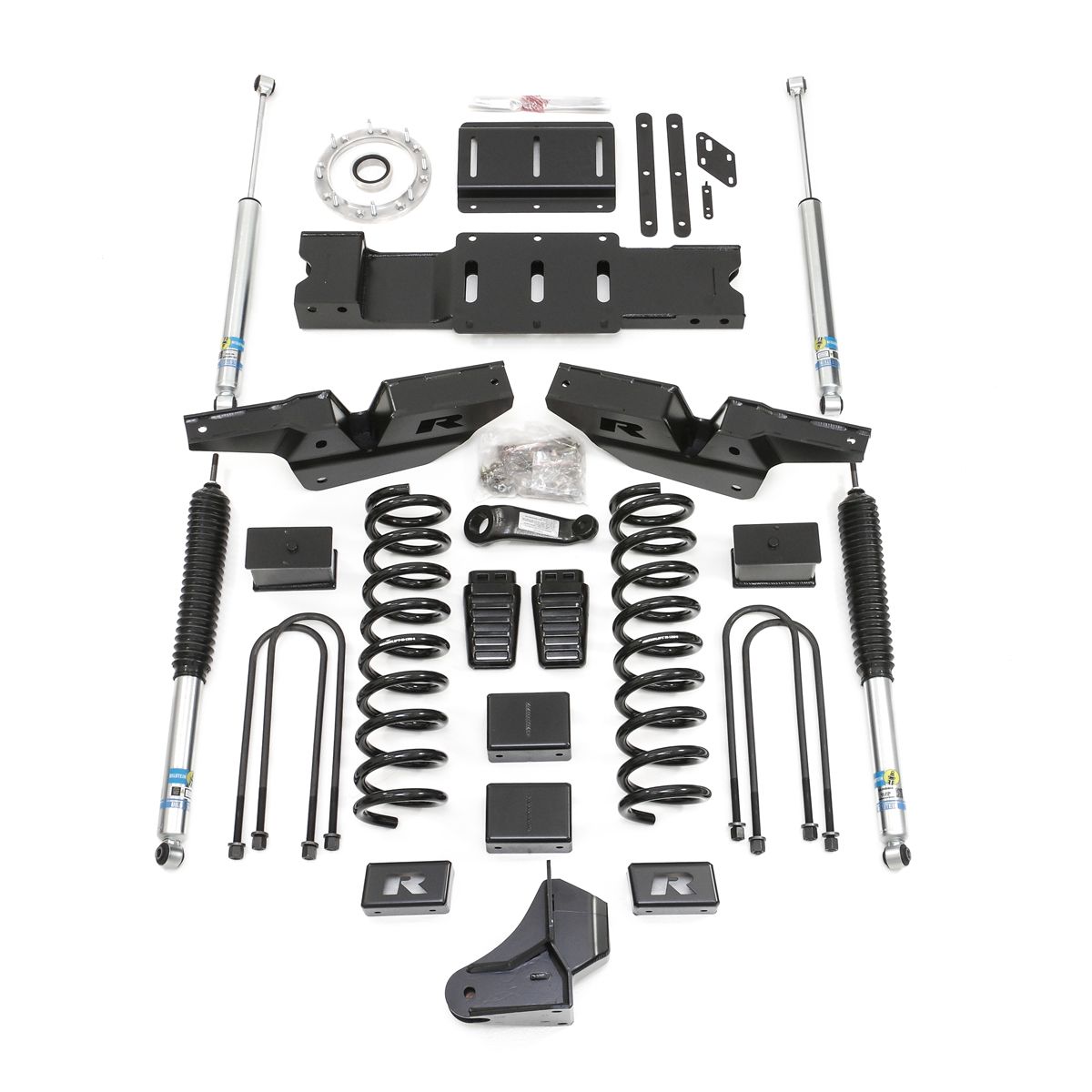

Product Details

The ReadyLift 6" Big Lift Kit is made for the 2019-2024 Ram 3500 High Output Diesel 4WD, giving it more ground clearance and room for larger tires.

The new RAM HD trucks are more popular than ever and the ReadyLIFT 6" lift kit for 5th generation Ram 2500 HD trucks are extremely popular. What more could we do for RAM owners? How about engineering a 6" solution for the RAM 3500 HD trucks? That is exactly what ReadyLIFT has done by adding a new CNC-machined billet Aluminum transfer case clocking ring to improve driveline angle?

Well, that's exactly what we did for this all-new Ram 3500 application. We designed an application-specific lift kit and included an innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission crossmember. Why go to all that trouble to achieve 6" Ram 3500 lift? Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity.

Features

  • New transmission crossmember
  • Only available for 3500 HD High Output Motor
  • 201920192023 Ram 3500 4WD HD 6" lift kit
  • All Allnew DIS transfer case clocking ring kit
  • Includes 6" front lift springs and 5" rear spacers
  • Fabricated steel radius arm drop brackets
  • Track bar drop bracket
  • New pitman arm

Installation Instructions

ReadyLIFT installation instructions (PDF)

Specifications
Part Number 49-19620
Part Name ReadyLift 6" Big Lift Kit
Vehicle 2019-2024 Ram 3500
Placement Front & Rear
Drivetrain 4WD
Lift - Front 6"
Lift - Rear 4"
Max Tire Size 37"
Shocks Included Yes
Install Time 5+ Hours
Weight 250.00 lb
UPC 194933167456
Notes
  • ReadyLIFT application: 6" Big Lift Kit 2019-2024 Ram 3500 HD High Output Diesel 4WD.
  • Does not work with HEMI Gasoline engine.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2019Ram35004WD
2020Ram35004WD
2021Ram35004WD
2022Ram35004WD
2023Ram35004WD
2024Ram35004WD
