Product Details

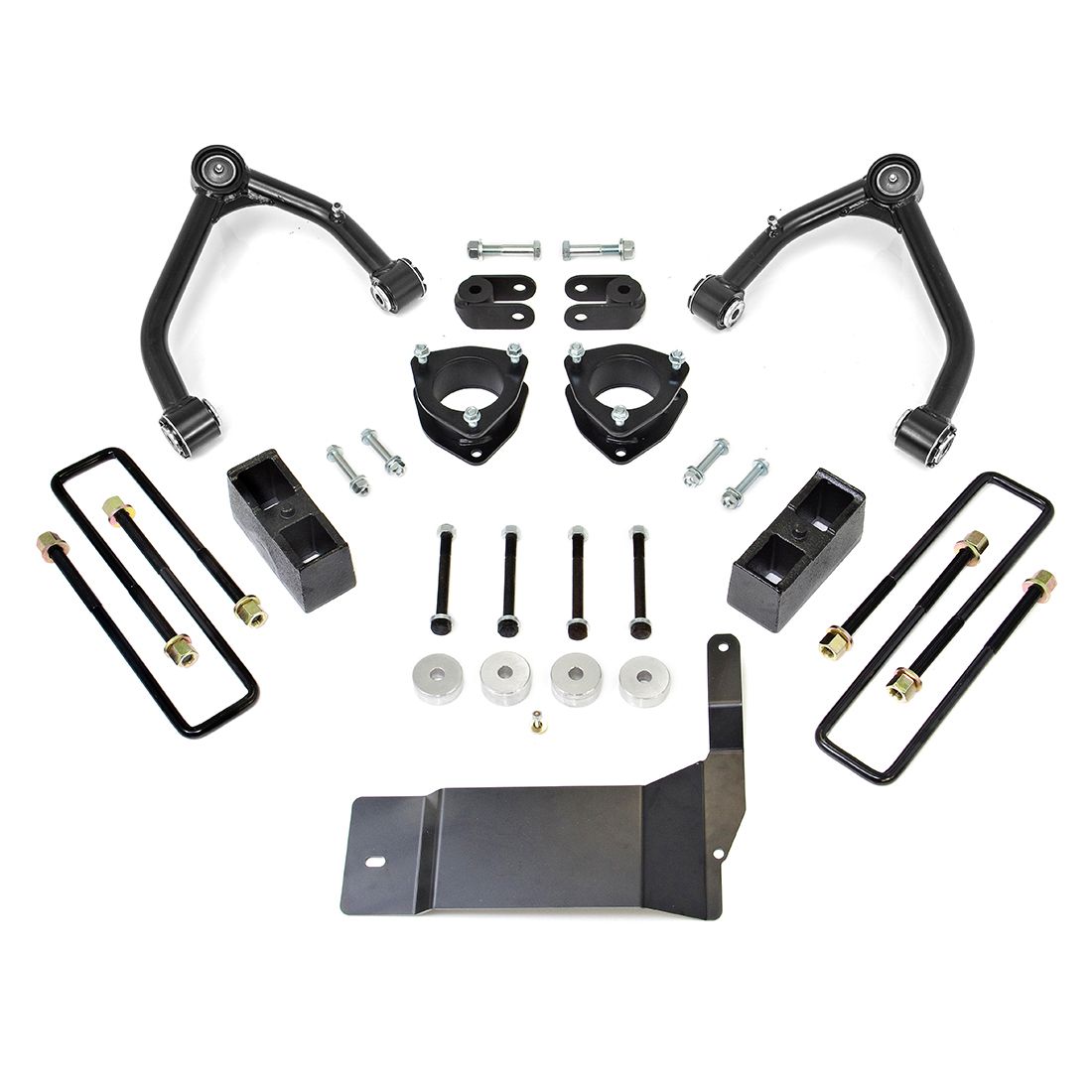

The ReadyLift 4" SST Lift Kit w/Cast Al Or Stamped Steel UCA is made for the 2014-2018 Chevrolet Silverado 1500 RWD/4WD, giving it more ground clearance and room for larger tires.
New, now includes ultra strong TCT free floating pivot bushings that are self lubricating and eliminates friction. ReadyLIFT 69-3414 4" SST Lift Kit is designed for the 2014-2018 GM 1500 4WD & Z71 trucks. Some features implemented into this system include a completely different differential drop mounting system which utilizes machined billet circular spacers which allows for just the right amount of differential drop without interfering with the rear-mounted electric steering rack.
A rugged skid plate accompanies our differential drop system. Our 4" SST Lift Kit uses the heavy duty ball joint found on the GM 2500 HD series trucks -- these ball joints are vastly superior and are already installed into the tubular steel upper Control Arms provided in the kit. This kit also includes premium TCT UCA inner bushings and new washer backing spacer sleeves which greatly prolong the life of the bushings.
Features
- OEM style cast blocks that will not deform or change shape
- No cutting or welding of OEM parts required
- Maintains factory ride quality
- Includes press Includes pressin 10.9 grade hardware
- Can accommodate tires up to 33
- Not suitable for AWD Denali trucks
- Designed for use with Aluminum alloy or stamped steel front suspension only
- Features solid mount and even load distribution
Installation Instructions
ReadyLIFT installation instructions (PDF)
Specifications
| Part Number | 69-3414 |
| Part Name | ReadyLift 4" SST Lift Kit w/Cast Al Or Stamped Steel UCA |
| Vehicle | 2014-2018 Chevrolet Silverado 1500 |
| Placement | Front & Rear |
| Drivetrain | RWD/4WD |
| Lift - Front | 4" |
| Lift - Rear | 1.75" |
| Max Tire Size | 33" |
| Shocks Included | No |
| Install Time | 5+ Hours |
| Weight | 57.00 lb |
| UPC | 804879489481 |
| Notes | ReadyLIFT application: 4" SST Lift Kit, GM Silverado / Sierra 1500 RWD/4WD & Z71 (w/ Cast Al Or Stamped Steel UCA) 2014-2018. |
