Product Details

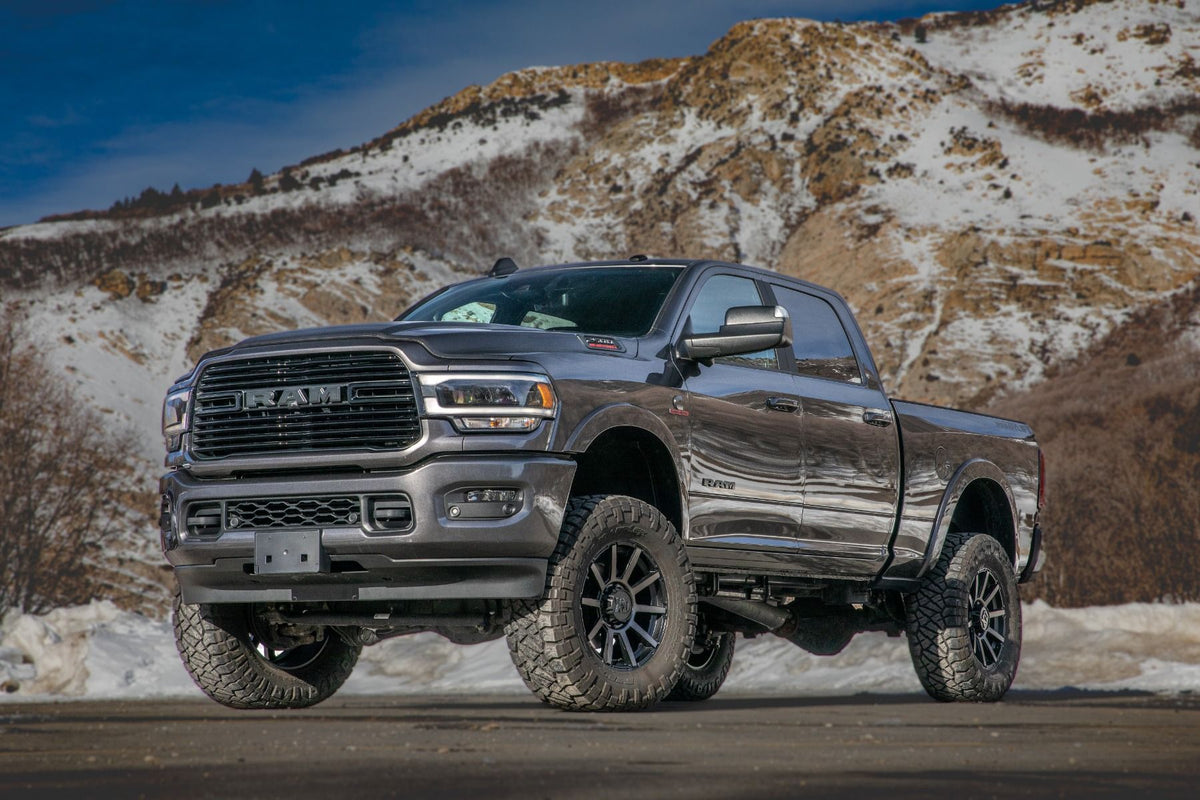

The ReadyLift 4.5" Coil Spring Lift Kit w/Falcon 2.1 Shocks is made for the 2019-2024 Ram 2500 Diesel 4WD, giving it more ground clearance and room for larger tires.

The all-new 4.5" Coil Spring Lift Kits allow for even more ground clearance while going to a 37" tire. Springing up to the new 4.5" lift yields all the bells and whistles of a big 6" kit but at a slightly lower, garage-able stance.

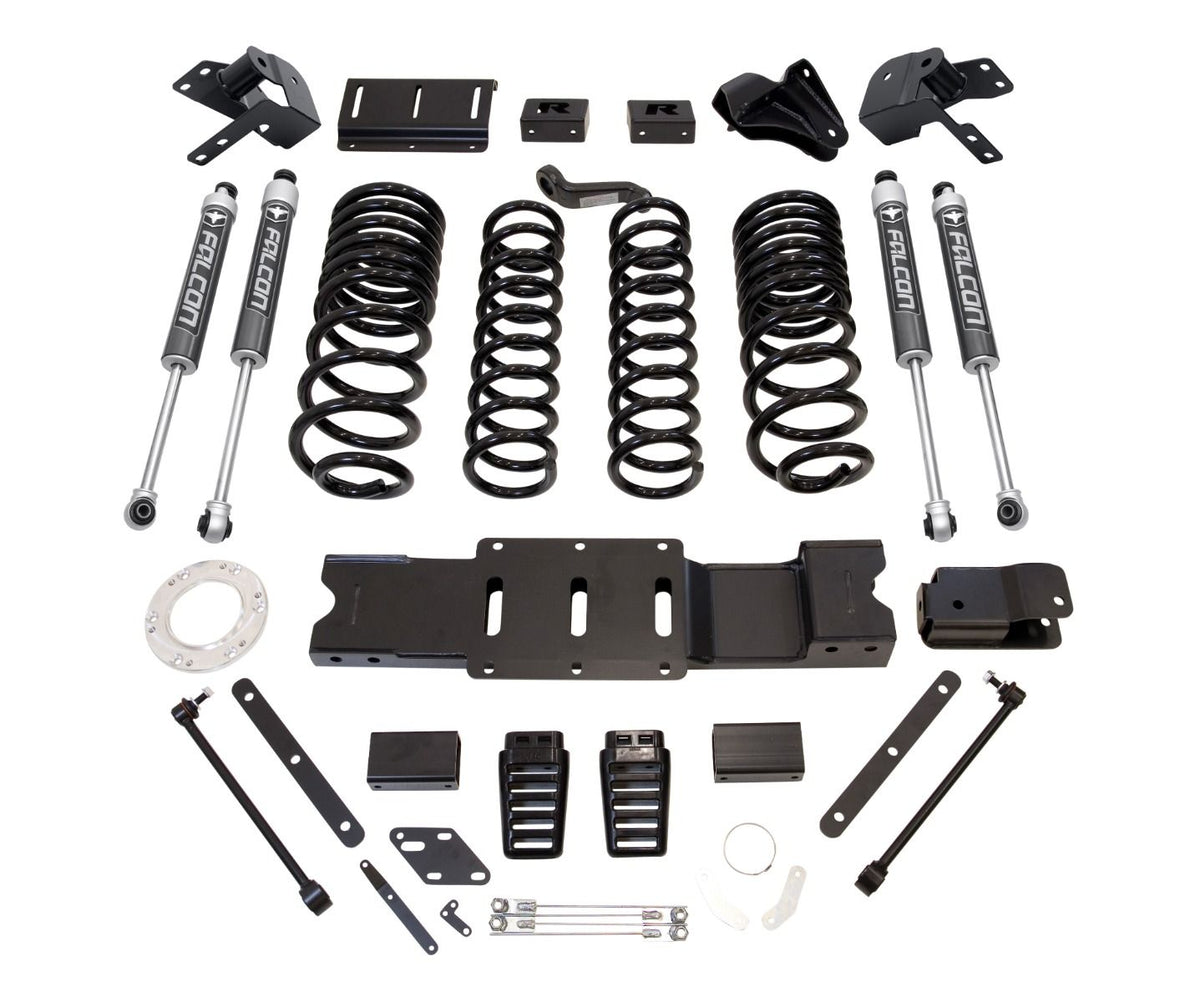

These kits come with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front, and rear (2500 only) track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 2.1 Monotube front & rear shocks. Both 4.5" Ram HD kits include our unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles.

Features

  • All-new 2019-2024 Ram 2500 4WD HD 4.5" lift kit
  • 4.5-inch front/3-inch rear spring lift kit
  • Includes all-new transfer case clocking ring and new heavy-duty transmission crossmember
  • Includes 4 Falcon 2.1 Monotube shocks tuned specifically for the Ram 2500 HD
  • For use on Diesel engine Ram 2500 4WD HD trucks only
  • Allows for up to 37x13.50 tires on 20" x 9" wide wheels with -18 offset
  • Special Note RAM TSB 03-003-23: Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning. Download TSB Info. Recommended driveline for the 68RFE Adams Drive Shaft SKU:ASDRAM-1350F-5GEN.

Installation Instructions

ReadyLIFT installation instructions (PDF)

Specifications
Part Number 49-19422
Part Name ReadyLift 4.5" Coil Spring Lift Kit w/Falcon 2.1 Shocks
Vehicle 2019-2024 Ram 2500
Placement Front & Rear
Drivetrain 4WD
Lift - Front 4.5"
Lift - Rear 3"
Max Tire Size 37"
Shocks Included Yes
Install Time 5+ Hours
Weight 285.00 lb
UPC 194933189670
Notes
  • ReadyLIFT application: 2019-2024 Ram 2500 Diesel 4WD 4.5" Coil Spring Lift Kit With Falcon 2.1 Shocks.
  • Note: Does not work with Factory Air suspension or Auto Level system (factory helper bags). Single Cab configuration has not been validated for fitment & drivability by ReadyLIFT.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2019Ram25004WD
2020Ram25004WD
2021Ram25004WD
2022Ram25004WD
2023Ram25004WD
2024Ram25004WD
