Product Details

The ReadyLift 4.5" Coil Spring Lift Kit is made for the 2019-2024 Ram 3500 High Output Diesel 4WD, giving it more ground clearance and room for larger tires.

The all-new 4.5" Coil Spring Lift Kits allow for even more ground clearance while going to a 37" tire. Springing up to the new 4.5" lift yields all the bells and whistles of a big 6" kit but at a slightly lower, garage-able stance.

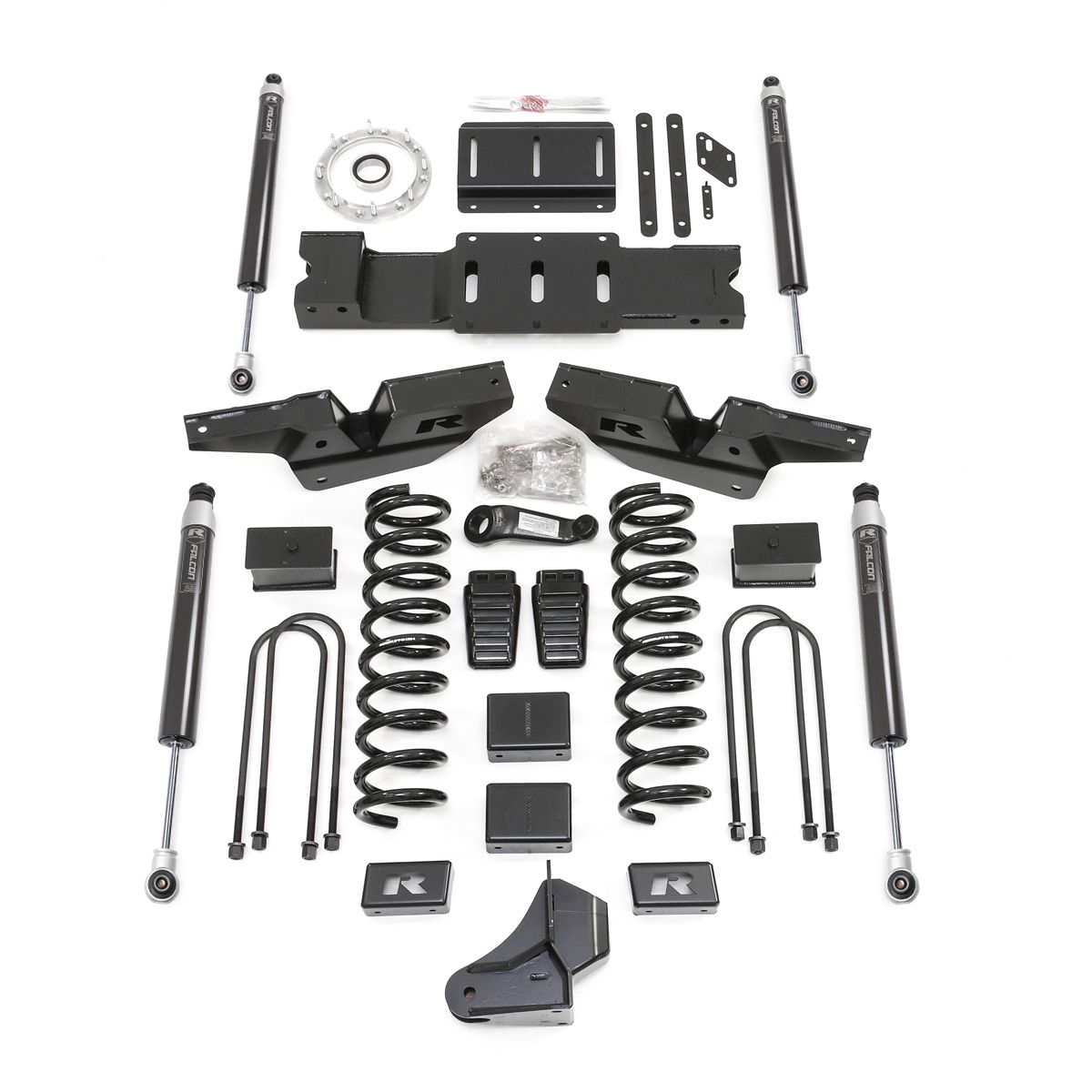

These kits come with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 1.1 Monotube front & rear shocks. The 4.5" Ram HD kit includes our unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles.

Features

  • Includes all Includes allnew transfer case clocking ring and new heavyduty transmission crossmember
  • 4.5inch front with rear blocks lift kit
  • Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 3500 HD
  • For use on Diesel engine Ram 3500 4WD HD trucks only
  • Allows for up to 37x13.50 tires on 20" x 9" wide wheels with 18 offset
  • 201920192023 Ram 3500 4WD HD 4.5" lift kit

Installation Instructions

ReadyLIFT installation instructions (PDF)

Specifications
Part Number 49-19430
Part Name ReadyLift 4.5" Coil Spring Lift Kit
Vehicle 2019-2024 Ram 3500
Placement Front & Rear
Drivetrain 4WD
Lift - Front 4.5"
Lift - Rear 3"
Max Tire Size 37"
Shocks Included Yes
Install Time 5+ Hours
Weight 240.00 lb
UPC 194933189687
Notes
  • ReadyLIFT application: 2019-2024 Ram 3500 HD High Output Diesel 4WD 4.5" Coil Spring Lift Kit.
  • Does not work with Factory Air suspension, Auto Level system (factory helper bags), HEMI Gasoline engine, dually models, Classic.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2019Ram35004WD
2020Ram35004WD
2021Ram35004WD
2022Ram35004WD
2023Ram35004WD
2024Ram35004WD
