Product Details

The ReadyLift 4.5" Coil Spring Lift Kit is made for the 2019-2024 Ram 2500 Diesel 4WD, giving it more ground clearance and room for larger tires.

The all-new 4.5" Coil Spring Lift Kits allow for even more ground clearance while going to a 37" tire. Springing up to the new 4.5" lift yields all the bells and whistles of a big 6" kit but at a slightly lower, garage-able stance.

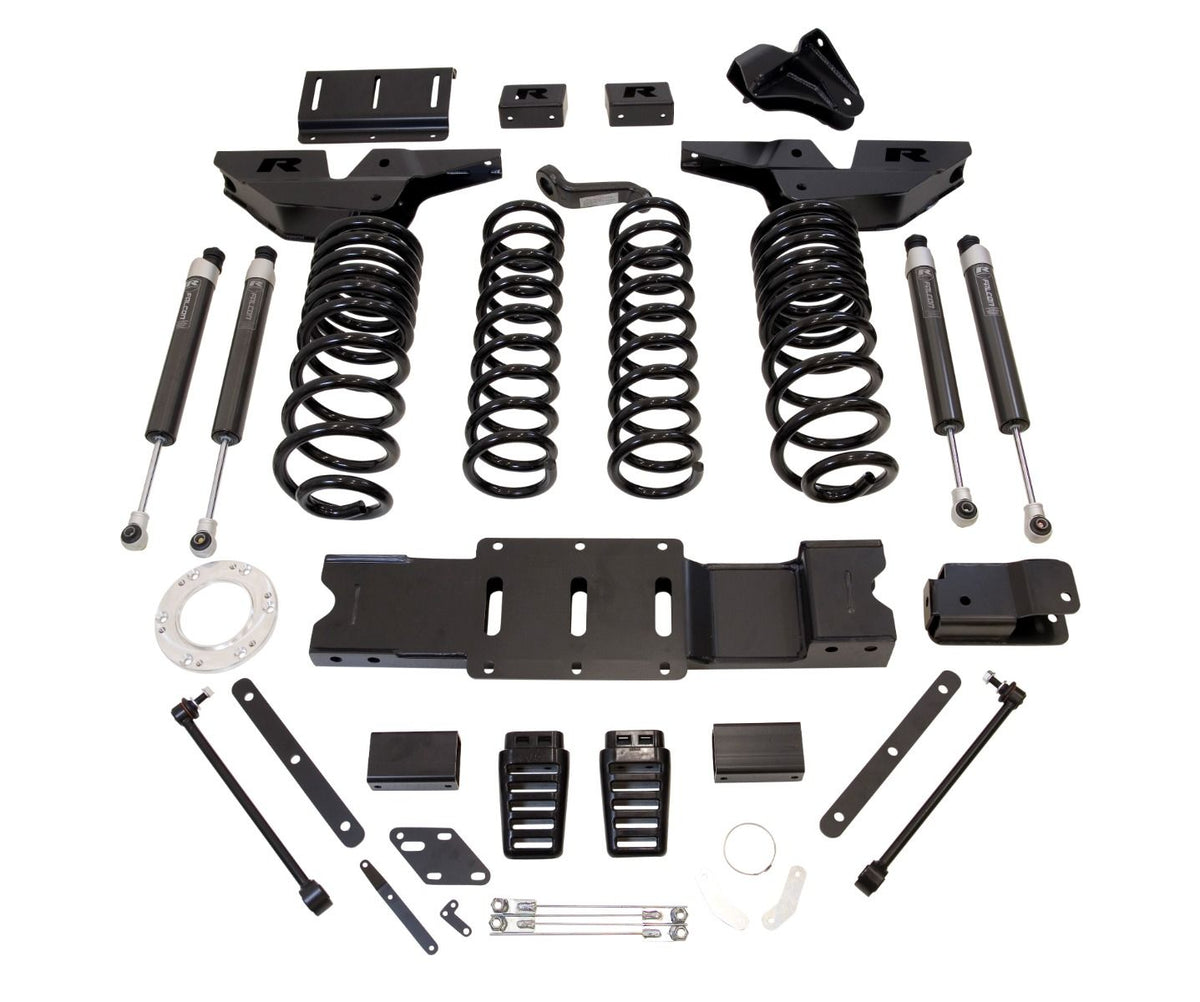

These kits come with heavy-duty steel radius arm drop brackets, heavy-duty fabricated steel front, and rear (2500 only) track bar brackets, forged dropped pitman arm, sway bar relocation brackets, and bump stop extensions preventing over-compression of the included Falcon 1.1 Monotube front & rear shocks. Both 4.5" Ram HD kits include our unique CNC-machined 6061-T6 billet Aluminum Driveline Indexing System (DIS) that re-clocks the transfer case to properly align the front output shaft for improved driveline angles.

Features

  • 4.54.5inch front/3inch rear spring lift kit
  • Includes all Includes allnew transfer case clocking ring and new heavyduty transmission crossmember
  • Includes 4 Falcon 1.1 Monotube shocks tuned specifically for the Ram 2500 HD
  • For use on Diesel engine Ram 2500 4WD HD trucks only
  • Allows for up to 37x13.50 tires on 20" x 9" wide wheels with 18 offset

Installation Instructions

ReadyLIFT installation instructions (PDF)

Specifications
Part Number 49-19420
Part Name ReadyLift 4.5" Coil Spring Lift Kit
Vehicle 2019-2024 Ram 2500
Placement Front & Rear
Drivetrain 4WD
Lift - Front 4.5"
Lift - Rear 3"
Max Tire Size 37"
Shocks Included Yes
Install Time 5+ Hours
Weight 240.00 lb
UPC 194933189656
Notes
  • ReadyLIFT application: 2019-2024 Ram 2500 Diesel 4WD 4.5" Coil Spring Lift Kit.
  • Does not work with Factory Air suspension or Auto Level system (factory helper bags).
  • Single Cab configuration has not been validated.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2019Ram25004WD
2020Ram25004WD
2021Ram25004WD
2022Ram25004WD
2023Ram25004WD
2024Ram25004WD
