Product Details
The ReadyLift 4.5" Coil Spring Falcon 2.1 Lift Kit is made for the 2019-2024 Ram 3500 High Output Diesel 4WD, giving it more ground clearance and room for larger tires.
New Falcon 2.1 shocks deliver improved ride quality, stability, and control for lifted Ram 3500 High Output diesel trucks. ReadyLIFT Suspension has upgraded its 4.5-Inch Coil Spring Lift Kit for 2019-2024 Ram 3500 HD High Output Diesel 4WD trucks with four vehicle-specific Falcon 2.1 Monotube Shocks.

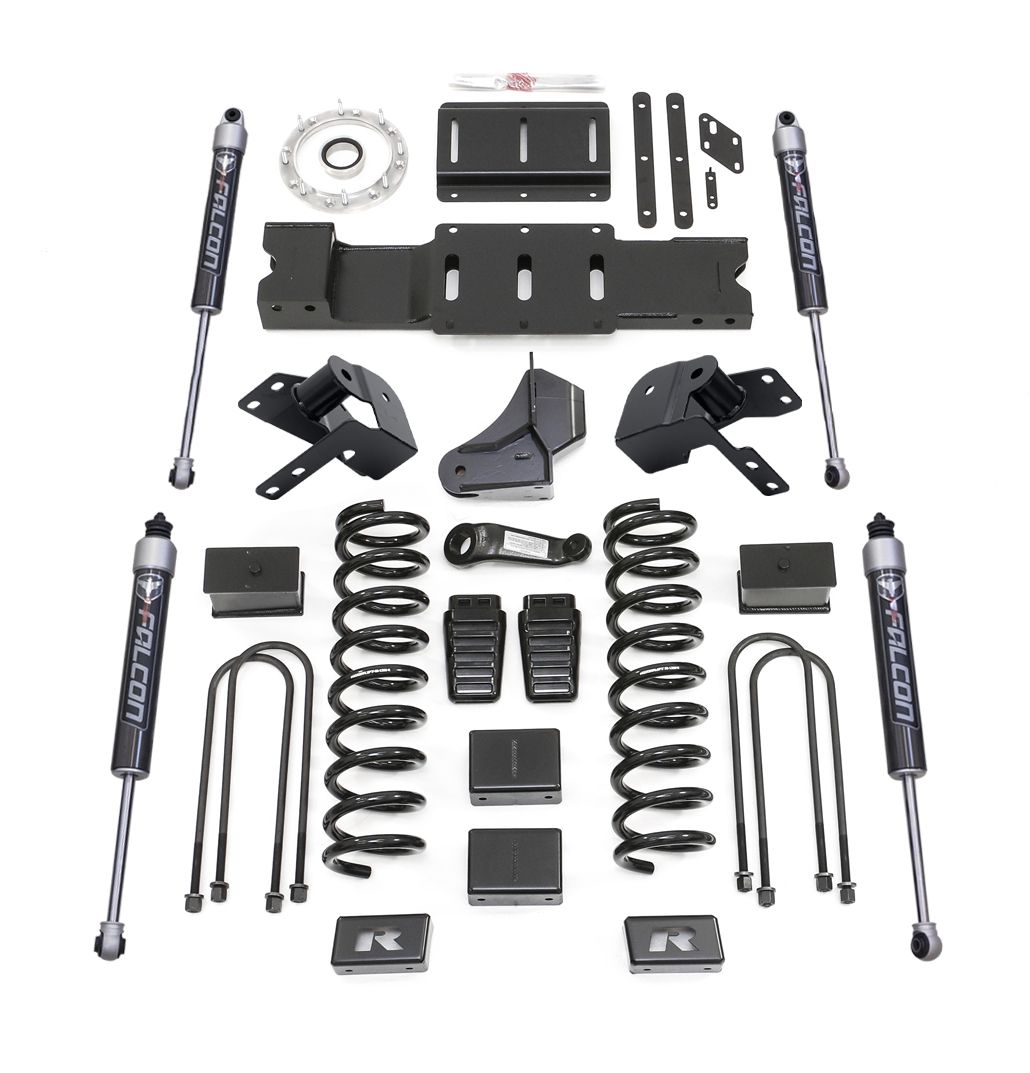

Large 2.3-inch shock body for increased oil capacity and heat dissipation Includes transfer-case clocking components and a heavy-duty transmission crossmember Corrects suspension, steering, and driveline geometry The ReadyLIFT 4.5-Inch Coil Spring Lift Kit combines the stance and tire clearance Ram diesel owners want with upgraded Falcon 2.1 ride control and heavy-duty components engineered for the demands of the Ram 3500 HD.
Features
- Special Note RAM TSB 03-003-23: Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning. Download TSB Info.
- Provides 4.5 inches of front lift with 3-inch rear tapered blocks
- Clears up to 37x13.50 tires on 20x9 wheels with a -18 offset

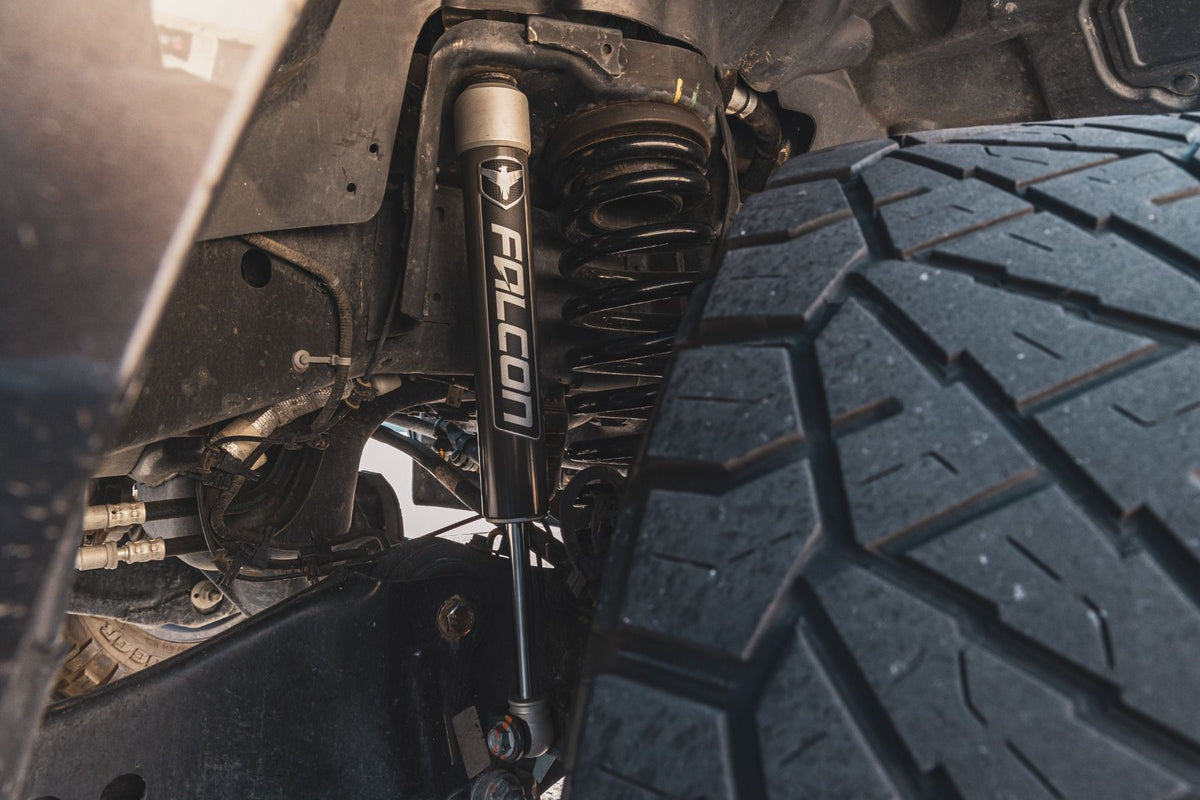

- Includes four Ram-specific Falcon 2.1 Monotube Shocks
- Heavy-duty 3/4-inch induction-hardened, chrome-plated shaft
- Large 2.3-inch shock body for increased oil capacity and heat dissipation
- Includes transfer-case clocking components and a heavy-duty transmission crossmember
- Corrects suspension, steering, and driveline geometry
Installation Instructions
ReadyLIFT installation instructions (PDF)
Specifications
| Part Number | 49-19431 |
| Part Name | ReadyLift 4.5" Coil Spring Falcon 2.1 Lift Kit |
| Vehicle | 2019-2024 Ram 3500 |
| Drivetrain | 4WD |
| Weight | 234.00 lb |
| UPC | 194933189694 |
| Notes |
|
