Product Details

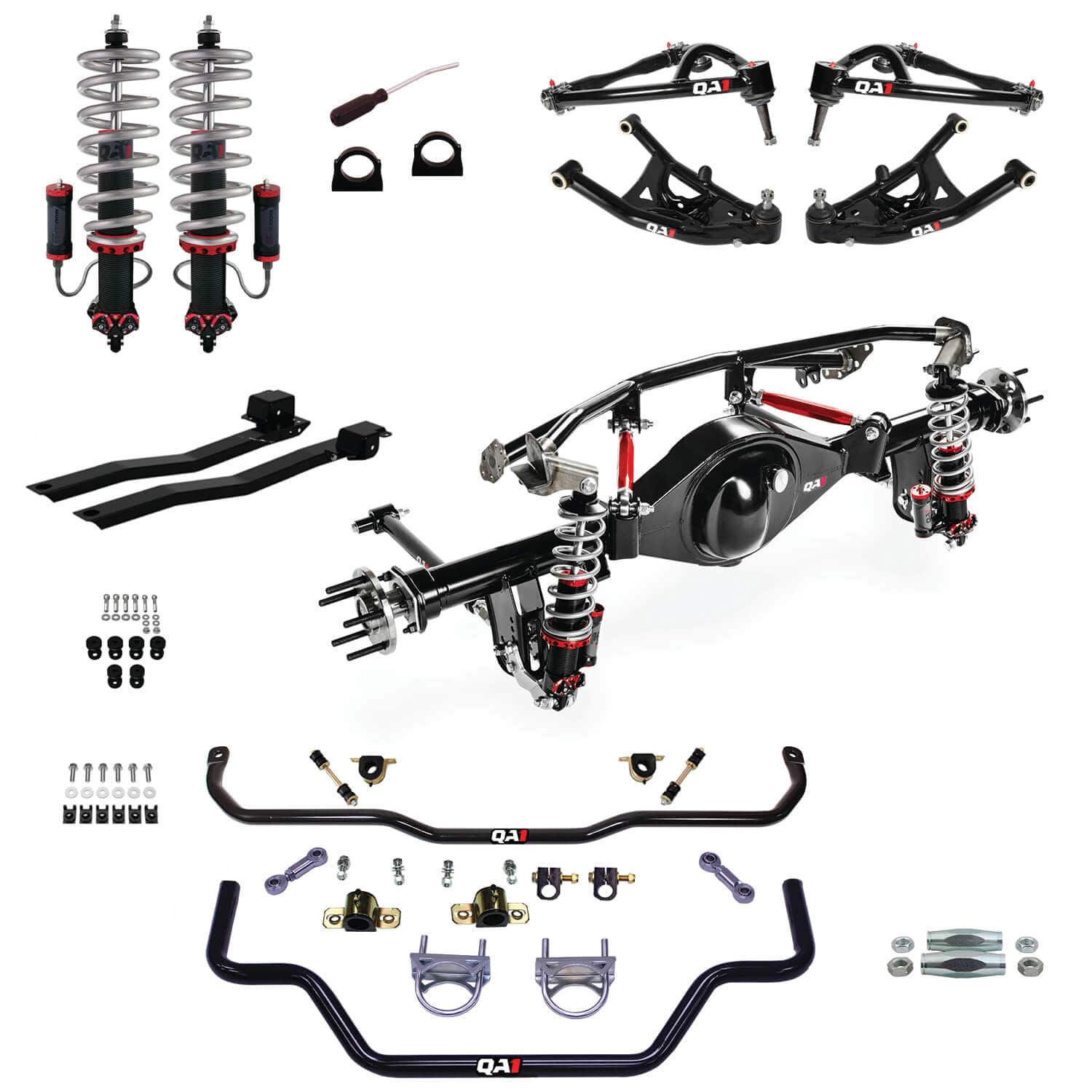

QA1's Handling Kit is the premier suspension upgrade for the 1967-1969 Chevrolet Camaro owners seeking exceptional handling. This kit replaces the Front and Rear Suspension with QA1 MOD series 4-way adjustable coilovers and a narrowed QA1 9" rear housing, and four-link optimized for wider wheels and tires. HUGE HANDLING GAINS Experience superior handling with lightweight Control Arms that improve geometry and reduce flex. The adjustable four-link design eliminates wheel hop and improves traction and handling. Front and Rear Sway Bars and subframe connectors minimize roll in tight corners. AGGRESSIVE STANCE Factory springs limit stance, but QA1's MOD series coilovers and 4-link offer 2 inches of front adjustability and -3 to +2 inches in the rear for ideal ride height. The kit allows for massive 11-inch-wide wheels and 315mm tires on '67-'68 cars and 12-inch-wide wheels with 335 tires on 69 models when using mini tubs. PERFORMANCE 9" REAR HOUSING Strength: Fabricated center section with 3" OD, .25" wall axle tubes support 800HP and 31 spline axles are rated to 650HP Features: Standard options include powder coat, drain and fill plugs, jack pad, and all necessary hardware Specs: Narrowed wheel mounting width: 54-3/4" (narrowed 2.5" per side for mini tubs) Big Ford "New Style Torino Axle Flanges" with 2.5" axle offset Bolt pattern: 5x4-3/4" for easy wheel compatibility Wheel studs: 1/2" x 3" for alloy wheels Requires third member for Ford 9" housings with 31 spline axles EASY INSTALL The QA1 Handling Kit features a straightforward installation. The rear crossmember needs minimal MIG welding, and all other components are direct bolt-in. MADE IN THE USA Components manufactured in the USA
Standard Features
- Complete Suspension Kit: Upgraded performance for street and track
- QA1 MOD Shocks: Fine-tune your ride height and handling for a perfect stance and performance in any driving scenario
- Custom 9" Rear Housing: Supports up to 800HP
- Lightweight Front Suspension: Enhances control and reduces flex
- Easy Installation: Bolt-on with minimal welding required
Specifications
| Part Number | HK43-GMF1RN |
| Part Name | Handling Suspension Kit |
| UPC | 806990112255 |
| Vehicle | 1967-1969 Chevrolet Camaro |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | Yes |
| Front Shock Type | Double Adjustable Coilover |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Double Adjustable Coilover |
| Front Sway Bar Included | Yes |
| Front Sway Bar Color | Black |
| Front Sway Bar Type | Hollow |
| Front Sway Bar Diameter | 1.250 in. |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Diameter | 0.875 in. |
| Tie Rod Sleeves Included | Yes |
| End Link Bushings Included | Yes |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | No |
| Lower Trailing Arms Included | No |
| Trailing Arm Mount Braces Included | No |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | Yes |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Steel |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | No |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | Yes |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Mounting Hardware Included | Yes |
| Spring Rate - Front | 450 lbs/in |
| Spring Rate - Rear | 170 lbs/in |
Vehicle Fitment
- 1967 Chevrolet Camaro
- 1968 Chevrolet Camaro
- 1969 Chevrolet Camaro
