Product Details

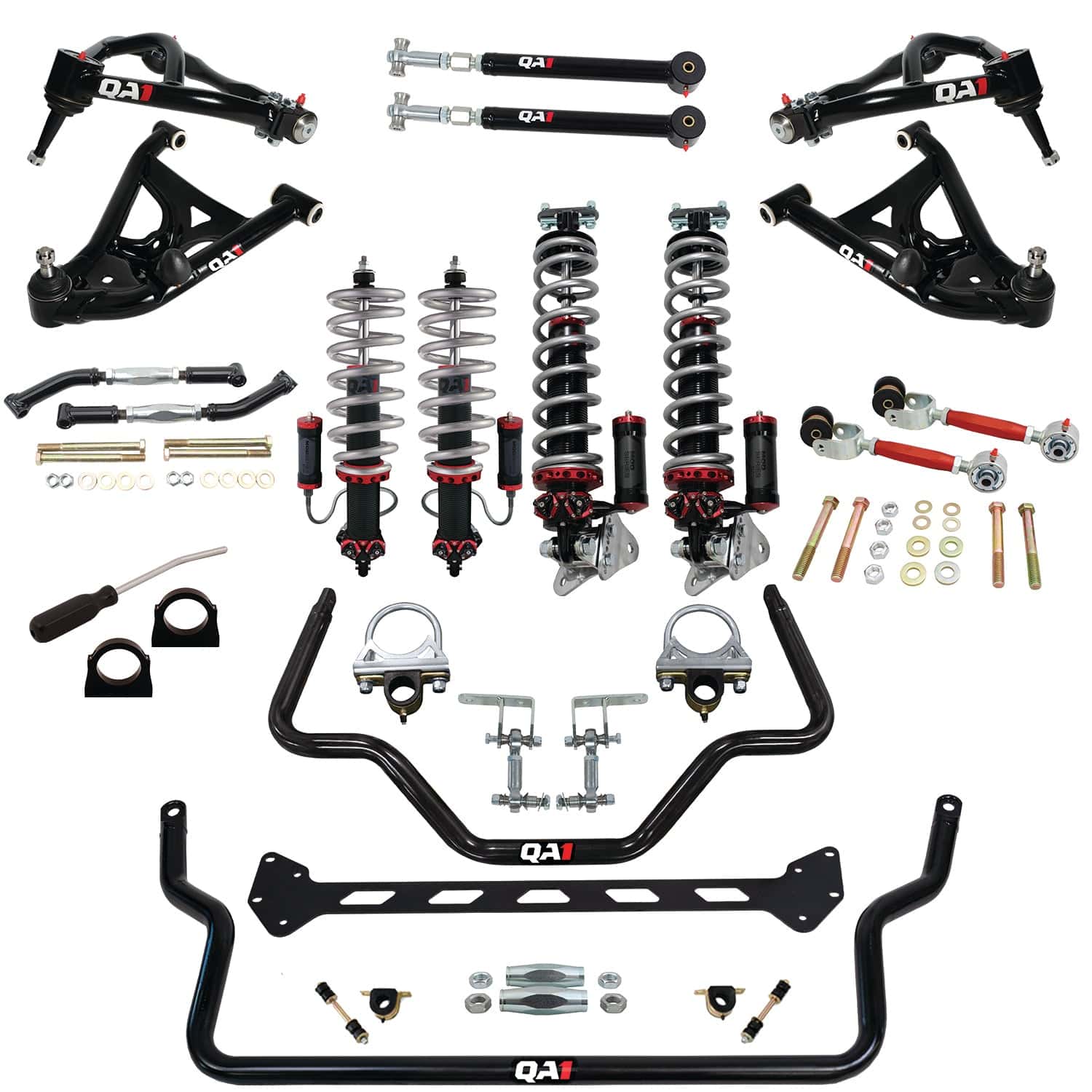

Level 3 Big Wheel Kit, 1978-1983 Chevrolet Malibu, MOD Series Shocks Fit up to 24" wheels on your Monte Carlo or Cutlass with a complete bolt-in suspension system, including Control Arms and Sway Bars. It has everything you need to get your G-body sitting right while giving you a maximum performance with QA1 MOD Series Shocks.MOD Series Coil-Overset the perfect look by easily adjusting your ride height with Front and Rear coil-overs. Raise the front your car up to 2" above stock height, and go 1" above to 3" below in the rear. Dial in the exact style you want in minutes with the included spanner wrench. Get maximum shock tunability with low high and low speed valving adjustability. Perfect for the street or drag racing, MOD Series Shocks are the ultimate option to get the most out of your car. Adjustable Upper and Lower Trailing Arms Get your wheel and tire package to fit with adjustable Trailing Arms that center your rear axle in the wheel well. This gives you more clearance for up to 24" wheels. Tubular Control Arms Upgrade your front-end geometry for better drivability. These arms are designed specifically for big wheel cars with corrected suspension angles for large wheels and tires. They much are lighter and stronger than stock to get the most out of your car. Tubular Sway BarsQA1's high clearance front Sway Bar is 4" narrower than OEM bars, providing full turning radius on 24" wheels. It was also designed to work with OEM or notched front frame rails. Rear anti-roll bars reduce unwanted body roll and improved 60-foot times. Easy, Bolt-In Installation Parts come powder coated and ready to install with all necessary hardware. You can bolt up the kit right in your garage or work with your local shop.
Standard Features
- Everything you need to get your big wheel car sitting right
- Adjustable Trailing Arms to center wheels in the well
- Adjustable ride height
- On-the-car shock adjustments
- Tubular Control Arms
- Easy bolt-in installation
- Best-in-class warranty
- Made in the USA
Specifications
| Part Number | BW03-GMG1 |
| Part Name | Handling Suspension Kit |
| UPC | 806990169358 |
| Vehicle | 1978-1983 Chevrolet Malibu |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | Yes |
| Front Shock Type | Double Adjustable Coilover |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Double Adjustable Coilover |
| Front Sway Bar Included | Yes |
| Front Sway Bar Color | Black |
| Front Sway Bar Type | Hollow |
| Front Sway Bar Diameter | 1.250 in. |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Diameter | 1.250 in. |
| Tie Rod Sleeves Included | Yes |
| End Link Bushings Included | No |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | Yes |
| Lower Trailing Arms Included | Yes |
| Trailing Arm Mount Braces Included | No |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | Yes |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Chromoly |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | No |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | No |
| Chassis Stiffener Included | Yes |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Bushing Material | Polyurethane/Steel |
| Bushing Color | Black |
| Mounting Hardware Included | Yes |
Vehicle Fitment
- 1978 Chevrolet Malibu
- 1979 Chevrolet Malibu
- 1980 Chevrolet Malibu
- 1981 Chevrolet Malibu
- 1982 Chevrolet Malibu
- 1983 Chevrolet Malibu
