Product Details

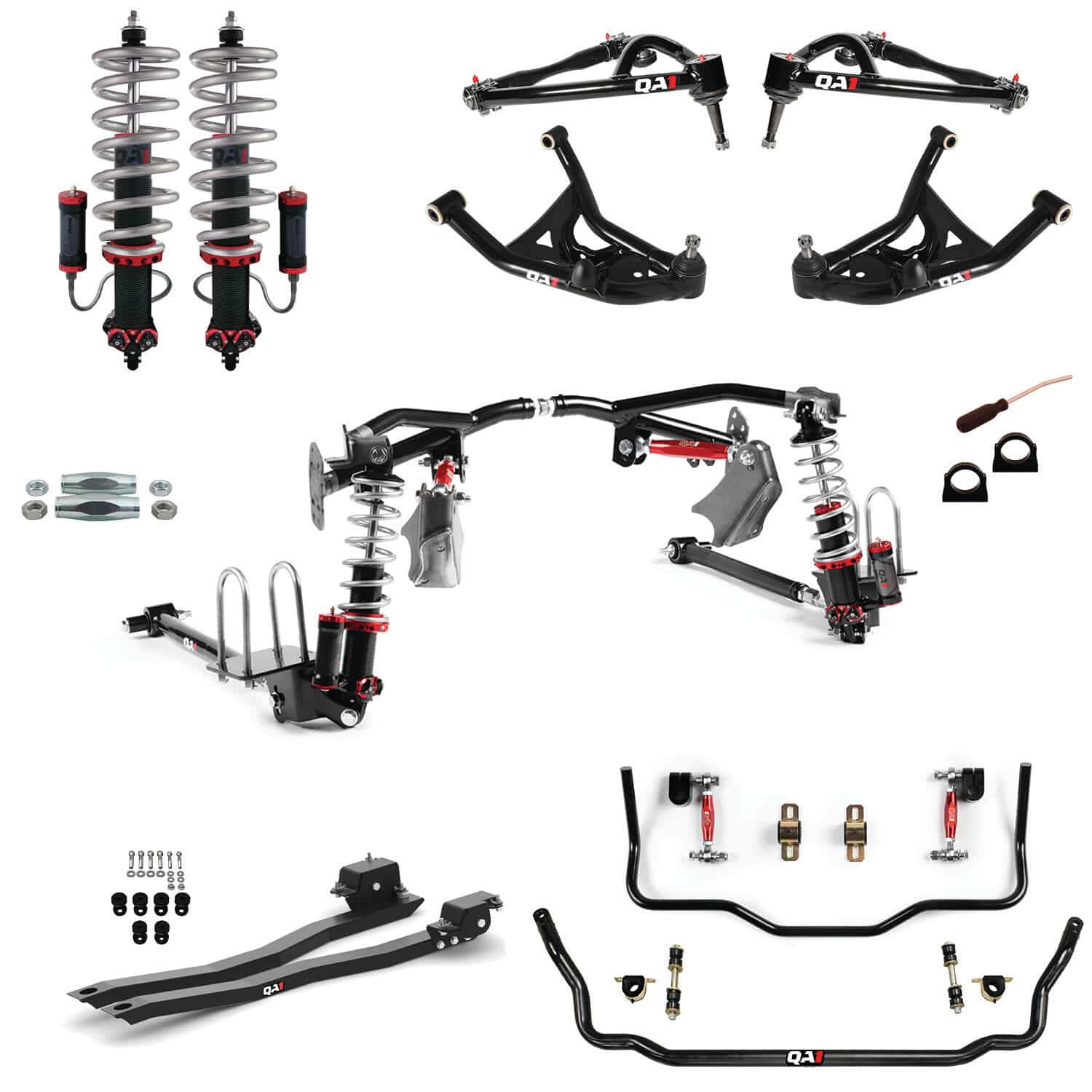

QA1's Level 3 Handling Kit is a complete solution for the 1975-1981 Pontiac Firebird owners looking for ultimate track-day performance. This complete solution replaces your entire suspension, optimizing handling performance, while maintaining comfort on the street. The coilovers offer adjustable ride height, while the Rear Suspension was optimized for wider wheels and tires. Bind Free, Light-weight Front Suspension QA1's tubular front Control Arms stand out as some of the lightest in the market. QA1 low-friction ball joints have 1 longer upper ball joint studs to improve camber gain. Composite bushings eliminate flex and deliver bind-free movement. Paired with QA1's 4-way adjustable MOD Series coilovers, and tubular front Sway Bar, this kit offers plenty of control over your suspension. Achieve the Perfect Stance Factory coil springs and leaf springs limit your ability to achieve the perfect stance. Upgrading to QA1's coilovers and a tubular 4-link provides 0 to -2 inches of adjustability in the front and 1.25 inches of height adjustability in the rear. Fit Wider Wheels & Tires The rear system offers generous clearance for up to 12-inch-wide wheels and 335 tires. Note: Achieving maximum wheel and tire width will require mini tubs. Improved Performance and Stability 4-way adjustable MOD shocks help drivers find grip in any setting. They make it easy to adapt to different events like autocross, road courses, speed stop challenges and more. Easy, Installation & Adjustment Thoughtful design meets effortless installation with a completely bolt-in front suspension and a 4-link requiring minimal welding.
Standard Features
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Specifications
| Part Number | HK53-GMF2 |
| Part Name | Handling Suspension Kit |
| UPC | 806990065285 |
| Vehicle | 1975-1981 Pontiac Firebird |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | No |
| Front Shock Type | Double Adjustable monotube with reservoir |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Double Adjustable monotube with reservoir |
| Front Sway Bar Included | Yes |
| Front Sway Bar Color | Black |
| Front Sway Bar Type | Hollow |
| Front Sway Bar Diameter | 1.375 in. |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Type | Solid |
| Rear Sway Bar Diameter | 0.875 in. |
| Tie Rod Sleeves Included | Yes |
| End Link Bushings Included | Yes |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | Yes |
| Lower Trailing Arms Included | Yes |
| Trailing Arm Mount Braces Included | Yes |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | Yes |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Chromoly |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | No |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | Yes |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Mounting Hardware Included | Yes |
Vehicle Fitment
- 1975 Pontiac Firebird
- 1976 Pontiac Firebird
- 1977 Pontiac Firebird
- 1978 Pontiac Firebird
- 1979 Pontiac Firebird
- 1980 Pontiac Firebird
- 1981 Pontiac Firebird
