Product Details

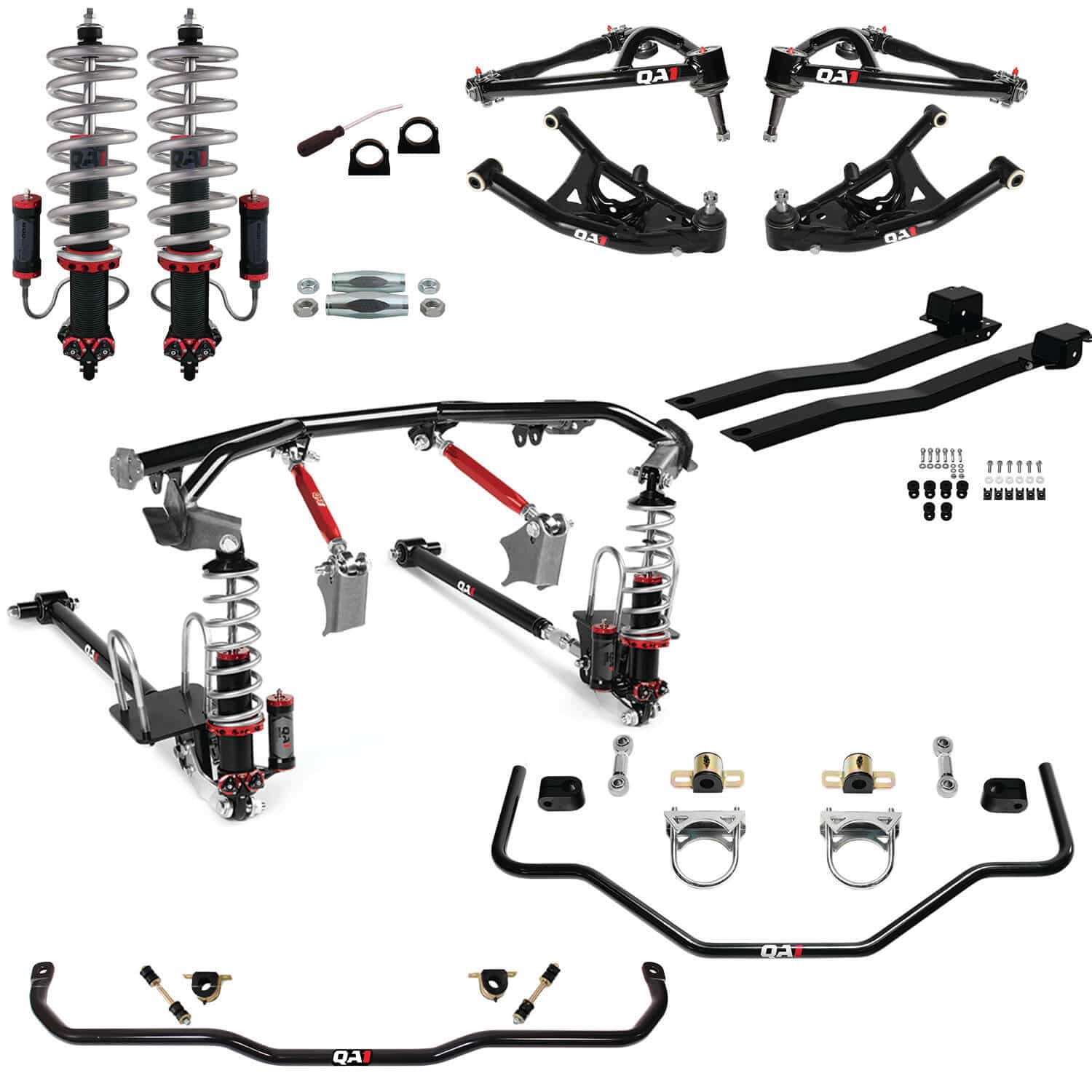

QA1's Level 3 Handling Kit is a complete solution for the 1969-1972 Chevrolet Nova owners looking for ultimate track-day performance. This complete solution replaces your entire Front and Rear Suspension, optimizing handling performance, while still maintaining comfort on the street. The coilovers offer adjustable ride height, while the Rear Suspension was optimized for wider wheels and tires. Bind Free, Light-weight Front Suspension QA1's tubular front Control Arms stand out as some of the lightest available in the market. When paired with QA1's 4-way adjustable MOD Series coilovers, and tubular front Sway Bar, this kit offers plenty of control. Achieve the Perfect Stance Upgrading to QA1's coilovers and a tubular 4-link provides 0 to -2 inches of adjustability in the front and +2 to -3 inches of ride height adjustability in the rear. Fit Wider Wheels & Tires Designed to work with both standard and mini-tubs, the rear system offers generous clearance for up to 315mm tires. Note: Achieving maximum wheel and tire width will require mini tubs. Improved Performance and Stability 4-way adjustable MOD shocks help drivers find grip in any setting. They make it easy to adapt to different events like autocross, road courses, speed stop challenges and more by changing out valve packs in minutes. It's simple to go from race-oriented suspension to comfortable street driving. Easy, Installation & Adjustment Thoughtful design meets effortless install with a completely bolt-in front suspension and a 4-link requiring minimal welding. You'll experience a painless setup process, where adjusting ride height, pinion angle, or wheelbase is as simple as a few tweaks no link removal required. No modifications to floor pan required. Note Welding required Made in the USA
Standard Features
- Ride height adjustability
- Ability to run wider rear wheel and tire package
- Adjustable valving coilovers
- Significant improvement in handling performance
Specifications
| Part Number | HK43-GMX2 |
| Part Name | Handling Suspension Kit |
| UPC | 806990175984 |
| Vehicle | 1969-1972 Chevrolet Nova |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | Yes |
| Front Shock Type | Double Adjustable Coilover |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Double Adjustable Coilover |
| Front Sway Bar Included | Yes |
| Front Sway Bar Color | Black |
| Front Sway Bar Type | Hollow |
| Front Sway Bar Diameter | 1.250 in. |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Diameter | 0.875 in. |
| Tie Rod Sleeves Included | Yes |
| End Link Bushings Included | Yes |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | No |
| Lower Trailing Arms Included | No |
| Trailing Arm Mount Braces Included | No |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | Yes |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Steel |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | No |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | Yes |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Mounting Hardware Included | Yes |
Vehicle Fitment
- 1969 Chevrolet Nova
- 1970 Chevrolet Nova
- 1971 Chevrolet Nova
- 1972 Chevrolet Nova
