Product Details

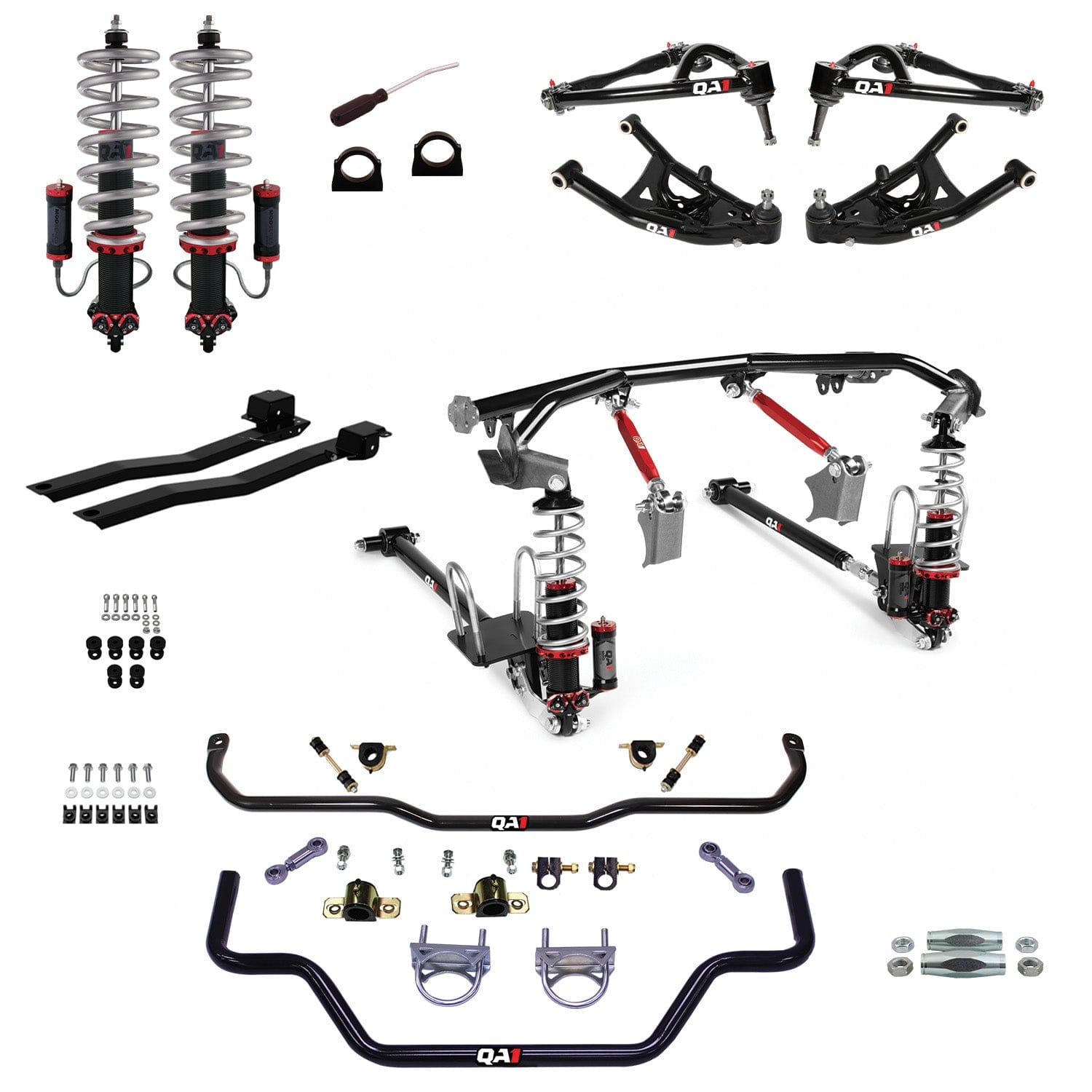

QA1's Level 3 Handling Kit is a complete solution for the 1967-1969 Chevrolet Camaro owners looking for ultimate track-day performance. This complete solution replaces your entire Front and Rear Suspension, optimizing handling performance, while still maintaining comfort on the street. The coilovers offer adjustable ride height, while the Rear Suspension was optimized for wider wheels and tires. Bind Free, Light-weight Front Suspension QA1's tubular front Control Arms stand out as some of the lightest available in the market. QA1 low-friction ball joints have 1 longer upper ball joint studs to improve camber gain and overall cornering grip. Composite bushings eliminate flex and deliver bind-free movement. Achieve the Perfect Stance Factory coil and leaf springs limit your ability to achieve the perfect stance. QA1 MOD coilovers and tubular 4-link provide 0 to -2 inches of adjustability in the front and +2 to -3 inches of ride height adjustability in the rear. Fit Wider Wheels & Tires Designed to work with both standard and mini-tubs, the rear system offers generous clearance wider wheels and tires resulting in a significantly more aggressive stance and improved traction and performance. Note: Achieving maximum wheel and tire width will require mini tubs Improved Performance and Stability With more force and adjustability, 4-way adjustable MOD shocks make it easy to adapt to different events like autocross, road courses, speed stop challenges and still can be comfortable enough for the street. Easy, Installation & Adjustment Thoughtful design meets effortless installation with a completely bolt-in front suspension and a 4-link requiring minimal welding. No modifications to floor pan required. Note: Welding required Made in the USA
Standard Features
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Specifications
| Part Number | HK43-GMF1 |
| Part Name | Handling Suspension Kit |
| UPC | 806990112255 |
| Vehicle | 1967-1969 Chevrolet Camaro |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | Yes |
| Front Shock Type | Double Adjustable Coilover |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Double Adjustable Coilover |
| Front Sway Bar Included | Yes |
| Front Sway Bar Color | Black |
| Front Sway Bar Type | Hollow |
| Front Sway Bar Diameter | 1.250 in. |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Type | Solid |
| Rear Sway Bar Diameter | 0.875 in. |
| Tie Rod Sleeves Included | Yes |
| End Link Bushings Included | No |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | Yes |
| Lower Trailing Arms Included | Yes |
| Trailing Arm Mount Braces Included | No |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | Yes |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Steel |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | No |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | Yes |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Bushing Material | Polyurethane/Steel |
| Bushing Color | Black |
| Mounting Hardware Included | No |
Vehicle Fitment
- 1967 Chevrolet Camaro
- 1968 Chevrolet Camaro
- 1969 Chevrolet Camaro
