Product Details

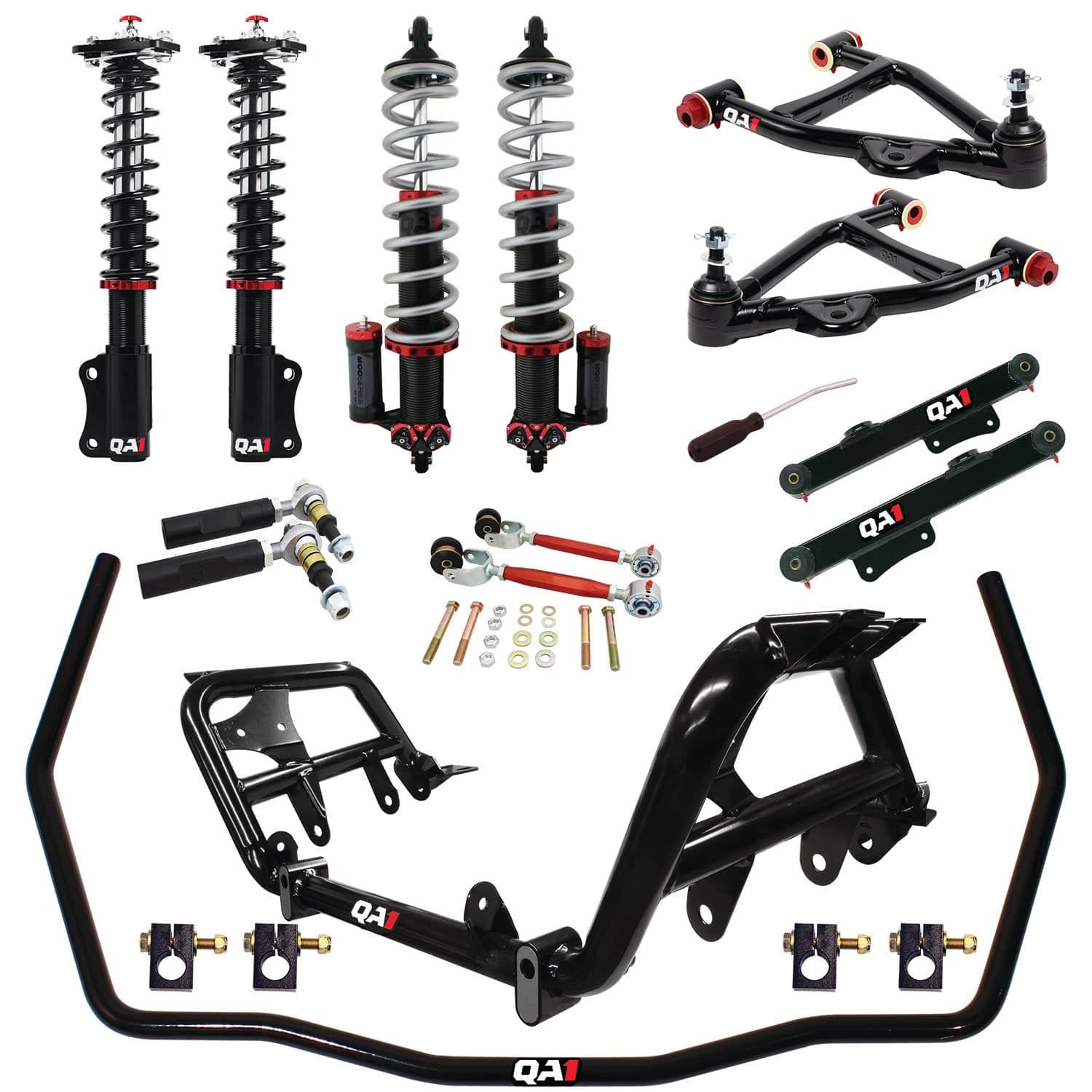

The QA1 Level 3 Drag Kit for the 1994-2004 Ford Mustang is a serious upgrade for any SN95 Mustang owner drag racing their car. The kit includes a lightweight tubular K-member, drag race Control Arms, boxed Trailing Arms, Rear Sway Bar, and front double adjustable coilovers and rear MOD Series coilovers. Tubular Front K-member These are designed to save weight and free up room in your engine bay. Weighing only 25lbs., it's 50% lighter than stock K-members and boasts improved geometry and durability. Interchangeable engine mounts, sold separately, offer flexibility for running factory or late model engines including Coyotes. Inverted Front Struts and Rear Coil-Overs Front struts feature an inverted cartridge design, large diameter shaft, and lightweight aluminum body for improved suspension performance. The lightweight, high-travel springs with proven spring rates optimize weight transfer, reducing 60-foot times and ET's These kits offer up to 2" lower than stock ride height adjustment to dial in the perfect stance.
QA1 MOD Series rear coilovers are great for serious track cars looking for the ultimate tunability and performance. Lightweight Caster Camber Plates Aluminum caster camber plates improve Mustang handling and performance. Lighter and sleeker than steel, offer precision adjustment to fine-tune suspension geometry for straight line stability. Tubular Control Arms, Trailing Arms and Rear Sway Bar Tubular Control Arms, Trailing Arms, and Rear Sway Bars solve flexing and bushing bind, allowing smoother suspension movement and straighter launches. Easy, Bolt-In Install Made in the USA
Standard Features
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Specifications
| Part Number | DK43-FMM4 |
| Part Name | Drag Suspension Kit |
| UPC | 806990038975 |
| Vehicle | 1994-2004 Ford Mustang |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | Yes |
| Front Shock Type | Double Adjustable Coilover |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Adjustable Coilover |
| Front Sway Bar Included | No |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Type | Solid |
| Rear Sway Bar Diameter | 1.000 in. |
| Tie Rod Sleeves Included | No |
| End Link Bushings Included | No |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | No |
| Upper Trailing Arms Included | Yes |
| Lower Trailing Arms Included | Yes |
| Trailing Arm Mount Braces Included | No |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | No |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Steel |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | Yes |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | No |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Mounting Hardware Included | Yes |
Vehicle Fitment
- 1994 Ford Mustang
- 1995 Ford Mustang
- 1996 Ford Mustang
- 1997 Ford Mustang
- 1998 Ford Mustang
- 1999 Ford Mustang
- 2000 Ford Mustang
- 2001 Ford Mustang
- 2002 Ford Mustang
- 2003 Ford Mustang
- 2004 Ford Mustang
