Product Details

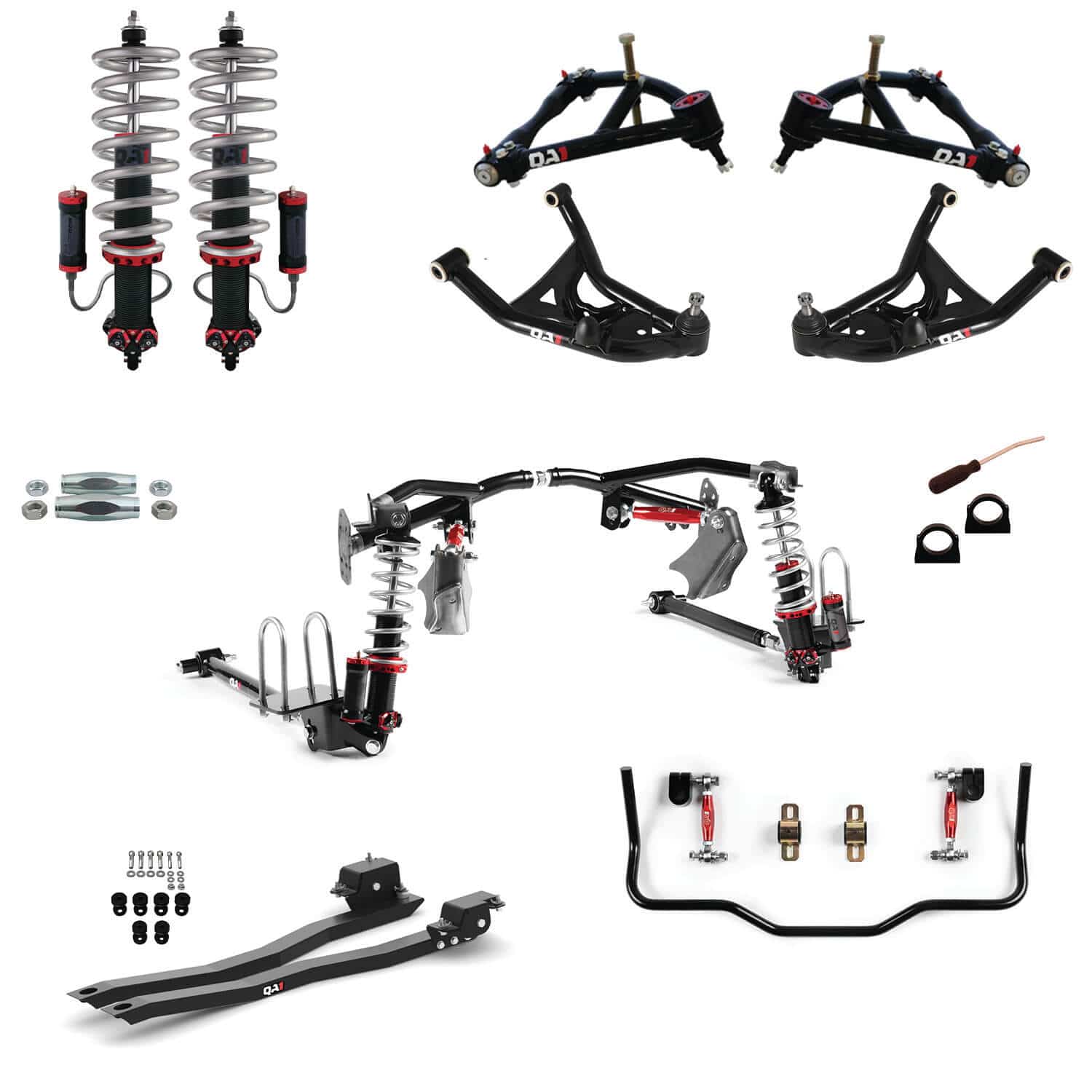

QA1's Level 3 Drag Kit is a complete solution for the 1975-1981 Pontiac Firebird owners who drag race their car. This complete solution replaces your entire Front and Rear Suspension, optimizing your car for weight transfer and straight-line performance. The 4-way adjustable MOD Series offer plenty of control. With the Rear Suspension allowing additional space for drag radials or slicks, you have the perfect combination. Bind Free, Light-weight Front Suspension QA1's tubular front Control Arms stand out as some of the lightest on the market. Beyond their lightweight design, racers have the flexibility to fine-tune launch characteristics using an adjustable droop stop. QA1's low-friction ball joints and composite bushings enhance weight transfer, ensuring smooth and bind-free movement. When paired with QA1's MOD Series coilovers, this kit offers plenty of control over front-end movement. Customize Your Stance Factory coil spring and leaf springs limit your ability to achieve the perfect stance on your Camaro or Firebird. Upgrading to QA1's coilovers and a tubular 4-link provides 0 to -2 inches of adjustability in the front and 1.25 inches of height adjustability in the rear. Fit Wider Wheels & Tires Designed to work with both standard and mini-tubs, this system offers generous clearance for up to 12-inch-wide wheels. Note: Achieving maximum wheel and tire width will require mini tubs. Shock Tunability 4-way adjustable MOD shocks help drivers easily adapt to any surface and conditions. Easy, Installation & Adjustment Thoughtful design meets effortless installation with a completely bolt-in front suspension and a 4-link requiring minimal welding.
Standard Features
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Specifications
| Part Number | DK53-GMF2 |
| Part Name | Drag Suspension Kit |
| UPC | 806990065285 |
| Vehicle | 1975-1981 Pontiac Firebird |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | No |
| Front Shock Type | Double Adjustable monotube with reservoir |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Double Adjustable monotube with reservoir |
| Front Sway Bar Included | No |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Type | Solid |
| Rear Sway Bar Diameter | 0.875 in. |
| Tie Rod Sleeves Included | Yes |
| End Link Bushings Included | Yes |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | Yes |
| Lower Trailing Arms Included | Yes |
| Trailing Arm Mount Braces Included | Yes |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | Yes |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Chromoly |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | No |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | Yes |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Mounting Hardware Included | Yes |
Vehicle Fitment
- 1975 Pontiac Firebird
- 1976 Pontiac Firebird
- 1977 Pontiac Firebird
- 1978 Pontiac Firebird
- 1979 Pontiac Firebird
- 1980 Pontiac Firebird
- 1981 Pontiac Firebird
