Product Details

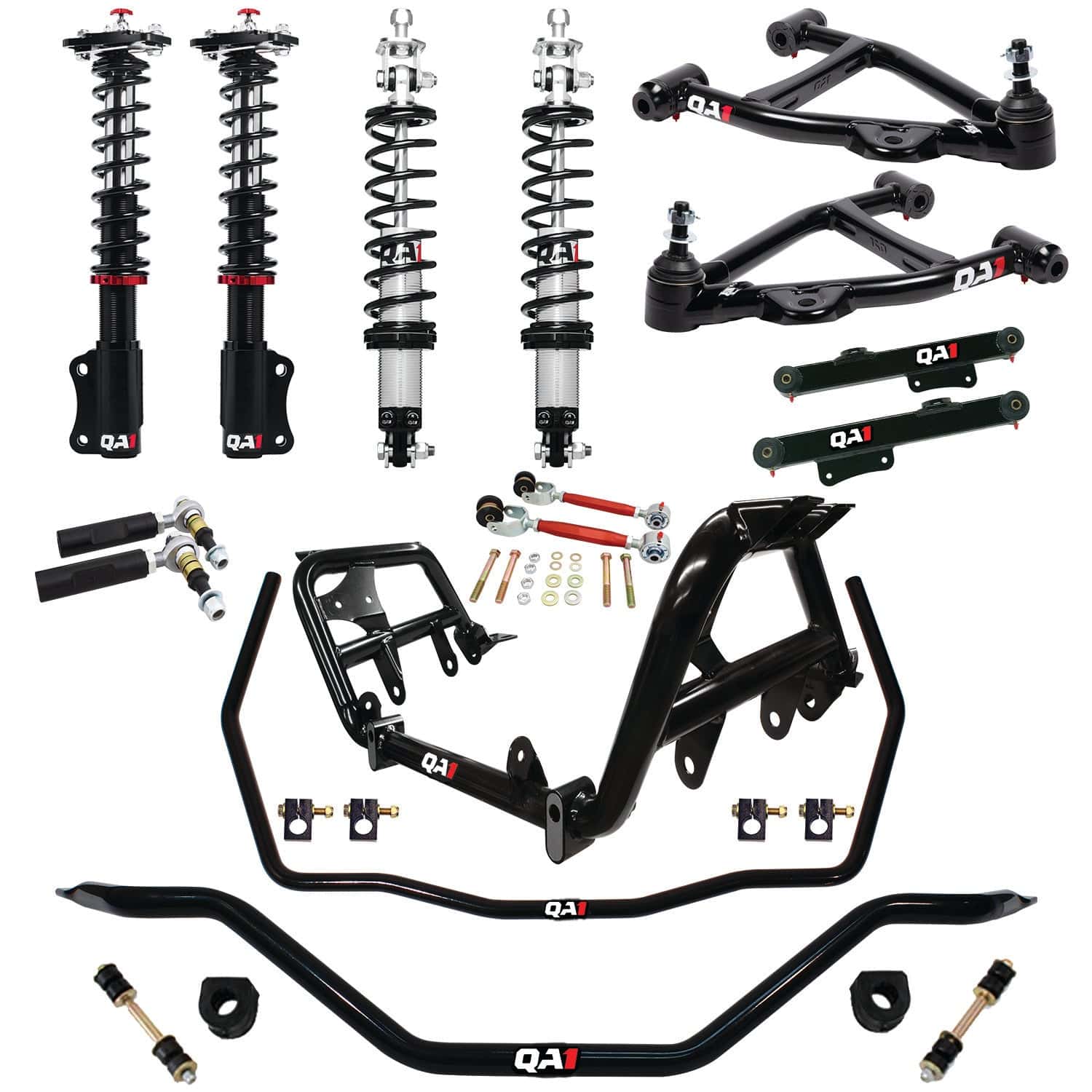

The QA1 Level 2 Handling Kit for the 1979-1986 Ford Mustang is a serious upgrade for people seeking a better handling and performance from their Fox Body Mustang. The kit includes a lightweight tubular K-member, Control Arms, boxed Trailing Arms, Sway Bars, and Front and Rear double adjust coilovers. Tubular Front K-member These are designed to save weight and free up room in your engine bay. Weighing only 25lbs., it's 50% lighter than stock K-members and boasts improved geometry and durability. Interchangeable engine mounts, sold separately, offer flexibility for running factory or late model engines including Coyotes. Inverted Front Struts and Rear Coil-Overs Front struts feature an inverted cartridge design, large diameter shaft, and lightweight aluminum body for improved suspension performance. The lightweight, high-travel springs with proven spring rates are optimized for improved handling and street performance. These kits offer up to 2" lower than stock ride height adjustment to dial in the perfect stance. Double-adjust rear coilovers are great for both street and trackday cars looking to further tune their Rear Suspension. Lightweight Caster Camber Plates Aluminum caster camber plates improve Mustang handling and performance. Lighter and sleeker than steel, they offer precision adjustment to fine-tune suspension geometry for optimal performance. Tubular Control Arms, Trailing Arms and Rear Sway Bar Tubular Control Arms, Trailing Arms, and Sway Bars solve flexing and bushing bind. Easy, Bolt-In Install Made in the USA
Standard Features
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Specifications
| Part Number | HK42-FMM1 |
| Part Name | Handling Suspension Kit |
| UPC | 806990064325 |
| Vehicle | 1979-1986 Ford Mustang |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | Yes |
| Front Shock Type | Double Adjustable Coilover |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Double Adjustable Coilover |
| Front Sway Bar Included | Yes |
| Front Sway Bar Color | Black |
| Front Sway Bar Type | Hollow |
| Front Sway Bar Diameter | 1.250 in. |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Type | Solid |
| Rear Sway Bar Diameter | 1.000 in. |
| Tie Rod Sleeves Included | No |
| End Link Bushings Included | Yes |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | Yes |
| Lower Trailing Arms Included | Yes |
| Trailing Arm Mount Braces Included | No |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | No |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Steel |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | Yes |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | No |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Mounting Hardware Included | Yes |
Vehicle Fitment
- 1979 Ford Mustang
- 1980 Ford Mustang
- 1981 Ford Mustang
- 1982 Ford Mustang
- 1983 Ford Mustang
- 1984 Ford Mustang
- 1985 Ford Mustang
- 1986 Ford Mustang
