Product Details

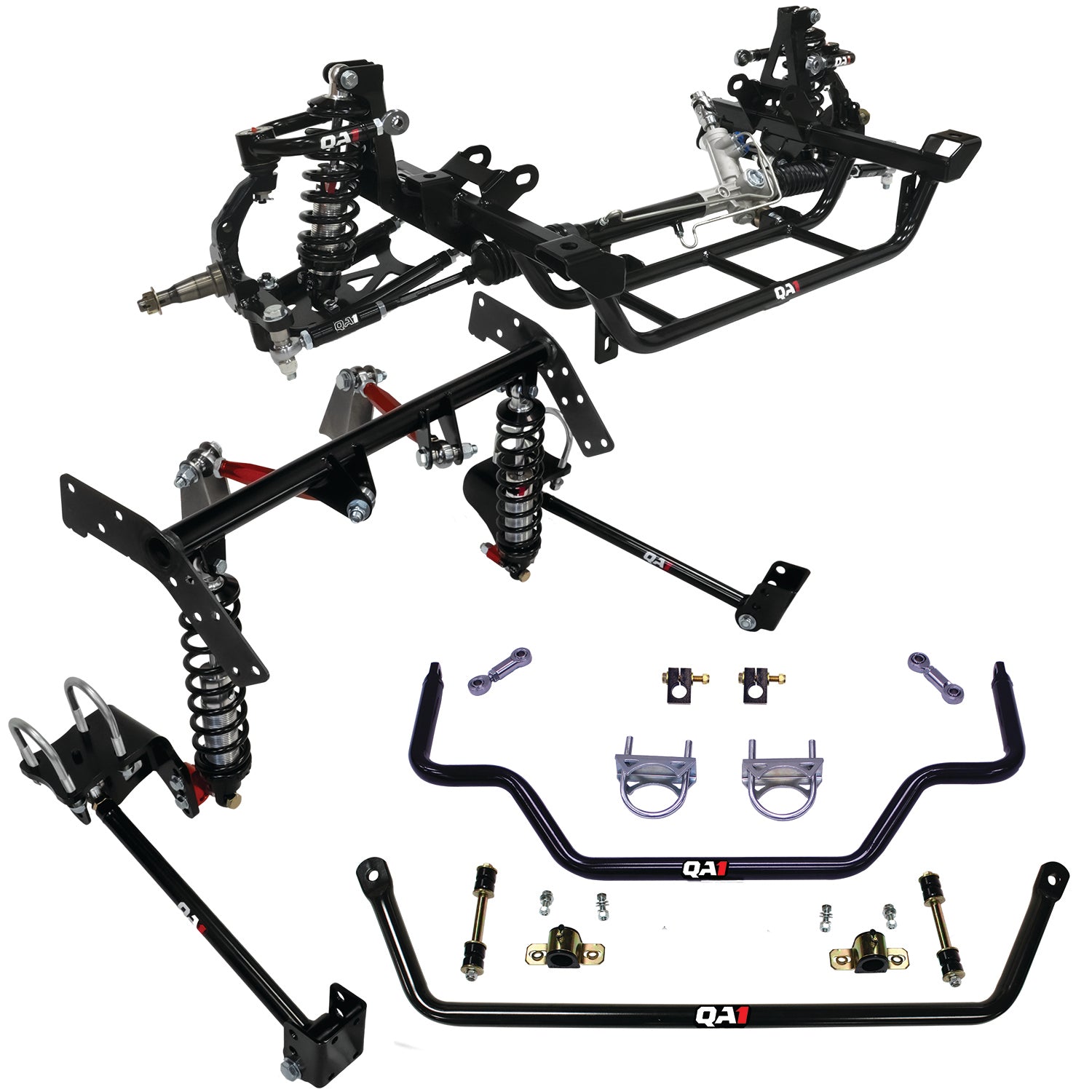

QA1 Level 2 Handling Suspension Kit for the 1967-1972 Dodge Dart , Upgrade your classic Mopar with Front and Rear Coil-Over Suspension. Kits include a tubular K member for reduced weight and room for long tube headers. Modular motor mounts make engine swaps easy-including Gen 3 Hemis. The included tubular Control Arms and rack-and-pinion steering greatly improve drivability and performance while providing a modern feel. Front suspension easily bolts in without any cutting or welding. The triangulated 4 link Rear Suspension offers a more planted feel on the street and track. Make room for larger wheels and tires by correcting the wheelbase of your classic Mopar. The modern design instantly delivers a more modern driving experience on the street while giving you the adjustability to maximize performance at the autocross or road course. The included QA1 Proma Star double adjustable coil-over shocks help you dial in the perfect stance and ride quality. They also provide the adjustability to tune for high-performance driving in an autocross or road racing setting. QA1 kits come complete with powder-coated tubular components and all installation hardware. Kits work with 8 3/4", Ford 9" and Dana 60 rear axles.
Choose the appropriate part number when selecting your kit. Kits come with Front and Rear Sway Bars to reduce body roll during hard launches and cornering. Made in the USA. Shocks eligible for a Limited Lifetime Warranty. Fitment notes: 2-4" of drop. Requires wheels that are 18" or larger in diameter. Gen 3 Hemi power steering pumps require a pressure reducer and power steering cooler. Kits use Mustang II-style spindles for plenty of brake options. Rear Suspension installation requires a small amount of cutting and welding on the frame and axle housing. This kit works with factory-located leaf spring mounts or modified inboard-located leaf spring mounts. Motor mounts sold separately.
Standard Features
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Specifications
| Part Number | HK32-CRA2 |
| Part Name | Handling Suspension Kit |
| UPC | 806990163202 |
| Vehicle | 1967-1972 Dodge Dart |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | Yes |
| Front Shock Type | Double Adjustable Coilover |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Double Adjustable Coilover |
| Front Sway Bar Included | Yes |
| Front Sway Bar Color | Black |
| Front Sway Bar Type | Hollow |
| Front Sway Bar Diameter | 1.125 in. |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Type | Solid |
| Rear Sway Bar Diameter | 0.875 in. |
| Tie Rod Sleeves Included | Yes |
| End Link Bushings Included | Yes |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | Yes |
| Lower Trailing Arms Included | Yes |
| Trailing Arm Mount Braces Included | No |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | Yes |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Chromoly |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | Yes |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | No |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | Yes |
| Spindles Included | Yes |
| Inner Tie Rod Ends Included | Yes |
| Outer Tie Rod Ends Included | Yes |
| Bushing Material | Polyurethane/Steel rod end |
| Bushing Color | Black |
| Mounting Hardware Included | Yes |
Vehicle Fitment
- 1967 Dodge Dart
- 1968 Dodge Dart
- 1969 Dodge Dart
- 1970 Dodge Dart
- 1971 Dodge Dart
- 1972 Dodge Dart
