Product Details

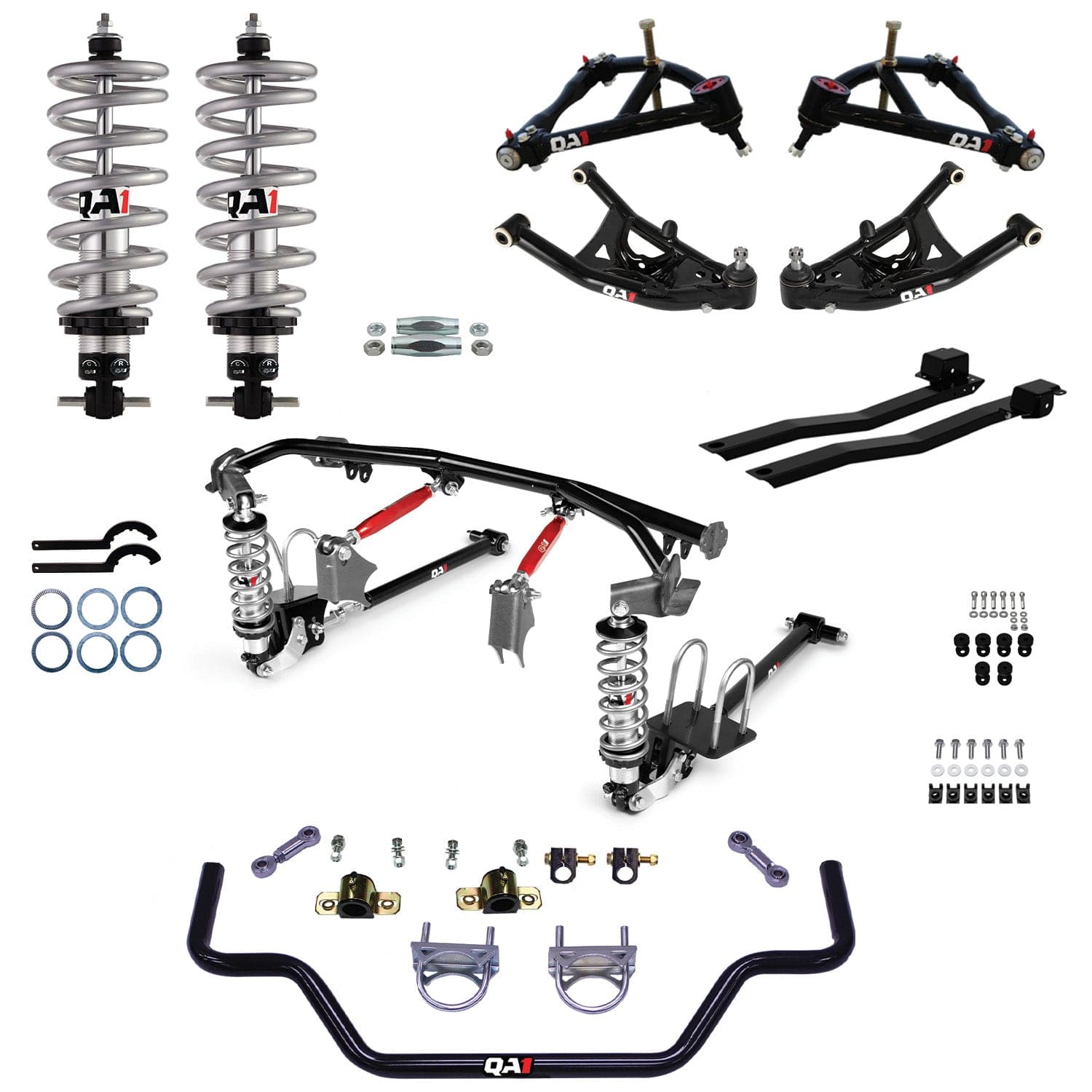

QA1's Level 2 Drag Kit is a complete solution for the 1967-1969 Chevrolet Camaro owners who drag race their car. This complete solution replaces your entire Front and Rear Suspension, optimizing your car's weight transfer and straightline performance. The coilovers offer adjustable ride height, while the Rear Suspension was optimized for wider wheels and tires. Bind Free, Light-weight Front Suspension QA1's tubular front Control Arms are some of the lightest on the market and racers can tune launch characteristics using an adjustable droop stop. Low-friction ball joints and composite bushings enhance weight transfer, ensuring smooth and bind-free movement. Paired with QA1's double adjustable Pro-Coil coilovers, this kit offers plenty of front end control. Achieve the Perfect Stance Factory coil springs and leaf springs limit your ability to achieve the perfect stance. QA1's coilovers and tubular 4-link provides 0 to -2 inches of adjustability in the front and +2 to -3 inches of height adjustability in the rear. Fit Wider Wheels & Tires Designed to work with standard or mini-tubs, this system offers clearance for wider wheels and tires. This enables you to choose the appropriate tire for the class you race, or street/strip combination. Note: Achieving maximum tire width requires mini tubs. Improved Performance and Stability Perfect for both street and track use, double Adjustable Shocks are famous for their independent rebound and compression tunability, for exceptional launch control and improved 60-foot times. Easy Installation & Adjustment Thoughtful design meets effortless installation with a completely bolt-in front suspension and a 4-link requiring minimal welding. No floor pan modifications required. Note: Welding required Best In-Class Lifetime Shock Warranty Made in the USA
Standard Features
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Specifications
| Part Number | DK42-GMF1 |
| Part Name | Suspension Drag Kit |
| UPC | 806990062413 |
| Vehicle | 1967-1969 Chevrolet Camaro |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | Yes |
| Front Shock Type | Double Adjustable Coilover |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Double Adjustable Coilover |
| Front Sway Bar Included | No |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Type | Solid |
| Rear Sway Bar Diameter | 0.875 in. |
| Tie Rod Sleeves Included | Yes |
| End Link Bushings Included | No |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | Yes |
| Lower Trailing Arms Included | Yes |
| Trailing Arm Mount Braces Included | No |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | Yes |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Chromoly |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | No |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | Yes |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Bushing Material | Polyurethane/Steel |
| Bushing Color | Black |
| Mounting Hardware Included | No |
Vehicle Fitment
- 1967 Chevrolet Camaro
- 1968 Chevrolet Camaro
- 1969 Chevrolet Camaro
