Product Details

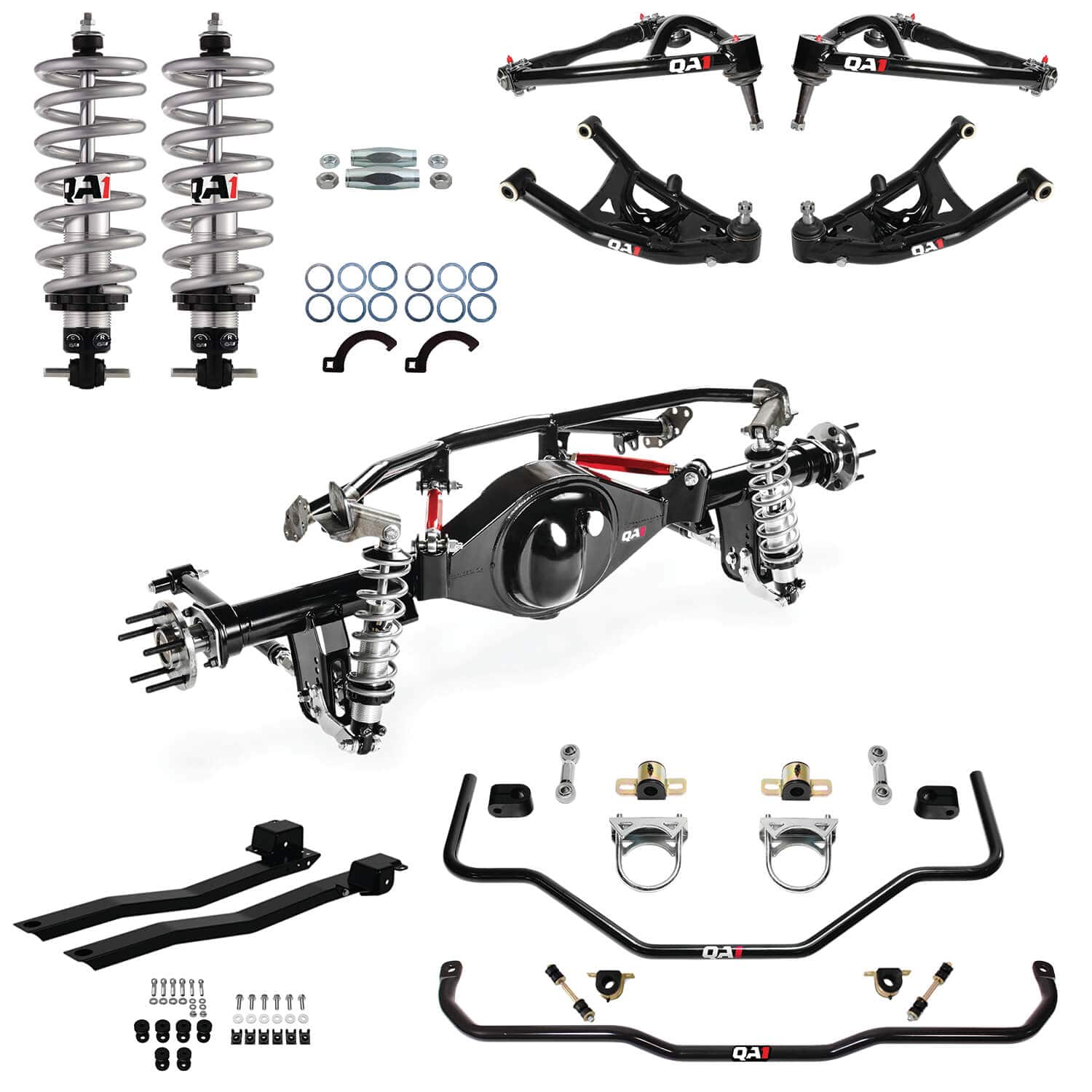

QA1's Handling Kit is the ideal suspension upgrade for the 1968 Chevrolet Chevy II owners wanting improved street and track performance. This complete solution replaces the Front and Rear Suspension with adjustable coilovers and a 4-link setup, optimized for wider wheels and tires, plus a custom QA1 9" rear housing. SIGNIFICANT HANDLING IMPROVEMENTS Experience superior handling with lightweight tubular Control Arms, low-friction ball joints, and polyurethane bushings that improve geometry and reduce flex. The adjustable four-link design eliminates wheel hop, increases traction, and provides tunable handling. Front and Rear Sway Bars and subframe connectors reduce roll in tight corners. OPTIMAL STANCE QA1's coilovers and tubular 4-link offer up to 2 inches of front adjustability and -3 to +2 inches in the rear for the perfect stance, shifting components inward for extra clearance with wider wheels. PERFORMANCE 9" REAR HOUSING Strength: Fabricated center section with 3" OD, " wall axle tubes support 800HP and 31 spline axles are rated to 650HP. Features: Standard options include powder coat, drain and fill plugs, jack pad, and all necessary hardware. Specs: Factory wheel mounting width of 60" Big Ford "New Style Torino Axle Flanges" with 2.5" axle offset Bolt pattern: 5x4-3/4" for easy wheel compatibility Wheel studs: " x 3" for alloy wheels Requires third member for Ford 9" housings with 31 spline axles EASY INSTALL The QA1 Handling Kit features a straightforward installation. The rear crossmember needs minimal MIG welding, and both the rear housing and front suspension are direct bolt-ins. MADE IN THE USA Components manufactured in the USA LIFETIME WARRANTY Register at QA1.net/warranty for lifetime coverage on your QA1'shocks
Standard Features
- Complete Suspension Kit: Upgraded performance for street and track
- Adjustable Coilovers & 4-Link: Up to 2" front and -3 to +2" rear adjustability
- Custom 9" Rear Housing: Supports up to 800HP
- Lightweight Front Suspension: Enhances control and reduces flex
- Easy Installation: Bolt-on with minimal welding required
Specifications
| Part Number | HK42-GMX2RS |
| Part Name | Handling Suspension Kit |
| UPC | 806990175977 |
| Vehicle | 1968 Chevrolet Chevy II |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | Yes |
| Front Shock Type | Double Adjustable Coilover |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Double Adjustable Coilover |
| Front Sway Bar Included | Yes |
| Front Sway Bar Color | Black |
| Front Sway Bar Type | Hollow |
| Front Sway Bar Diameter | 1.250 in. |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Diameter | 0.875 in. |
| Tie Rod Sleeves Included | Yes |
| End Link Bushings Included | Yes |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | No |
| Lower Trailing Arms Included | No |
| Trailing Arm Mount Braces Included | No |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | Yes |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Steel |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | No |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | Yes |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Mounting Hardware Included | Yes |
| Spring Rate - Front | 450 lbs/in |
| Spring Rate - Rear | 170 lbs/in |
Vehicle Fitment
- 1968 Chevrolet Chevy II
