Product Details

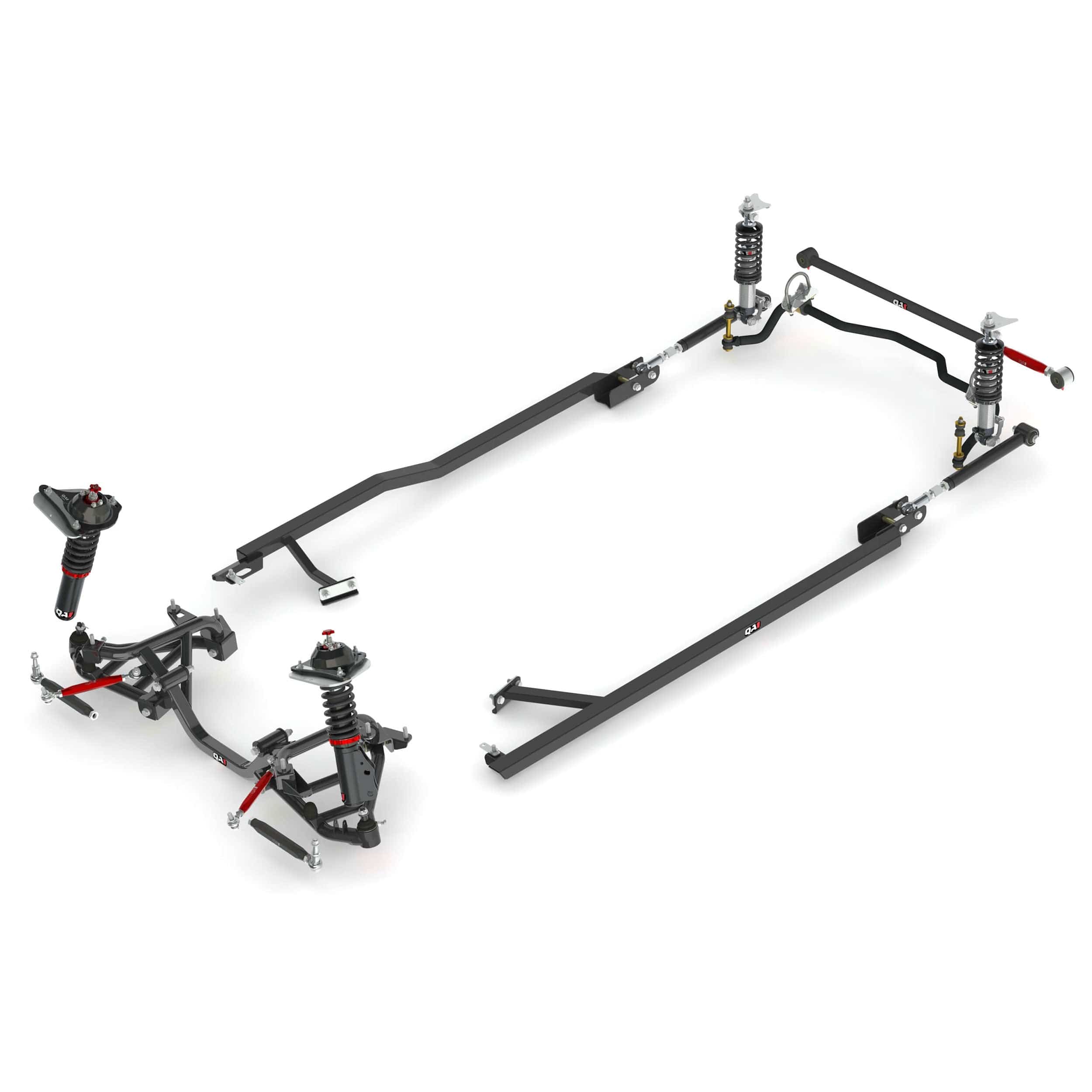

The Level 2 Drag Racing Kit is perfect for the 1982-1992 Chevrolet Camaro owners aiming for top dragstrip performance without back-halving their car. This kit strengthens the chassis, reduces weight with lightweight Control Arms and a tubular K-member, and gives you full control over traction and suspension with adjustable coil-over struts and shocks. ELIMINATE WEIGHT QA1's tubular K-member significantly improves engine bay access while shedding 30 pounds compared to the stock crossmember. Engine swaps are a breeze, with mounts available for big block, small block, LS, and LT engines. The tubular front lower control arm, designed specifically for drag racing, eliminates the spring bucket, reducing weight and enhancing your car's launch performance. PERFORMANCE SHOCK VALVING QA1 front struts and rear shocks offer complete control over compression and rebound settings, allowing you to fine-tune how your car hits the tire and transfers weight for better traction and quicker ETs. ADJUST WHEELBASE & PINION ANGLE For improved traction, larger wheels and tires are often used in drag racing. QA1's adjustable Trailing Arms allow precise axle positioning for proper clearance and appearance. These Trailing Arms are much stiffer than factory parts, reducing deflection and energy loss in your suspension. ELIMINATE CHASSIS TWIST The QA1 tubular Rear Sway Bar keeps the rear of the car square to the axle, improving launch characteristics. QA1'subframe connectors greatly enhance the stiffness of the 3rd Gen F-body's unibody frame, preventing flexing and twisting during acceleration. EASY BOLT-IN INSTALLATION QA1's bolt-in design ensures a hassle-free installation process. Pair this kit with the QA1 tunnel-mounted torque arm and transmission crossmember for a significant performance boost, increased longevity, and easier transmission and rear axle upgrades. Fitment Notes: Engine mounts not included. QA1 torque arm recommended.
Standard Features
- Tune for improved straight-line performance, resulting in better 60-foot times and ETs
- Significant weight reduction
- Adjustable wheelbase and pinion angle adjustment
- Reduced chassis flex and improved launch
- Easy bolt-in design ensures a straightforward and stress-free installation process
- Made in the USA
- Shocks & struts eligible for a limited lifetime warranty.
Specifications
| Part Number | DK42-GMF3 |
| Part Name | Drag Suspension Kit |
| UPC | 806990176349 |
| Vehicle | 1982-1992 Chevrolet Camaro |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | Yes |
| Front Shock Type | Double Adjustable Coilover |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Double Adjustable Coilover |
| Front Sway Bar Included | No |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Diameter | 0.875 in. |
| Tie Rod Sleeves Included | No |
| End Link Bushings Included | Yes |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | No |
| Lower Trailing Arms Included | Yes |
| Trailing Arm Mount Braces Included | No |
| Panhard Bar Included | Yes |
| Torque Arm Included | No |
| Upper Control Arms Included | No |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Steel |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | Yes |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | Yes |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Mounting Hardware Included | Yes |
Vehicle Fitment
- 1982 Chevrolet Camaro
- 1983 Chevrolet Camaro
- 1984 Chevrolet Camaro
- 1985 Chevrolet Camaro
- 1986 Chevrolet Camaro
- 1987 Chevrolet Camaro
- 1988 Chevrolet Camaro
- 1989 Chevrolet Camaro
- 1990 Chevrolet Camaro
- 1991 Chevrolet Camaro
- 1992 Chevrolet Camaro
