Product Details

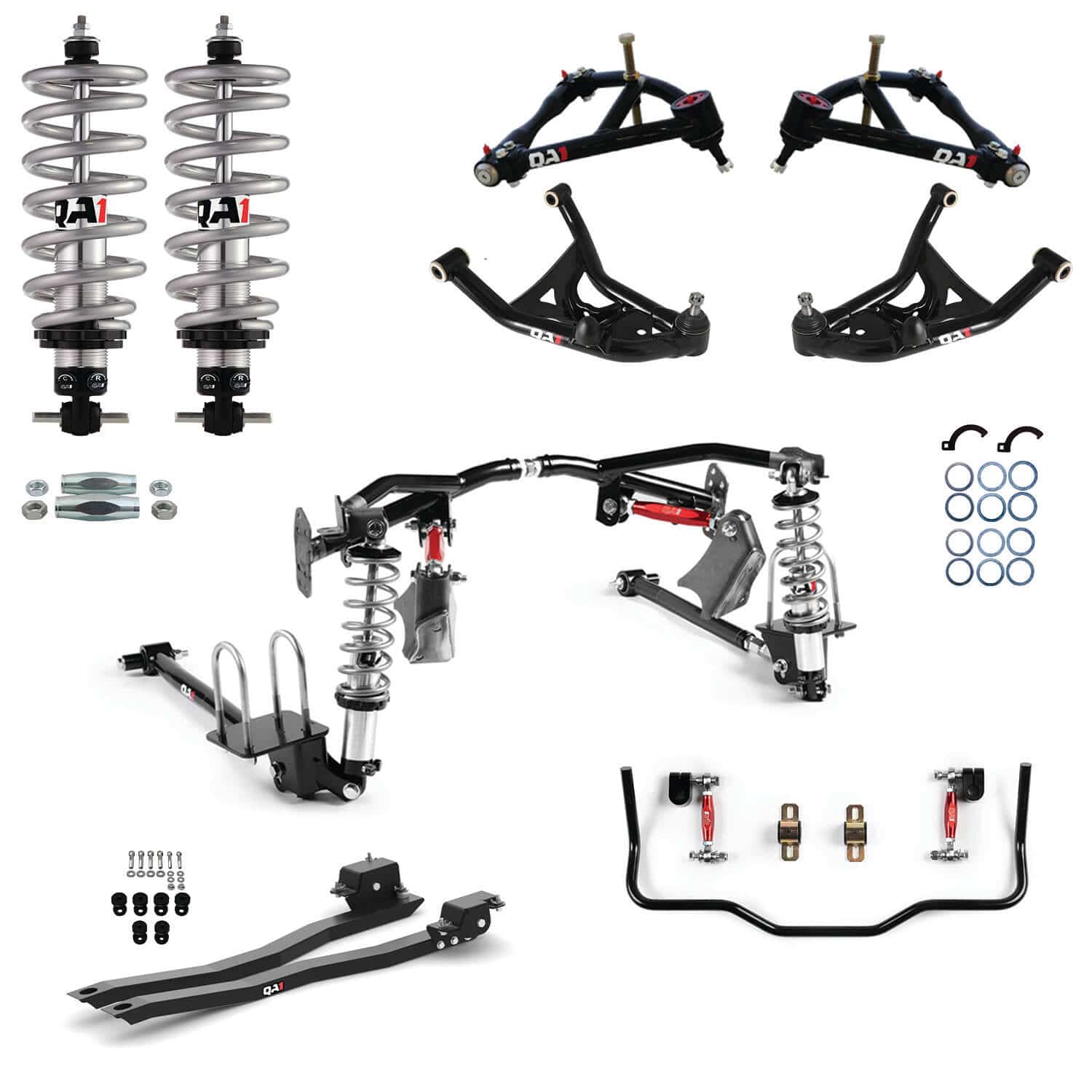

QA1's Level 2 Drag Kit is a complete solution for the 1970-1974 Pontiac Firebird owners who drag race their car. This complete solution replaces your entire Front and Rear Suspension, optimizing your car for weight transfer and straight-line performance. The coilovers offer adjustable ride height, while the Rear Suspension was optimized for wider wheels and tires. Bind Free, Light-weight Front Suspension QA1's tubular front Control Arms stand out as some of the lightest on the market and racers have the flexibility to fine-tune launch characteristics using an adjustable droop stop. The inclusion of QA1's low-friction ball joints and composite ensure smooth and bind-free movement. When paired with QA1's double adjustable Pro-Coil coilovers, this kit offers plenty of control. Customize Your Stance Factory coil spring and leaf springs limit your ability to achieve the perfect stance on your Camaro or Firebird. Upgrading to QA1's coilovers and a tubular 4-link provides 0 to -2 inches of adjustability in the front and 1.25 inches of ride height adjustability in the rear. Fit Wider Wheels & Tires Designed to work with both standard and mini-tubs, this system offers generous clearance for up to 12-inch-wide wheels. Note: Achieving maximum wheel and tire width will require mini tubs. Improved Performance and Stability Perfect for street and track use, double Adjustable Shocks are famous for their independent rebound and compression tunability. Easy, Installation & Adjustment Thoughtful design meets effortless installation with a completely bolt-in front suspension and a 4-link requiring minimal welding.
Standard Features
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Specifications
| Part Number | DK42-GMF2 |
| Part Name | Drag Suspension Kit |
| UPC | 806990017376 |
| Vehicle | 1970-1974 Pontiac Firebird |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | No |
| Front Shock Type | Double Adjustable twin-tube |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Double Adjustable twin-tube |
| Front Sway Bar Included | No |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Type | Solid |
| Rear Sway Bar Diameter | 0.875 in. |
| Tie Rod Sleeves Included | Yes |
| End Link Bushings Included | Yes |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | Yes |
| Lower Trailing Arms Included | Yes |
| Trailing Arm Mount Braces Included | Yes |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | Yes |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Chromoly |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | No |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | Yes |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Mounting Hardware Included | Yes |
Vehicle Fitment
- 1970 Pontiac Firebird
- 1971 Pontiac Firebird
- 1972 Pontiac Firebird
- 1973 Pontiac Firebird
- 1974 Pontiac Firebird
