Product Details

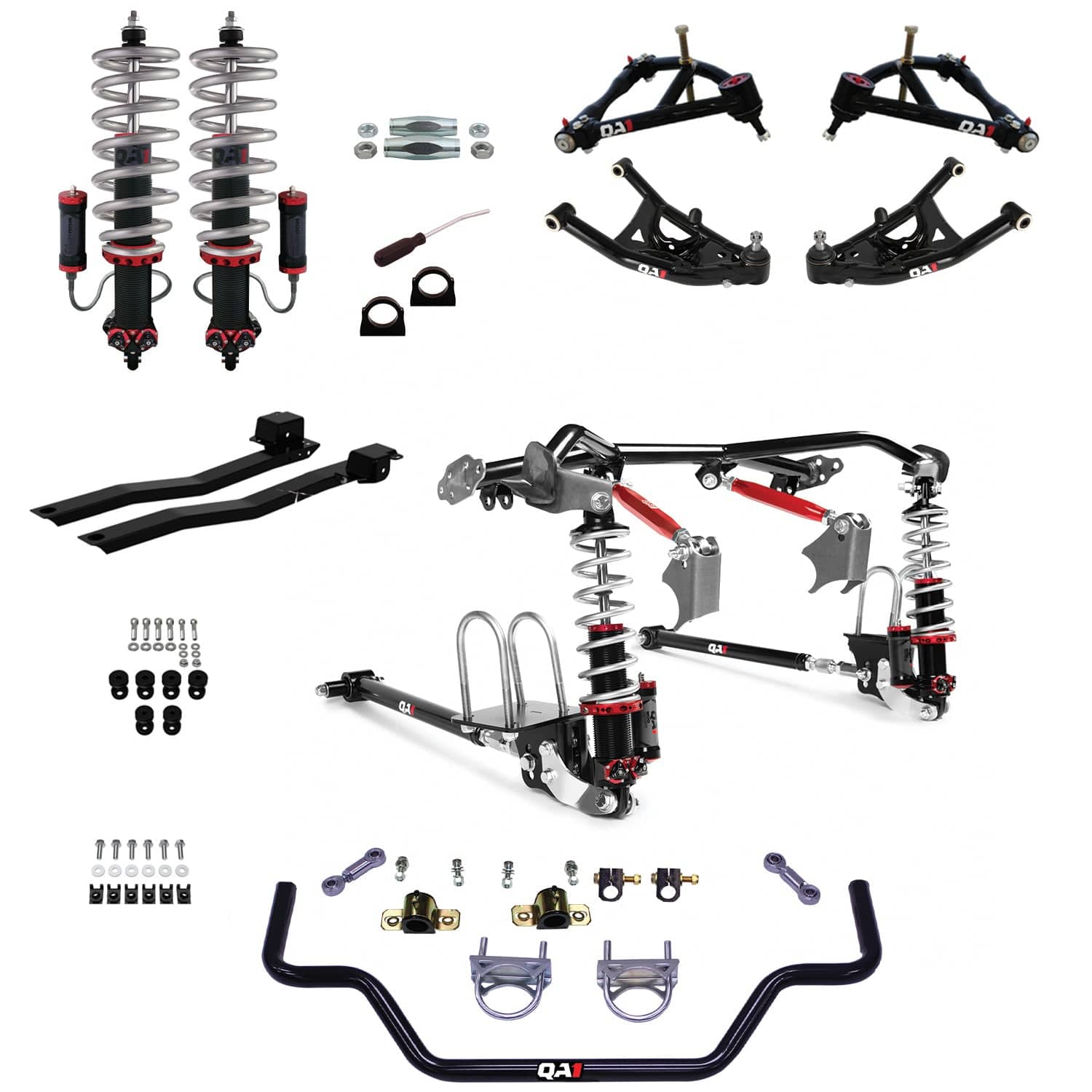

QA1's Level 3 Drag Kit is a complete solution for the 1967-1969 Chevrolet Camaro owners who drag race their car. This complete solution replaces your entire Front and Rear Suspension, optimizing your car's weight transfer and straight-line performance. The 4-way adjustable MOD Series offer plenty of control and ride height adjustability. With the Rear Suspension allowing additional space for drag radials or slicks. Bind Free, Light-weight Front Suspension QA1's tubular front Control Arms are some of the lightest on the market and include an adjustable droop stop. Low-friction ball joints and composite bushings enhance weight transfer, ensuring smooth and bind-free movement. With QA1's MOD coilovers, this kit offers plenty of tunability. Achieve the Perfect Stance Factory coil spring and leaf springs limit your ability to achieve the perfect stance. QA1's coilovers and a tubular 4-link provide 0 to -2 inches of adjustment in the front and +2 to -3 inches of height adjustment in the rear. Fit Wider Wheels & Tires Designed to work with both standard and mini-tubs, this system offers generous clearance wider wheels and tires, enabling you to choose the appropriate tire for the class you race. Note: Achieving maximum wheel and tire width will require mini tubs. Shock Tunability 4-way adjustable MOD shocks help drivers easily adapt to any surface and conditions, from bracket to no-prep racing. High force capabilities ensure important factors like weight transfer and wheel spin can be dialed in to get your Camaro down the track faster than ever. Easy, Installation & Adjustment Thoughtful design meets effortless installation with a completely bolt-in front suspension and a 4-link requiring minimal welding. No modifications to floor pan required. Note: Welding required Made in the USA
Standard Features
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Specifications
| Part Number | DK43-GMF1 |
| Part Name | Suspension Drag Kit |
| UPC | 806990154590 |
| Vehicle | 1967-1969 Chevrolet Camaro |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | Yes |
| Front Shock Type | Double Adjustable Coilover |
| Rear Shocks/Struts Included | No |
| Rear Shock Type | Double Adjustable Coilover |
| Front Sway Bar Included | No |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Type | Solid |
| Rear Sway Bar Diameter | 0.875 in. |
| Tie Rod Sleeves Included | Yes |
| End Link Bushings Included | No |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | Yes |
| Upper Trailing Arms Included | Yes |
| Lower Trailing Arms Included | No |
| Trailing Arm Mount Braces Included | Yes |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | Yes |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Control Arm Material | Steel |
| Control Arm Color | Black |
| Front Strut Tower Bar Included | No |
| K-Member Included | No |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | Yes |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Bushing Material | Polyurethane/Steel |
| Bushing Color | Black |
| Mounting Hardware Included | No |
Vehicle Fitment
- 1967 Chevrolet Camaro
- 1968 Chevrolet Camaro
- 1969 Chevrolet Camaro
