Product Details

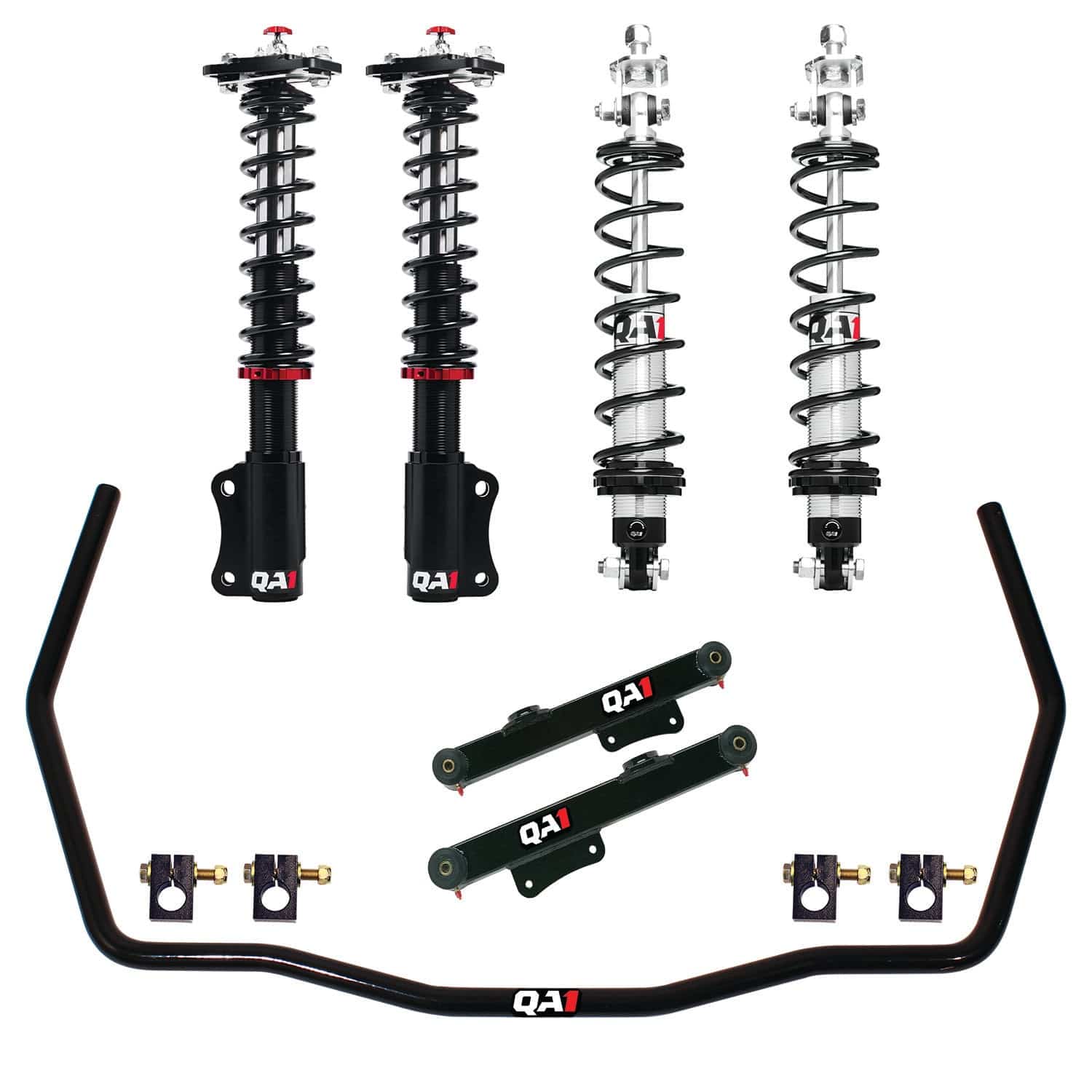

The QA1 Level 1 Drag Race Kit for the 1990-1993 Ford Mustang is an ideal choice for street/strip Fox Body Mustangs. The kit includes lightweight double adjustable front struts, single adjustable rear coil-overs, boxed Trailing Arms, and Rear Sway Bars. Inverted Front Struts and Rear Coil-Overs Front struts feature an inverted cartridge design, large diameter shaft, and lightweight aluminum body for improved suspension performance. The lightweight, high-travel springs with proven spring rates optimize weight transfer, reducing 60-foot times and ET's These kits offer up to 2" lower than stock ride height adjustment to dial in the perfect stance for your Mustang. Single-adjustable rear coilovers are a good option for track cars that also see a fair amount of street driving, offering a comfortable ride on the street with the ability to adjust for the track. Lightweight Caster Camber Plates Aluminum caster camber plates improve Mustang handling and performance. Lighter and sleeker than steel, they offer precision adjustment to fine-tune suspension geometry for straight line stability. Boxed Trailing Arms and Rear Sway Bar Boxed Trailing Arms are an essential upgrade for Mustangs, improving traction, and launch control. They solve flexing issues and reduce bushing bind, allowing the suspension to move more smoothly and provide better control. When paired with a Rear Sway Bar, boxed Trailing Arms can help your Mustang launch straighter and have more control down track.
Easy, Bolt-In Installation Our commitment to thoughtful product design is evident in every fully bolt-in kit we produce, to deliver the highest level of performance at the track, while ensuring trouble-free compatibility. Made in the USA QA1'struts, coilover shocks, and tubular suspension is proudly made in Lakeville, Minnesota.
Standard Features
- 3 levels of kits to choose from for better launch, straight-line stability & consistent performance
- Build in stages
- Carefully curated for maximum performance
- Ultimate ride height and shock tunability
- Strong, lightweight tubular components
- Best-in-class warranty
- Made in the USA
Specifications
| Part Number | DK41-FMM3 |
| Part Name | Drag Suspension Kit |
| UPC | 806990064325 |
| Vehicle | 1990-1993 Ford Mustang |
| Front Coil Springs Included | Yes |
| Rear Coil Springs Included | Yes |
| Rear Leaf Springs Included | No |
| Front Shocks/Struts Included | Yes |
| Front Shock Type | Double Adjustable Coilover |
| Rear Shocks/Struts Included | Yes |
| Rear Shock Type | Single Adjustable Coilover |
| Front Sway Bar Included | No |
| Rear Sway Bar Included | Yes |
| Rear Sway Bar Color | Black |
| Rear Sway Bar Type | Solid |
| Rear Sway Bar Diameter | 1.000 in. |
| Tie Rod Sleeves Included | No |
| End Link Bushings Included | No |
| Rear Leaf Spring Bushings Included | No |
| Sway Bar Bushings Included | No |
| Upper Trailing Arms Included | No |
| Lower Trailing Arms Included | Yes |
| Trailing Arm Mount Braces Included | No |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | No |
| Lower Control Arms Included | No |
| Front Strut Tower Bar Included | No |
| K-Member Included | No |
| K-Member Support Brace Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | No |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| Center Link Included | No |
| Spindles Included | No |
| Inner Tie Rod Ends Included | No |
| Outer Tie Rod Ends Included | No |
| Mounting Hardware Included | Yes |
Vehicle Fitment
- 1990 Ford Mustang
- 1991 Ford Mustang
- 1992 Ford Mustang
- 1993 Ford Mustang
