Product Details

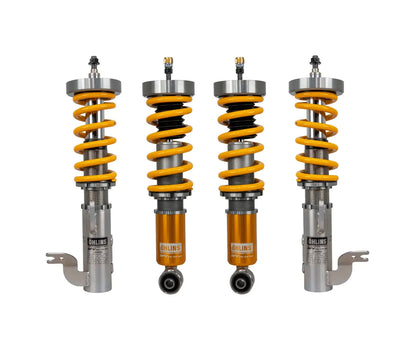

These Ohlins Road & Track Coilovers give your 2022-2026 Subaru WRX (VB) a true racing experience without losing comfort when commuting to work. Our unique Dual Flow Valve (DFV) technology allows you to quickly change the stiffness of the shock absorber. When arriving to the racetrack, just turn the golden knob clockwise on the damper to set it in race mode this action changes all four areas in the damper; low and high speed compression and rebound damping.
With Ohlins 2015+ Subaru WRX STI coilovers you will experience a car with blistering response times, improved bump absorption and a massive amount of grip to increase the safety when driving your car on the limit. The car will be easier to balance on the edge of what the tires can handle before losing grip. You will be much quicker on track. The DFV suspension prevents you from losing the racing line when hitting bumps or curbs. The DFV components within react quickly and keeps you in control of the car and in contact with the track. When driving to and from the track, just set the dampers in road mode for a more relaxed and comfortable drive, still with more grip and quicker response time than ever before.
Features
- DFV technology (Dual Flow Valve)
- 1-way 25 click compression and rebound adjuster
- Individual height adjustment
- Rebuildable dampers for custom tuning
- Corrosion salt spray tested (ISO 9227)
- 2-year warranty
Features Front
- McPherson strut, monotube upside-down technology
- Spring preload adjuster
- Separate damper length adjuster
- Approximately 15-35 mm lowering adjustment range
- Spring rate 90 N/mm
- Use with original top mounts
Features Rear
- Aluminum monotube shock absorber
- Spring preload adjuster
- Separate damper length adjuster
- Separate damper length adjuster
- Approximately 15-35 mm lowering adjustment range
- Spring rate 90 N/mm
- Use with original top mounts
What's Included
- Coilover kit with springs and mounting parts
- C-Spanner (for spring preload adjustment)
- Owners manual and mounting instruction
- Sticker set
Documentation
- Installation Instructions (Download PDF)
- Owners Manual (Download PDF)
Specifications
| Part Number | SUS MX00S1 |
| Part Name | Road & Track Coilovers |
| Vehicle | 2022-2026 Subaru WRX |
| Chassis Code | VB |
| Technology | Dual Flow Valve (DFV) |
| Ride-Height Adjustable | Yes |
| Adjustment Type | 1-Way |
| Spring Rates - Front | 90 N/mm // 514 lbs/in. // 9 Kg/mm |
| Spring Rates - Rear | 90 N/mm // 514 lbs/in. // 9 Kg/mm |
| Target Height Reduction - Front | 25mm |
| Target Height Reduction - Rear | 25mm |
| Top Mounts - Front | OEM (Not Included) |
| Top Mounts - Rear | OEM (Not Included) |
| Suspension Design - Front | True Coilover |
| Suspension Design - Rear | Divorced |
| Notes |
|
Vehicle Fitment
- 2022 Subaru WRX (VB)
- 2023 Subaru WRX (VB)
- 2024 Subaru WRX (VB)
- 2025 Subaru WRX (VB)
- 2026 Subaru WRX (VB)
Note: Currently, this kit is only suitable for models without electronic suspension.
