Ohlins Road & Track Coilovers for 2009-2012 BMW Z4 RWD (E89)

$ 2,890.00
Out of Stock

Check if this fits your vehicle

Select a Vehicle

Fits Your Vehicle

Change Vehicle

Does not fit your vehicle

Change Vehicle
Free Shipping
Orders $250+ ship for free in the USA.
Authorized Retailer
100% Authorized Direct Retailer
Low-Price Guarantee
Listed at the lowest price guaranteed.
0% APR Financing
Easy payment plans with Affirm and Shop Pay.

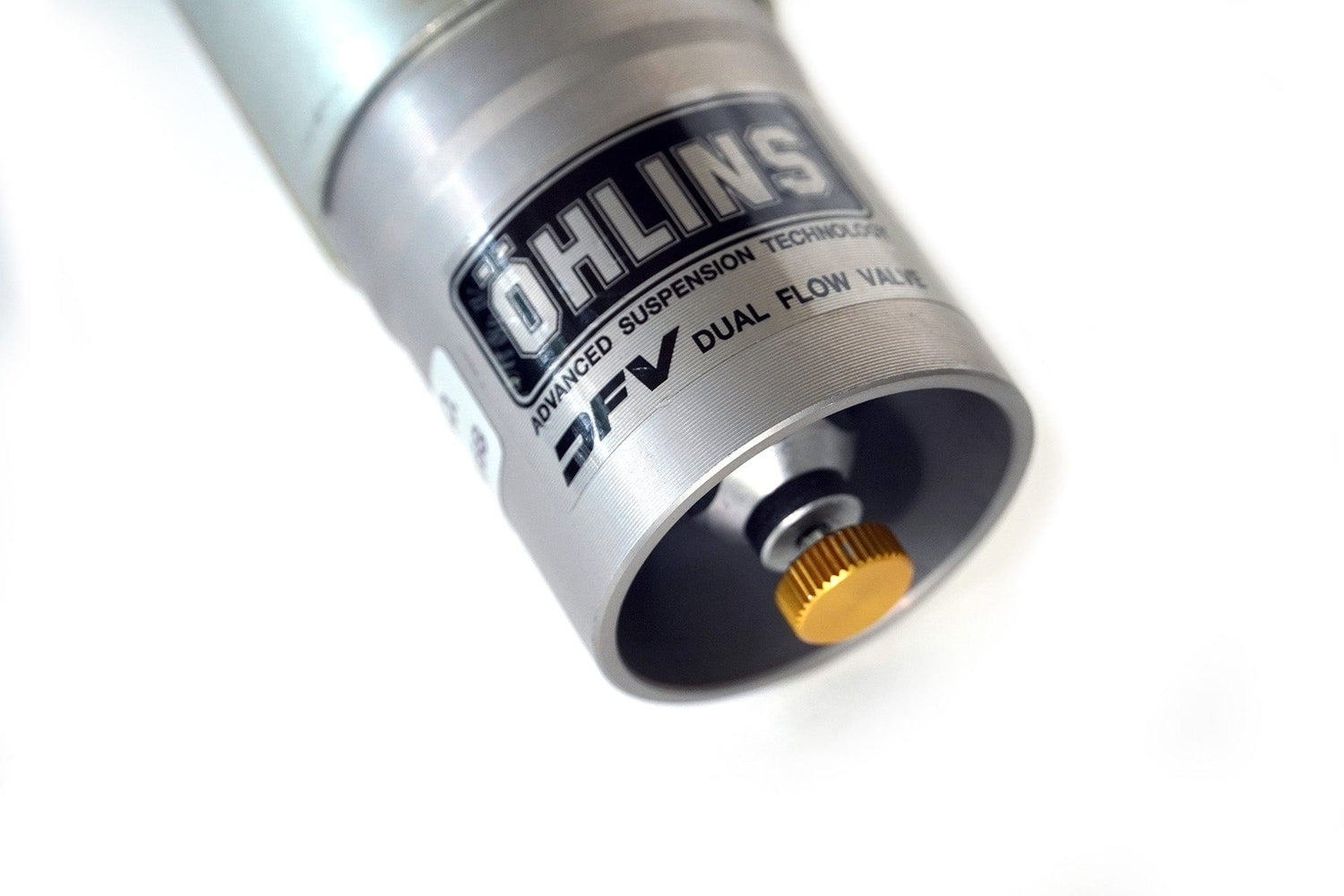

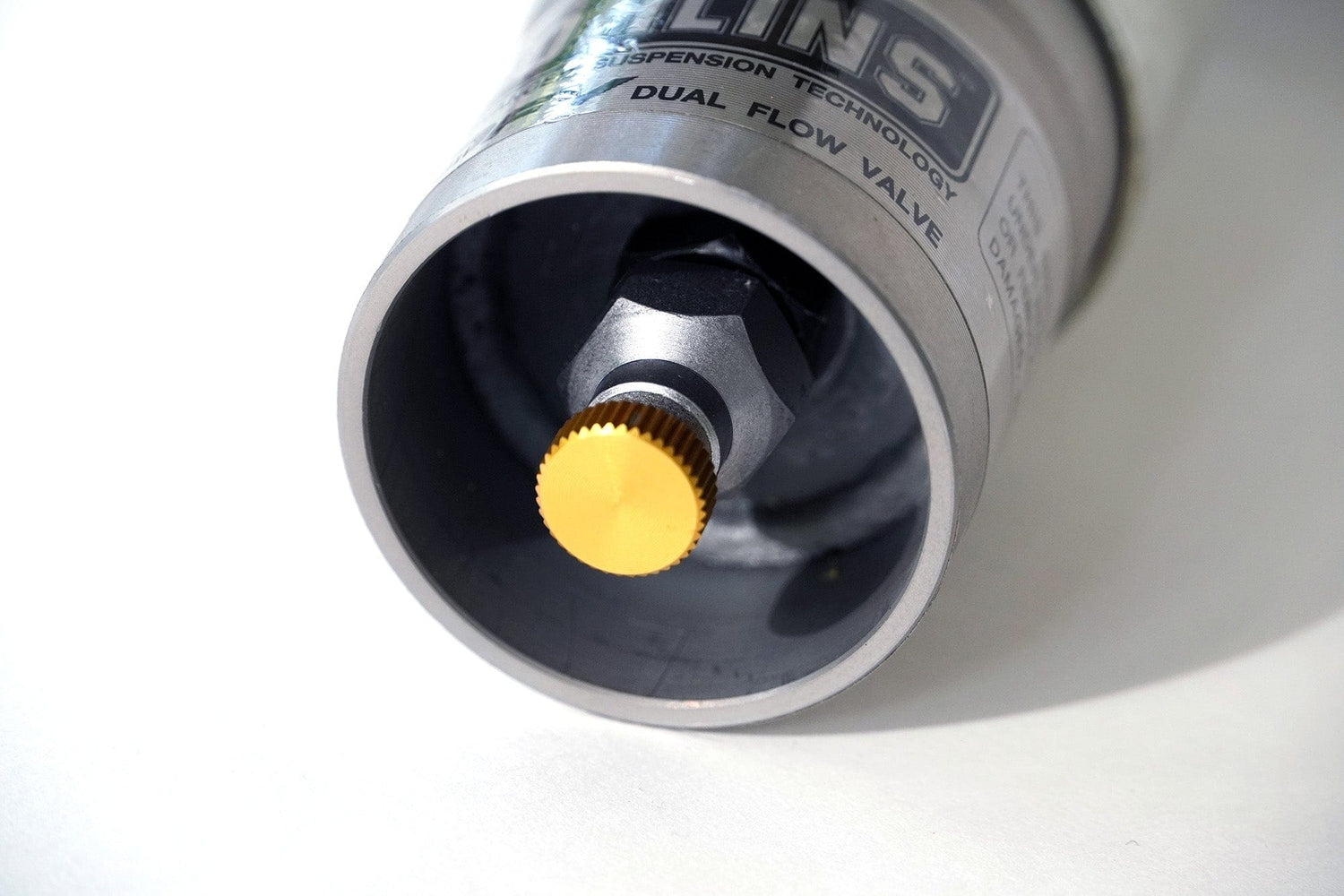

The Ohlins Road & Track Coilovers give your 2009-2012 BMW Z4 a true racing experience without losing comfort when commuting to work. Our unique Dual Flow Valve (DFV) technology allows you to quickly change the stiffness of the shock absorber. When arriving to the racetrack, just turn the golden knob clockwise on the damper to set it in race mode this action changes all four areas in the damper; low and high speed compression and rebound damping.

With Ohlins Road & Track coilovers you will experience a car with blistering response times, improved bump absorption and a massive amount of grip to increase the safety when driving your car on the limit. The car will be easier to balance on the edge of what the tires can handle before losing grip. You will be much quicker on track. The DFV suspension prevents you from losing the racing line when hitting bumps or curbs. The DFV components within react quickly and keeps you in control of the car and in contact with the track. When driving to and from the track, just set the dampers in road mode for a more relaxed and comfortable drive, still with more grip and quicker response time than ever before.


  • Ride-height adjustable
  • Matched compression and rebound hydrodynamics
  • Consistent high-tolerance reliability
  • Fully rebuildable
  • Includes all hardware and instructions for installation
  • DFV technology (Dual Flow Valve)
  • Corrosion salt spray tested (ISO 9227)
  • 2 year limited warranty
  • Set includes springs

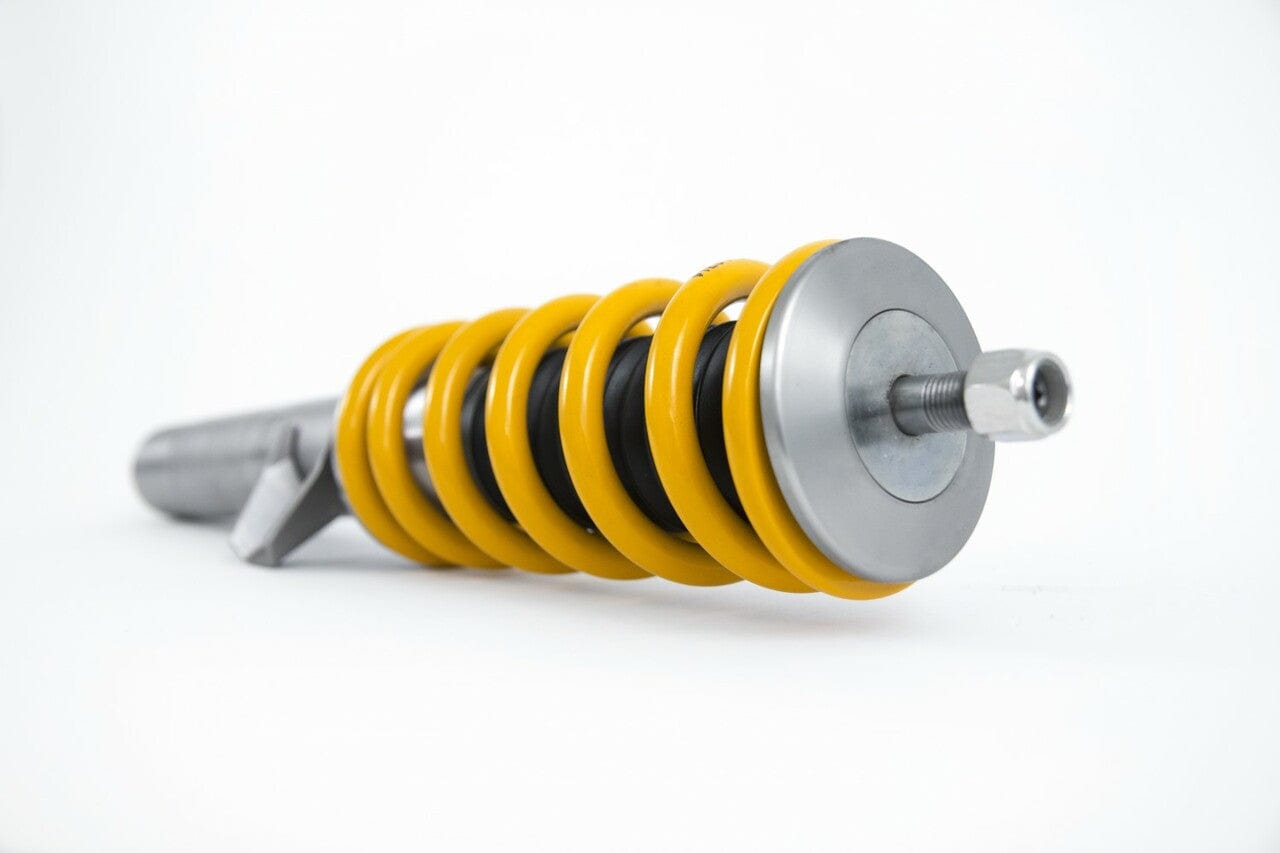

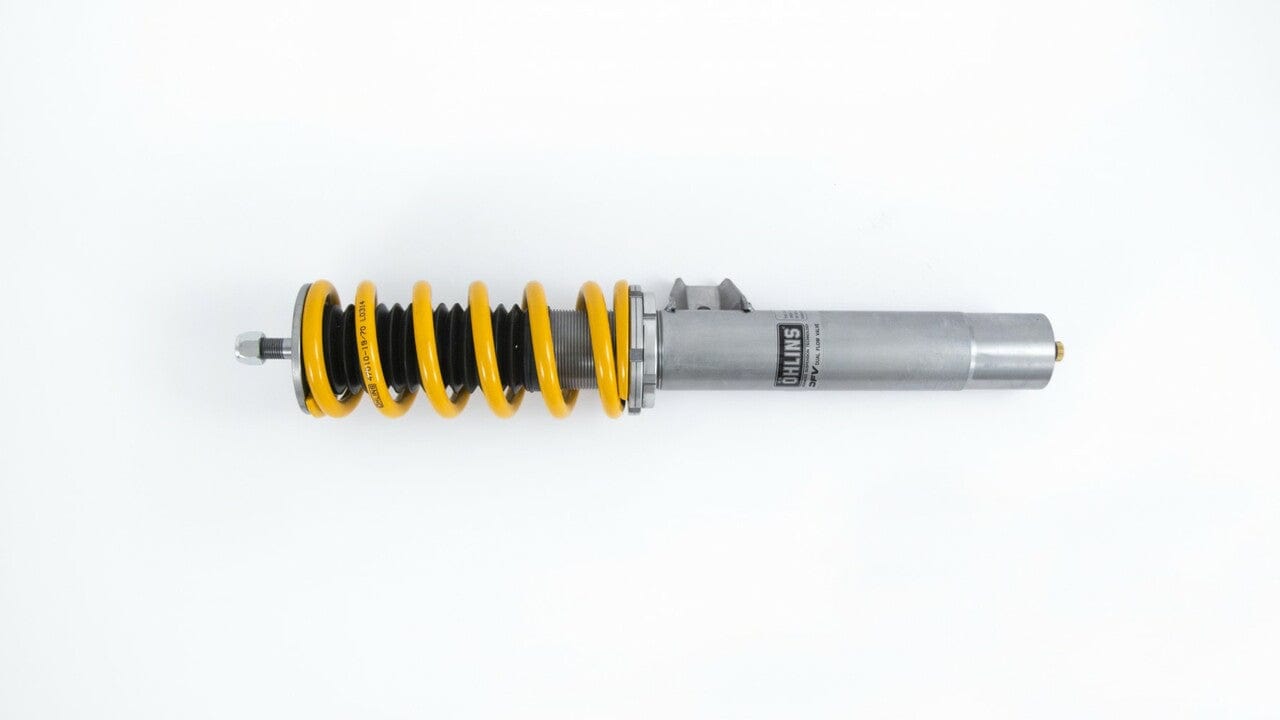

Features Front

  • McPherson strut, upside down
  • Compression and rebound damping with one adjuster
  • Spring preload adjuster
  • Approx. 5 - 15 mm lower than standard with recommended setup
  • Height adjustment range -5/+5 mm
  • Dust covers
  • Use with original top mounts

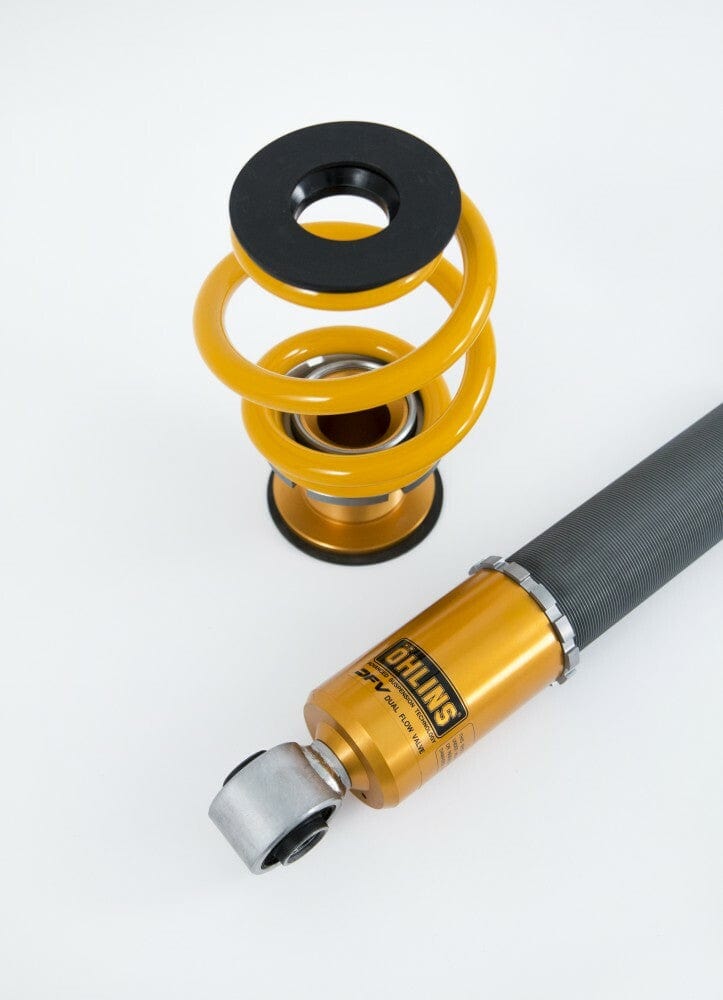

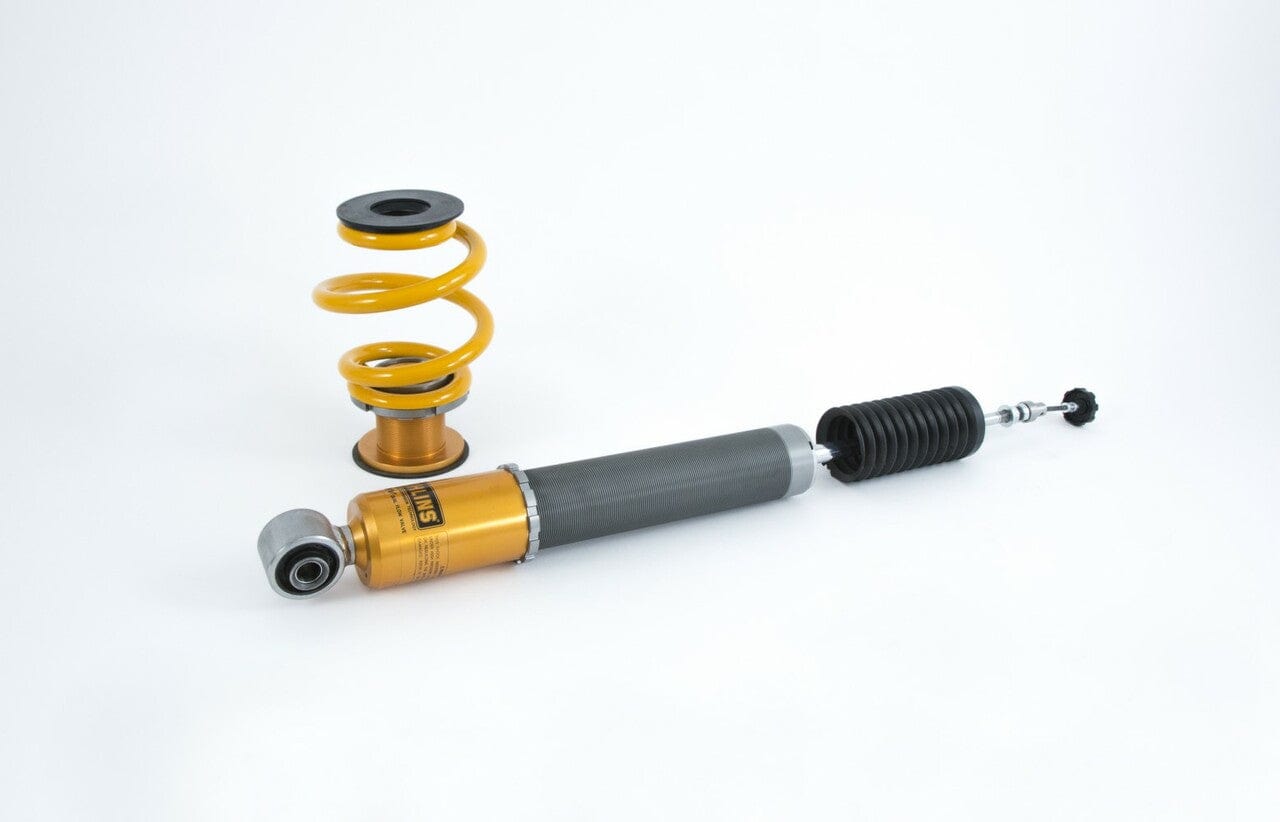

Features Rear

  • Conventional Shock Absorber
  • Compression and rebound damping with one adjuster
  • Spring preload adjuster
  • Height adjustment range 0/+5 mm
  • Spring rate 70 N/mm
  • Dust covers
  • Use with original top mounts

Kit Includes

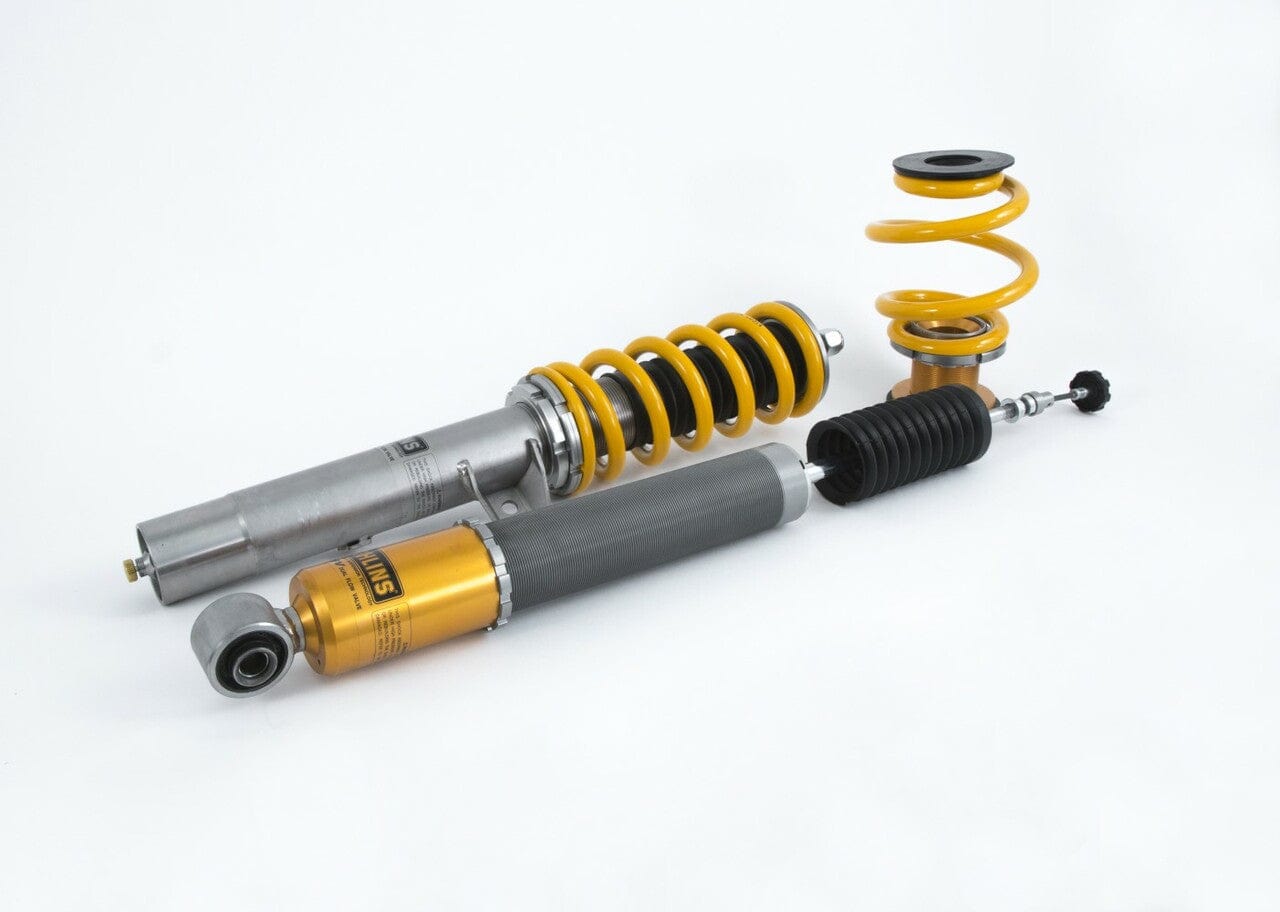

  • Coil over kit incl. springs
  • C-Spanner (for spring preload adjustment)
  • Owners manual and mounting instruction
  • Sticker set

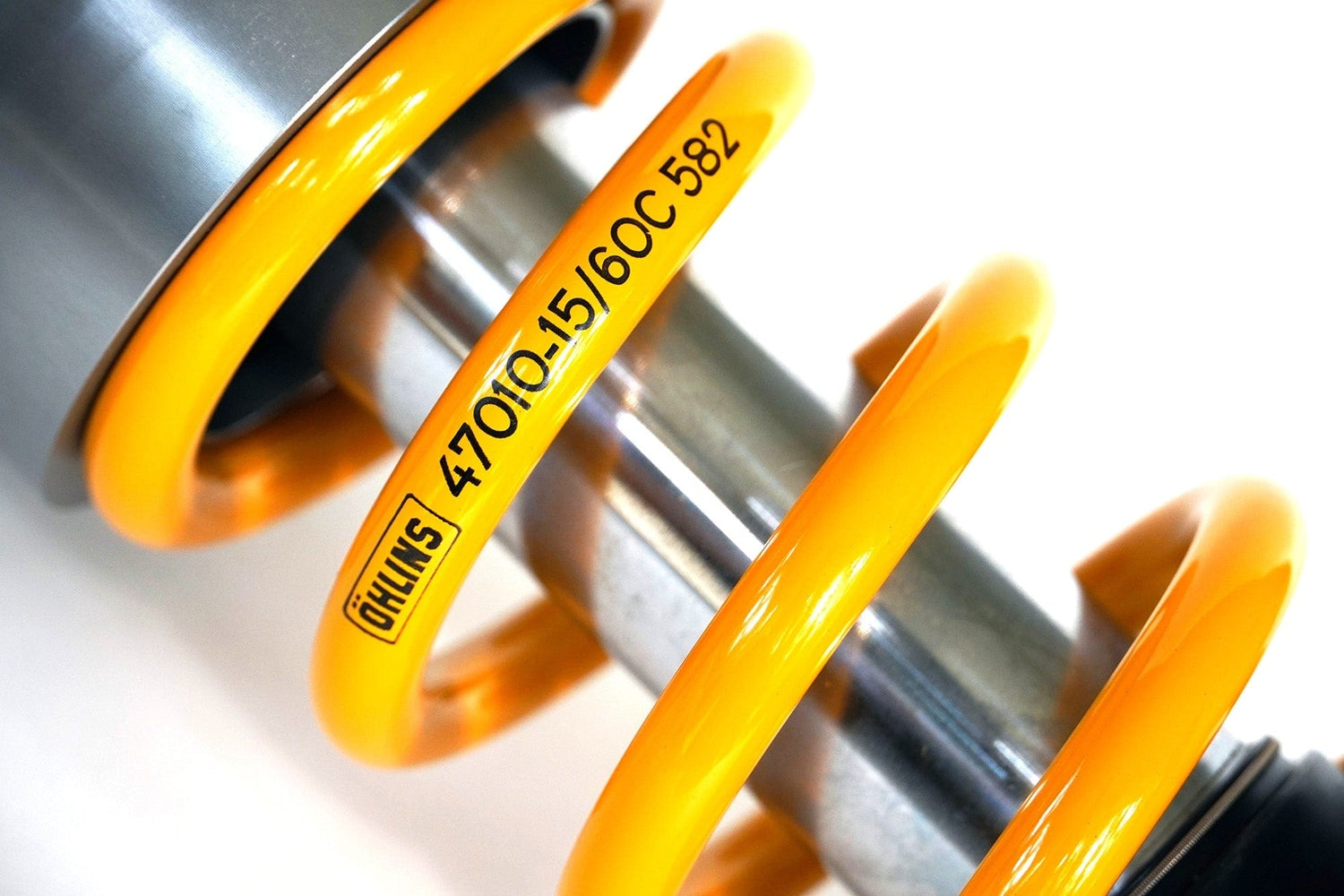

Spring Rates

  • Front: 60 N/mm // 343 lbs/in. // 6 k/mm
  • Rear: 70 N/mm // 400 lbs/in. // 7 k/mm


  • 2009 BMW Z4 (E89)
  • 2010 BMW Z4 (E89)
  • 2011 BMW Z4 (E89)
  • 2012 BMW Z4 (E89)

Additional Fitment Information

  • Part Number: BMS MP50S1
  • All products are for off road use unless specified otherwise by the manufacturer.
  • All coilovers are for vehicles with 2WD unless specified AWD.
  • Notes regarding electronic damping (EDC, DDS, etc.) pertain to vehicle fitment. Aftermarket coilovers DO NOT interface w/ OEM electronic damping control systems unless specified.
  • All fitment data on our website is provided by the manufacturer. It is the customer's responsibility to verify fitment prior to ordering and installation. Springrates it not responsible for fitment issues.
