Ohlins

SKU: BMS Mi10S1

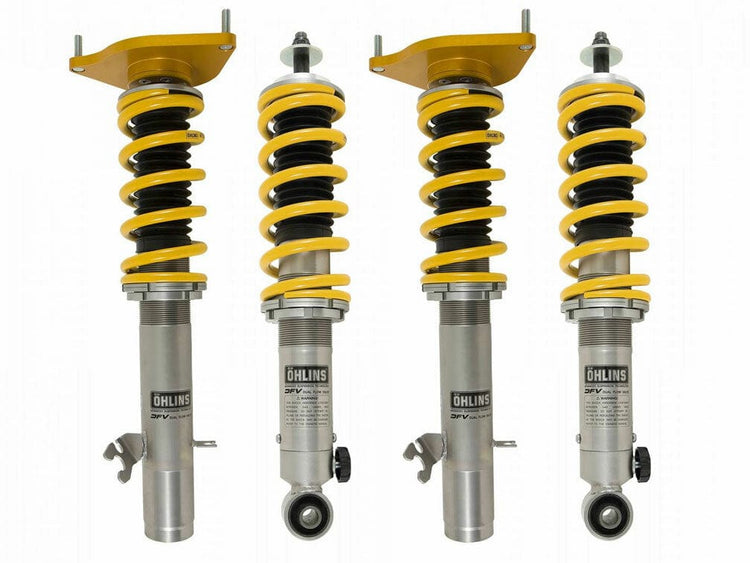

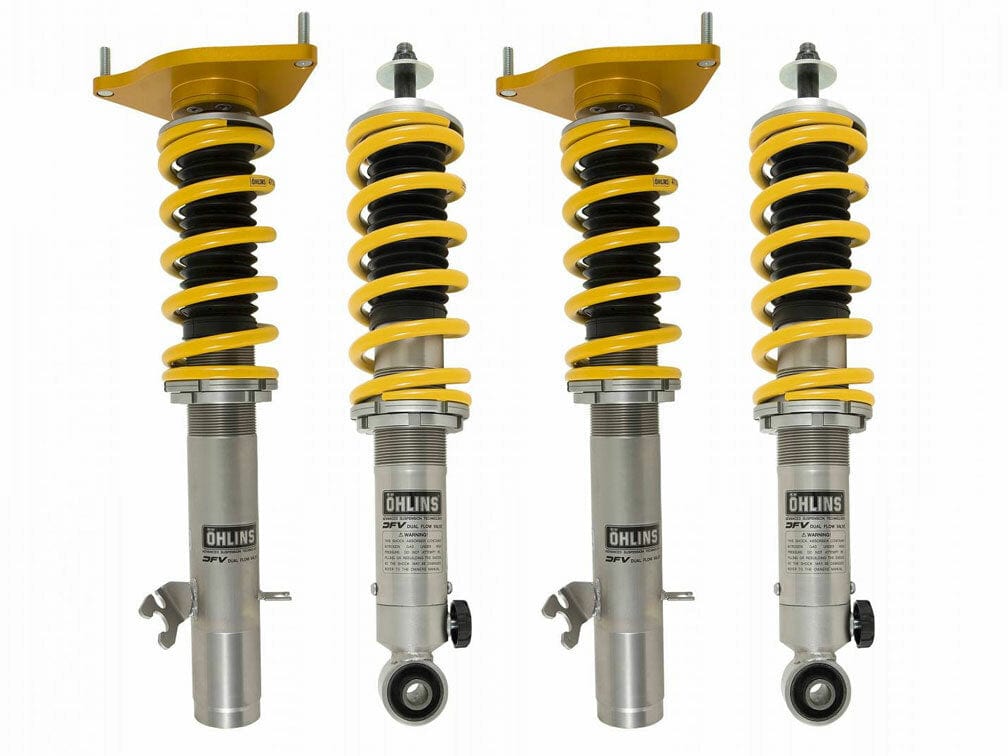

Ohlins Road & Track Coilovers for 2002-2006 Mini Cooper (R50/R53)

$ 2,390.00
Out of Stock

Check if this fits your vehicle

Select a Vehicle

Fits Your Vehicle

Change Vehicle

Does not fit your vehicle

Change Vehicle
Free Shipping
Orders $100+ ship for free in the USA.
Authorized Retailer
100% Authorized Direct Retailer
Low-Price Guarantee
Listed at the lowest price guaranteed.
0% APR Financing
Easy payment plans with Affirm and Shop Pay.

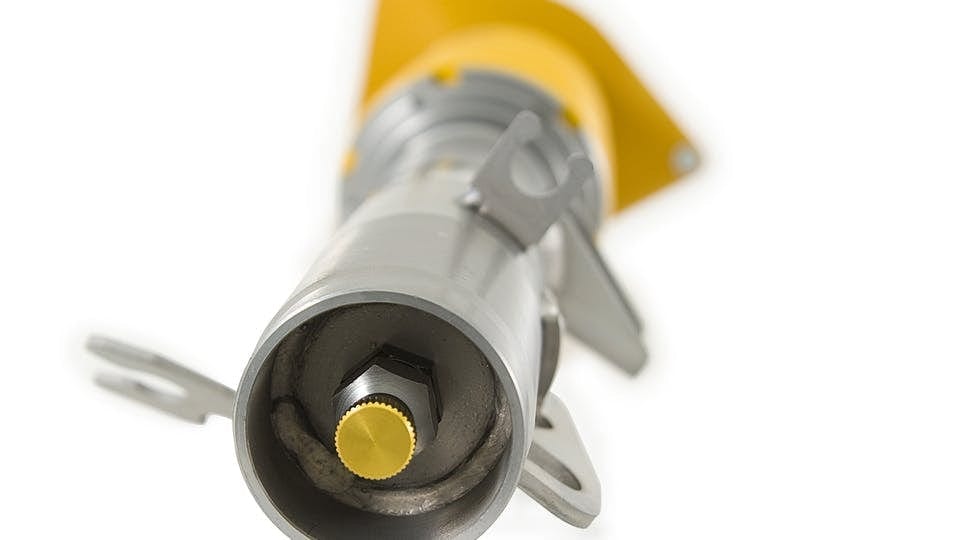

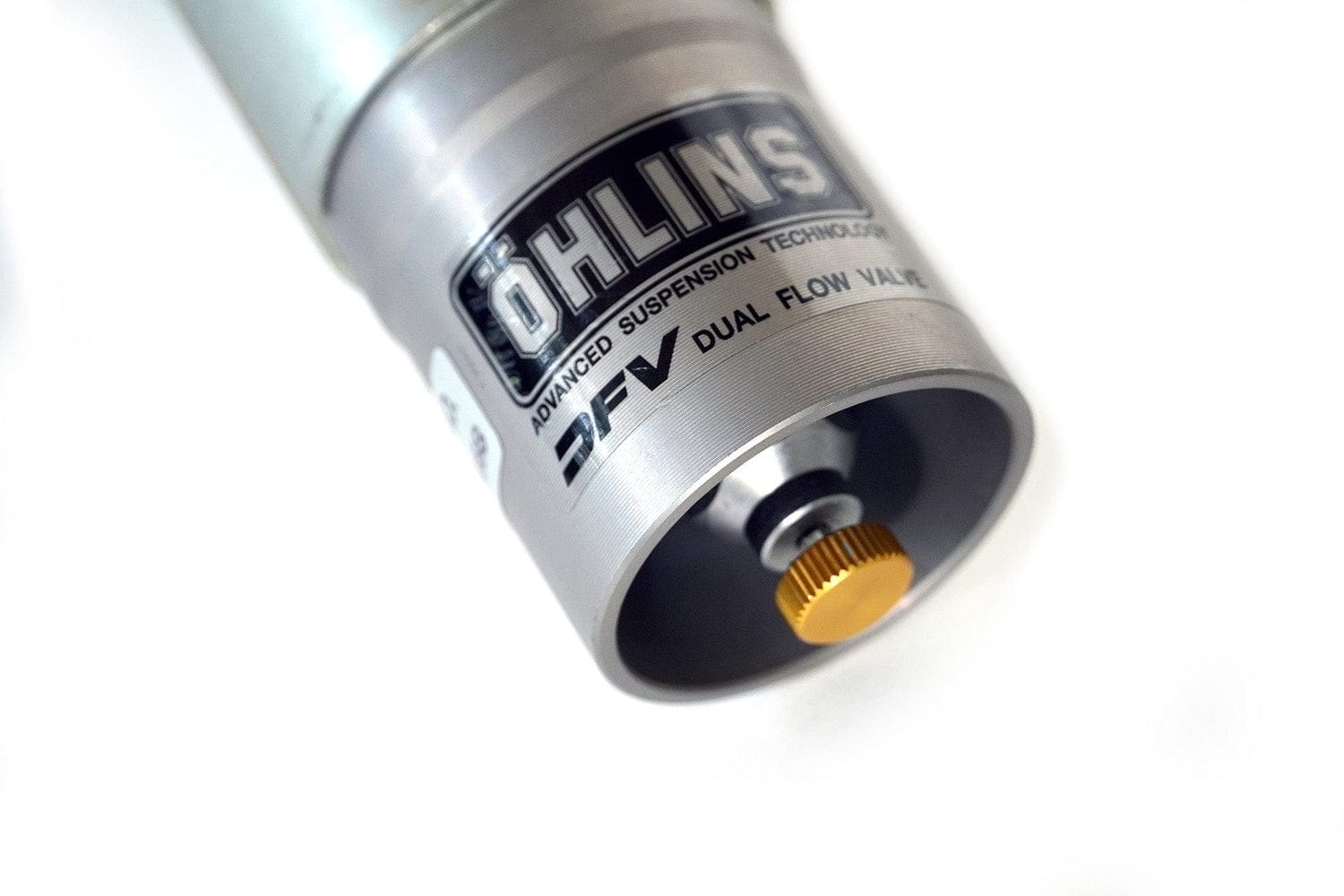

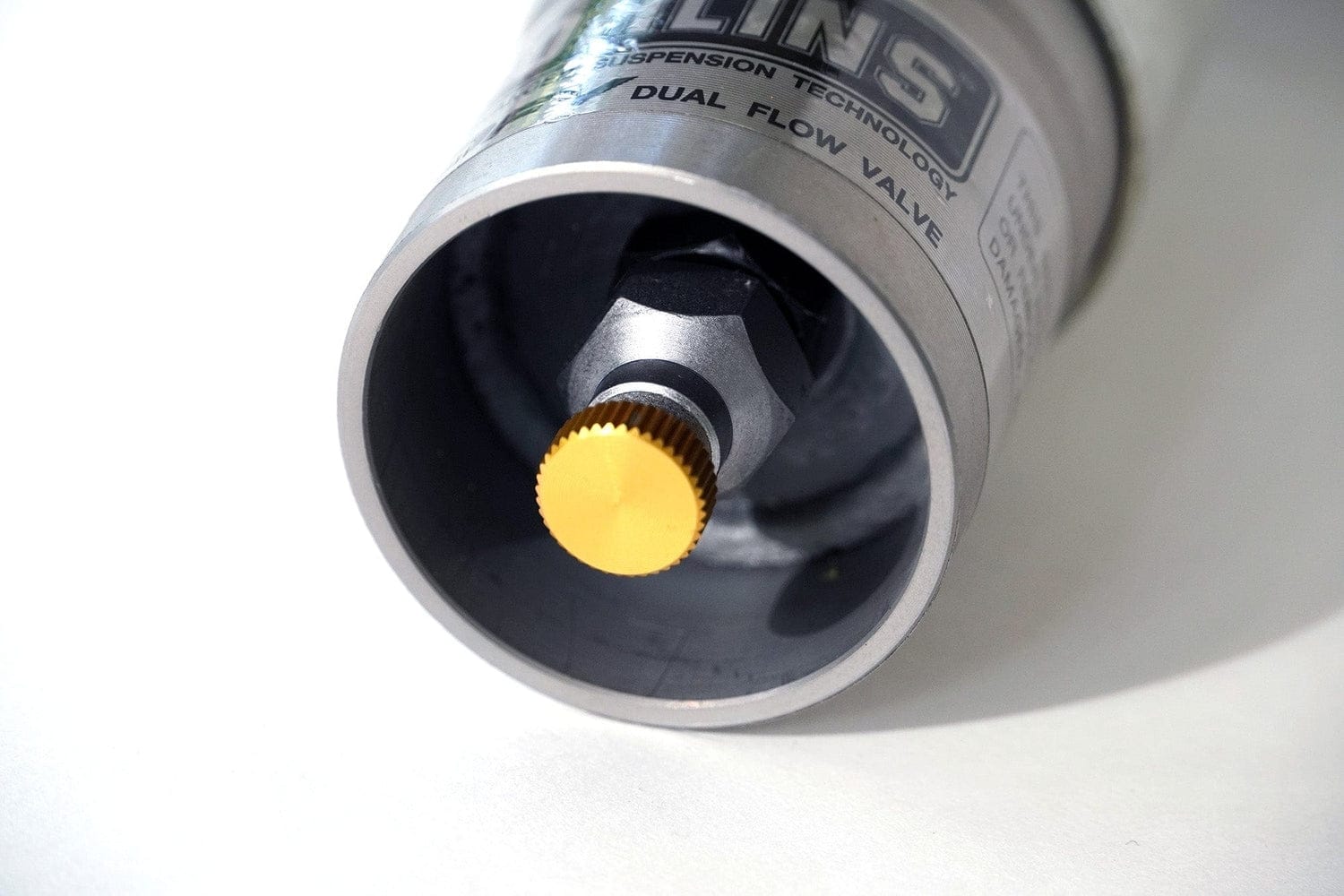

The Ohlins Road & Track 2002-2006 Mini Cooper R50/R53 coilovers give your vehicle a true racing experience without losing comfort when commuting to work. Our unique Dual Flow Valve (DFV) technology allows you to quickly change the stiffness of the shock absorber. When arriving to the racetrack, just turn the golden knob clockwise on the damper to set it in race mode this action changes all four areas in the damper; low and high speed compression and rebound damping.

With Ohlins Road & Track 2002-2006 Mini Cooper coilovers you will experience a car with blistering response times, improved bump absorption and a massive amount of grip to increase the safety when driving your car on the limit. The car will be easier to balance on the edge of what the tires can handle before losing grip. You will be much quicker on track. The DFV suspension prevents you from losing the racing line when hitting bumps or curbs. The DFV components within react quickly and keeps you in control of the car and in contact with the track. When driving to and from the track, just set the dampers in road mode for a more relaxed and comfortable drive, still with more grip and quicker response time than ever before.

Features

  • Ride-height adjustable
  • Matched compression and rebound hydrodynamics
  • Consistent high-tolerance reliability
  • Fully rebuildable
  • Includes all hardware and instructions for installation
  • DFV technology (Dual Flow Valve)
  • Corrosion salt spray tested (ISO 9227)
  • 2 year limited warranty
  • Set includes springs

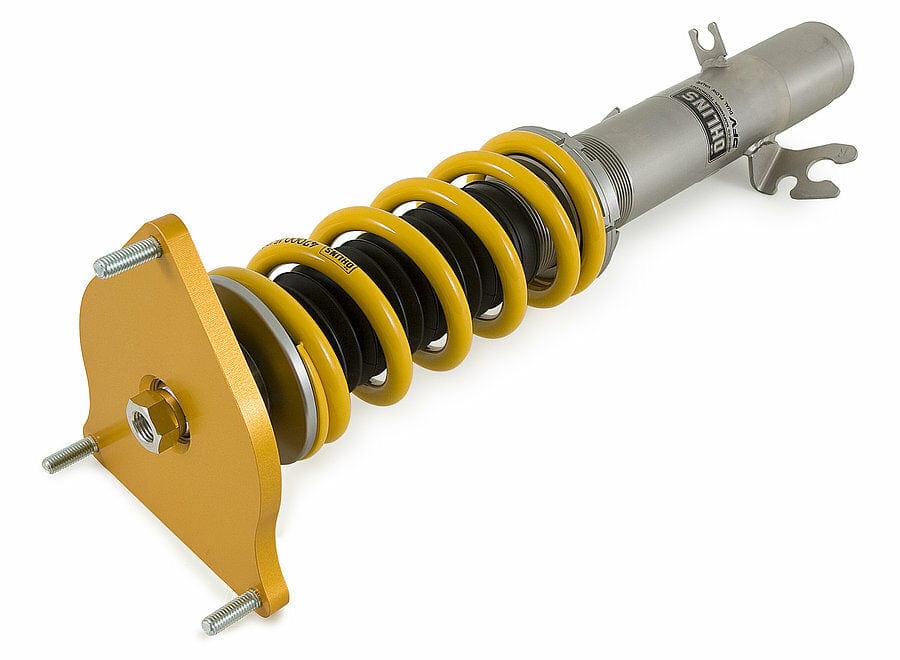

Features Front:

  • McPherson strut, upside down
  • Compression and rebound damping with one adjuster
  • Spring preload adjuster
  • Approx. 5 - 20 mm lower than standard with recommended setup
  • Spring rate 60 N/mm
  • Dust covers

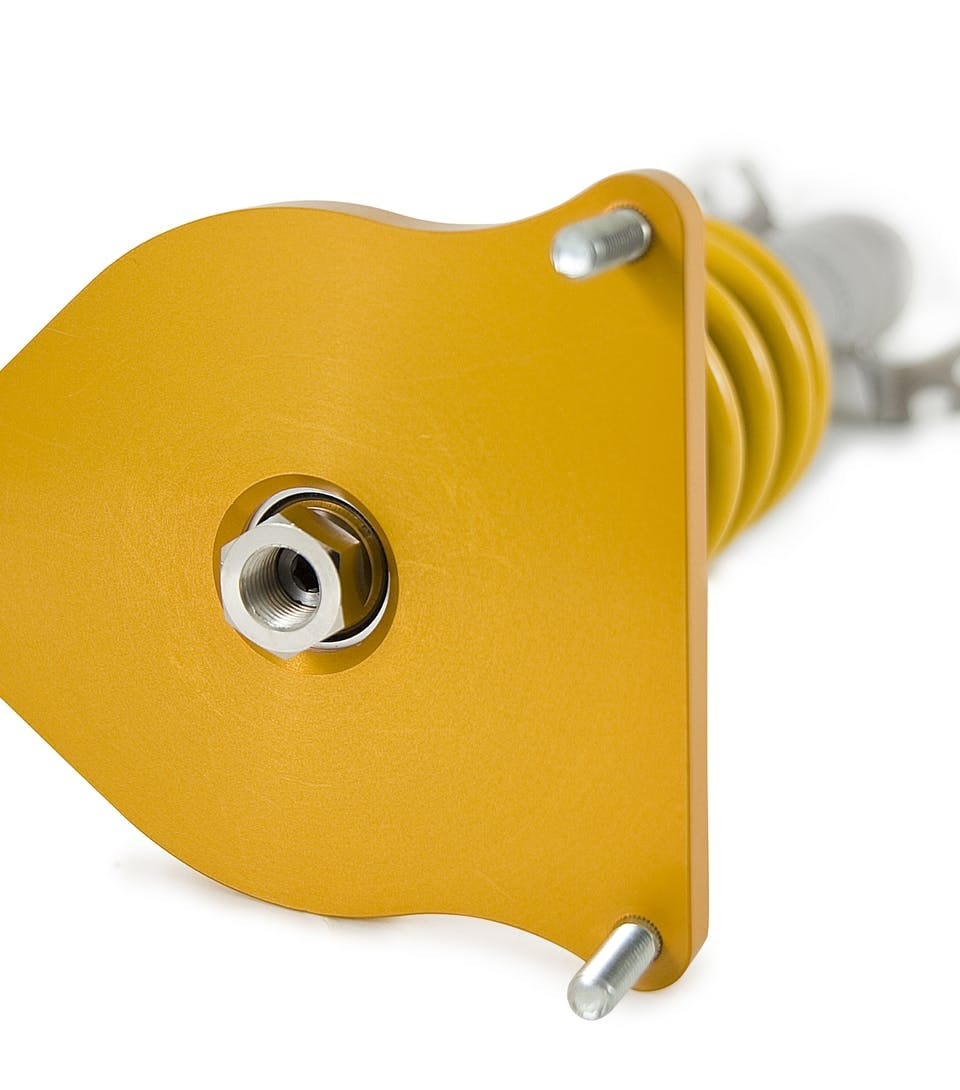

  • Aluminum top mounts (not adjustable)

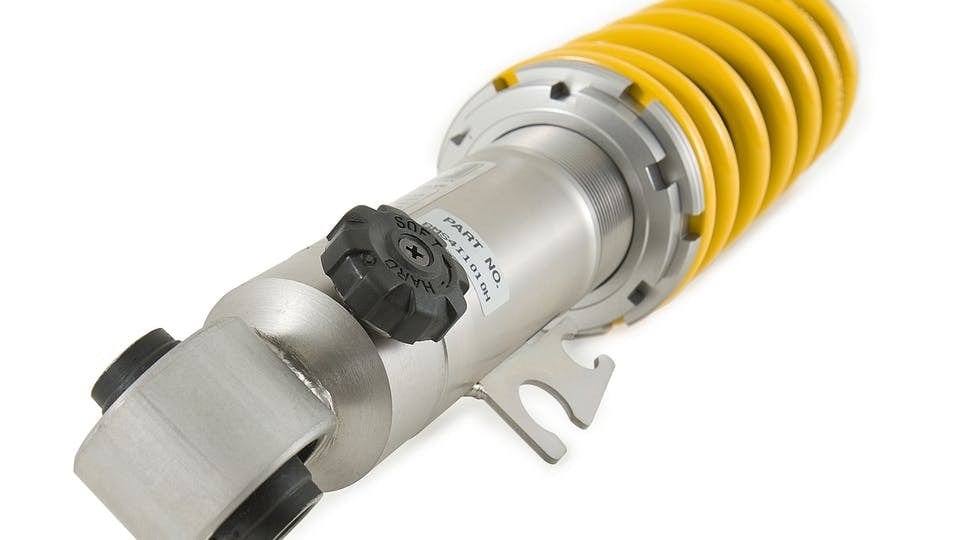

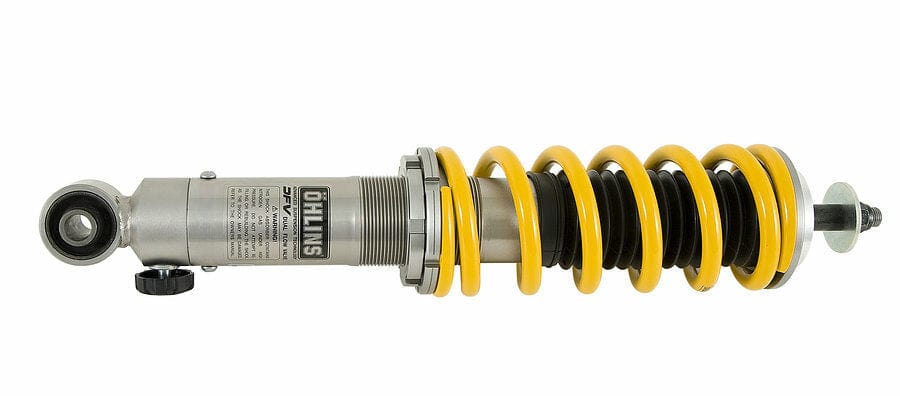

Features Rear:

  • Conventional Shock Absorber
  • Compression and rebound damping with one adjuster
  • Spring preload adjuster
  • Approx. 10 - 25 mm lower than standard with recommended setup
  • Spring rate 50 N/mm
  • Dust covers
  • Use with original top mounts

Kit Includes

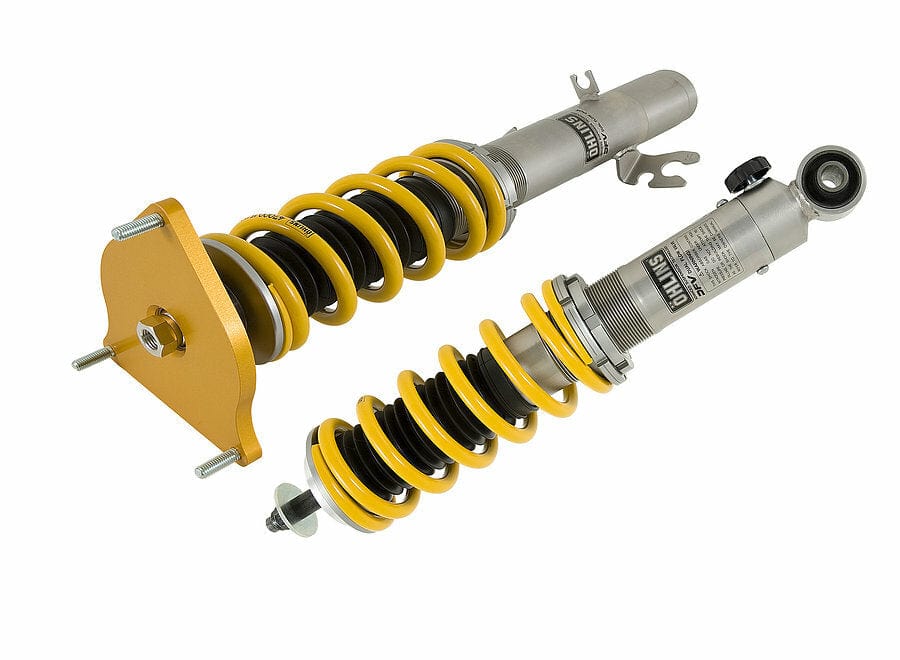

  • Mini Cooper R50/R53 Coilover kit incl. springs and mounting parts
  • C-Spanner (for spring preload adjustment)
  • Owners manual and mounting instruction
  • Sticker set

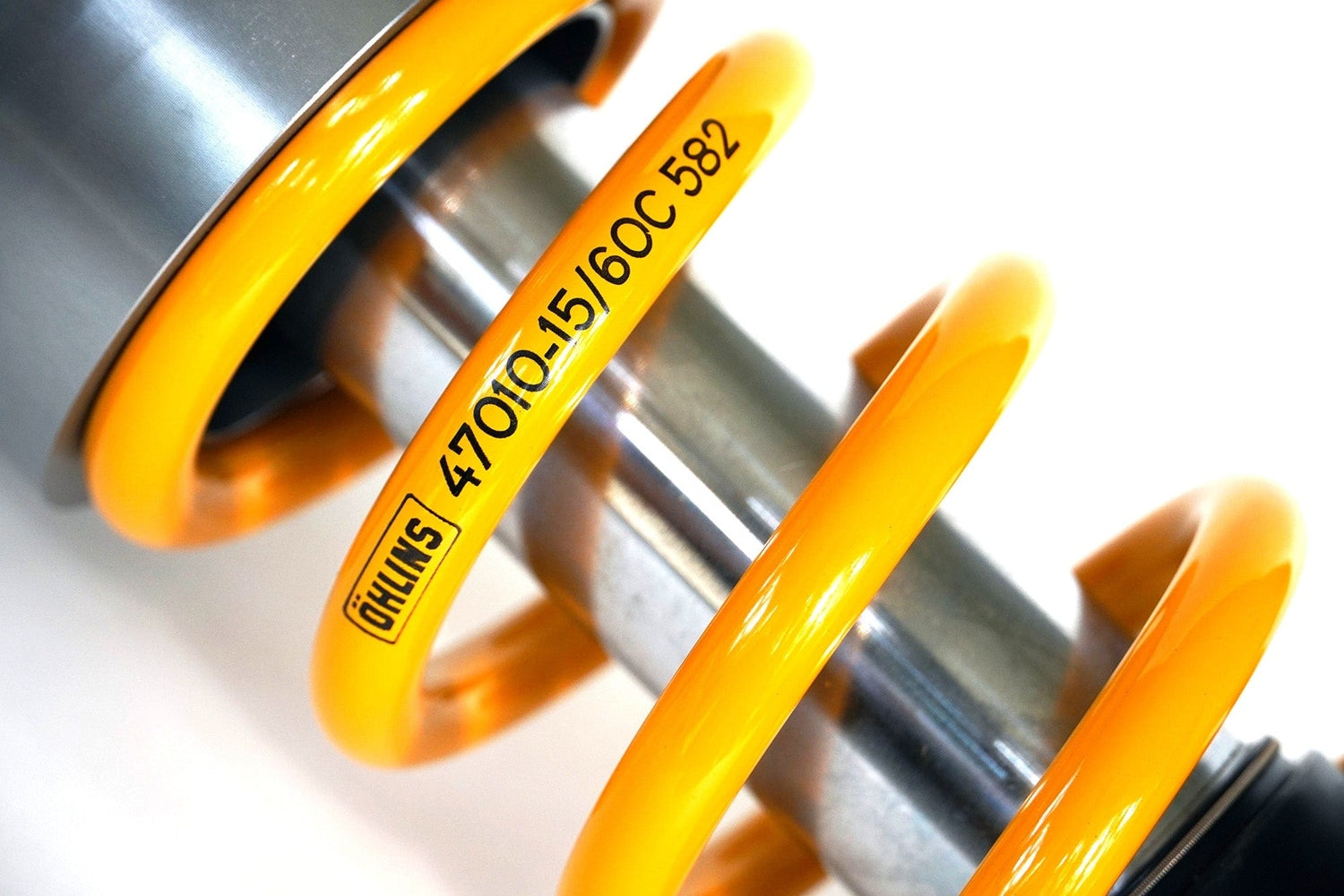

Spring Rates

  • Front: 60 N/mm // 343 lbs/in. // 6 k/mm
  • Rear: 50 N/mm // 286 lbs/in. // 5 k/mm

Documentation

  • 2002 Mini Cooper (R50/R53)
  • 2003 Mini Cooper (R50/R53)
  • 2004 Mini Cooper (R50/R53)
  • 2005 Mini Cooper (R50/R53)
  • 2006 Mini Cooper (R50/R53)

Additional Fitment Information

  • Part Number: BMS Mi10S1
  • All coilovers are for off road use only and may never be installed on vehicles that will be driven on a public road or highway, unless specified.
  • All coilovers are 2WD unless specified AWD.
  • Notes regarding electronic damping (EDC, DDS, etc.) pertain to vehicle fitment. Aftermarket coilovers DO NOT interface w/ OEM electronic damping control systems unless specified.
  • All fitment data on our website is provided by the manufacturer. It is the customer's responsibility to verify fitment prior to ordering and installation. Springrates it not responsible for fitment issues.
  • All prices and product data are subject to change without notice
