Product Details

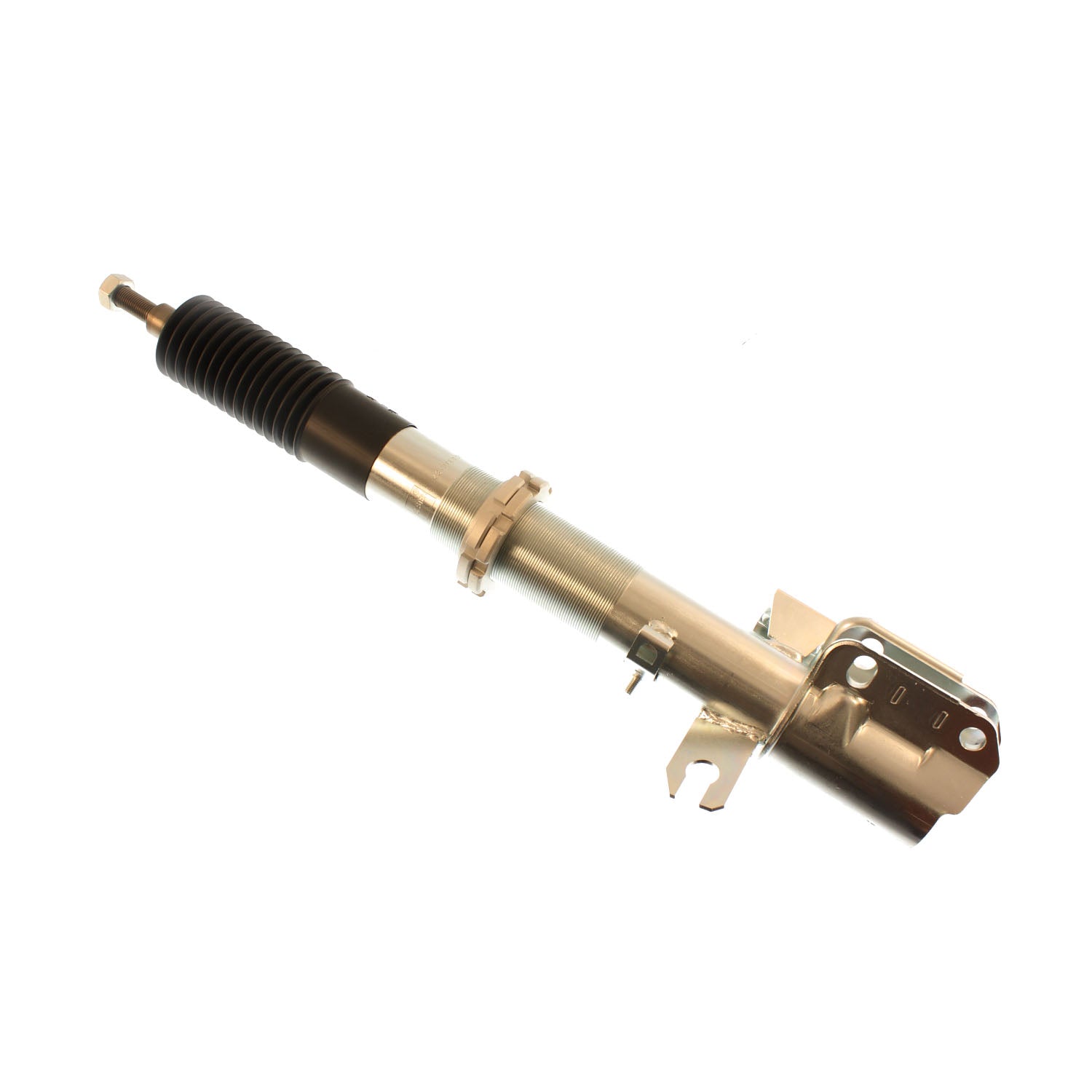

The Bilstein Bilstein strut assembly is specified by dimension rather than by vehicle, here at 16.61 in. collapsed. It is the part you reach for when the build does not match a catalog application and you need a damper sized to the car you actually have.
Built in Germany to the standard that made the name, and backed by Bilstein's limited lifetime warranty. Consistency is the point: a damper that behaves the same on the tenth lap as the first.
Features
- Monotube design ensures consistent, fade-free performance in all conditions
- Larger working piston with deflective disc valving
- Available in steel and aluminum bodies
Specifications
| Part Number | 35-593751 |
| Part Name | Strut Assembly |
| UPC | 651860501574 |
| Adjustable Damping | Non-Adjustable |
| Body Design | Threaded Body (Coilover) |
| Body Material | Steel |
| Boot Included | Black Bellows |
| Collapsed Length | 16.61 in. (422mm) |
| Compression @ 0.26m/s | 1440 |
| Extended Length | 20.53 in. (521.5mm) |
| Finish | Zinc Plated |
| Internal Design | Monotube |
| Lower Mount Type | Bracket |
| Piston Diameter | 46mm |
| Piston Type | Digressive |
| Vehicle Placement | Front |
| Rebound @ 0.26m/s | 5370 |
| Segment | Motorsports |
| Series | Motorsports |
| Shaft Diameter | 11mm |
| Spring Seat Included | Yes |
| Stroke/Travel Length | 3.92 in. (99.6mm) |
| Upper Mount Type | Stem |
