Moton Suspension

SKU: M 526 002

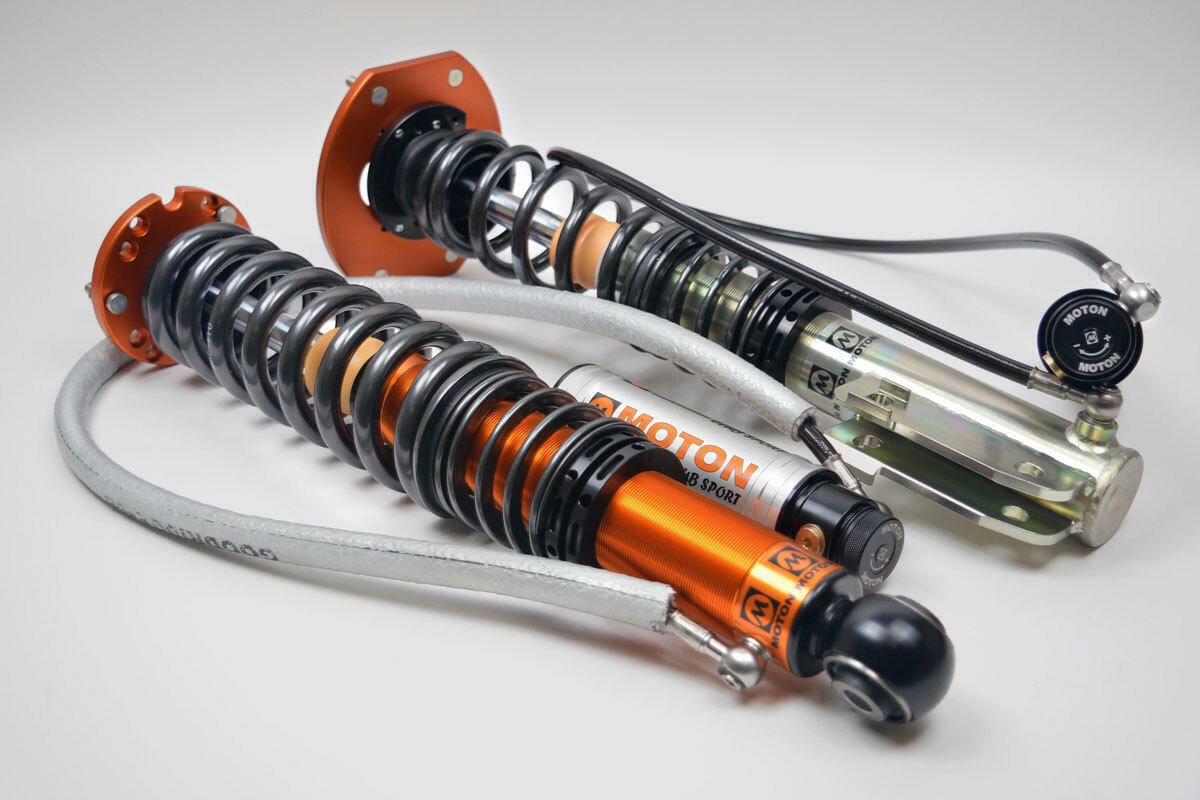

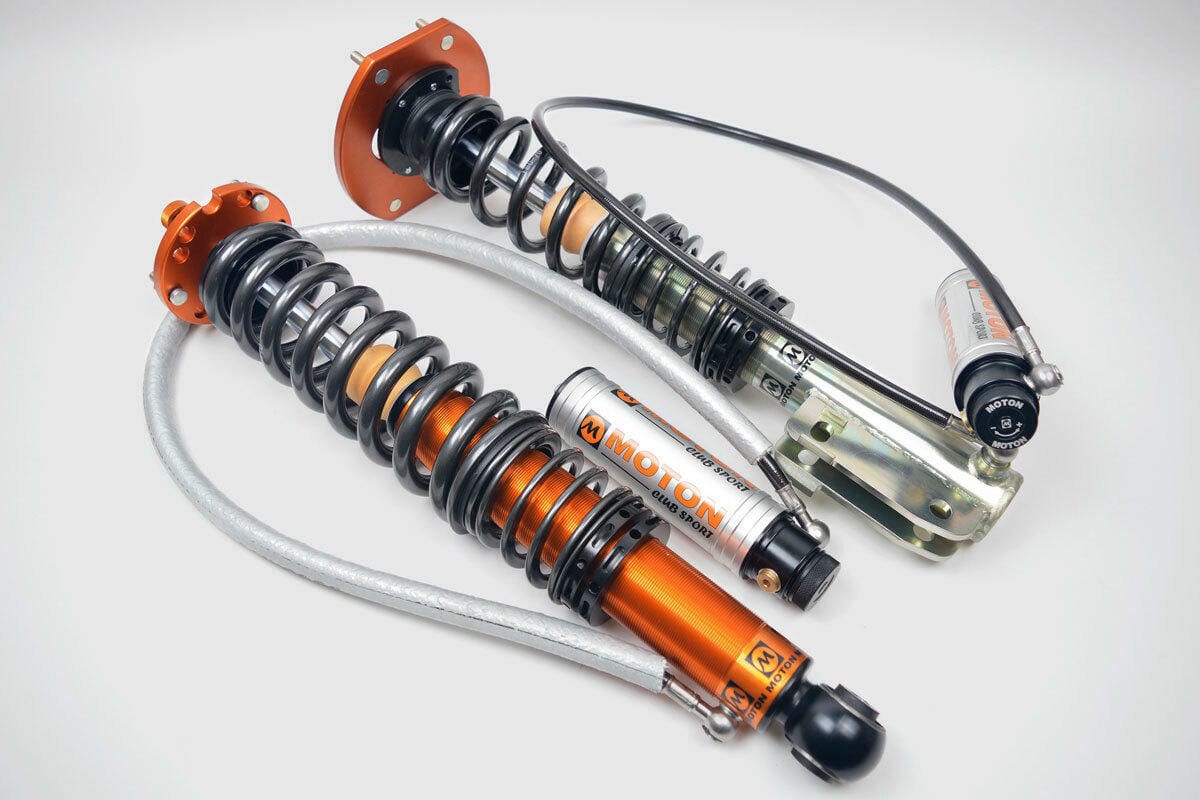

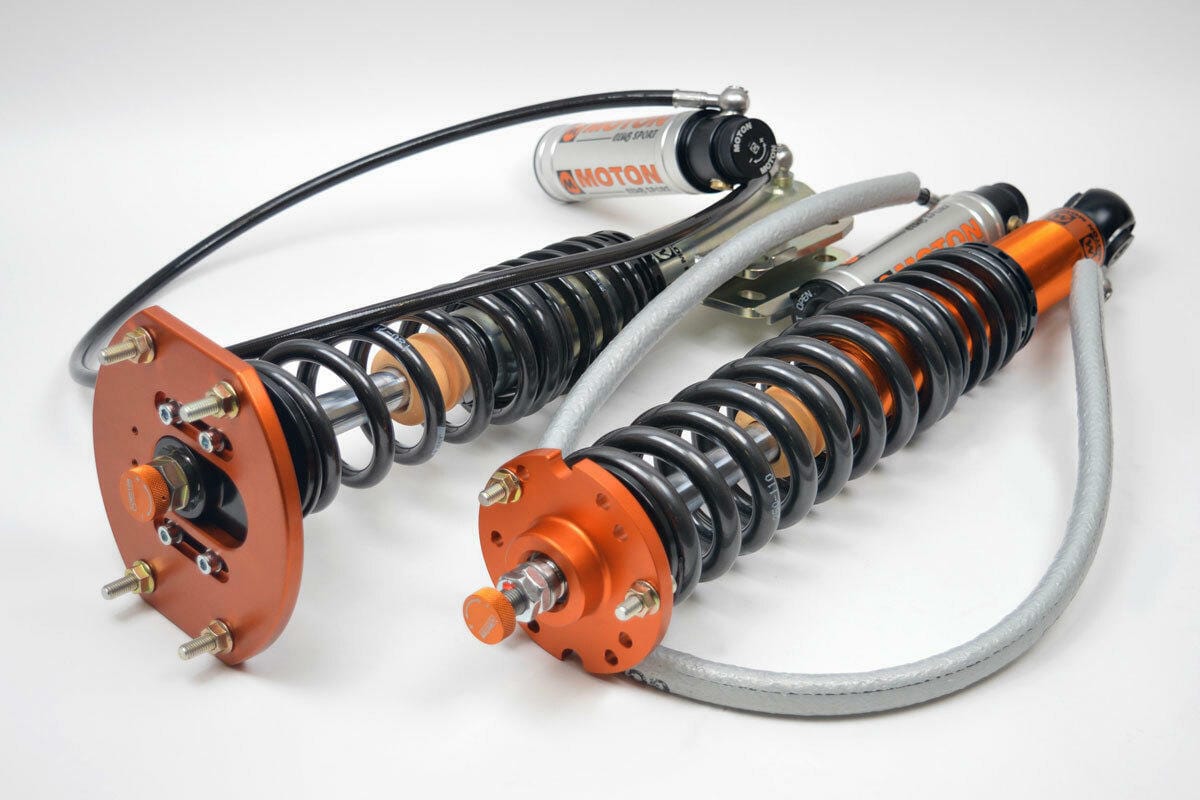

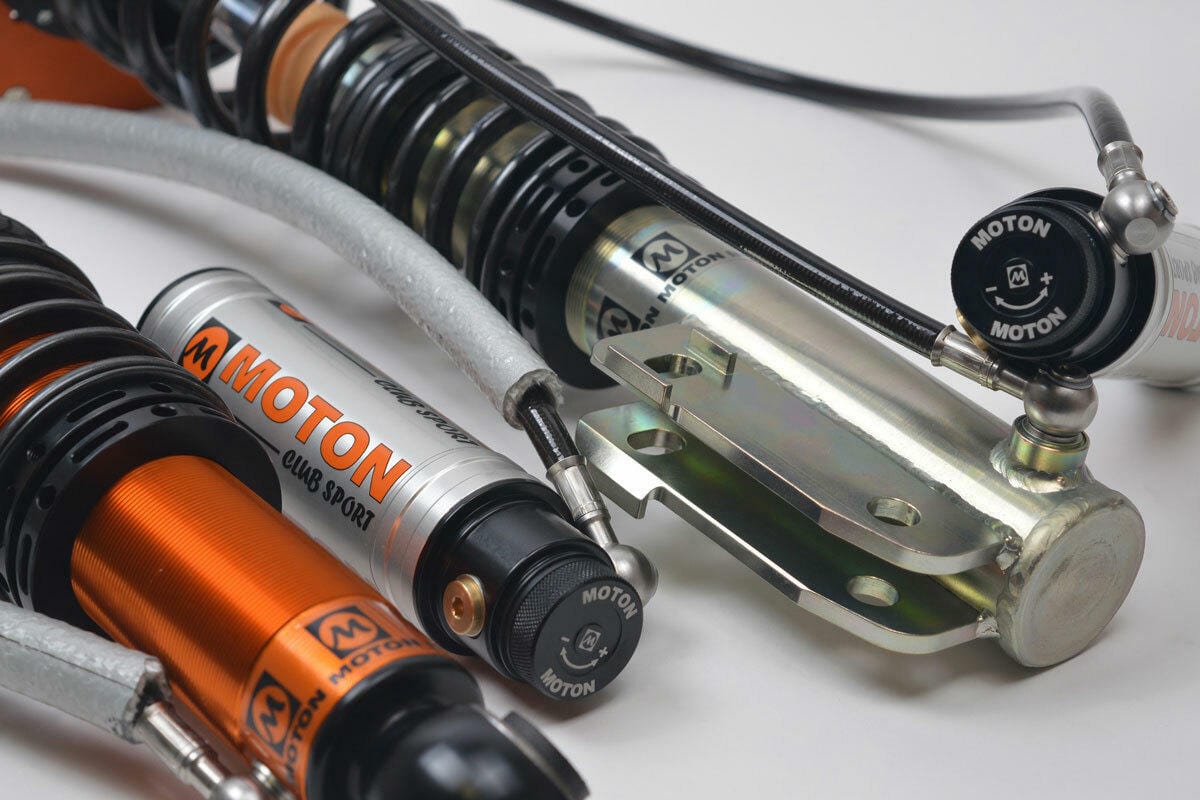

Moton Suspension 2 Way Sport Coilovers (True Coilover) - 2007-2015 Mitsubishi Lancer Evolution EVO 10 2.0

$7,399.00
Out of Stock
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Check if this fits your vehicle

Select a Vehicle
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Fits your vehicle

Change Vehicle
Fitment confirmation is based on the vehicle's year, make, and model only. Please verify fitment by reviewing full product description which may include notes and more specific information.

Does not fit your vehicle

Change Vehicle

Authorized Retailer
100% Authorized Retailer.
Free Shipping
Orders $250+ ship for free.*
Best Price Guarantee
Lowest price on all products.
0% APR Financing
Buy now, pay later.

The Moton 2 Way Sport line for the 2007-2015 Mitsubishi Lancer Evolution is designed for the serious club racer and high performance street driver.

Featuring remote reservoirs for superior fluid temperature control, quick release hydraulic lines (on most models) for easy installation, separate compression and rebound damper valving adjustment and height adjustable spring perches, this kit is beyond the more common coil-over systems on the market.

If your driving can benefit from the ultimate in suspension tuning, then this kit is for you.

Benefits

  • Easy to adjust to a real race setup
  • Easy to work with
  • Minor adjustments are very noticeable to the driver
  • Proven reliability
  • Wide range of springs can be used
  • Shafts are induction hardened and chrome plated
  • Top camber mounts supplied where possible/available
  • Improved platform stability
  • Improved traction, higher grip level
  • Improved rumble strip and bumpy track control
  • Rebuildable/Revalveable

Features

  • Separate Bump (15) and rebound (15) control
  • Ride height adjustable
  • Unique blow off valve system in remote reservoirs
  • Large piston rod diameter for more fluid displacement
  • Adjustable gas pressure for added lifting force
  • Canister pressure can be varied between 6-16 BAR (100-300 psi)
  • Variable canister pressure helps support the car in high speed cornering with soft springs
  • Large main piston for quick response
  • No pre-loaded valve stacks needed for low speed damping control
  • Swivel banjo hoses for easy installation of remote reservoirs
  • DDP (double digressive pistons) are available as an option
    • Double Digressive Pistons are recommended for use on the non-driven wheels
    • 4WD/FWD vehicles: DDP for both rear axle struts/shocks
    • RWD vehicles: DDP for both front axle struts/shocks
  • Part Number: M 526 002
  • Product: MOTON 2 Way Sport (True Coilover)
  • System: Steel front, CO rear
  • Model Years: 2007-2015
  • Make: Mitsubishi
  • Model: Lancer Evolution
  • Chassis:
  • Vehicle Note: Sedan
  • Coil Springs: Included
  • Top Mounts: Front/Rear Top Mounts Included
  • Front Top Mounts: Camber Adjustable
  • Rear Top Mounts: Solid - No camber adjustment
  • Adjustable Droplinks Needed? No
  • Adjustable Droplinks Available? No
  • DDP Pistons Included? No
  • DDP Pistons Available? Yes
  • QDC Included? No (Front and Rear Optional)
  • QDC Part Number: 16HS-DB-AS-001
  • TUV Approved?
  • Comments:
  • 2007 Mitsubishi Lancer Evolution EVO 10 2.0
  • 2008 Mitsubishi Lancer Evolution EVO 10 2.0
  • 2009 Mitsubishi Lancer Evolution EVO 10 2.0
  • 2010 Mitsubishi Lancer Evolution EVO 10 2.0
  • 2011 Mitsubishi Lancer Evolution EVO 10 2.0
  • 2012 Mitsubishi Lancer Evolution EVO 10 2.0
  • 2013 Mitsubishi Lancer Evolution EVO 10 2.0
  • 2014 Mitsubishi Lancer Evolution EVO 10 2.0
  • 2015 Mitsubishi Lancer Evolution EVO 10 2.0

All fitment information on our website is provided by the manufacturer. It is the customer's responsibility to thoroughly read the product description and confirm fitment before placing an order and proceeding with installation.

Unless specified otherwise, all suspension products are designed for 2WD vehicles only. Any notes or descriptions related to electronic damping systems (EDC, DDS, etc.) apply strictly to vehicle fitment. Aftermarket coilovers are not compatible with OEM electronic damping control systems unless explicitly stated.
