Product Details

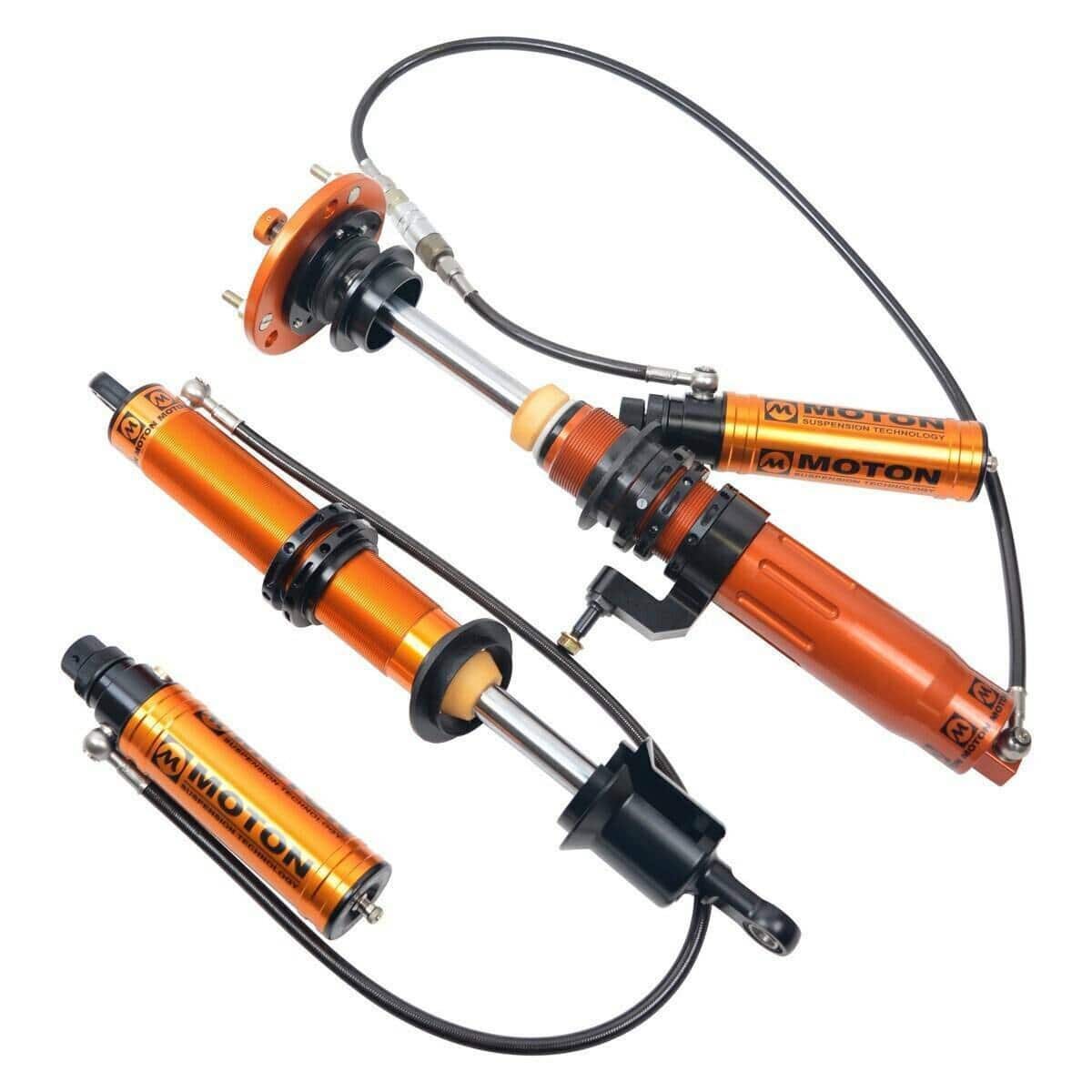

The Moton 3 Way Motorsport suspension for the 2023-2026 Toyota GR Corolla (GZEA14) is designed for the professional racer.

Remote reservoirs control fluid temperature, quick release hydraulic lines (on most models) make installation easier, and separate compression and rebound valving with height adjustable spring perches give you the ultimate in suspension tuning.

Features

  • Separate high speed bump (15 positions), low speed bump (6 positions) and rebound (15 positions) adjustments
  • Unique blow off valve system in canister to totally control curb stones and bumpy track conditions
  • Large piston rod diameter for more fluid displacement
  • Adjustable gas pressure for added lifting force
  • Large main piston for quick response
  • No preloaded valve stacks needed for low speed damping control
  • Swivel banjo hoses for easy installation of remote reservoirs
  • DDP (double digressive pistons) are available as an option
  • Improved platform stability
  • Improved traction, higher grip level
  • Improved curb stone and bumpy track control
  • Improved tire wear over the complete race distance
  • Easy to adjust and work with
  • Every single adjustment done is very noticeable to the driver
  • Proven reliability
  • Rebuildable/Revalveable
Specifications
Part Number M 515 021SD
Part Name Moton 3 Way Motorsport Coilovers
Vehicle 2023-2026 Toyota GR Corolla
Placement Front & Rear
Chassis Code GZEA14
Drivetrain AWD
Damping Adjustment 3-Way
Ride-Height Adjustable Yes
Notes
  • Moton adjustable droplink part numbers: front DLA-10-258-276.
  • Coil springs are included.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2023ToyotaGR CorollaAWD
2024ToyotaGR CorollaAWD
2025ToyotaGR CorollaAWD
2026ToyotaGR CorollaAWD
